响应面试验优化柿子皮多糖铬的制备工艺研究

doi:10.3976/j.issn.1002-4026.20230088

Abstract

Abstract:

In this study, the hot water extraction method was utilized to extract polysaccharides from persimmon peel, and the persimmon peel polysaccharides were combined with trivalent chromium ions to prepare persimmon peel polysaccharide chromium. Considering the adsorption rate of chromium as the index, the adsorption process of persimmon peel polysaccharide chromium was optimized using single factor and response surface methodology. The results showed that the optimal preparation process of persimmon peel polysaccharide chromium consisted of the following steps, such as the mass ratio of persimmon peel polysaccharides to chromium chloride was set at 6.7∶1; the reaction time was 150 min; the temperature was set at 82 ℃; and the pH of the adsorption liquid was fixed at 5. Under these conditions, the maximum adsorption rate reached 92.81%. Therefore, this study has shown that persimmon peel polysaccharides can efficiently bind trivalent chromium ions, which can further provide technical support for the development of green pollution-free heavy-adsorption chromium adsorbents or animal nutritional supplements.

Key words: persimmon peel, polysaccharide, chromium adsorption rate, response surface methodology

CLC Number:

TS201.4

MIAO Xuzhong, LI Xiufen, GAO Yanyan, ZHANG Xue, ZHANG Xiqing, QIAO Luqin. Optimization of preparation of persimmon peel polysaccharide chromium using response surface methodology[J].Shandong Science, 2024, 37(2): 127-134.

Figures/Tables 4

Table 1

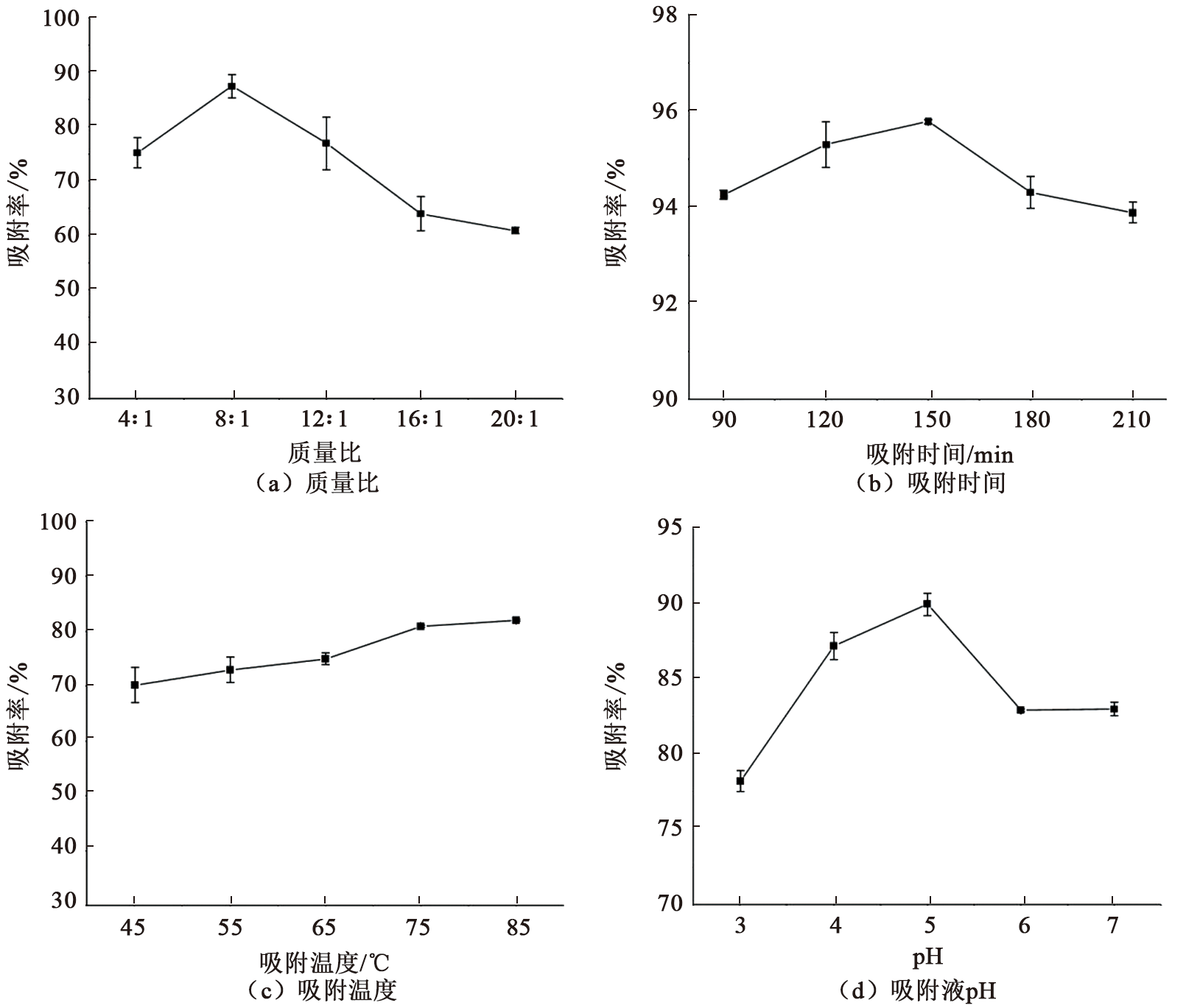

Fig.1

Table 2

Variance analysis of regression model"

来源	平方和		自由度	均方	F值	P值	差异性
模型	3 786.16		14	270.44	58.08	<0.000 1	显著
A	840.68		1	840.68	180.54	<0.000 1	**
B	1.59		1	1.59	0.34	0.568 1
C	214.63		1	214.63	46.09	<0.000 1	**
D	723.54		1	723.54	155.38	<0.000 1	**
AB	19.76		1	19.76	4.24	0.058 5
AC	4.75		1	4.75	1.02	0.329 5
AD	134.91		1	134.91	28.97	<0.000 1	**
BC	1.89		1	1.89	0.41	0.534 3
BD	4.06		1	4.06	0.87	0.366 2
CD	4.88		1	4.88	1.05	0.323 1
A²	610.67		1	610.67	131.14	<0.000 1	**
B²	255.74		1	255.74	54.92	<0.000 1	**
C²	57.09		1	57.09	12.26	0.003 5	**
D²	1 469.76		1	1 469.76	315.63	<0.000 1	**
残差	65.19		14	4.66
失拟项	60.25		10	6.02	4.87	0.070 3	不显著
绝对误差	4.95		4	1.24
总和	3 851.35		28
		R²=0.983 1 $R A d j 2$ =0.966 1

Table 2

Fig.2

References 29

[1]	ZHANG Y Y, LUO J X, ZHU T T, et al. Dietary chromium could improve growth, antioxidant capacity, chromium accumulation in tissues and expression of genes involved into glucose and lipid metabolism in juvenile mud crab Scylla paramamosain[J]. Aquaculture Reports, 2022, 23: 101088. DOI: 10.1016/j.aqrep.2022.101088.
[2]	徐国豪, 刘英豪, 常明慧, 等. 土壤外源铬的作物毒性响应及富集差异研究[J]. 农业环境科学学报, 2023, 42(2): 284-290. DOI: 10.11654/jaes.2022-0659.
[3]	KUMAR V, PARIHAR R D, SHARMA A, et al. Global evaluation of heavy metal content in surface water bodies: a meta-analysis using heavy metal pollution indices and multivariate statistical analyses[J]. Chemosphere, 2019, 236: 124364. DOI: 10.1016/j.chemosphere.2019.124364.
[4]	黄志伟, 李文静, 李伟杰, 等. 东江流域土壤重金属污染特征及潜在风险评价[J]. 农业环境科学学报, 2022, 41(3): 504-515. DOI: 10.11654/jaes.2021-1291.
[5]	李莹, 李家科, 解伟峰, 等. 黄河流域沉积物重金属污染评估及源解析[J]. 环境科学与技术, 2022, 45(7): 96-104. DOI: 10.19672/j.cnki.1003-6504.0145.22.338.
[6]	CHAI W S, CHEUN J Y, KUMAR P S, et al. A review on conventional and novel materials towards heavy metal adsorption in wastewater treatment application[J]. Journal of Cleaner Production, 2021, 296: 126589. DOI: 10.1016/j.jclepro.2021.126589.
[7]	GUAN X Y, CHEN Y, FAN H J. Stepwise deprotonation of magnetite-supported Gallic acid modulates oxidation state and adsorption-assisted translocation of hexavalent chromium[J]. ACS Applied Materials & Interfaces, 2017, 9(18): 15525-15532. DOI: 10.1021/acsami.7b03061.
[8]	WANG W, NI J M, CHEN L C, et al. Synthesis of carboxymethyl cellulose-chitosan-montmorillonite nanosheets composite hydrogel for dye effluent remediation[J]. International Journal of Biological Macromolecules, 2020, 165: 1-10. DOI: 10.1016/j.ijbiomac.2020.09.154. pmid: 32987069
[9]	LIU G J, CUI CC, JIANG L, et al. Visible light-induced hydrogels towards reversible adsorption and desorption based on trivalent chromium in aqueous solution[J]. Reactive and Functional Polymers, 2021, 163: 104886. DOI: 10.1016/j.reactfunctpolym.2021.104886.
[10]	JIANG C L, WANG X H, HOU B X, et al. Construction of a lignosulfonate-lysine hydrogel for the adsorption of heavy metal ions[J]. Journal of Agricultural and Food Chemistry, 2020, 68(10): 3050-3060. DOI: 10.1021/acs.jafc.9b07540. pmid: 32069040
[11]	GUAN X Y, ZHANG B Y, LI D P, et al. Remediation and resource utilization of chromium(III)-containing tannery effluent based on chitosan-sodium alginate hydrogel[J]. Carbohydrate Polymers, 2022, 284: 119179. DOI: 10.1016/j.carbpol.2022.119179.
[12]	YE H F, LUO L, WANG J, et al. Highlygalloylated and A-type prodelphinidins and procyanidins in persimmon (Diospyros kaki L.) peel[J]. Food Chemistry, 2022, 378: 131972. DOI: 10.1016/j.foodchem.2021.131972.
[13]	CUI Y L, CHEN Y J, WANG S, et al. Purification, structural characterization and antioxidant activities of two neutral polysaccharides from persimmon peel[J]. International Journal of Biological Macromolecules, 2023, 225: 241-254. DOI: 10.1016/j.ijbiomac.2022.10.257.
[14]	修伟业, 王鑫, 李雨蒙, 等. 甜玉米芯多糖铬配合物的制备、结构表征及体外活性的研究[J]. 食品工业科技, 2023, 44(13): 186-196. DOI: 10.13386/j.issn1002-0306.2022080338.
[15]	李燕平, 李宇翔. 一种山药多糖与铬络合的方法及表征分析[J]. 海峡药学, 2022, 34(7): 5-8. DOI: 10.3969/j.issn.1006-3765.2022.07.002.
[16]	张雯, 张禧庆, 董淑君, 等. 南瓜皮多糖铬的制备与体外消化的分析[J]. 食品工业科技, 2022, 43(17): 223-229. DOI: 10.13386/j.issn1002-0306.2021110329.
[17]	张聪. 苦瓜多糖铬络合物制备及其降血糖活性研究[D]. 沈阳: 沈阳农业大学, 2019.
[18]	秦月. 虎眼万年青多糖及其铬复合物降血糖作用的研究[D]. 哈尔滨: 黑龙江中医药大学, 2018.
[19]	尹红力, 王振宇, 梁薇薇, 等. 响应面法优化黑木耳多糖与三价铬螯合工艺[J]. 安徽农业科学, 2014, 42(15): 4830-4833. DOI: 10.13989/j.cnki.0517-6611.2014.15.082.
[20]	邓毅, 尹龙萍, 赵爱华, 等. 黄芪多糖铬络合物的合成及其降血糖活性的初步研究[J]. 食品科学, 2007, 28(6): 317-320. DOI: 10.3321/j.issn:1002-6630.2007.06.077.
[21]	张磊, 曹毓, 彭龙玲, 等. 海藻多糖铬络合物降糖作用的实验研究[J]. 四川生理科学杂志, 2002(02): 69-71. DOI: 10.3969/j.issn.1671-3885.2002.02.008.
[22]	孔倩, 周婷, 武改兰, 等. 南瓜水溶性多糖的制备及硫酸酯化初步研究[J]. 食品科学, 2009, 30(16): 73-77. DOI: 10.3321/j.issn:1002-6630.2009.16.010.
[23]	ZHANG W, LI L Y, MA Y, et al. Structural characterization and hypoglycemic activity of a novel pumpkin peel polysaccharide-chromium(III) complex[J]. Foods, 2022, 11(13): 1821. DOI: 10.3390/foods11131821.
[24]	LI L, XU J X, CAO Y J, et al. Preparation of Ganoderma lucidum polysaccharide chromium (III) complex and its hypoglycemic and hypolipidemic activities in high-fat and high-fructose diet-induced pre-diabetic mice[J]. International Journal of Biological Macromolecules, 2019, 140: 782-793. DOI: 10.1016/j.ijbiomac.2019.08.072.
[25]	CHI Y Z, LI Y P, ZHANG G L, et al. Effect of extraction techniques on properties of polysaccharides from Enteromorpha prolifera and their applicability in iron chelation[J]. Carbohydrate Polymers, 2018, 181: 616-623. DOI: 10.1016/j.carbpol.2017.11.104.
[26]	BAI X Y, QIU Z C, ZHENG Z J, et al. Preparation and characterization of garlic polysaccharide-Zn (II) complexes and their bioactivities as a zinc supplement in Zn-deficient mice[J]. Food Chemistry: X, 2022, 15: 100361. DOI: 10.1016/j.fochx.2022.100361.
[27]	LU Q, XU L, MENG Y B, et al. Preparation and characterization of a novel Astragalus membranaceus polysaccharide-iron (III) complex[J]. International Journal of Biological Macromolecules, 2016, 93: 208-216. DOI: 10.1016/j.ijbiomac.2016.08.049.
[28]	CHAN T H, CHEN P T, CHANG H H, et al. Autocatalytic reaction in hydrolysis of difructose anhydride III[J]. The Journal of Physical Chemistry A, 2011, 115(37): 10309-10314. DOI: 10.1021/jp206494r.
[29]	吕侠影, 姜绍通, 余振宇, 等. 苦丁-荔枝复合饮料的研制[J]. 食品工业科技, 2015, 36(13): 225-228. DOI: 10.13386/j.issn1002-0306.2015.13.039.

水平	A(质量比)	B(时间/min)	C(温度/℃)	D(pH)
-1	4:1	120	65	4
0	8:1	150	75	5
1	12:1	180	85	6

Optimization of preparation of persimmon peel polysaccharide chromium using response surface methodology
