基于超高效液相色谱-飞行时间质谱联用技术结合网络药理学探讨干姜和炮姜“温中散寒”功效差异机制

doi:10.3976/j.issn.1002-4026.2025015

Abstract

Abstract:

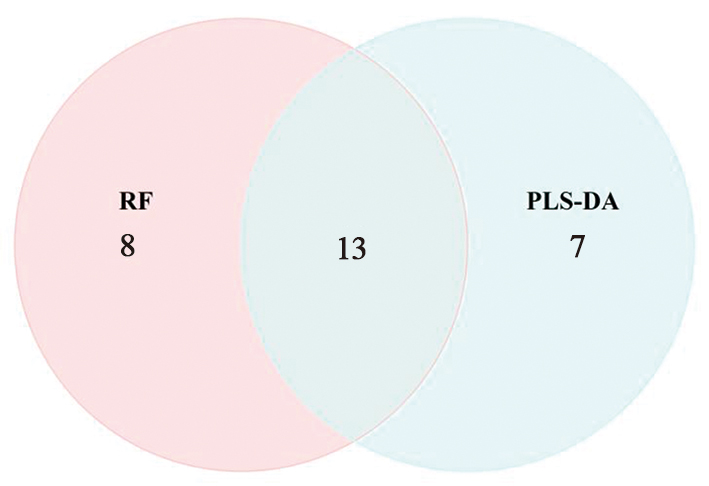

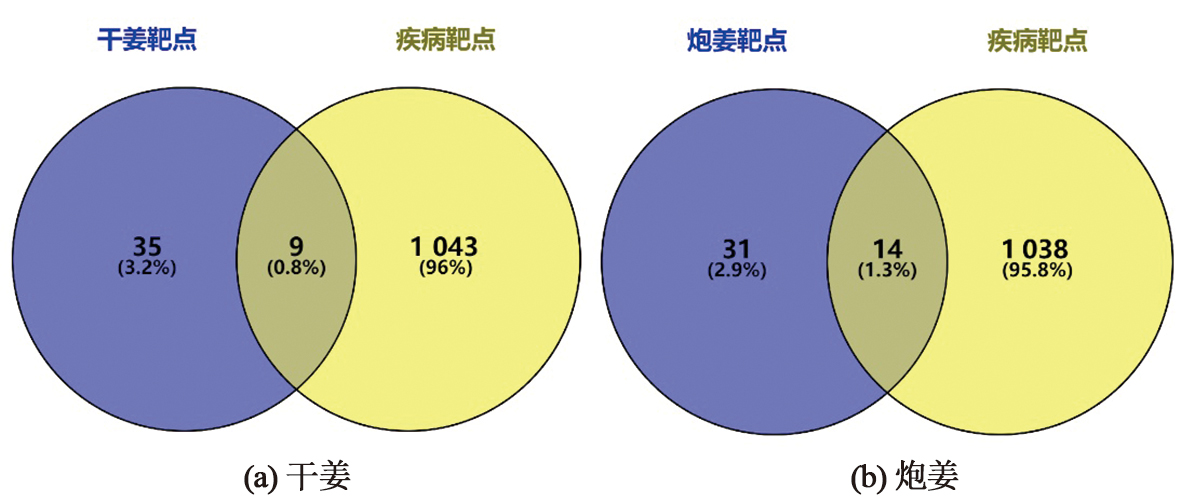

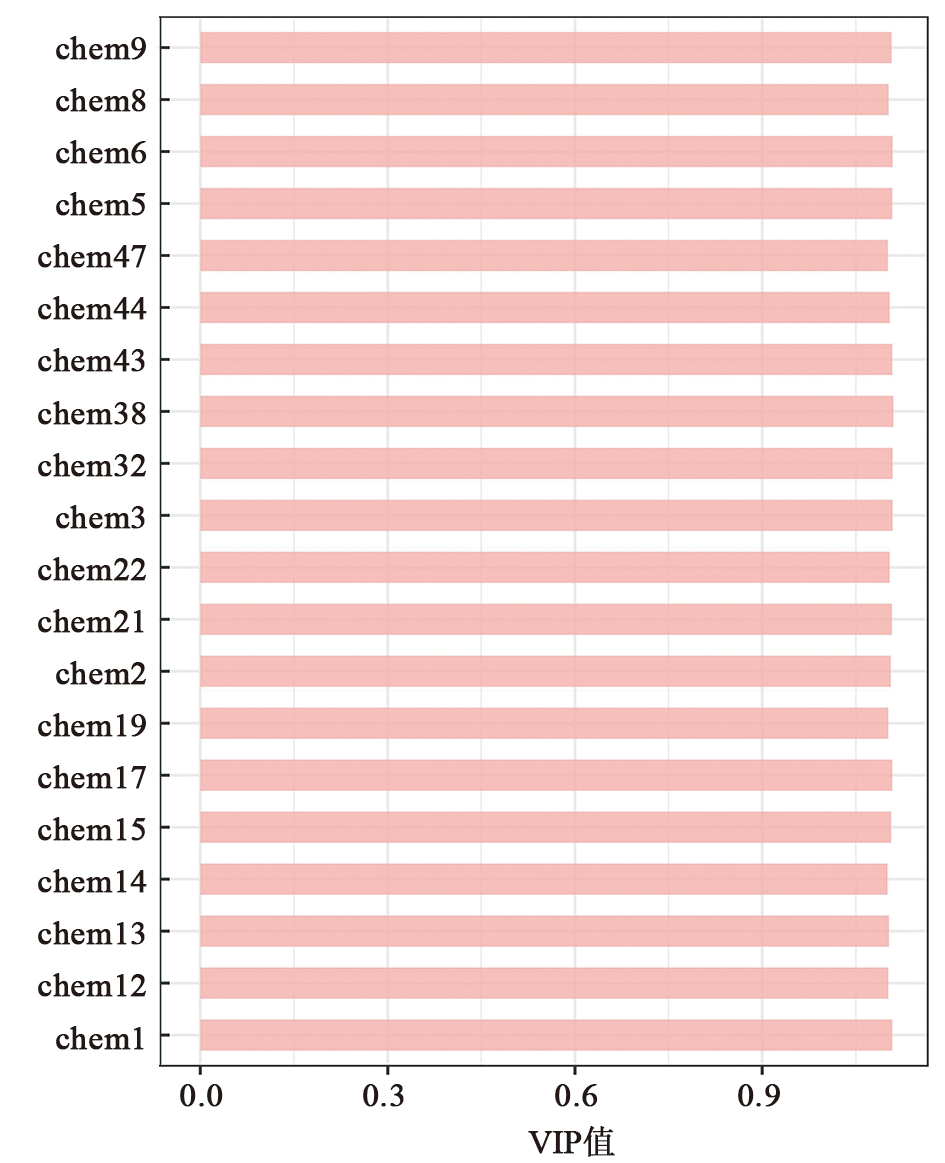

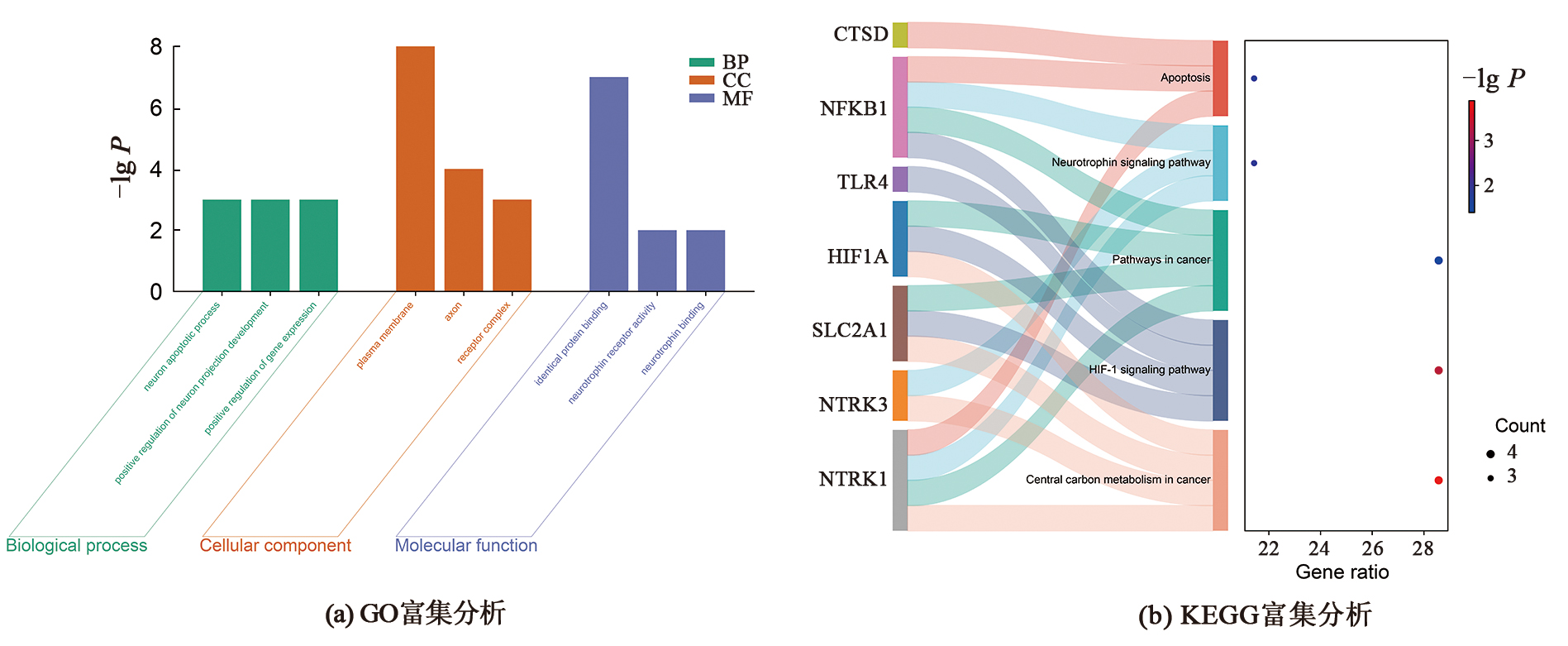

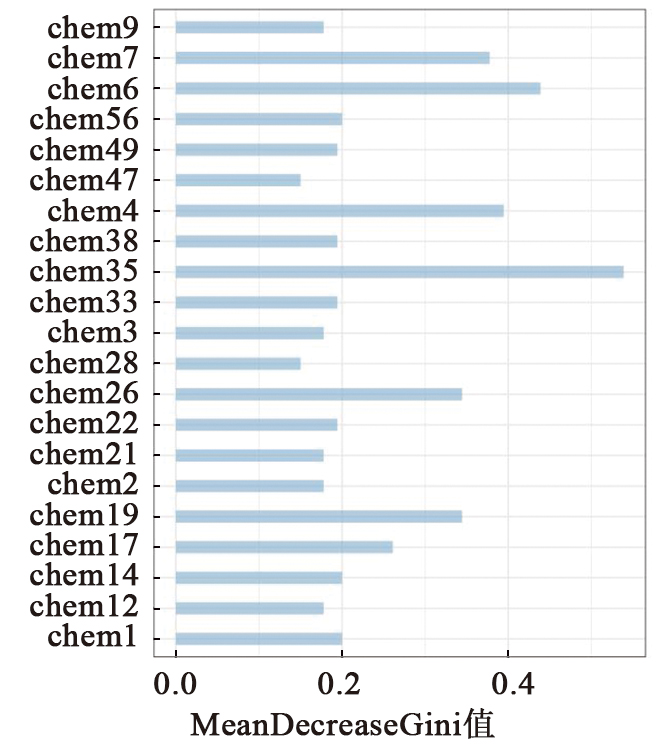

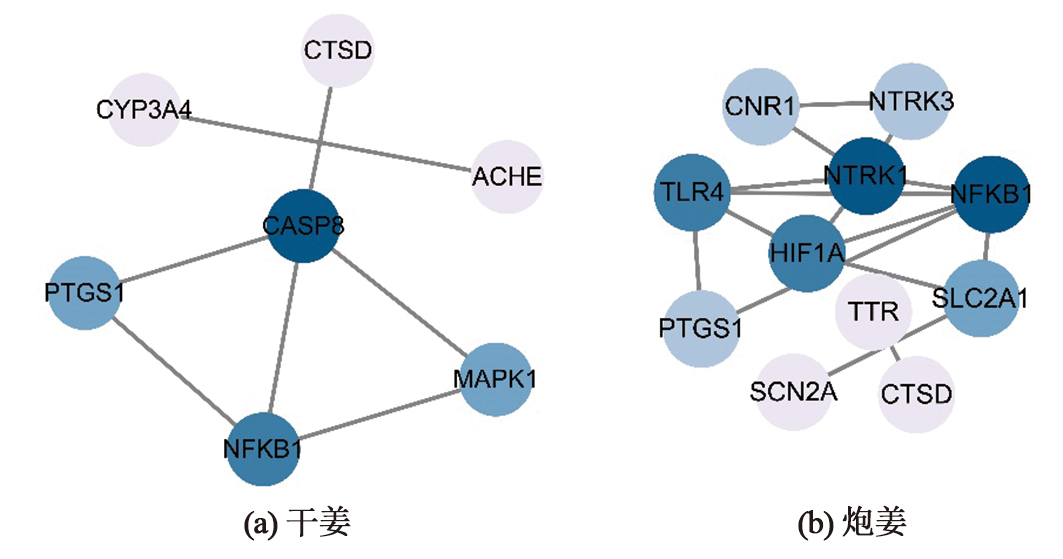

Ultra-performance liquid chromatography coupled with quadrupole time-of-flight mass spectrometry (UPLC-Q-TOF-MS/MS) was used to analyze the differences in chemical composition of dried and baked ginger.Then, network pharmacology was applied to investigate the mechanisms underlying their differences in efficacy. The chemical components of dried and baked ginger were analyzed using UPLC-Q-TOF-MS/MS, and the differential compounds were screened using partial least squares-discriminant analysisand random forest methods. SuperPRED and GeneCards databases were employed to retrieve drug and disease targets, respectively.Common targets were identified using Venn diagram mapping. Protein-protein interaction networks were constructed using the STRING database, and key targets were subjected to GO and KEGG enrichment analyses using the DAVID database.The UPLC-Q-TOF-MS/MS identified 61 chemical components, screening out 13 differential compounds (e.g., 7-gingerol, 12-gingerol, and gingerenone A). The network pharmacology results revealed that dried ginger mainly acts on targets such as MAPK1, PTGS1, and OPRD1, mediating the expression of signaling pathways such as interleukin-17, toll-like receptor, and TNF to alleviate inflammatory responses, exerting a “warming the middle to relieve pain” effect. Baked ginger mainly targets APEX1, SLC6A5, and NFKB1, mediating the HIF-1 signaling pathway, neurotrophin signaling pathways, and apoptosis to block pain signal transmission, exerting a “warming the middle to dispelling cold” effect. By integrating chemical composition analysis and network pharmacology, this study elucidated the mechanisms underlying the distinct therapeutic effects of dried and baked ginger, providing a scientific basis for their clinical applications.

Key words: dried ginger, baked ginger, UPLC-Q-TOF-MS/MS, network pharmacology, differences in efficacy

CLC Number:

R285

LI Junxian, LIU Shuang, MI Yuzhang, LU Tengfei, WANG Xiao, DONG Hongjing, LIU Ziyao. Exploring the mechanisms underlying the differences in the “warming the middle to dispel cold” effects of dried and baked ginger based on UPLC-Q-TOF-MS/MS combined with network pharmacology[J].Shandong Science, 2026, 39(1): 21-30.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

References 27

[1]	陈琛, 耿剑亮, 匡海学, 等. UHPLC-Oribtrap/HRMS技术分析干姜中非挥发性化学成分在炮制前后的变化[J]. 南京中医药大学学报, 2020, 36(3): 387-395. DOI: 10.14148/j.issn.1672-0482.2020.0387.
[2]	高伟城, 王小平, 沈晓华, 等. 不同干姜炮制品姜酚类成分含量的研究[J]. 中医临床研究, 2020, 12(34): 22-25. doi:10.3969/j.issn.1674-7860.2020.34.007.
[3]	方文韬, 詹志来, 彭华胜, 等. 干姜、生姜、炮姜分化的历史沿革与变迁[J]. 中国中药杂志, 2017, 42(9): 1641-1645. DOI: 10.19540/j.cnki.cjcmm.2017.0065.
[4]	杨秀娟, 王佳佳, 郭晶晶, 等. 生姜、干姜、炮姜的性效考证及其化学成分、药理活性的研究进展[J]. 中药新药与临床药理, 2024, 35(4): 595-605.DOI:10.19378/j.issn.1003-9783.2024.04.018.
[5]	张科卫, 马彩霞, 缪六舒. 干姜、炮姜中成分的比较[J]. 中成药, 2014, 36(6): 1254-1260. DOI: 10.3969/j.issn.1001-1528.2014.06.031.
[6]	LI X, LIU Z Q, LIAO J, et al. Network pharmacology approaches for research of traditional Chinese medicines[J]. Chinese Journal of Natural Medicines, 2023, 21(5): 323-332. DOI: 10.1016/S1875-5364(23)60429-7. pmid: 37245871
[7]	WANG C X, CHEN H, SONG S F, et al. Discovery of metabolic markers for the discrimination of Helwingia species based on bioactivity evaluation, plant metabolomics, and network pharmacology[J]. Rapid Communications in Mass Spectrometry, 2022, 36(24): e9411. DOI: 10.1002/rcm.9411.
[8]	LIU A M, ZHONG M X, HAN Z L, et al. Characterization of active compounds in Sanhuang shu’ai decoction for the management of ulcerative colitis: A UHPLC-MS study[J]. Rapid Communications in Mass Spectrometry, 2025, 39(6): e9976. DOI: 10.1002/rcm.9976.
[9]	游海心, 杨晓艳, 罗奕宇, 等. 基于量效关系从“中药-成分-靶点” 探讨大黄、枳实和厚朴不同配比的疗效作用机制[J]. 中草药, 2024, 55(20): 7021-7032.
[10]	LIU S, DONG H J, ZHANG M M, et al. Identification of different degrees of processed ginger using GC-IMS combined with machine learning[J]. Journal of Pharmaceutical Analysis, 2024, 14(1): 149-151. DOI: 10.1016/j.jpha.2023.10.005. pmid: 38352952
[11]	薛贵仁. 基于代谢组学技术的干姜炮制前后特征成分差异性研究[D]. 石家庄: 河北医科大学, 2022.
[12]	ABDELHAFEZ O H, OTHMAN E M, FAHIM J R, et al. Metabolomics analysis and biological investigation of three Malvaceae plants[J]. Phytochemical Analysis, 2020, 31(2): 204-214. DOI: 10.1002/pca.2883. pmid: 31390115
[13]	费增焱, 栗延伟, 谭军, 等. 腺苷预处理对脑缺血再灌注大鼠小胶质细胞极化及神经损伤的影响[J]. 新乡医学院学报, 2024, 40(6): 501-507.DOI:10.7683/xxyxyxb.2024.06.001.
[14]	营大礼. 干姜化学成分及药理作用研究进展[J]. 中国药房, 2008, 19(18): 1435-1436.
[15]	IWAMI M, SHIINA T, HIRAYAMA H, et al. Intraluminal administration of zingerol, a non-pungent analogue of zingerone, inhibits colonic motility in rats[J]. Biomedical Research, 2011, 32(2): 181-185. DOI: 10.2220/biomedres.32.181.
[16]	SUK S, KWON G T, LEE E, et al. Gingerenone A, a polyphenol present in ginger, suppresses obesity and adipose tissue inflammation in high-fat diet-fed mice[J]. Molecular Nutrition & Food Research, 2017, 61(10): 10.1002/mnfr.201700139. DOI: 10.1002/mnfr.201700139.
[17]	KO H, KIM B S, LEE Y E, et al. Anti-inflammatory effects of Gingerenone A through modulation of toll-like receptor signaling pathways[J]. European Journal of Pharmacology, 2024, 983: 176997. DOI: 10.1016/j.ejphar.2024.176997.
[18]	陈乔, 张鹏, 韩诗祺, 等. 基于液质联用技术结合网络药理学探讨金莲花乙酸乙酯部位抗炎作用机制[J]. 世界科学技术-中医药现代化, 2025, 27(2): 404-419.DOI: 10.11842/wst.20241115005CSTR:32150.14.wst.20241115005.
[19]	KRISTENSEN N N, OLSEN J, GAD M, et al. Genome-wide expression profiling during protection from colitis by regulatory T cells[J]. Inflammatory Bowel Diseases, 2008, 14(1): 75-87. DOI: 10.1002/ibd.20277. pmid: 17924563
[20]	WANG Y J, LIU Y S, ZHANG M, et al. Inhibition of PTGS1 promotes osteogenic differentiation of adipose-derived stem cells by suppressing NF-κB signaling[J]. Stem Cell Research & Therapy, 2019, 10(1): 57. DOI: 10.1186/s13287-019-1167-3.
[21]	WU Y W, WANG Y P, WANG J, et al. TLR4 mediates upregulation and sensitization of TRPV1 in primary afferent neurons in 2, 4, 6-trinitrobenzene sulfate-induced colitis[J]. Molecular Pain, 2019, 15: 1744806919830018. DOI: 10.1177/1744806919830018.
[22]	LIU Q Y, LU Z Y, REN H, et al. Cav3.2 T-Type calcium channels downregulation attenuates bone cancer pain induced by inhibiting IGF-1/HIF-1α signaling pathway in the rat spinal cord[J]. Journal of Bone Oncology, 2023, 42: 100495. DOI: 10.1016/j.jbo.2023.100495.
[23]	LI Y, YU C, ZHU W M, et al. Triptolide ameliorates IL-10-deficient mice colitis by mechanisms involving suppression of IL-6/STAT3 signaling pathway and down-regulation of IL-17[J]. Molecular Immunology, 2010, 47(15): 2467-2474. DOI: 10.1016/j.molimm.2010.06.007. pmid: 20615550
[24]	张倩, 王海东, 杨会军, 等. 基于Toll样受体4信号通路探讨骨质疏松症的作用机制及干预策略[J]. 协和医学杂志, 2025, 16(5):1244-1249.DOI:10.12290/xhyxzz.2024-0536.
[25]	CHEN G Q, GOEDDEL D V. TNF-R1 signaling: A beautiful pathway[J]. Science, 2002, 296(5573): 1634-1635. DOI: 10.1126/science.1071924. pmid: 12040173
[26]	IEMI L, BUSCH N A. Moment-to-moment fluctuations in neuronal excitability bias subjective perception rather than strategic decision-making[J]. eNeuro, 2018, 5(3): ENEURO.0430-17.2018. DOI: 10.1523/ENEURO.0430-17.2018.
[27]	王列, 马铁明, 于嘉祥, 等. 基于BDNF/Trkb/p38/JNK信号通路研究电针抑制筋膜疼痛综合征模型大鼠肌肉细胞凋亡的机制[J]. 中华中医药学刊, 2025, 43(8): 44-53. DOI:10.13193/j.issn.1673-7717.2025.08.011.
