基于多控制模式的网联车辆信号交叉口通行策略研究

doi:10.3976/j.issn.1002-4026.2025008

Abstract

Abstract:

To address the efficiency loss caused by traffic congestion and frequent vehicle stops at signalized intersections, in this study we propose an intersection passing strategy based on multiple control modes. The interactions between vehicles and traffic signals as well as vehicle-to-vehicle interactions are analyzed, and six control modes are developed based on variations in traffic flow, signal cycles, and vehicle behavior. The strategy is dynamically adjusted to real-time traffic conditions. To minimize the impact of abrupt acceleration changes, the concept of vehicle jerk is introduced, and a straight-line trajectory model is developed accordingly. In addition, considering the collision-avoidance constraints of preceding vehicles, a polynomial method is used to construct an optimized lane-changing trajectory model to enhance the lane-changing efficiency. A comparative analysis of four control strategies demonstrates that the proposed multi-mode control strategy reduces delay times by 18.93% and 25.79% under low- and high-traffic flow conditions, respectively, compared to traditional strategies. Furthermore, by analyzing the displacement, speed, and acceleration curves of vehicles during travel, vehicle passing time is reduced by 2.60 to 23.52 s under different control modes, confirming the effectiveness of the proposed strategy in improving intersection traffic efficiency.

Key words: intelligent transportation system, connected and automated vehicles, signalized intersection, trajectory planning, multiple control modes

CLC Number:

U495

ZHANG Huixin, TANG Shaozhi, GU Ming, ZHOU Wenshuai, LIU Bin. Intersection crossing strategy for connected and automated vehicles based on multiple control modes[J].Shandong Science, 2026, 39(1): 100-110.

Figures/Tables 17

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Fig.6

Fig.7

Table 2

Table 3

Table 4

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

References 27

[1]	陈欣宇, 陈健, 钱立军, 等. 交通信号与网联汽车速度协同优化方法研究[J]. 汽车工程, 2024, 46(12): 2267-2278. DOI:10.19562/j.chinasae.qcgc.2024.12.013.
[2]	杨逍遥, 梁国华, 陈亦新, 等. 考虑右转车干扰的信号交叉口直行车辆轨迹预测[J]. 哈尔滨工业大学学报, 2024, 56(7): 74-84. DOI:10.11918/202310015.
[3]	TAIEBAT M, BROWN A L, SAFFORD H R, et al. A review on energy, environmental, and sustainability implications of connected and automated vehicles[J]. Environmental Science & Technology, 2018, 52(20): 11449-11465. DOI:10.1021/acs.est.8b00127.
[4]	王立夫, 刘一铄, 孔芝, 等. 多车道交叉口交通信号与混合车辆轨迹协同优化框架[J]. 控制与决策, 2024, 39(11): 3567-3576. DOI:10.13195/j.kzyjc.2023.1616.
[5]	BAI Z W, HAO P, SHANGGUAN W, et al. Hybrid reinforcement learning-based eco-driving strategy for connected and automated vehicles at signalized intersections[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(9): 15850-15863. DOI:10.1109/TITS.2022.3145798.
[6]	杨晓光, 赖金涛, 张振, 等. 车路协同环境下的轨迹级交通控制研究综述[J]. 中国公路学报, 2023, 36(9): 225-243. DOI:10.19721/j.cnki.1001-7372.2023.09.018.
[7]	HUANG Y H, NG E C Y, ZHOU J L, et al. Eco-driving technology for sustainable road transport: A review[J]. Renewable and Sustainable Energy Reviews, 2018, 93: 596-609.DOI:10.1016/j.rser.2018.05.030.
[8]	LIU S, ZHANG W T, WU X J, et al. A simulation system and speed guidance algorithms for intersection traffic control using connected vehicle technology[J]. Tsinghua Science and Technology, 2018, 24(2): 160-170. DOI:10.26599/TST.2018.9010073.
[9]	WANG P W, JIANG Y L, XIAO L, et al. A joint control model for connected vehicle platoon and arterial signal coordination[J]. Journal of Intelligent Transportation Systems, 2020, 24(1): 81-92. DOI:10.1080/15472450.2019.1579093.
[10]	WANG J W, ZHENG Y, XU Q, et al. Controllability analysis and optimal control of mixed traffic flow with human-driven and autonomous vehicles[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 22(12): 7445-7459. DOI:10.1109/TITS.2020.3002965.
[11]	JIANG Y S, ZHAO B, LIU M, et al. A two-level model for traffic signal timing and trajectories planning of multiple CAVs in a random environment[J]. Journal of Advanced Transportation, 2021, 2021: 9945398. DOI:10.1155/2021/9945398.
[12]	GHIASI A, LI X P, MA J Q. A mixed traffic speed harmonization model with connected autonomous vehicles[J]. Transportation Research Part C: Emerging Technologies, 2019, 104: 210-233.DOI:10.1016/j.trc.2019.05.005.
[13]	YAO H D, LI X P. Decentralized control of connected automated vehicle trajectories in mixed traffic at an isolated signalized intersection[J]. Transportation Research Part C: Emerging Technologies, 2020, 121: 102846.DOI:10.1016/j.trc.2020.102846.
[14]	NIROUMAND R, TAJALLI M, HAJIBABAI L, et al. Joint optimization of vehicle-group trajectory and signal timing: Introducing the white phase for mixed-autonomy traffic stream[J]. Transportation Research Part C: Emerging Technologies, 2020, 116: 102659.DOI:10.1016/j.trc.2020.102659.
[15]	TAN C P, YAO J R, TANG K S, et al. Cycle-based queue length estimation for signalized intersections using sparse vehicle trajectory data[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 22(1): 91-106. DOI:10.1109/TITS.2019.2954937.
[16]	高志军, 王江锋, 陈磊, 等. 基于动态距离窗的交叉口CAV轨迹规划算法[J]. 汽车工程, 2021, 43(4): 537-545. DOI:10.19562/j.chinasae.qcgc.2021.04.011.
[17]	WU J M, QU X B. Intersection control with connected and automated vehicles: A review[J]. Journal of Intelligent and Connected Vehicles, 2022, 5(3): 260-269. DOI:10.1108/JICV-06-2022-0023.
[18]	辛琪, 王嘉琪, 杨文科, 等. 信控路段混行交通生态驾驶深度强化学习模型[J]. 交通运输系统工程与信息, 2024, 24(3): 127-139. DOI:10.16097/j.cnki.1009-6744.2024.03.013.
[19]	AN L H, YANG X F, HU J. Modeling system dynamics of mixed traffic with partial connected and automated vehicles[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(9): 15755-15764. DOI:10.1109/TITS.2022.3145395.
[20]	JIANG S M, PAN T L, ZHONG R X, et al. Coordination of mixed platoons and eco-driving strategy for a signal-free intersection[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(6): 6597-6613. DOI:10.1109/TITS.2022.3211934.
[21]	FU Z, KREIDIEH A R, WANG H, et al. Cooperative driving for speed harmonization in mixed-traffic environments[C]// 2023 IEEE Intelligent Vehicles Symposium (IV).Anchorage, AK, USA: IEEE, 2023: 1-8. DOI:10.1109/IV55152.2023.10186598.
[22]	沈国栋, 龙光, 杨伟, 等. 交叉口网联车速度与信号协同优化控制[J]. 重庆交通大学学报(自然科学版), 2024, 43(10): 70-78.
[23]	王润民, 张心睿, 赵祥模, 等. 混行环境下网联信号交叉口车路协同控制方法[J]. 交通运输工程学报, 2022, 22(3): 139-151. DOI:10.19818/j.cnki.1671-1637.2022.03.011.
[24]	LIU Q Q, ZHANG K, LI M, et al. Integrated optimization of traffic signal timings and vehicle trajectories considering mandatory lane-changing at isolated intersections[J]. Transportation Research Part C: Emerging Technologies, 2024, 163: 104614. DOI:10.1016/j.trc.2024.104614.
[25]	YU C H, FENG Y H, LIU H X, et al. Integrated optimization of traffic signals and vehicletrajectories at isolated urban intersections[J]. Transportation Research Part B: Methodological, 2018, 112: 89-112. DOI:10.1016/j.trb.2018.04.007.
[26]	王江锋, 齐崇楷, 罗冬宇, 等. 基于信息传输时变时延的车辆队列纵向稳定性控制算法[J]. 北京理工大学学报, 2024, 44(8): 828-837. DOI:10.15918/j.tbit1001-0645.2024.028.
[27]	MA C Y, YU C H, YANG X G. Trajectory planning for connected and automated vehicles at isolated signalized intersections under mixed traffic environment[J]. Transportation Research Part C: Emerging Technologies, 2021, 130: 103309.DOI:10.1016/j.trc.2021.103309.

Metrics

Comments

Recommended 0

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License (CC BY-NC 4.0), which permits third parties to freely share (i.e., copy and redistribute the material in any medium or format) and adapt (i.e., remix, transform, or build upon the material) the articles published in this journal, provided that appropriate credit is given, a link to the license is provided, and any changes made are indicated. The material may not be used for commercial purposes. For details of the CC BY-NC 4.0 license, please visit: https://creativecommons.org/licenses/by-nc/4.0

多控制模式		交叉口通行策略

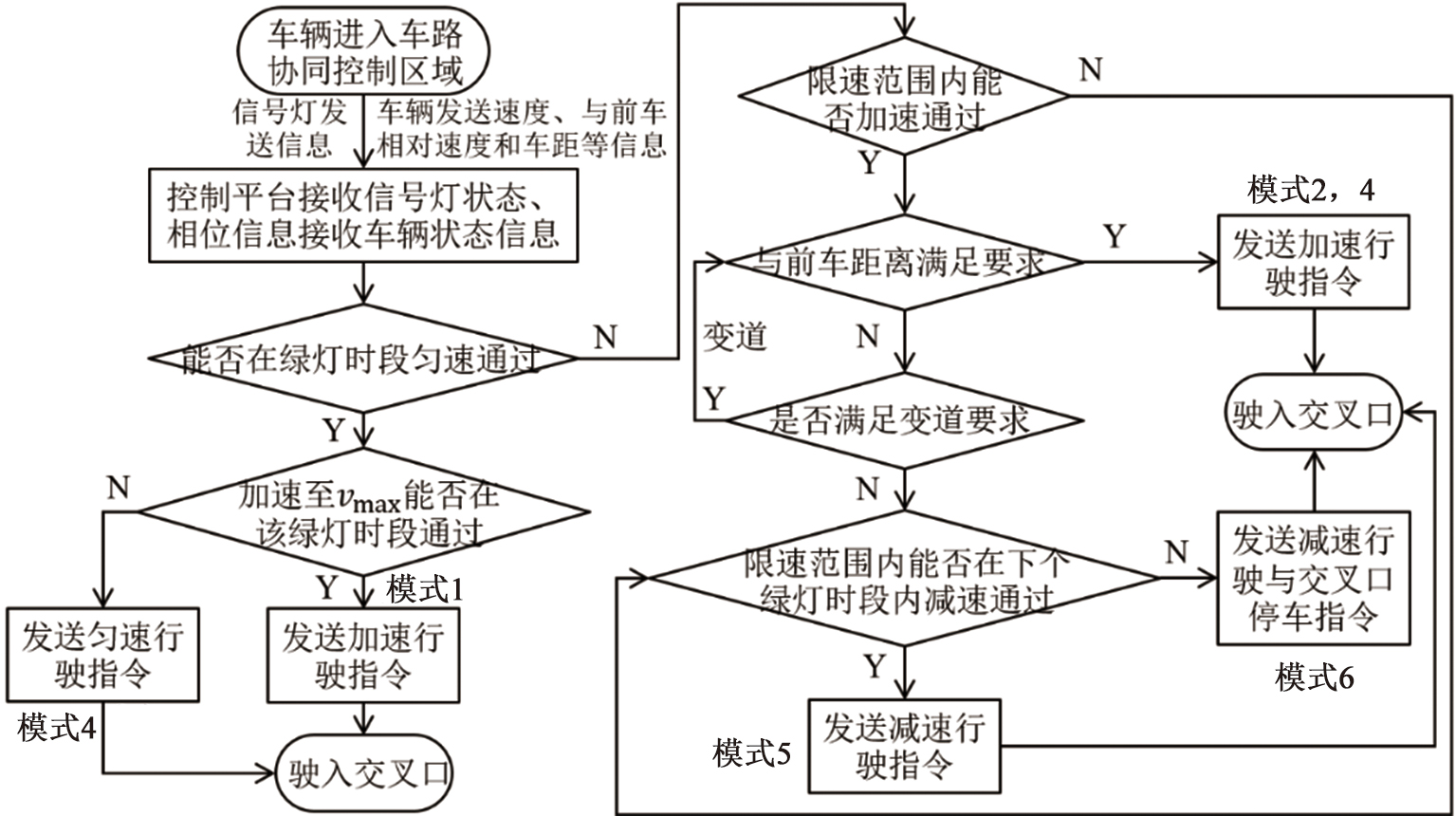

模式	描述	策略	描述

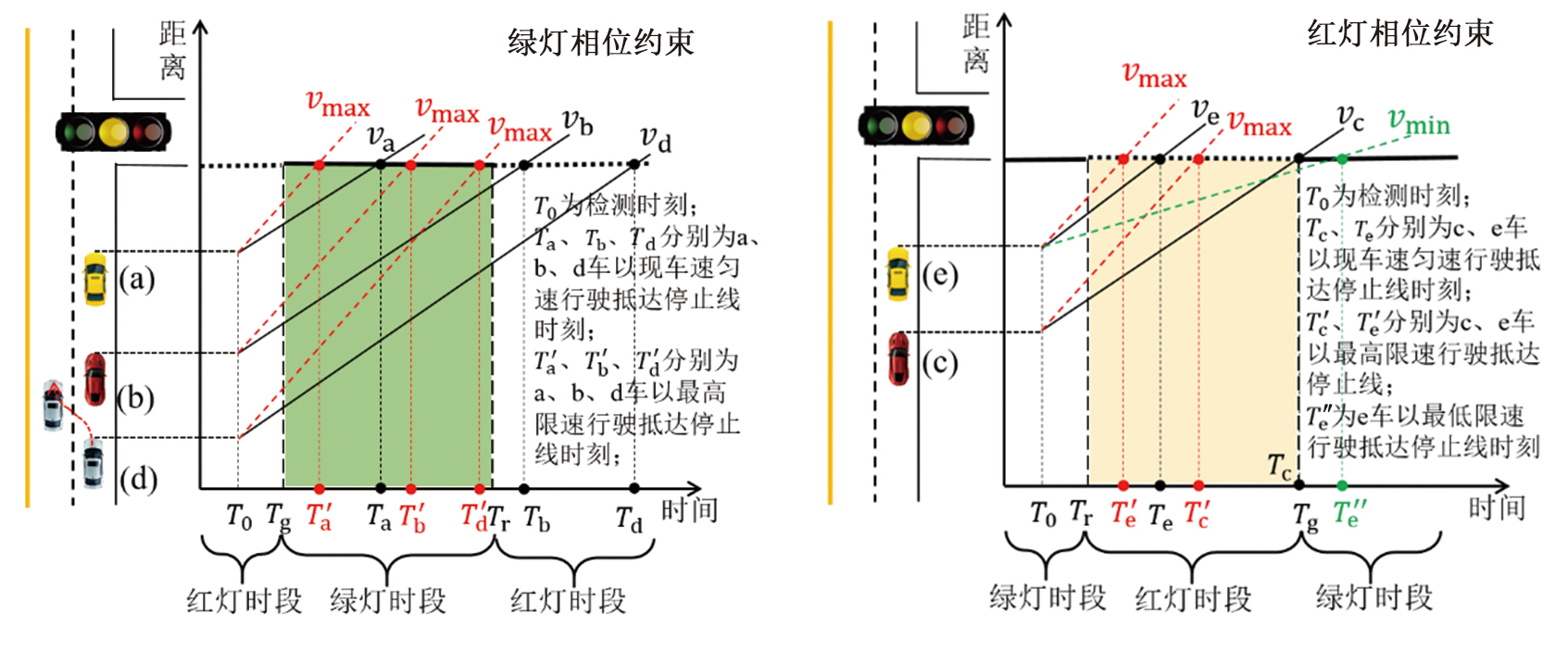

1	如图2(a)所示,车辆保持当前速度可在绿灯相位期间通行	直行加速		如图3(a)所示,车辆加速行驶,以缩短在绿灯期间的通行时间
2	如图2(b)所示,车辆保持当前速度不可在绿灯相位期间通行	直行加速		如图3(b)所示,车辆加速行驶,以保证顺利在绿灯期间通行
3	如图2(c)所示,车辆保持当前速度可在下一周期绿灯相位期间通行	直行匀速		如图3(c)所示,车辆匀速行驶,以避开在红灯期间的等待时间

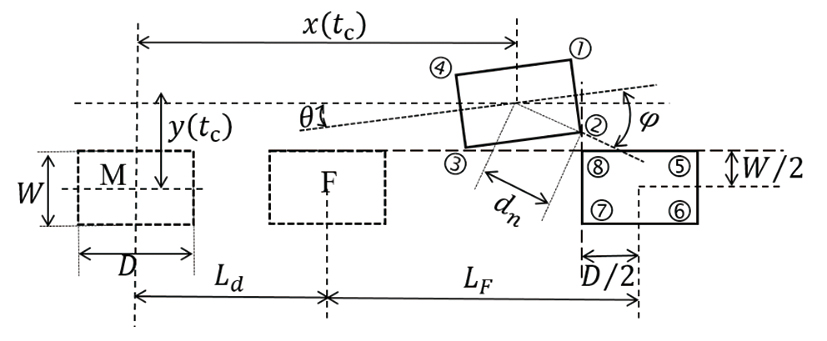

4	如图2(d)所示,车辆保持当前速度可在绿灯相位期间通行,但由于车辆受前方车辆干扰,导致无法实施直行加速策略	变道加速		如图3(d)所示,计算与周围车辆的交互信息,若满足变道要求,则变道后加速行驶,以保证顺利在绿灯期间通行

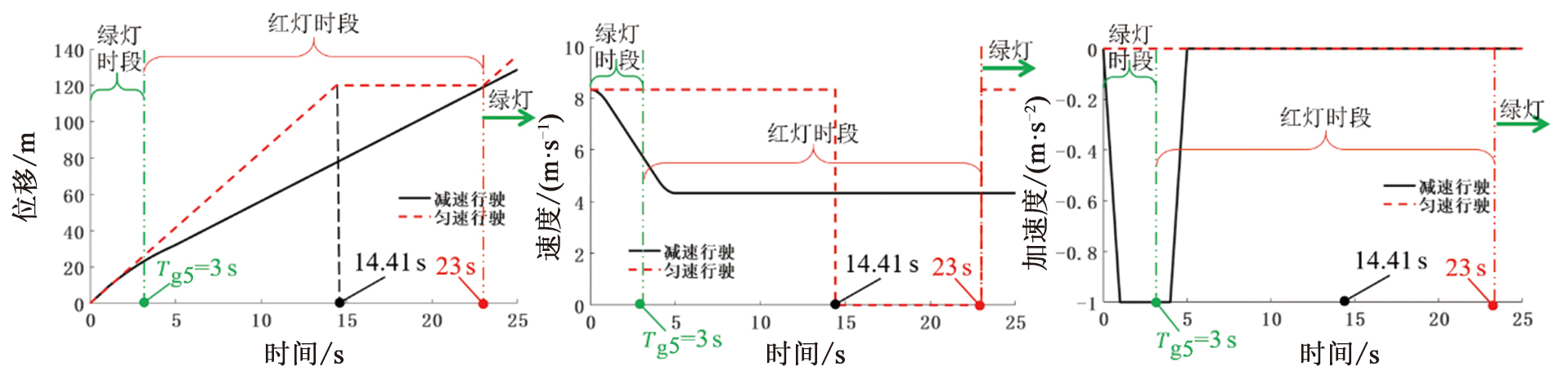

5	如图2(e)所示,车辆保持当前速度不可在绿灯相位期间通行,车辆受到前方车辆干扰,导致变道加速策略无法实施或实施也无法通行	直行减速		如图3(e)所示,车辆减速行驶,以避开在红灯期间的等待时间
6	如图2(f)所示,车辆保持当前速度不可在绿灯相位期间通行,车辆受到前方车辆干扰,导致策略失效	排队等待		车辆停车排队,以等待下一周期绿灯相位

参数	描述	取值	参数	描述	取值
d/m	车道宽度	4	a_max/(m·s^-2)	期望加速度	2
v_max/(m·s^-1)	最大限速	13.89	a_min/(m·s^-2)	舒适减速度	-2
v_min/(m·s^-1)	最小限速	4.17	j/(m·s^-3)	急动度	2
v₀/(m·s^-1)	初始速度	8.33	δ	变道安全系数	0.4
v(t_T)/(m·s^-1)	变道结束速度	8.33	L/m	变道纵向位移	40

交通量	平均延误时间/s
交通量	策略1	策略2	策略3	本文策略
低流量	26.4	23.1	22.7	21.4
高流量	44.2	40.6	34.2	32.8

控制模式	1	2	3	4	5
车辆到交叉口的距离/m	70	120	300	100	120
信号灯状态T_g	绿灯剩余9 s	绿灯剩余13 s	红灯剩余15 s	绿灯剩余10 s	绿灯剩余3 s
