跨临界二氧化碳储能系统的热力学性质研究

doi:10.3976/j.issn.1002-4026.20240105

Abstract

Abstract:

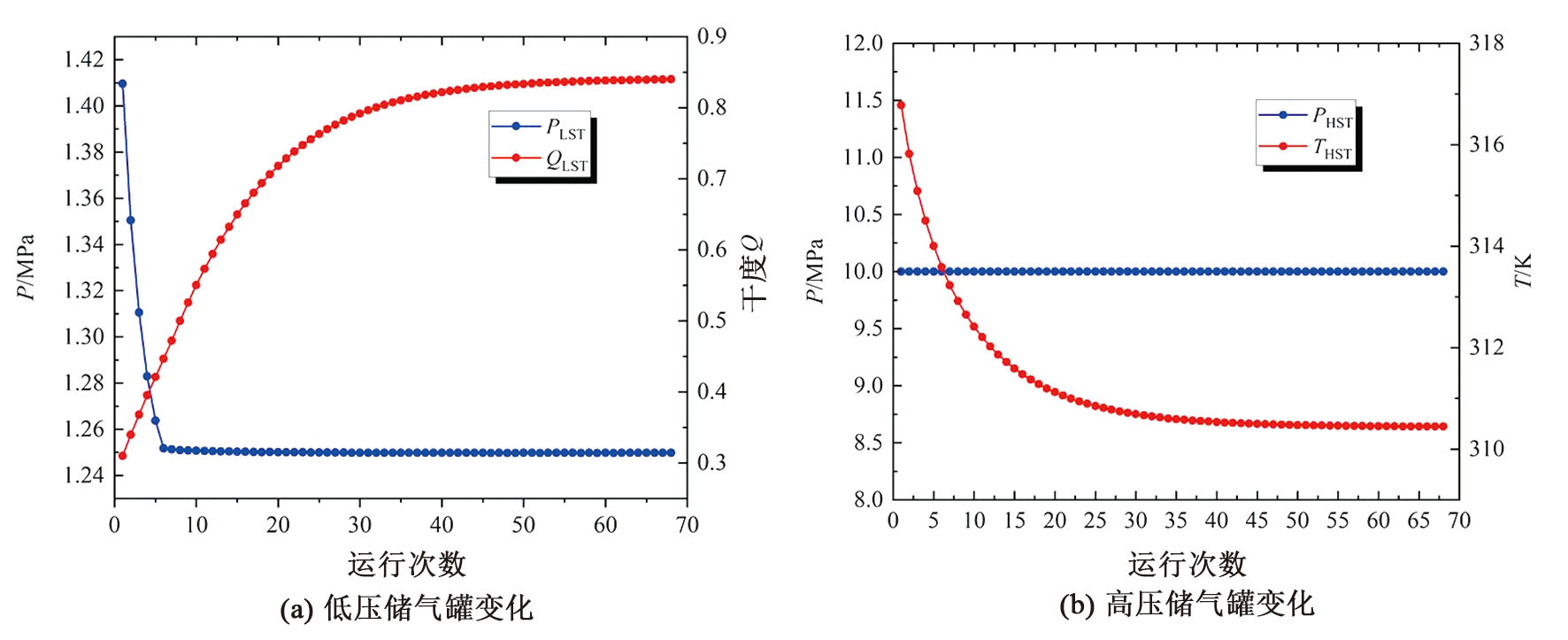

Carbon dioxide energy storage （CCES），which has evolved from compressed air energy storage，offers advantages such as zero carbon emissions，high energy storage density，safety and reliability. To further utilize the advantages of easy liquefaction and the high energy density of carbon dioxide，a transcritical carbon dioxide energy storage system （TC-CCES） with gas-liquid two-phase changes was proposed. The low-pressure storage tank in the system contains a gas-liquid mixture that remains in transcritical state throughout the operation. Energy and exergy analyses were conducted on TC-CCES，and simulations were performed to obtain the dynamic properties of the system during its operation. In addition，the impact of the initial temperature of the high-pressure gas storage tank on the system was analyzed. The study revealed that lowering the initial temperature of the high-pressure tank enhanced the system efficiency. When the system ran in a stable state，it achieved an efficiency of 56.93% and an energy storage density is 3 510 kJ/m³.

Key words: transcritical carbon dioxide energy storage, gas-liquid two-phase, energy conservation, exergic balance, dynamic properties

CLC Number:

TK02

JIANG Jiahui, ZHANG Xuelin, LI Shuangjiang, XUE Xiaodai, CHEN Wei, ZHANG Bin. Study of thermodynamic properties of transcritical carbon dioxide energy storage system[J].Shandong Science, 2025, 38(5): 79-92.

Figures/Tables 13

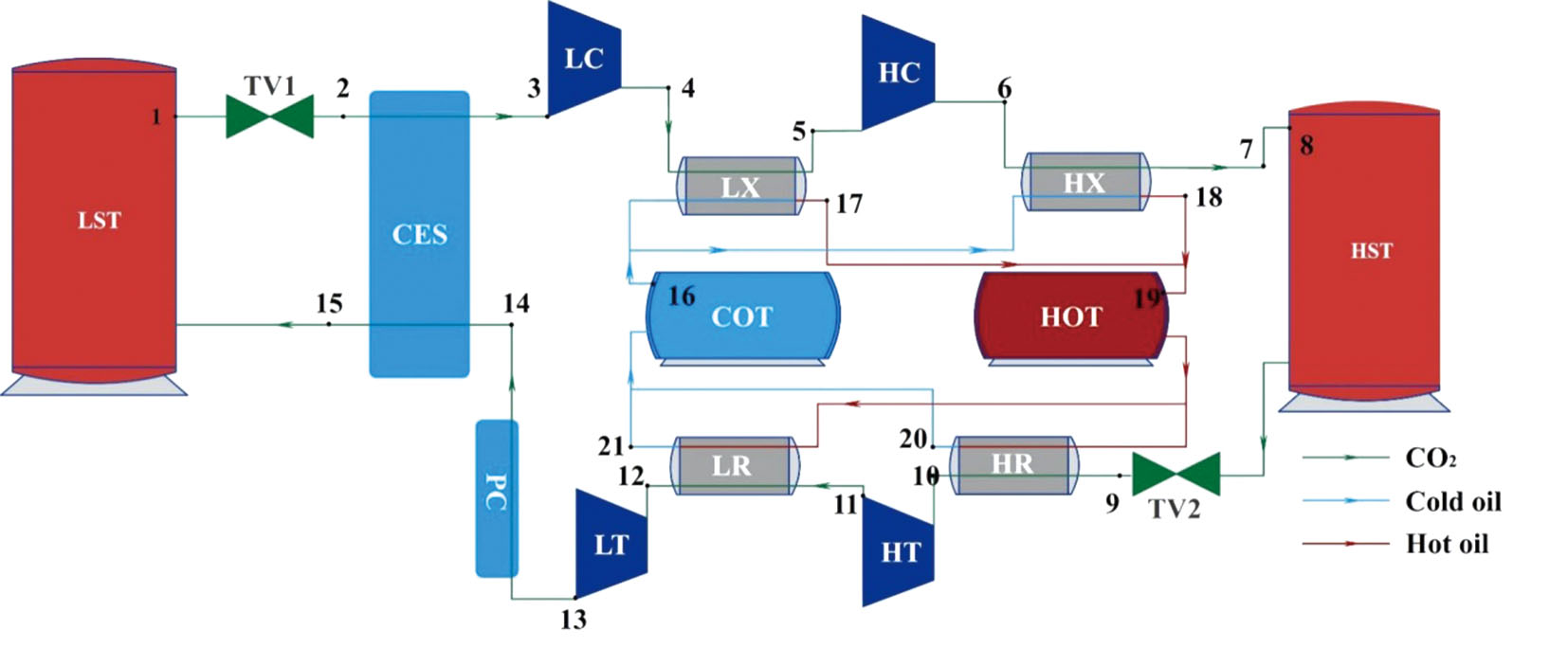

Fig.1

Fig.2

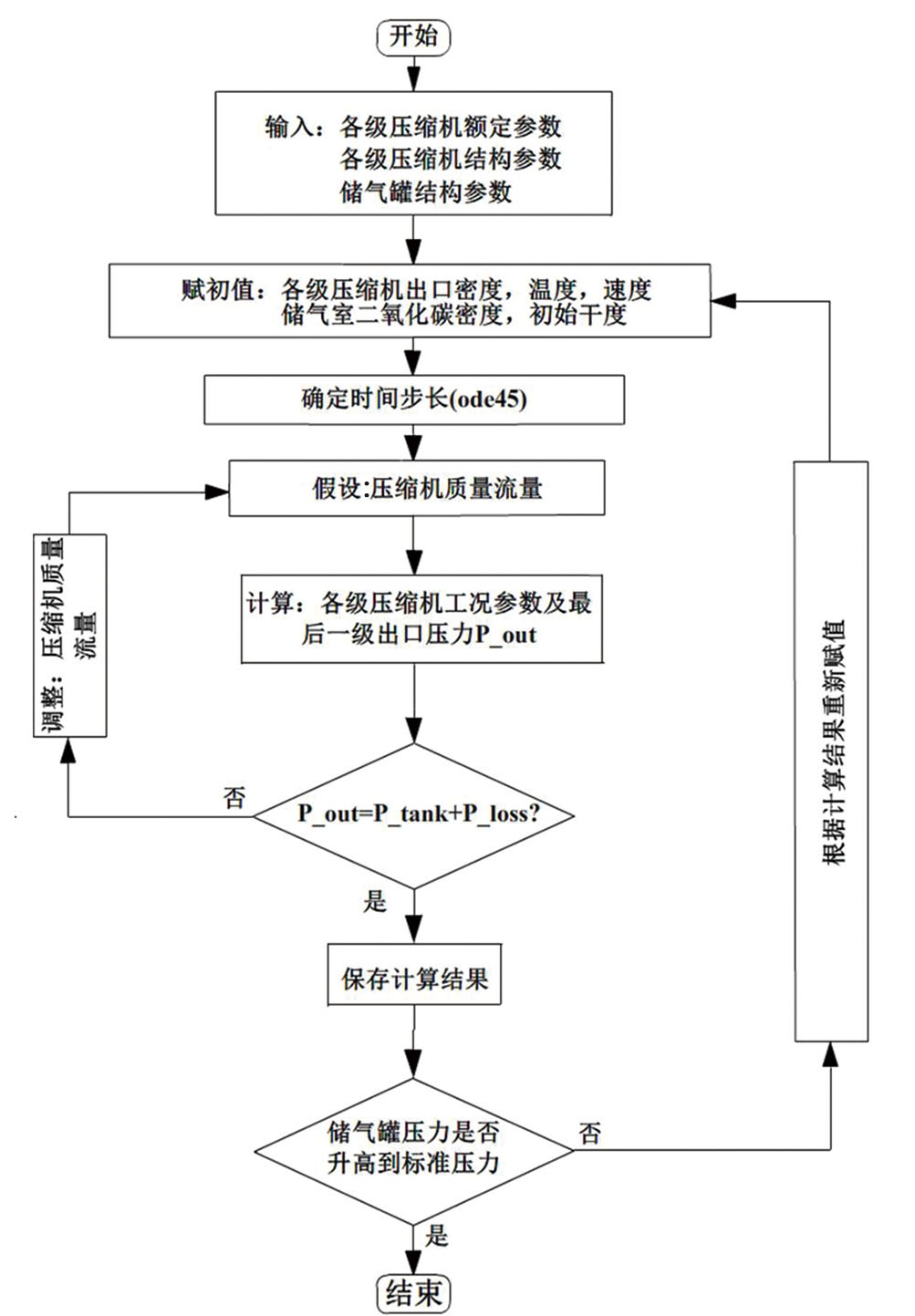

Fig.3

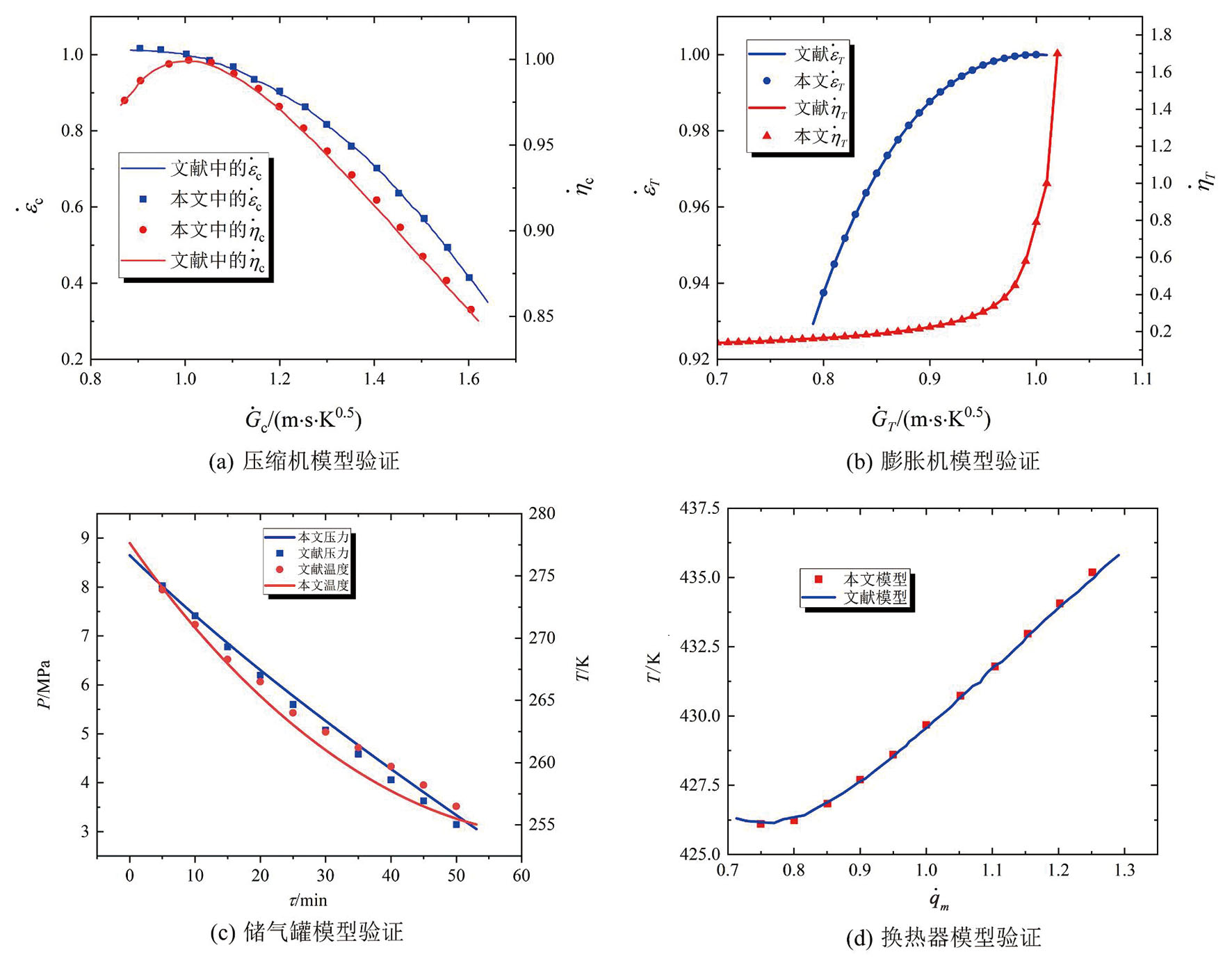

Fig.4

Table 1

Table 2

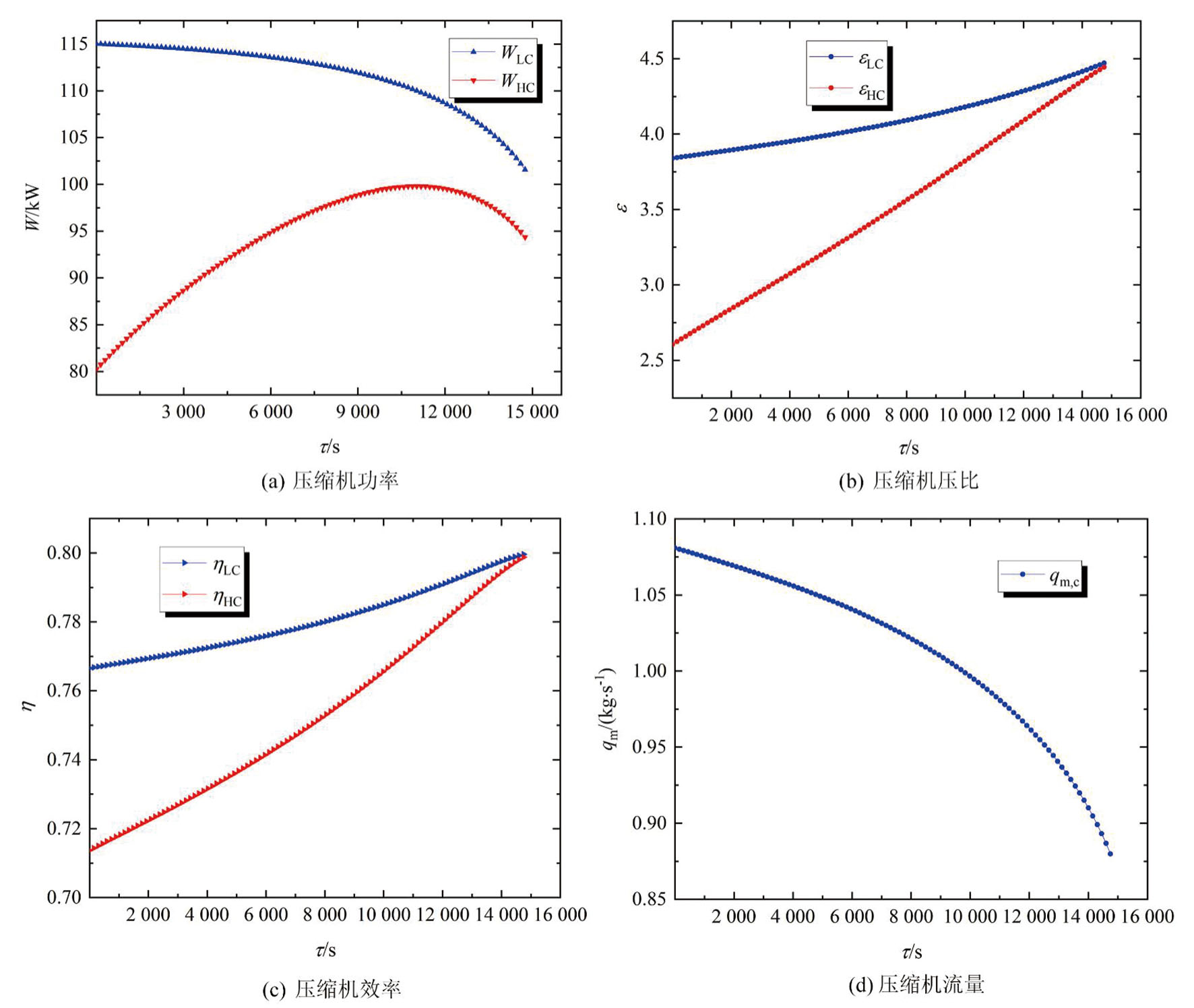

Fig.5

Fig.6

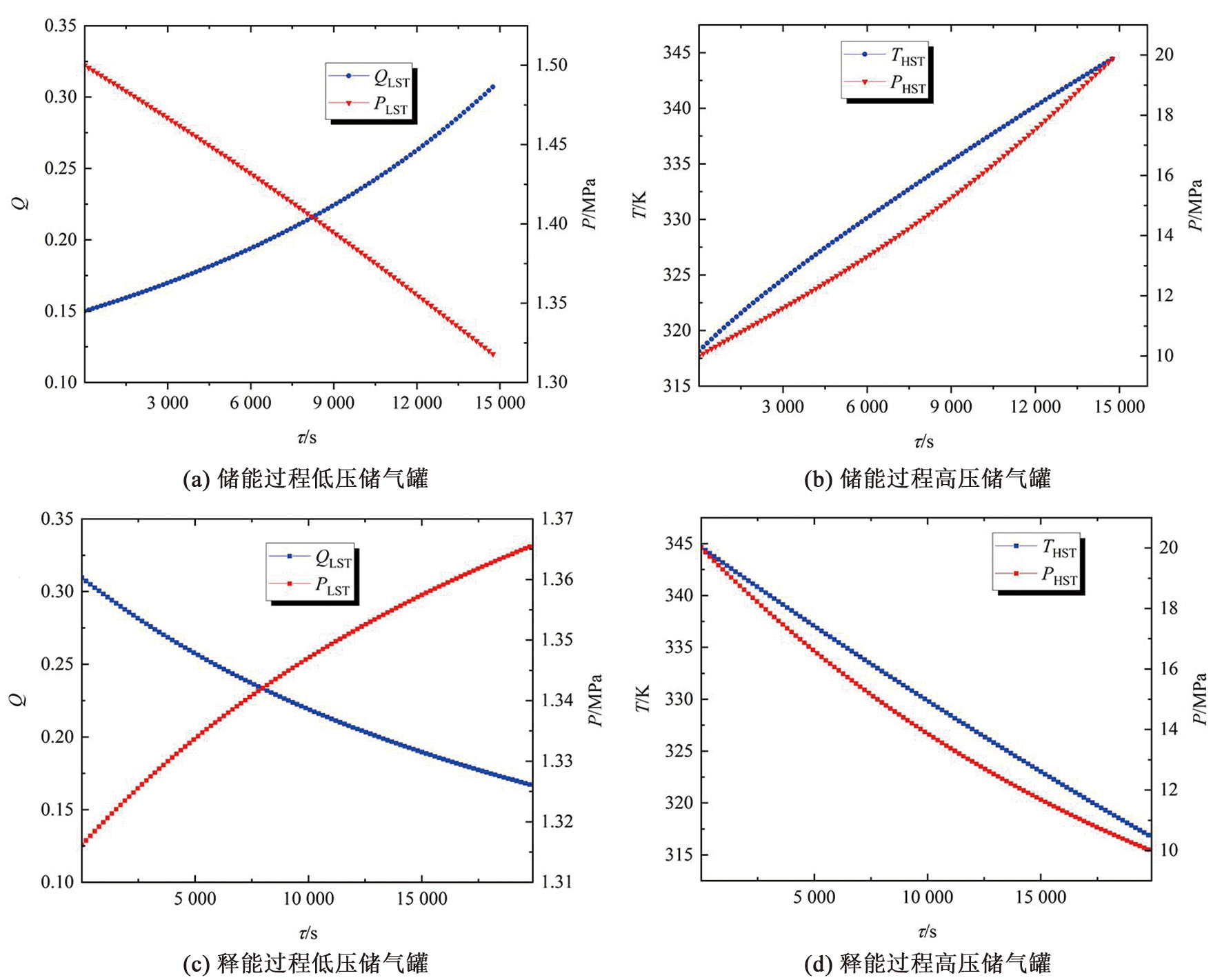

Fig.7

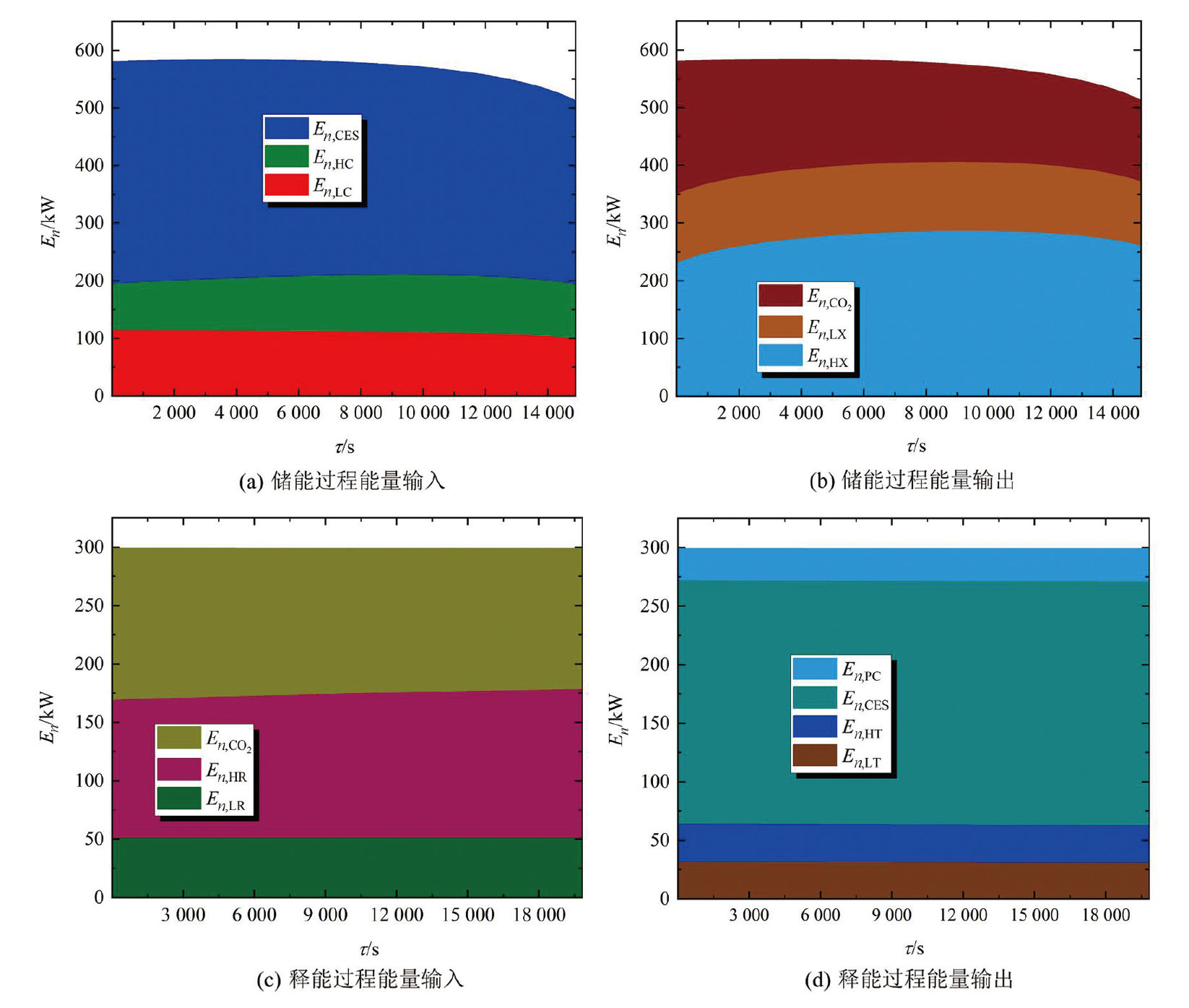

Fig.8

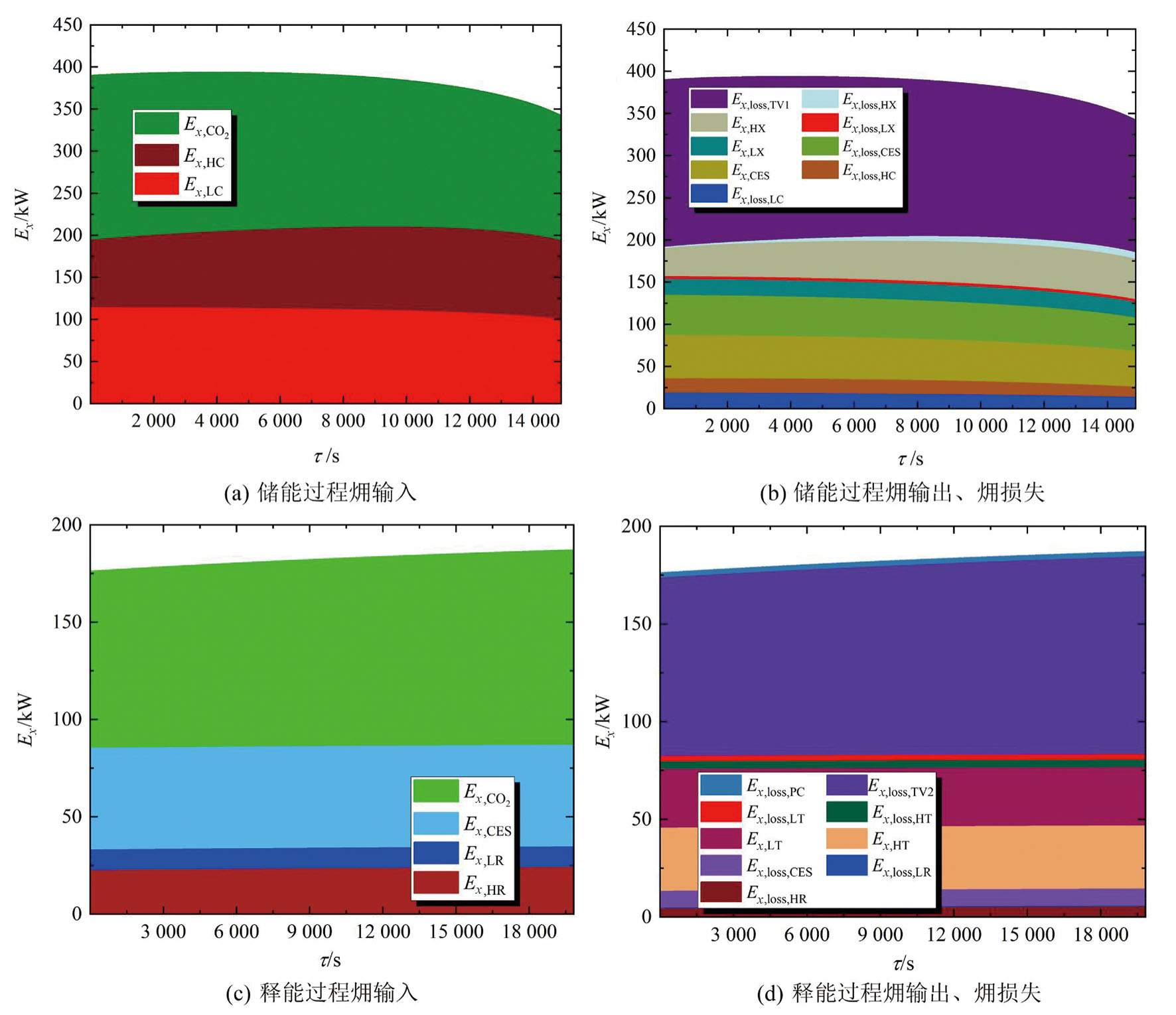

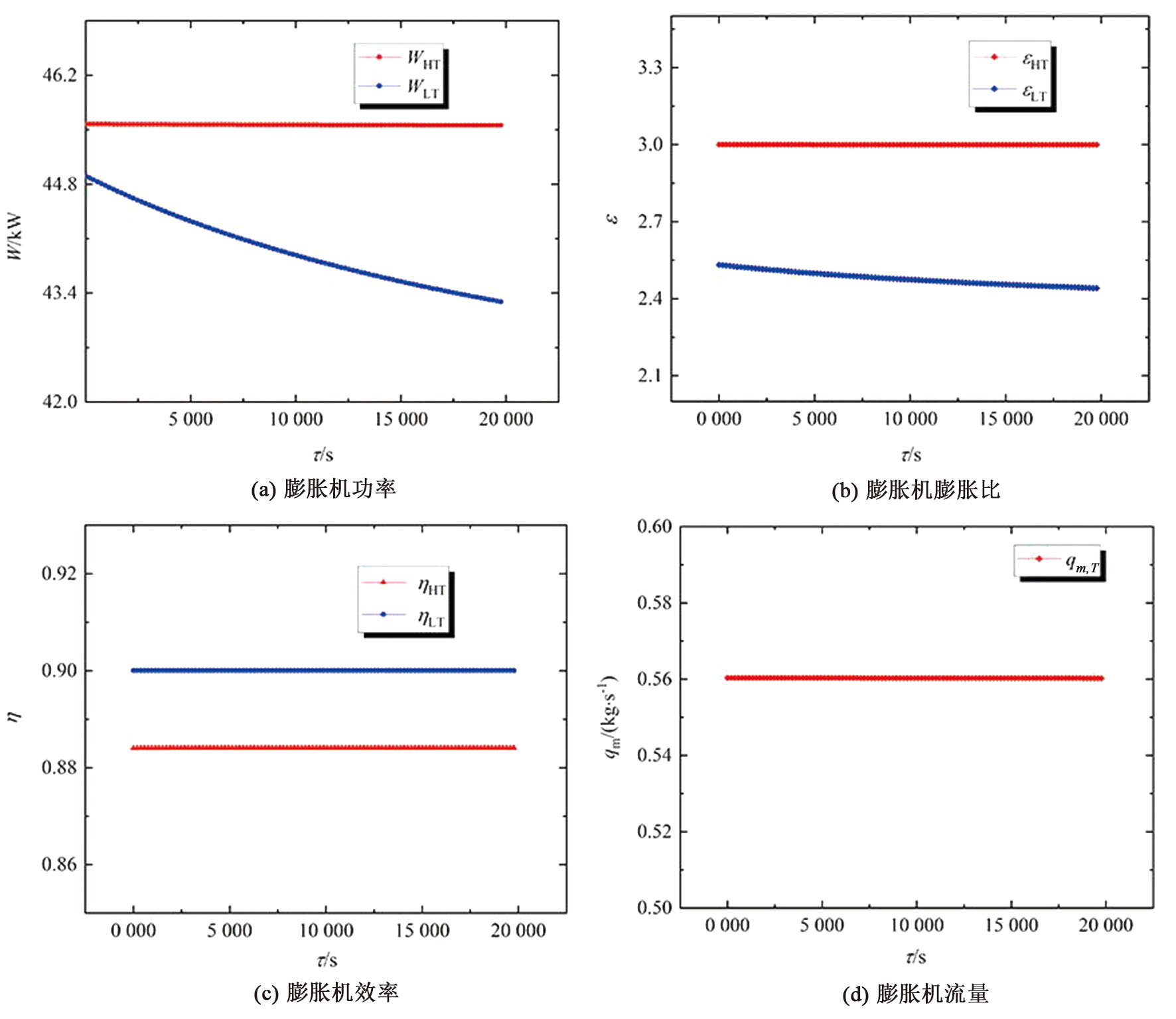

Fig.9

Fig.10

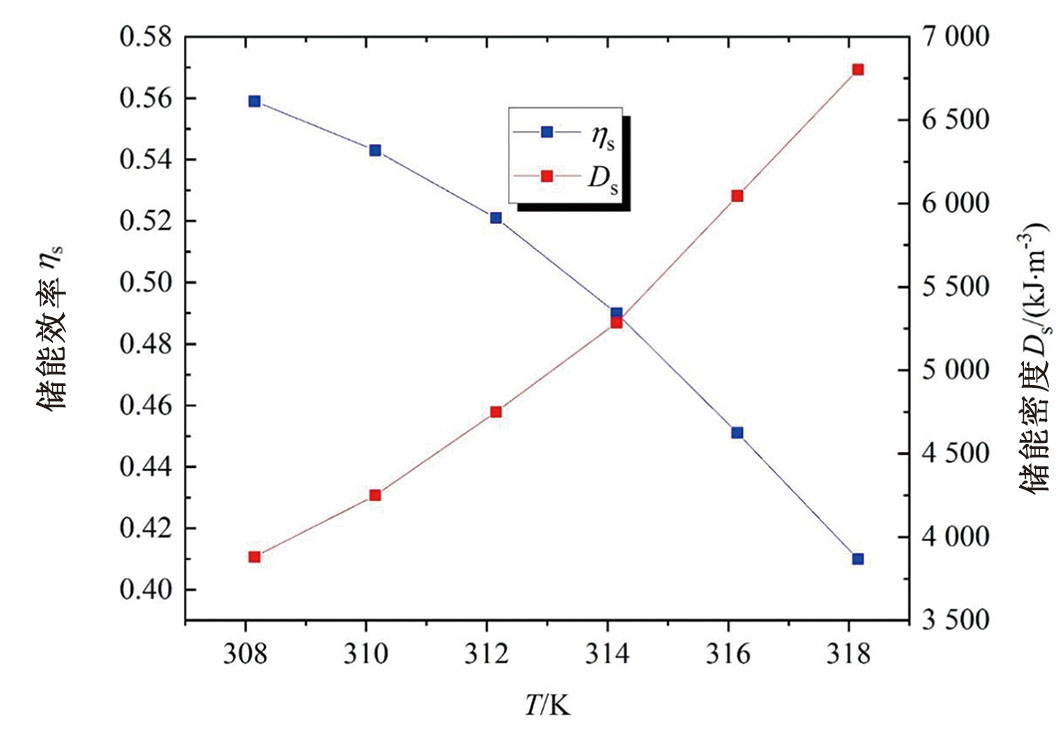

Fig.11

References 19

[1]	BAZDAR E, SAMETI M, NASIRI F, et al. Compressed air energy storage in integrated energy systems: A review[J]. Renewable and Sustainable Energy Reviews, 2022, 167: 112701. DOI:10.1016/j.rser.2022.112701.
[2]	王晓露. 火电厂热电联产机组与压缩空气储能系统热力学耦合研究[D]. 北京: 中国科学院大学, 2021.
[3]	GUO H, CHEN H S, et al. Thermodynamic characteristics of a novel supercritical compressed air energy storage system[J]. Energy Conversion and Management, 2016, 115: 167-177. DOI:10.1016/j.enconman.2016.01.051.
[4]	李杨楠, 张国昀, 程一步. 不同储能技术的经济性及应用前景分析[J]. 石油石化绿色低碳, 2023, 8(3): 1-8. DOI:10.3969/j.issn.2095-0942.2023.03.001.
[5]	庞永超. 先进绝热压缩空气储能系统热力性能研究[D]. 北京: 华北电力大学, 2017.
[6]	董舟, 王宁, 李凯, 等. 储能技术分类及市场需求分析[J]. 中国金属通报, 2019(11): 181-182. DOI:10.3969/j.issn.1672-1667.2019.11.112.
[7]	吴皓文, 王军, 龚迎莉, 等. 储能技术发展现状及应用前景分析[J]. 电力学报, 2021, 36(5): 434-443. DOI:10.13357/j.dlxb.2021.052.
[8]	WANG D L, LIU N N, CHEN F, et al. Progress and prospects of energy storage technology research: Based on multidimensional comparison[J]. Journal of Energy Storage, 2024, 75: 109710. DOI:10.1016/j.est.2023.109710.
[9]	SAYED E, OLABI A, ALAMI A, et al. Renewable energy and energy storage systems[J]. Energies, 2023, 16(3): 1415. DOI:10.3390/en16031415.
[10]	VILANOVA M R N, FLORES A T, BALESTIERI J A P. Pumped hydro storage plants: A review[J]. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2020, 42(8): 415. DOI:10.1007/s40430-020-02505-0.
[11]	吴毅, 胡东帅, 王明坤, 等. 一种新型的跨临界CO₂储能系统[J]. 西安交通大学学报, 2016, 50(3): 45-49. DOI:10.7652/xjtuxb201603007.
[12]	ZHANG Q, LUO Z W, ZHAO Y J, et al. Performance assessment and multi-objective optimization of a novel transcritical CO₂ trigeneration system for a low-grade heat resource[J]. Energy Conversion and Management, 2020, 204: 112281. DOI:10.1016/j.enconman.2019.112281.
[13]	SUN E H, WANG X R, et al. Proposal of multistage mass storage process to approach isothermal heat rejection of semi-closed S-CO₂ cycle[J]. Energy, 2023, 270: 126879. DOI:10.1016/j.energy.2023.126879.
[14]	LIU Z, LIU Z H, YANG X Q, et al. Advanced exergy and exergoeconomic analysis of a novel liquid carbon dioxide energy storage system[J]. Energy Conversion and Management, 2020, 205: 112391. DOI:10.1016/j.enconman.2019.112391.
[15]	GUO H, ZHANG Y, et al. Off-design performance and an optimal operation strategy for the multistage compression process in adiabatic compressed air energy storage systems[J]. Applied Thermal Engineering, 2019, 149: 262-274. DOI:10.1016/j.applthermaleng.2018.12.035.
[16]	CHEN W, BAI J S, WANG G H, et al. First and second law analysis and operational mode optimization of the compression process for an advanced adiabatic compressed air energy storage based on the established comprehensive dynamic model[J]. Energy, 2023, 263: 125882. DOI:10.1016/j.energy.2022.125882.
[17]	GUO H, ZHANG Y, et al. Off-design performance and operation strategy of expansion process in compressed air energy systems[J]. International Journal of Energy Research, 2019, 43(1): 475-490. DOI:10.1002/er.4284.
[18]	WANG S X, ZHANG X L, YANG L W, et al. Experimental study of compressed air energy storage system with thermal energy storage[J]. Energy, 2016, 103: 182-191. DOI:10.1016/j.energy.2016.02.125.
[19]	刘辉. 超临界压缩二氧化碳储能系统热力学特性与热经济性研究[D]. 北京: 华北电力大学, 2017. DOI:10.27140/d.cnki.ghbbu.2017.000045.

部件	设计参数	数值	单位
LC	CO₂流量转速压比效率	0.86 9 600 4.5 0.8	kg/s r/min
HC	CO₂流量转速压比效率	0.86 9 600 4.5 0.8	kg/s r/min
LX	CO₂流量综合换热系数	0.86 8.2	kg/s kJ/K
HX	CO₂流量综合换热系数	0.86 11.5	kg/s kJ/K
LR	CO₂流量综合换热系数	0.86 20.84	kg/s kJ/K
HR	CO₂流量综合换热系数	0.86 48.12	kg/s kJ/K
LT	CO₂流量压比效率	0.86 2.6 0.9	kg/s
HT	CO₂流量压比效率	0.86 2.6 0.9	kg/s
LST	体积初始压力	142 1.5	m³ MPa
HST	体积初始压力	100 10	m³ MPa
TV1	压降	0.5	MPa
TV2	压降	10	MPa

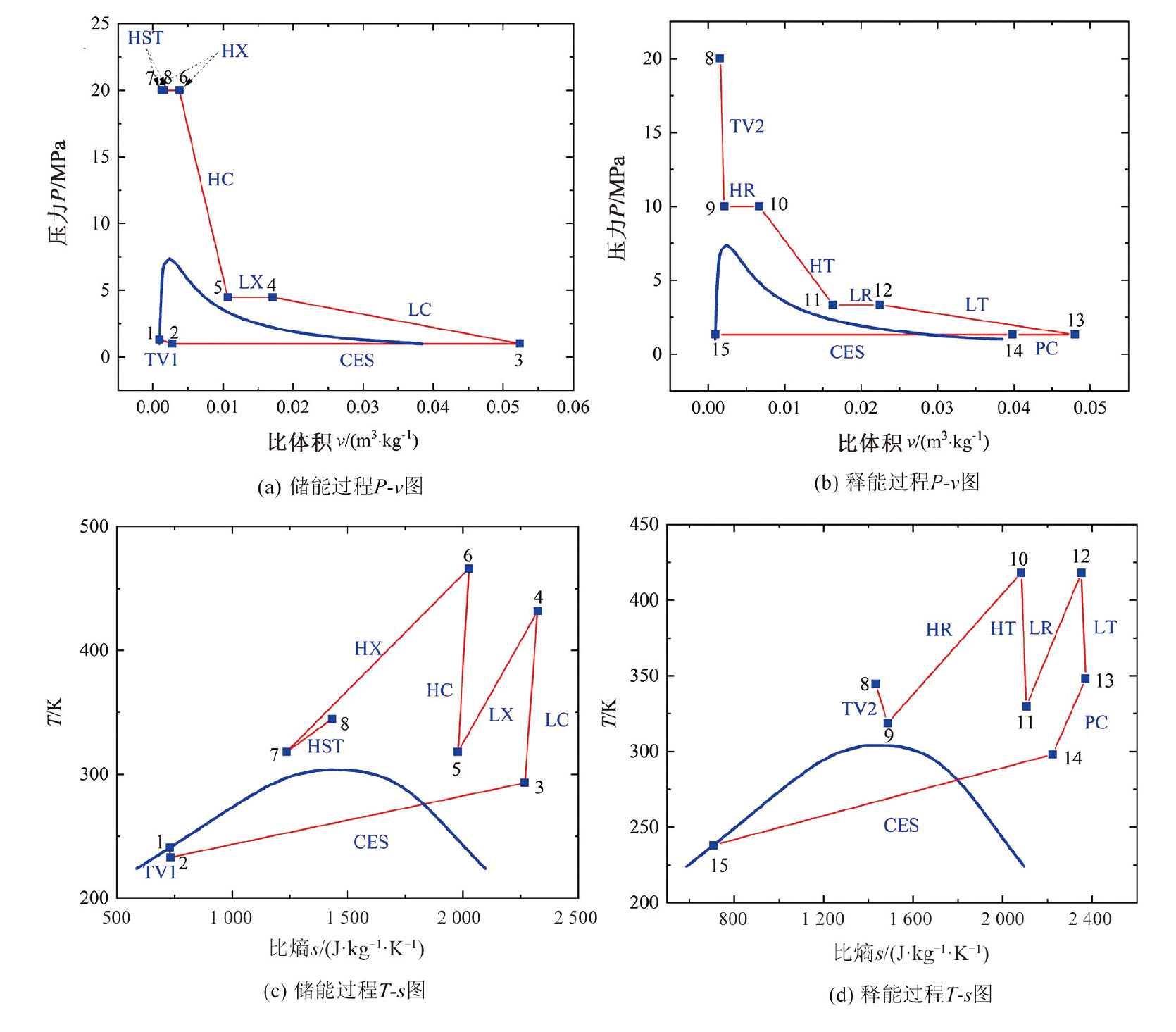

节点	P/MPa	T/K	比体积v/（m³·kg^-1）	比焓h/（kJ·kg^-1）	比熵s/（kJ·kg·K^-1）
1	1.320	240.80	0.000 90	128.4	0.729 8
2	1.000	233.00	0.002 70	128.4	0.732 1
3	1.000	293.15	0.052 40	492.5	2.268 0
4	4.483	431.70	0.017 10	608.2	2.323 0
5	4.483	318.15	0.010 60	480.7	1.979 0
6	20.000	466.20	0.003 70	588.1	2.206 0
7	20.000	318.15	0.001 20	288.4	1.236 0
8	20.000	344.65	0.001 50	354.0	1.433 0
9	10.000	318.90	0.002 10	354.0	1.486 0
10	10.000	417.00	0.006 70	564.2	2.083 0
11	3.334	329.90	0.016 30	506.6	2.106 0
12	3.334	417.00	0.022 40	598.1	2.352 0
13	1.317	348.10	0.047 90	541.2	2.371 0
14	1.371	298.15	0.039 80	493.9	2.224 0
15	1.371	238.15	0.000 90	123.1	0.707 0
16	0.101	298.15	0.001 25	685.7	0
17	0.101	424.90	0.001 25	977.3	0.814 0
18	0.101	421.90	0.001 25	970.4	0.798 0
19	0.101	422.00	0.001 25	970.6	0.799 0
20	0.101	321.40	0.001 25	739.2	0.173 0
21	0.101	332.40	0.001 25	764.5	0.250 0
