Nb掺杂对微波制备TiCoSb Half-Heusler合金热电性能的提升

doi:10.3976/j.issn.1002-4026.20230101

Abstract

Abstract:

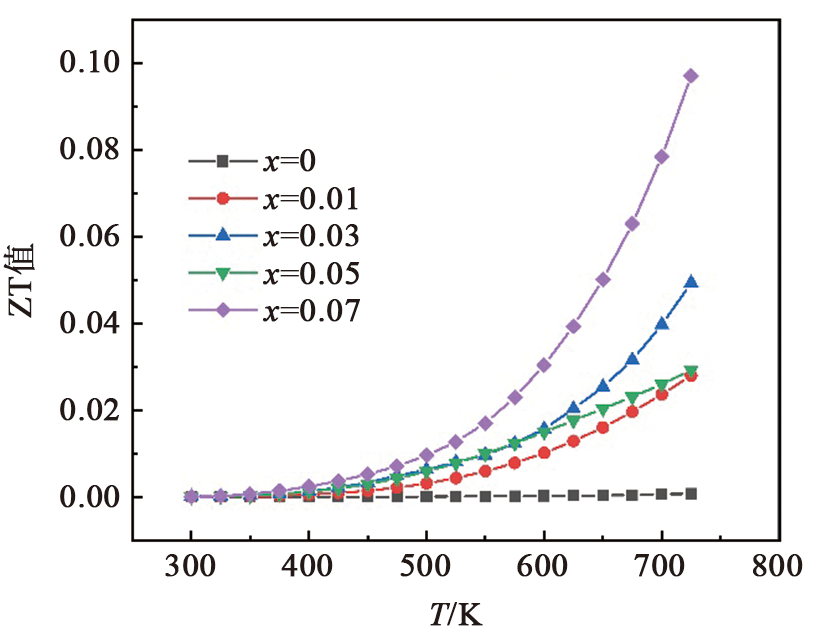

Along with the long preparation cycle time and high cost of conventional preparation methods, the inherent high thermal conductivity of TiCoSb Half-Heusler alloy limited its commercial application. Herein, Ti_1-_xNb_xCoSb Half-Heusler alloys with low thermal conductivity were successfully prepared by microwave synthesis combined with rapid hot-pressing sintering, which substantially shortened the preparation cycle and increased the density of TiCoSb Half-Heusler alloys. Furthermore, we studied the effects of Nb substitution at Ti sites on the phase composition, composition distribution, and thermoelectric transport properties of Ti_1-_xNb_x CoSb Half-Heusler thermoelectric materials. Additionally, the figure of merit(ZT) of Ti_1-_xNb_x CoSb samples were considerably optimized under the combined effects of increasing power factor and decreasing lattice thermal conductivity. The results showed that the Ti_0.93Nb_0.07CoSb sample had a maximum ZT of 0.1 at 725 K, which was two orders of magnitude higher than that of the TiCoSb sample prepared by the same process.

Key words: Half-Heusler, Ti_1-_xNb_x CoSb, microwave, thermoelectric properties

CLC Number:

TN37

ZHANG Ruipeng, KONG Jianbiao, HOU Yangbo, BO Lin, WANG Wenying, WANG Xinglong, ZHAO Linghao, ZHU Junliang, ZHAO Degang. Enhanced thermoelectric properties of Nb-doped TiCoSb Half-Heusler alloys prepared by microwave method[J].Shandong Science, 2024, 37(2): 47-54.

Figures/Tables 7

Fig.1

Table 1

Fig.2

Fig.3

Fig. 4

Fig.5

Fig.6

References 36

[1]	RIFFAT S B, MA X L. Thermoelectrics: A review of present and potential applications[J]. Applied Thermal Engineering, 2003, 23(8): 913-935. DOI: 10.1016/S1359-4311(03)00012-7.
[2]	SHI X, HE J A. Thermopower and harvesting heat[J]. Science, 2021, 371(6527): 343-344. DOI: 10.1126/science.abf3342. pmid: 33479137
[3]	UHER C, YANG J, HU S, et al. Transport properties of pure and doped MNiSn(M=Zr, Hf)[J]. Physical Review B, 1999, 59(13): 8615-8621. DOI: 10.1103/physrevb.59.8615.
[4]	HE J, TRITT T M. Advances in thermoelectric materials research: Looking back and moving forward[J]. Science, 2017, 357(6358): 1-11. DOI: 10.1126/science.aak9997.
[5]	刘恩科, 朱秉升, 罗晋生. 半导体物理学[M]. 7版. 北京: 电子工业出版社, 2008.
[6]	BERMAN R, KLEMENS P G. Thermal conduction in solids[J]. Physics Today, 1978, 31(4): 56-57. DOI: 10.1063/1.2994996.
[7]	GAYNER C, KAR KK. Recent advances in thermoelectric materials[J]. Progress in Materials Science, 2016, 83: 330-382. DOI: 10.1016/j.pmatsci.2016.07.002.
[8]	KARATI A, MUKHERJEE S, MALLIK R C, et al. Simultaneous increase in thermopower and electrical conductivity through Ta-doping and nanostructuring in Half-Heusler TiNiSn alloys[J]. Materialia, 2019, 7(1): 100410-100419. DOI: 10.1016/j.mtla.2019.100410.
[9]	LKHAGVASUREN E, OUARDI S, FECHER G H, et al. Optimized thermoelectric performance of the n-type Half-Heusler material TiNiSn by substitution and addition of Mn[J]. AIP Advances, 2017, 7(4): 45010-45016. DOI: 10.1063/1.4979816.
[10]	BOS J W G. Recent developments in Half-Heusler thermoelectric materials[M]// Thermoelectric Energy Conversion. Amsterdam: Elsevier, 2021: 125-142. DOI: 10.1016/b978-0-12-818535-3.00014-1.
[11]	YAN X, LIU W S, WANG H, et al. Stronger phonon scattering by larger differences in atomic mass and size in p-type half-Heuslers Hf_1-_xTi_xCoSb_0.8Sn_0.2[J]. Energy & Environmental Science, 2012, 5(6): 7543-7548. DOI: 10.1039/C2EE21554C.
[12]	LIU Z H, GUO S P, WU Y X, et al. Design of high-performance disordered half-heusler thermoelectric materials using 18-electron rule[J]. Advanced Functional Materials, 2019, 29(44): 1905044-1905054. DOI: 10.1002/adfm.201905044.
[13]	POON S J. Recent advances in thermoelectric performance of half-heusler compounds[J]. Metals, 2018, 8(12): 989-999. DOI: 10.3390/met8120989.
[14]	VISHWAKARMA A, CHAUHAN N S, BHARDWAJ R, et al. Compositional modulation is driven by aliovalent doping in n-type TiCoSb based half-Heuslers for tuning thermoelectric transport[J]. Intermetallics, 2020, 125(1): 106914-106921. DOI: 10.1016/j.intermet.2020.106914.
[15]	SEKIMOTO T, KUROSAKI K, MUTA H, et al. Thermoelectric properties of Sn-doped TiCoSb half-Heusler compounds[J]. Journal of Alloys and Compounds, 2006, 407(1/2): 326-329. DOI: 10.1016/j.jallcom.2005.06.036.
[16]	WU T, JIANG W, LI X Y, et al. Thermoelectric properties of p-type Fe-doped TiCoSb half-Heusler compounds[J]. Journal of Applied Physics, 2007, 102(10): 103705-103711. DOI: 10.1063/1.2809377.
[17]	LEI Y, LI Y, XU L, et al. Microwave synthesis and sintering of TiNiSn thermoelectric bulk[J]. Journal of Alloys and Compounds, 2016, 660(1): 166-170. DOI: 10.1016/j.jallcom.2015.11.089.
[18]	KIM I H, PARK K H, UR S C. Thermoelectric properties of Sn-doped CoSb₃ prepared by encapsulated induction melting[J]. Journal of Alloys and Compounds, 2007, 442(1/2): 351-354. DOI: 10.1016/j.jallcom.2006.08.368.
[19]	GAINZA J, SERRANO-SÁNCHEZ F, RODRIGUES J E F S, et al. High-performance n-type SnSe thermoelectric polycrystal prepared by arc-melting[J]. Cell Reports Physical Science, 2020, 1(12): 100263-100283. DOI: 10.1016/j.xcrp.2020.100263.
[20]	KARATI A, MURTY B S. Synthesis of nanocrystalline half-Heusler TiNiSn by mechanically activated annealing[J]. Materials Letters, 2017, 205(1): 114-117. DOI: 10.1016/j.matlet.2017.06.068.
[21]	ZHOU G T, PALCHIK O, POL V G, et al. Microwave-assisted solid-state synthesis and characterization of intermetallic compounds of Li₃Bi and Li₃Sb[J]. Journal of Materials Chemistry, 2003, 13(10): 2607-2611. DOI: 10.1039/B303163B.
[22]	WONG W L E, GUPTA M. Development of Mg/Cu nanocomposites using microwave assisted rapid sintering[J]. Composites Science and Technology, 2007, 67(7/8): 1541-1552. DOI: 10.1016/j.compscitech.2006.07.015.
[23]	BIRKEL C S, ZEIER W G, DOUGLAS J E, et al. Rapid microwave preparation of thermoelectric TiNiSn and TiCoSb half-Heusler compounds[J]. Chemistry of Materials, 2012, 24(13): 2558-2565. DOI: 10.1021/cm3011343.
[24]	LANDRY C C, BARRON A R. Synthesis of polycrystalline chalcopyrite semiconductors by microwave irradiation[J]. Science, 1993, 260(5114): 1653-1655. DOI: 10.1126/science.260.5114.1653. pmid: 17810208
[25]	BISWAS K, MUIR S, SUBRAMANIAN M A. Rapid microwave synthesis of indium filled skutterudites: an energy efficient route to high performance thermoelectric materials[J]. Materials Research Bulletin, 2011, 46(12): 2288-2290. DOI: 10.1016/j.materresbull.2011.08.058.
[26]	SAVARY E, GASCOIN F, MARINEL S. Fast synthesis of nanocrystalline Mg₂Si by microwave heating: a new route to nano-structured thermoelectric materials[J]. Dalton Transactions, 2010, 39(45): 11074-11080. DOI: 10.1039/C0DT00519C.
[27]	HMOOD A, KADHIM A, ABU HASSAN H. Influence of Yb-doping on the thermoelectric properties of Pb_1-_xYb_xTe alloy synthesized using solid-state microwave[J]. Journal of Alloys and Compounds, 2012, 520(1): 1-6. DOI: 10.1016/j.jallcom.2011.12.044.
[28]	RONG Z Z, FAN X A, YANG F, et al. Microwave activated hot pressing: a new opportunity to improve the thermoelectric properties of n-type Bi₂Te_3-xSe_x bulks[J]. Materials Research Bulletin, 2016, 83(1): 122-127. DOI: 10.1016/j.materresbull.2016.05.030.
[29]	XIN J W, YANG J Y, LI S H, et al. Thermoelectric performance of rapidly microwave-synthesized α-MgAgSb with SnTe nanoinclusions[J]. Chemistry of Materials, 2019, 31(7): 2421-2430. DOI: 10.1021/acs.chemmater.8b05014.
[30]	COMBE E, GUILMEAU E, SAVARY E, et al. Microwave sintering of Ge-doped In₂O₃ thermoelectric ceramics prepared by slip casting process[J]. Journal of the European Ceramic Society, 2015, 35(1): 145-151. DOI: 10.1016/j.jeurceramsoc.2014.08.012.
[31]	MENA J M, GRUHN T. Search of stable structures in cation deficient (V, Nb)CoSb half-Heusler alloys by an atomic cluster expansion[J]. Journal of Materials Chemistry A, 2021, 9(37): 21111-21122. DOI: 10.1039/d1ta01992a.
[32]	AVERSANO F, PALUMBO M, FERRARIO A, et al. Role of secondary phases and thermal cycling on thermoelectric properties of TiNiSn Half-Heusler alloy prepared by different processing routes[J]. Intermetallics, 2020, 127(1): 106988-107001. DOI: 10.1016/j.intermet.2020.106988.
[33]	陈立东, 刘睿恒, 史讯. 热电材料与器件[M]. 北京: 科学出版社, 2018.
[34]	BHATTACHARYA S, POPE A L, LITTLETON I R T IV, et al. Effect of Sb doping on the thermoelectric properties of Ti-based half-Heusler compounds, TiNiSn_1-_xSb_x[J]. Applied Physics Letters, 2000, 77(16): 2476-2478. DOI: 10.1063/1.1318237.
[35]	MAJI P, TAKAS N J, MISRA D K, et al. Effects of Rh on the thermoelectric performance of the p-type Zr_0.5Hf_0.5Co_1-_xRh_xSb_0.99Sn_0.01 half-Heusler alloys[J]. Journal of Solid State Chemistry, 2010, 183(5): 1120-1126. DOI: 10.1016/j.jssc.2010.03.023.
[36]	JOHARI K K, SHARMA D K, VERMA A K, et al. In situ evolution of secondary metallic phases in off-stoichiometric ZrNiSn for enhanced thermoelectric performance[J]. ACS Applied Materials & Interfaces, 2022, 14(17): 19579-19593. DOI: 10.1021/acsami.2c03065.

Metrics

Comments

Recommended 0

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License (CC BY-NC 4.0), which permits third parties to freely share (i.e., copy and redistribute the material in any medium or format) and adapt (i.e., remix, transform, or build upon the material) the articles published in this journal, provided that appropriate credit is given, a link to the license is provided, and any changes made are indicated. The material may not be used for commercial purposes. For details of the CC BY-NC 4.0 license, please visit: https://creativecommons.org/licenses/by-nc/4.0

组分	密度/(g·cm^-3)	致密度/%	载流子浓度/(10²⁰cm^-3)	载流子迁移率/(cm²·V^-1·s^-1)
TiCoSb	7.13	95.70	5.08	2.95
Ti_0.99Nb_0.01CoSb	7.01	94.09	5.74	2.72
Ti_0.97Nb_0.03CoSb	7.08	95.03	7.13	2.63
Ti_0.95Nb_0.05CoSb	7.14	95.84	8.69	2.58
Ti_0.93Nb_0.07CoSb	7.19	96.51	10.26	2.43
