基于滚动时域控制的轨道交通车站单站限流策略研究

doi:10.3976/j.issn.1002-4026.2023.01.013

Abstract

Abstract:

Aiming to resolve the problem of platform congestion in some high-load node stations, this paper establishes a mathematical model to optimize the average waiting time of passengers and formulates the corresponding traffic-limiting strategies. The model takes the minimum waiting time of passengers as the optimization objective and the number of restricted passengers per unit time at the entrance of the station as the decision variable. According to the behavior characteristics of passengers at different positions in the station, three constraint conditions related to traffic restrictions are formulated:platform capacity constraint, train capacity constraint, and traffic restriction area constraint. At the same time, this paper designs an algorithm based on receding horizon control to perform simulation.The results show that compared with the general strategy of traffic restriction, the algorithm exhibits clear advantages regarding the determination of the times of overruns and the number of passengers during overruns.The algorithm can effectively lower the times of overruns, reduce the number of passengers during overruns by 9% at the platform,and decrease the total passenger travel delay time by 11% without compromising the safety at the platform. This study can provide an effective reference for rail transportation traffic restriction.

Key words: urban rail transportation, receding horizon control, station traffic restriction, single station traffic restriction, decision model, solution algorithm, dynamic control

CLC Number:

U239.5

ZHAO Qingliang, FENG Xiaobin, WU Feng, WANG Yiduo. Single station traffic restriction strategy of rail transitstation based on receding horizon control[J].Shandong Science, 2023, 36(1): 99-106.

Figures/Tables 4

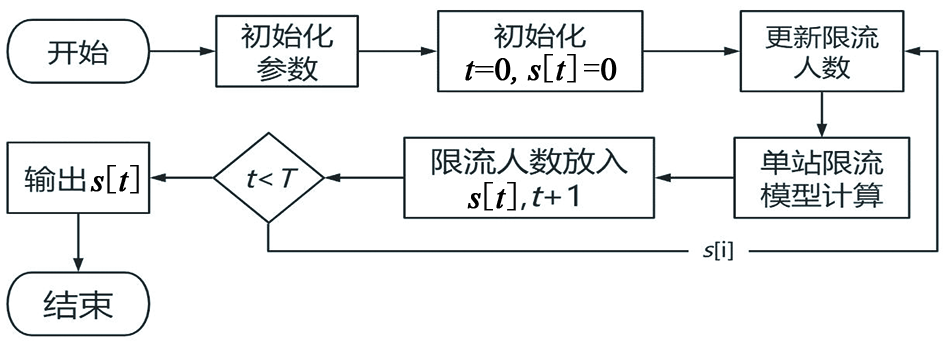

Fig.1

Table 1

Related parameters"

项目	符号	参数值
限流时段开始时,车站站台上已有人数	Q_qt(0)	100人
站台最大客容量	$Q p t m a x$	1 000人
列车到站时间间隔	Δt	3 min
列车的最大载客人数	$Q t r a i n m a x$	500人/列
列车满载率	θ_max	0.9

Table 1

Fig.2

Table 2

References 15

[1]	唐欢. 城市轨道交通突发大客流协同疏运研究[D]. 兰州: 兰州交通大学, 2021.
[2]	杨静, 代盛旭, 周浪雅, 等. 城市轨道交通相邻多车站动态协同限流研究[J]. 铁道运输与经济, 2020, 42(3): 112-118. DOI:10.16668/j.cnki.issn.1003-1421.2020.03.20. doi: 10.16668/j.cnki.issn.1003-1421.2020.03.20
[3]	孙晟凯, 李思杰, 刘志钢, 等. 基于客流与列车动态交互的多站协同客流管控策略评价[J]. 铁道运输与经济. 2021, 43(12):116-125.DOI:10.16668/j.cnki.issn.1003-1421.2021.12.18. doi: 10.16668/j.cnki.issn.1003-1421.2021.12.18
[4]	赵鹏, 姚向明, 禹丹丹. 高峰时段城市轨道交通线路客流协调控制[J]. 同济大学学报, 2014, 42(9):1340-1346,1443. DOI:10.3969/j.issn.0253-374x.2014.09.006. doi: 10.3969/j.issn.0253-374x.2014.09.006
[5]	陈慧, 汪波, 朱江斌. 基于系统动力学的城市轨道交通车站客流控制仿真与优化[J]. 大连交通大学学报, 2020, 41(5):1-7. DOI:10.13291/j.cnki.djdxac.2020.05.001. doi: 10.13291/j.cnki.djdxac.2020.05.001
[6]	SHI J G, YANG L X, YANG J, et al. Service-oriented train timetabling with collaborative passenger flow control on an oversaturated metro line: An integer linear optimization approach[J]. Transportation Research Part B: Methodological, 2018, 110: 26-59. DOI:10.1016/j.trb.2018.02.003. doi: 10.1016/j.trb.2018.02.003
[7]	YUAN F Y, SUN H J, KANG L J, et al. Passenger flow control strategies for urban rail transit networks[J]. Applied Mathematical Modelling, 2020, 82: 168-188. DOI:10.1016/j.apm.2020.01.041. doi: 10.1016/j.apm.2020.01.041
[8]	XU X Y, LI H Y, LIU J, et al. Passenger flow control with multi-station coordination in subway networks: Algorithm development and real-world case study[J]. Transportmetrica B: Transport Dynamics, 2019, 7(1): 446-472. DOI:10.1080/21680566.2018.1434020. doi: 10.1080/21680566.2018.1434020
[9]	刘晓华, 韩梅, 陈超. 城市轨道交通车站联合客流控制研究[J]. 城市轨道交通研究, 2014, 17(5): 106-108. DOI:10.16037/j.1007-869x.2014.05.021. doi: 10.16037/j.1007-869x.2014.05.021
[10]	XU X Y, LIU J, LI H Y, et al. Capacity-oriented passenger flow control under uncertain demand: Algorithm development and real-world case study[J]. Transportation Research Part E: Logistics and Transportation Review, 2016, 87: 130-148. DOI:10.1016/j.tre.2016.01.004. doi: 10.1016/j.tre.2016.01.004
[11]	陈锦渠, 殷勇, 鞠子奇. 基于仿真的城市轨道交通客流分配[J]. 计算机仿真, 2022, 39(2): 73-77. DOI:10.3969/j.issn.1006-9348.2022.02.014. doi: 10.3969/j.issn.1006-9348.2022.02.014
[12]	SHI J G, YANG L X, YANG J, et al. Cooperative passenger flow control in an oversaturated metro network with operational risk thresholds[J]. Transportation Research Part C: Emerging Technologies, 2019, 107: 301-336. DOI:10.1016/j.trc.2019.08.008. doi: 10.1016/j.trc.2019.08.008
[13]	孟凡婷. 城市轨道交通客流协同控制优化模型与算法[D]. 北京: 北京交通大学, 2021.
[14]	JØRGENSEN J B, RAWLINGS J B, JØRGENSEN S B. Numerical methods for large scale moving horizon estimation and control[J]. IFAC Proceedings Volumes, 2004, 37(9): 895-900. DOI:10.1016/S1474-6670(17)31923-7. doi: 10.1016/S1474-6670(17)31923-7
[15]	JIA X L, CAO X B, GUO Y P, et al. Scheduling aircraft landing based on clonalselection algorithm and receding horizon control[C]// 2008 11th International IEEE Conference on Intelligent Transportation Systems. Beijing, China: IEEE, 2008: 357-362. DOI:10.1109/ITSC.2008.4732662. doi: 10.1109/ITSC.2008.4732662

对比项	未优化限流策略	优化限流策略	减少百分比
站台内平均候车人数/(人·h^-1)	835	751	10%
站台最高超限人数	1 100	1 004	9%
乘客总延误时间/min	173 487.3	154 403.7	11%
