海底冷泉气体渗漏模拟观测系统设计与开发

doi:10.3976/j.issn.1002-4026.2023.01.002

Abstract

Abstract:

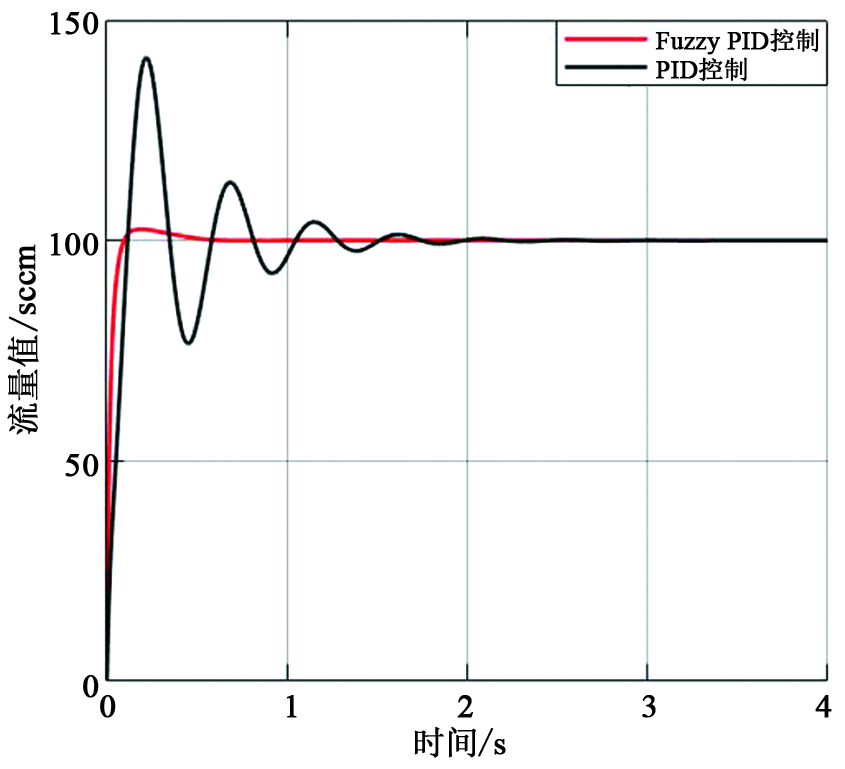

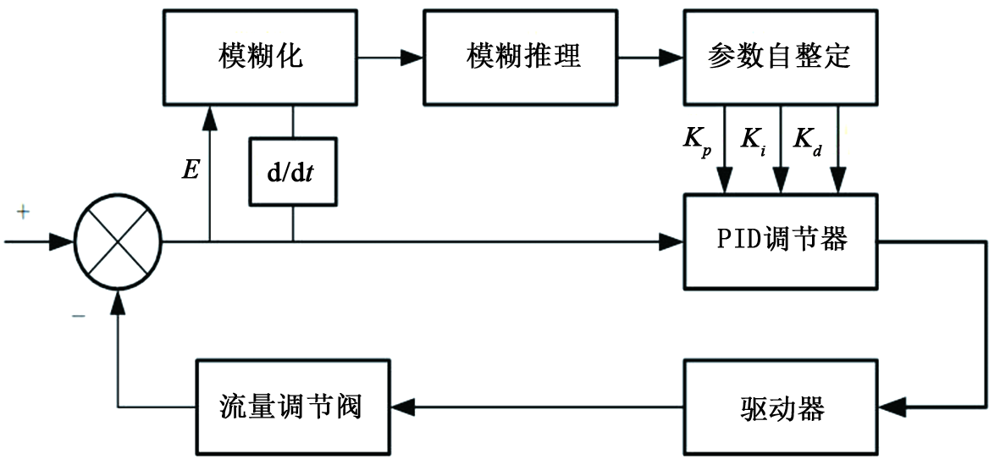

As the acoustic detection of seabed cold springs requires accurate information of bubble characteristics, this paper develops a simulated observation system for the gas leakage of seabed cold springs with high control accuracy and full functions based on the bubble distribution characteristics of real seabed cold springs.The gas flow is precisely controlled viathe fuzzy PID control algorithm. Compared with the conventional control method, the flow error rate can be reduced by up to 1.5% and the cold spring bubbles in the real environment can be simulated accurately and controllably. The dual cameras are driven viaan Ethernet synchronous trigger, and thesynchronized shooting reduces the shooting synchronization error range by 1.1 ms.The system accurately realizes the orthogonal synchronous observation of the bubble shape in the initial overflow stage and provides data support for the detection of seabed cold springs.

Key words: cold spring bubbles, analog system, system design, fuzzy PID

CLC Number:

TP202.2

LI Chenhao, HUA Zhili, HE Rui, LIAN Junshuai, HAO Zongrui. Design and development of seabed cold spring gas leakage simulation observation system[J].Shandong Science, 2023, 36(1): 10-17.

Figures/Tables 12

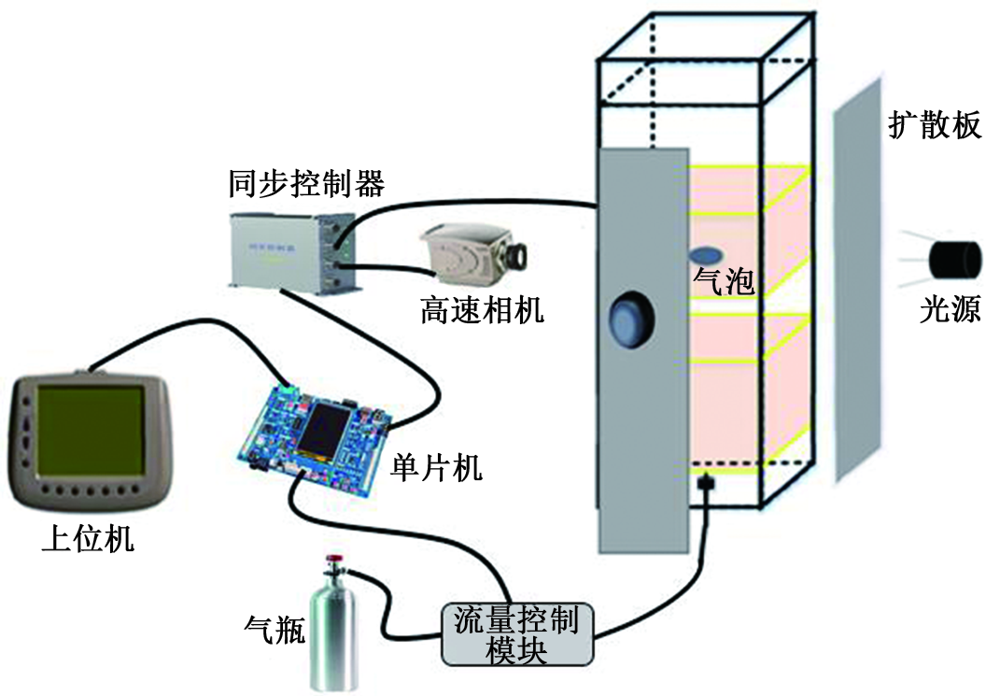

Fig.1

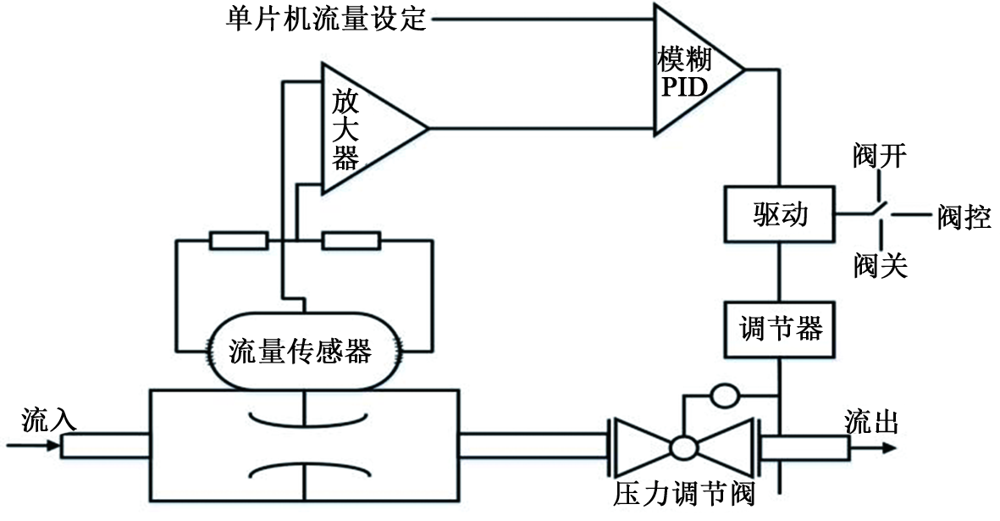

Fig.2

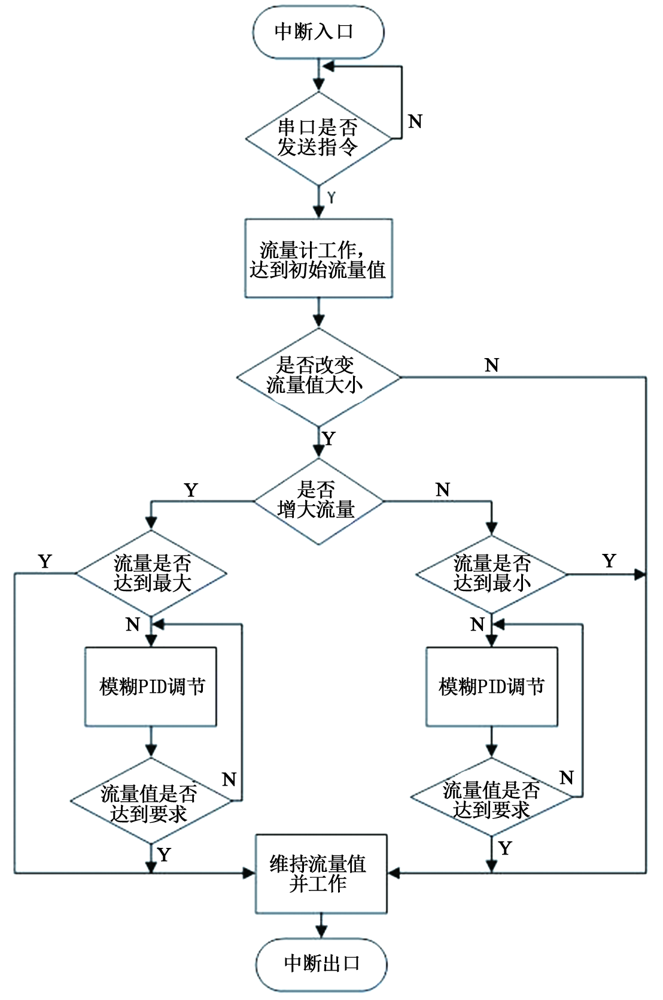

Fig.3

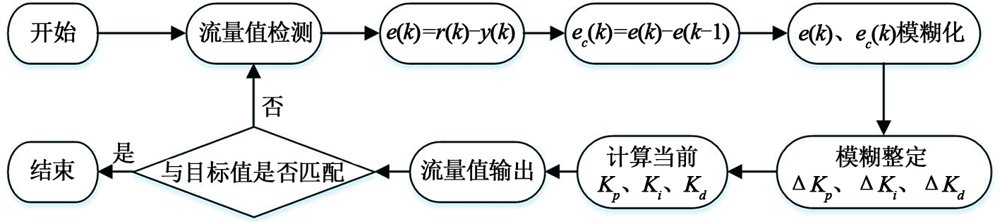

Fig.4

Fig.5

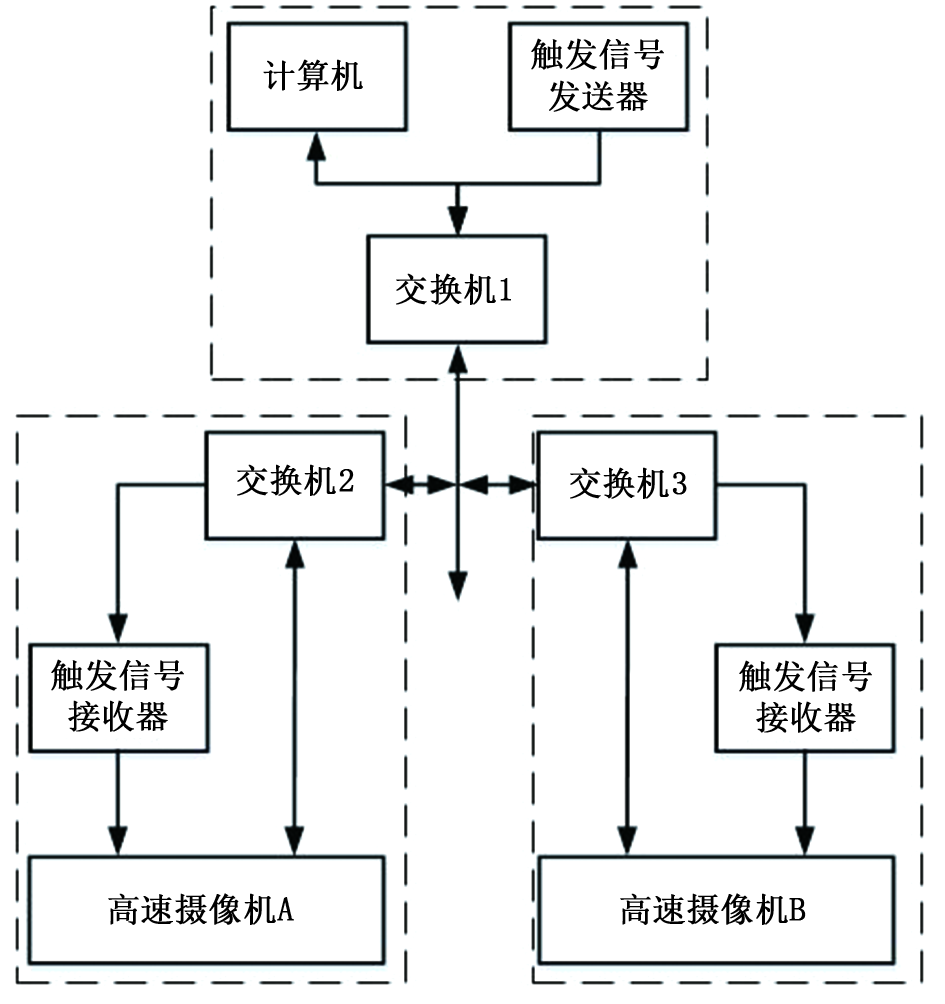

Fig.6

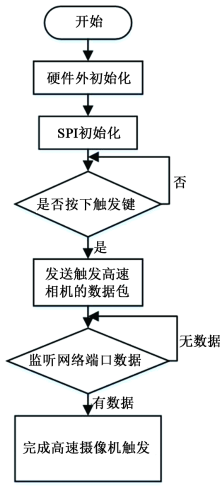

Fig.7

Fig.8

Fig 9

Fig.10

Table 1

Fig.11

References 15

[1]	杨力, 刘斌, 徐梦婕, 等. 南海北部琼东南海域活动冷泉特征及形成模式[J]. 地球物理学报, 2018, 61(7): 2905-2914.
[2]	唐俊红, 朱振振, 王国建, 等. 地质甲烷微渗漏对环境的影响[J]. 杭州电子科技大学学报(自然科学版), 2020, 40(1): 74-78.DOI:10.13954/j.cnki.hdu.2020.01.014. doi: 10.13954/j.cnki.hdu.2020.01.014
[3]	孙涛, 吴涛, 葛阳, 等. 琼东南盆地深水区浅表层水合物稀有气体地球化学特征及意义[J]. 地学前缘, 2022, 29(5):476-482. DOI:10.13745/j.esf.sf.2022.2.59. doi: 10.13745/j.esf.sf.2022.2.59
[4]	胡敏芝, 王乐, 鹿擎梁, 等. 海上天然气水合物勘探开发现状与展望[J]. 船舶工程, 2021, 43(12):23-28.
[5]	刘一林, 李灿苹, 郭子豪, 等. 冷泉、羽状流与天然气水合物的联合探测分析[J]. 地球物理学进展, 2022, 37(2):851-861
[6]	KIM N J, HWEN L J, CHO Y S, et al. Formation enhancement of methane hydrate for natural gas transport and storage[J]. Energy, 2010, 35(6): 2717-2722.DOI:10.1016/j.energy.2009.07.020. doi: 10.1016/j.energy.2009.07.020
[7]	曹学文, 杨凯然, 杨健, 等. 高压CO₂水合物的生成机理实验和模拟[J]. 高压物理学报, 2021, 35(3):173-180.
[8]	江磊磊. 天然气水合物快速合成技术实验研究[D]. 成都: 西南石油大学, 2018.
[9]	胡林林, 付龙, 吴伟, 等. 基于STM32的便携式毫伏示波器控制系统设计[J]. 工业控制计算机, 2022, 35(2): 92-93.
[10]	张峰, 王强. 基于模糊粒子群PID算法的温控系统研究[J]. 电子测量技术, 2022, 45(13): 109-114. DOI:10.19651/j.cnki.emt.2209022. doi: 10.19651/j.cnki.emt.2209022
[11]	李爽. 基于改进模糊PID气体流量控制的传感器动态测试系统研究[D]. 长春: 吉林大学, 2019.
[12]	孙茜, 郑书河. 基于双目视觉的植物三维重建方法及应用[J]. 安徽农业科学, 2021, 49(24): 11-17.
[13]	林冬梅, 张爱华, 沈蓉, 等. 双目视觉脉搏测量系统中的相机同步采集方法[J]. 吉林大学学报(工学版), 2015, 45(6): 1999-2006.DOI:10.13229/j.cnki.jdxbgxb201506038. doi: 10.13229/j.cnki.jdxbgxb201506038
[14]	汤全武, 何昊瀚, 杨燕, 等. 马铃薯动态分级系统中多目相机同步采集方法[J]. 农业工程, 2021, 11(1): 28-32.
[15]	温小艳. 手术导航系统双目视觉图像同步采集设计[D]. 广州: 华南理工大学, 2013.

测试次数	设定流量值/ sccm	PID控制下的流量值/ sccm	模糊PID优化后流量值/ sccm	误差改变率
1	200	204.14	202.23	-0.95%
2	300	306.54	303.21	-1.11%
3	400	407.69	404.22	-0.87%
4	500	511.98	506.56	-1.08%
5	600	614.23	607.11	-1.19%
6	700	716.66	706.57	-1.44%
7	800	785.89	804.97	-1.14%
8	900	886.36	902.45	-1.24%
9	1 000	1 018.96	1 004.23	-1.47%
10	1 200	1 178.57	1 203.46	-1.50%
