悬挂式止水帷幕基坑降水开挖对临近高铁桥墩影响

doi:10.3976/j.issn.1002-4026.2022.06.015

Abstract

Abstract:

In the case of a deep aquifer, a suspended waterproof curtain is typically used in foundation pit engineering. The depth of the waterproof curtain exerts a crucial impact on the deformation of surrounding surface and buildings owing to dewatering and excavation of foundation pit. To study the impact of the dewatering and excavation of foundation pit on the deformation of adjacent high-speed railway piers under different depths of the waterproof curtain, a three-dimension finite element software was used to numerically simulate the dewatering and excavation of a subway station foundation pit in Suzhou. Results show that with increasing depth of the waterproof curtain, the settlement of piers adjacent to the foundation pits gradually decreases. When the depths of the waterproof curtain are 41 and 91 m, the pier settlements of the high-speed railway are 31.88 and 4.18 mm, respectively. Moreover, the settlement of the pier meets the control requirements (≤5 mm) only if the depth of the waterproof curtain exceeds 91 m.

Key words: foundation pit, suspended waterproof curtain, dewatering and excavation, settlement for high-speed railway piers, numerical simulation

CLC Number:

TV551.4

LI Peng-ju, QIAN Lin-gen, WU Qiang, HUANG Shan, CHEN Su. Impact of foundation pit dewatering and excavation with suspended waterproof curtain on adjacent high-speed railway piers[J].Shandong Science, 2022, 35(6): 116-122.

Figures/Tables 12

Fig.1

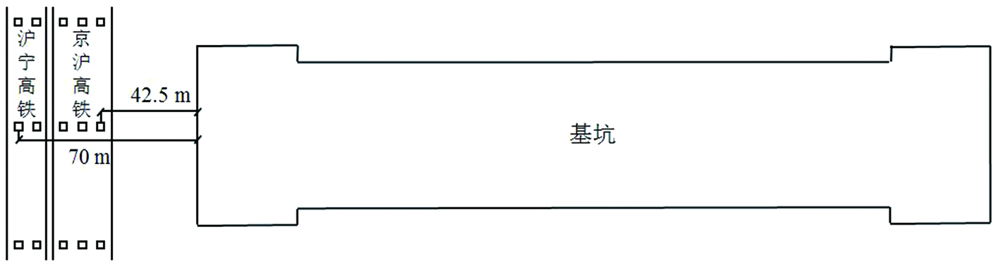

Fig.2

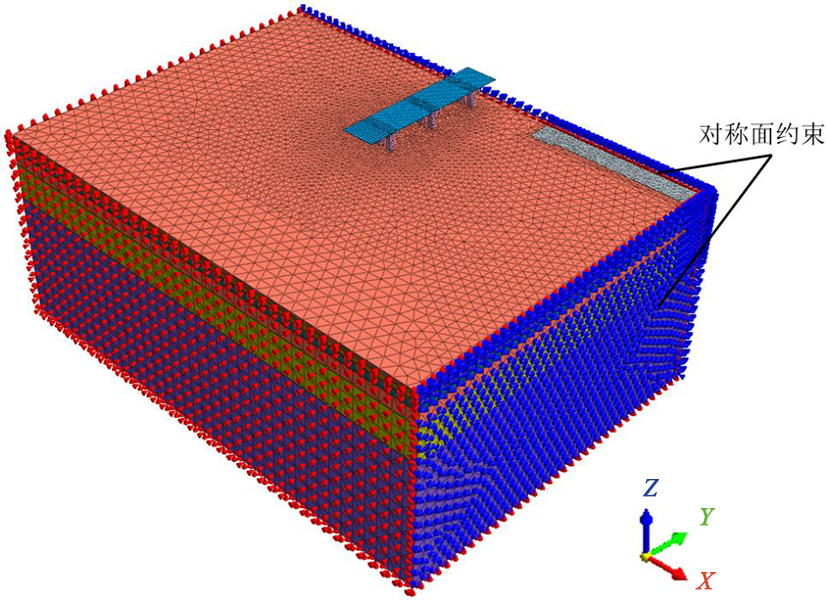

Table 1

Table 2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

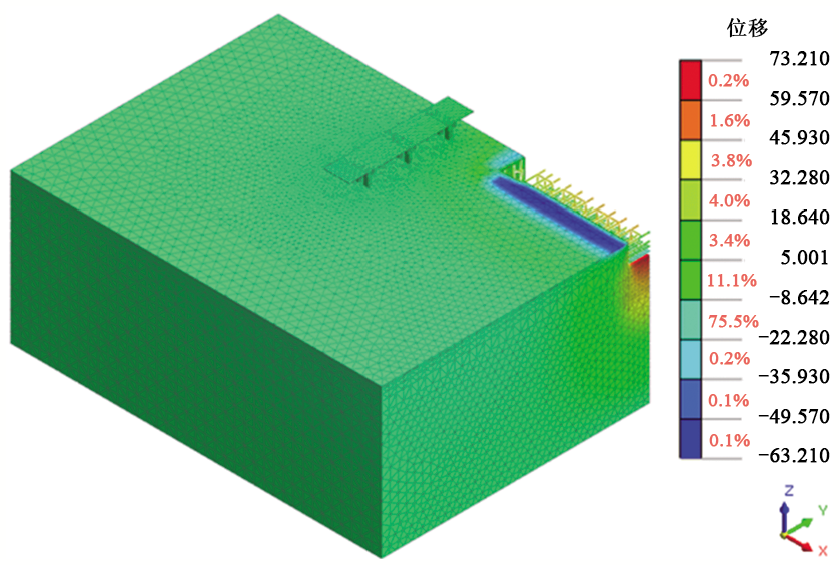

Fig.8

Table 3

Fig.9

References 18

[1]	李伟, 童立元, 王占生, 等. 不同地连墙插入深度下降水对周边环境影响分析[J]. 地下空间与工程学报, 2015, 11(S1):272-277.
[2]	张瑛颖. 杭州地区粉砂土中基坑降水面的数值模拟[D]. 杭州: 浙江大学, 2006.
[3]	赵明. 基坑开挖降水对周围建筑物沉降影响的研究[D]. 济南: 山东大学, 2009.
[4]	吴意谦. 潜水地区地铁车站深基坑降水开挖引起的变形研究[D]. 兰州: 兰州理工大学, 2016.
[5]	周念清, 唐益群, 娄荣祥, 等. 徐家汇地铁站深基坑降水数值模拟与沉降控制[J]. 岩土工程学报, 2011, 33(12): 1950-1956.
[6]	郑刚, 曾超峰. 基坑开挖前潜水降水引起的地下连续墙侧移研究[J]. 岩土工程学报, 2013, 35(12): 2153-2163.
[7]	平扬, 白世伟, 徐燕萍. 深基坑工程渗流-应力耦合分析数值模拟研究[J]. 岩土力学, 2001, 22(1): 37-41. DOI:10.16285/j.rsm.2001.01.010. doi: 10.16285/j.rsm.2001.01.010
[8]	陈锦剑, 范巍, 王建华. 深基坑坑外降水引起土体沉降的有限元分析[J]. 岩土工程学报, 2006, 28(S1): 1346-1349.
[9]	张志红, 秦文龙, 张钦喜, 等. 悬挂式止水帷幕基坑控水优化方法[J]. 东北大学学报(自然科学版), 2021, 42(2): 242-251. DOI:10.12068/j.issn.1005-3026.2021.02.014. doi: 10.12068/j.issn.1005-3026.2021.02.014
[10]	刘国锋, 徐杨青, 吴西臣. 连续墙埋置深度对超深基坑降水效果的影响研究[J]. 工程勘察, 2014, 42(1): 51-58.
[11]	席彬彬, 张兴其, 严中, 等. 不同深度止水帷幕条件下隧道基坑渗流场特性分析[J]. 兰州工业学院学报, 2020, 27(1): 24-27. DOI:10.3969/j.issn.1009-2269.2020.01.006. doi: 10.3969/j.issn.1009-2269.2020.01.006
[12]	田力, 李方明. 悬挂止水帷幕插入深度对地下水渗流场的影响分析[J]. 建筑工程技术与设计, 2014(36): 957. DOI:10.3969/j.issn.2095-6630.2014.36.623. doi: 10.3969/j.issn.2095-6630.2014.36.623
[13]	张钦喜, 魏锰, 王成名. 悬挂式止水帷幕地下水渗流数值模拟[J]. 岩土工程技术, 2021, 35(3): 146-150.DOI:10.3969/j.issn.1007-2993.2021.03.002. doi: 10.3969/j.issn.1007-2993.2021.03.002
[14]	赵宇豪, 童立元, 朱文骏, 等. 不同止水帷幕插入深度下基坑降水对周边环境的影响预测分析[J]. 水利水电技术, 2020, 51(5): 126-131. DOI:10.13928/j.cnki.wrahe.2020.05.016. doi: 10.13928/j.cnki.wrahe.2020.05.016
[15]	李光明, 李明生. 悬挂式止水帷幕基坑降水控制措施研究[J]. 地下空间与工程学报, 2020, 16(3): 921-932.
[16]	章杨松, 李俊才, 董平. 止水帷幕深度对控制周围地面沉降的影响研究[J]. 建筑技术, 2006, 37(12): 895-897. DOI:10.3969/j.issn.1000-4726.2006.12.003. doi: 10.3969/j.issn.1000-4726.2006.12.003
[17]	国家铁路局. 高速铁路设计规范(TB10621—2014)[S]. 北京: 中国铁道出版社, 2014.
[18]	王海涛. MIDAS/GTS岩土工程数值分析与设计: 快速入门与使用技巧[M]. 大连: 大连理工大学出版社, 2013.

标号	土体名称	土层厚度/m	重度/(kN·m^-3)	压缩模量/MPa	黏聚力/kPa	内摩擦角/(°)	泊松比	渗透系数/(cm·s^-1)
①₁	杂填土	2.40	18.0	2.01	12.0	15.0	0.35	1×10^-6
②₁	粉质黏土	3.40	19.5	4.63	22.2	13.5	0.33	5×10^-6
③₁	黏土	4.80	20.1	6.99	53.6	14.5	0.28	2×10^-6
③₂	粉土	8.30	19.3	9.76	5.9	26.8	0.35	1.5×10^-3
④₂	粉砂夹粉土	22.10	19.2	10.98	6.5	31.7	0.31	3.5×10^-3
⑦₂	粉土夹粉砂	17.00	19.4	9.34	60.0	27.3	0.29	6×10^-3

名称	单元类型	重度/(kN·m^-3)	弹性模量/GPa	泊松比	截面面积/m²	惯性矩×10^-2/m⁴
混凝土支撑	1D梁单元	25	33.600	0.20	0.800	4.27
钢支撑	1D梁单元	70	210.000	0.24	0.049	0.37
冠梁	1D梁单元	25	34.400	0.21	1.600	34.13
格构柱	1D梁单元	70	210.000	0.24	0.064	0.41
立柱兼抗拔桩	1D梁单元	25	32.700	0.20	0.567	2.56
高铁桩基础	1D梁单元	25	32.700	0.20	0.785	0.05
高铁桥墩、桥台	3D实体单元	25	33.500	0.20	—	—
地下连续墙	2D板单元	25	35.500	0.21	—	—
全方位高压喷射法(MJS)隔水帷幕	3D实体单元	24	0.028	0.28	—	—
