用于海水微生物燃料电池原位监测的新型伏安式pH传感器

doi:10.3976/j.issn.1002-4026.2025026

Abstract

Abstract:

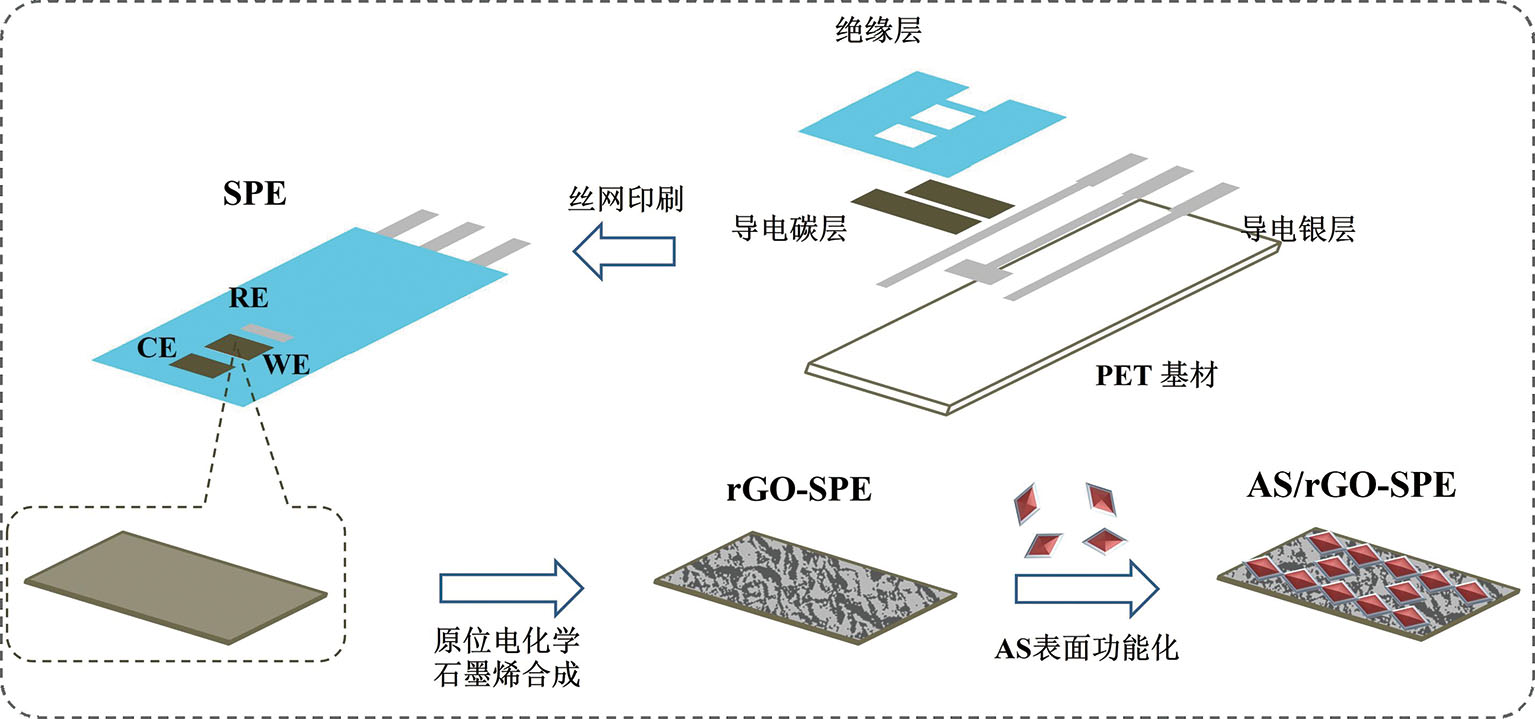

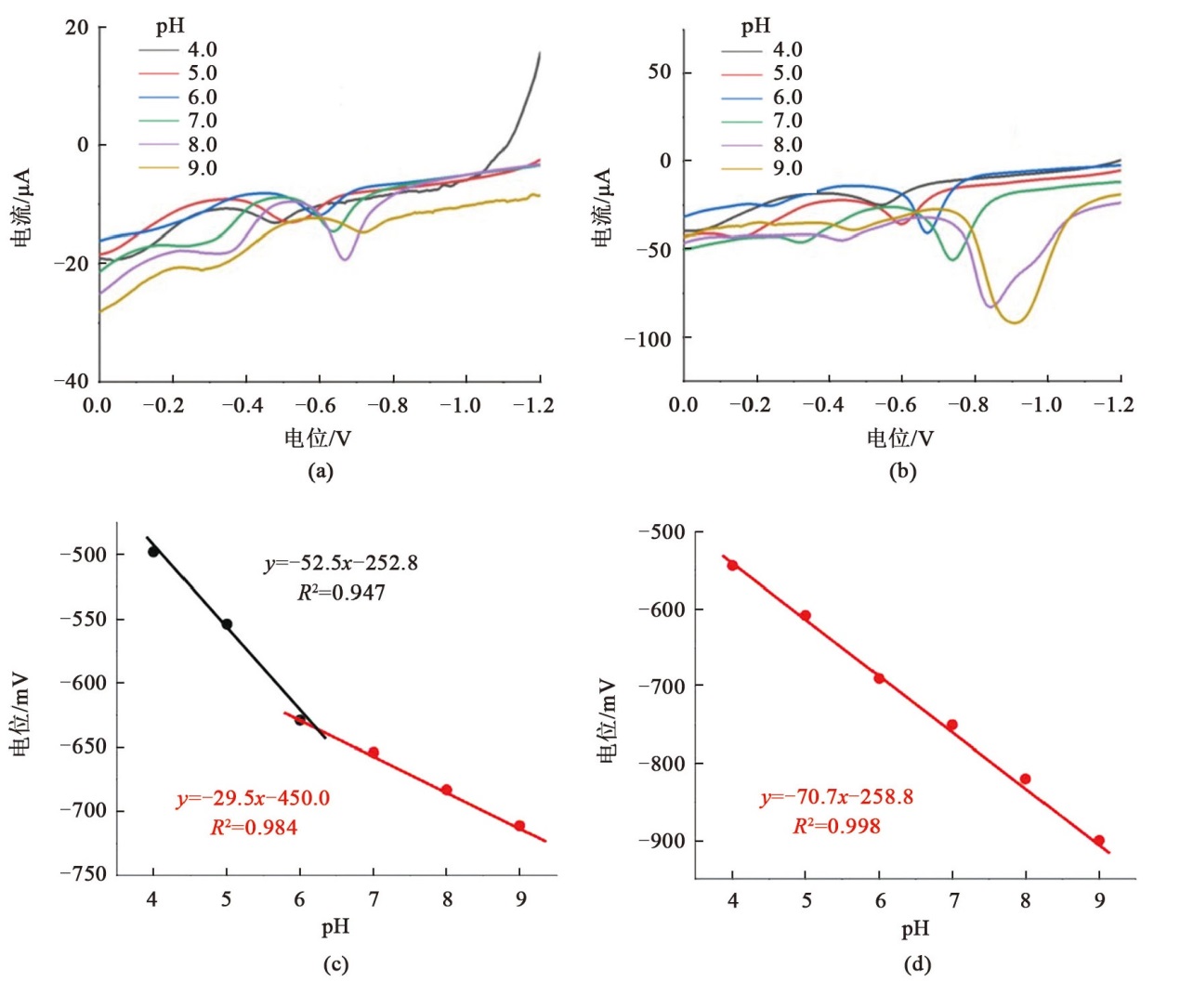

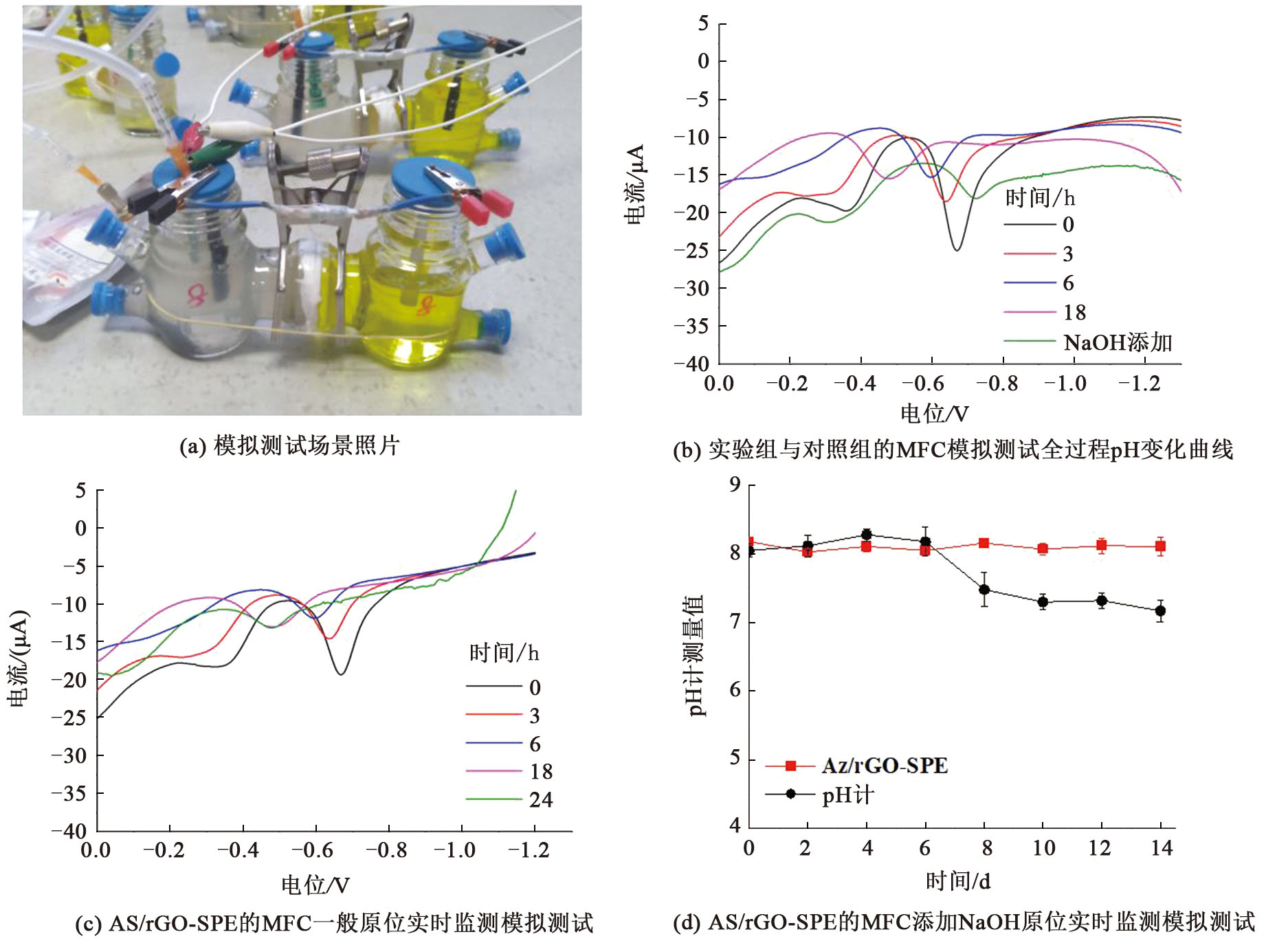

Microbial fuel cells (MFCs) hold considerable potential in bioelectricity generation and bioremediation, and their operational processes are highly sensitive to pH fluctuations. Therefore, online pH monitoring is crucial for optimizing the performance of MFCs. Existing pH meters often fall short in meeting the specific demands associated with online pH monitoring. In this study, we designed a novel voltammetric pH sensor based on electrochemically in situ-synthesized graphene-modified screen-printed electrodes. By surface coupling with the hydrogen-bond carrier alizarin safirol SE, the sensor achieves excellent linearity in pH detection within the range of 4.0 to 9.0, with a sensitivity of 70.7 mV per pH unit. The measurement cycle could be controlled within 15 s. This study successfully demonstrated in situ long-term pH dynamic monitoring in a seawater-based MFC constructed using coastal activated sludge, yielding ideal results. Notably, the incorporation of the aforementioned hydrogen-bond carrier enhanced the proton diffusion rate at the graphene interface, thereby improving the performance of the voltammetric pH sensor. Furthermore, this study revealed the considerable potential of this strategy for improving the reference system, which is expected to further substantially enhance the long-term sensing performance of this strategy. In addition, this strategy provides a new approach for long-term in situ online pH monitoring and thereby contribues to the future development of MFCs.

Key words: microbial fuel cell, marine environment monitoring, voltammetric pH sensor, in situ continuous monitoring

CLC Number:

TM911.45

LI Yiwei, SONG Jin, LI Yunzhou, WANG Juncheng. A novel voltammetric pH sensor for in situ monitoring of seawater microbial fuel cell[J].Shandong Science, 2025, 38(3): 72-83.

Figures/Tables 9

Fig.1

Table 1

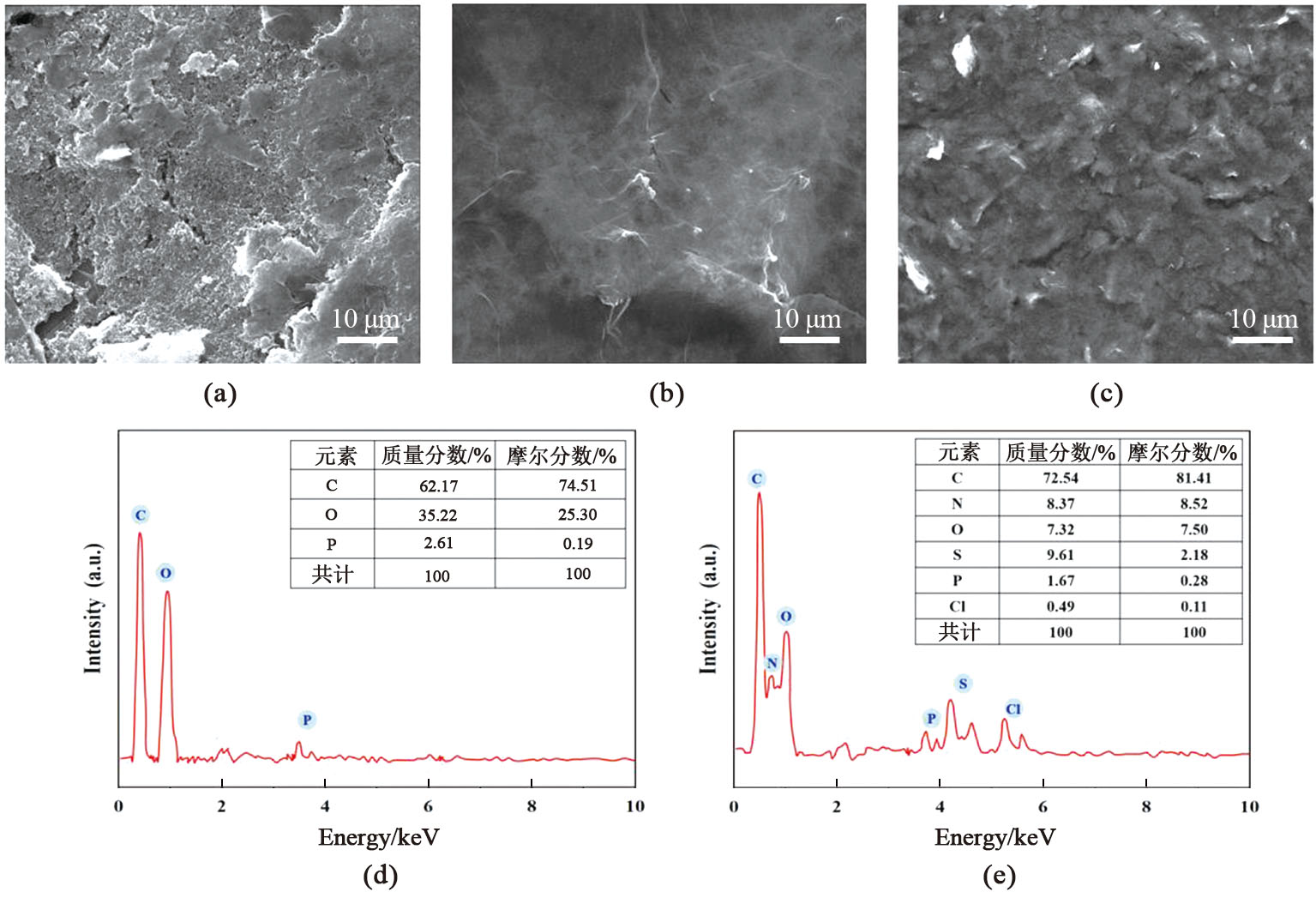

Fig.2

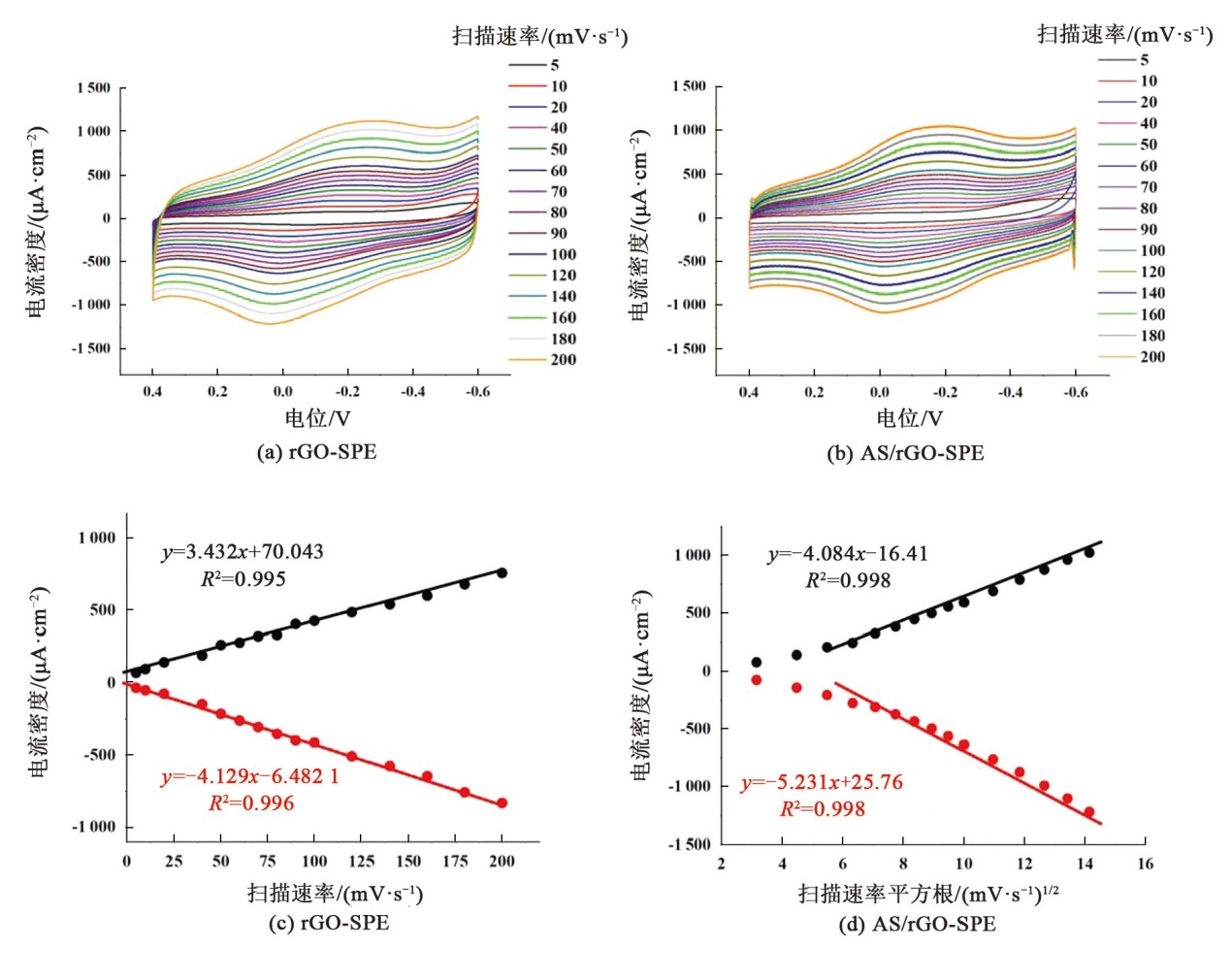

Fig.3

Fig.4

Fig.5

Table 2

Fig.6

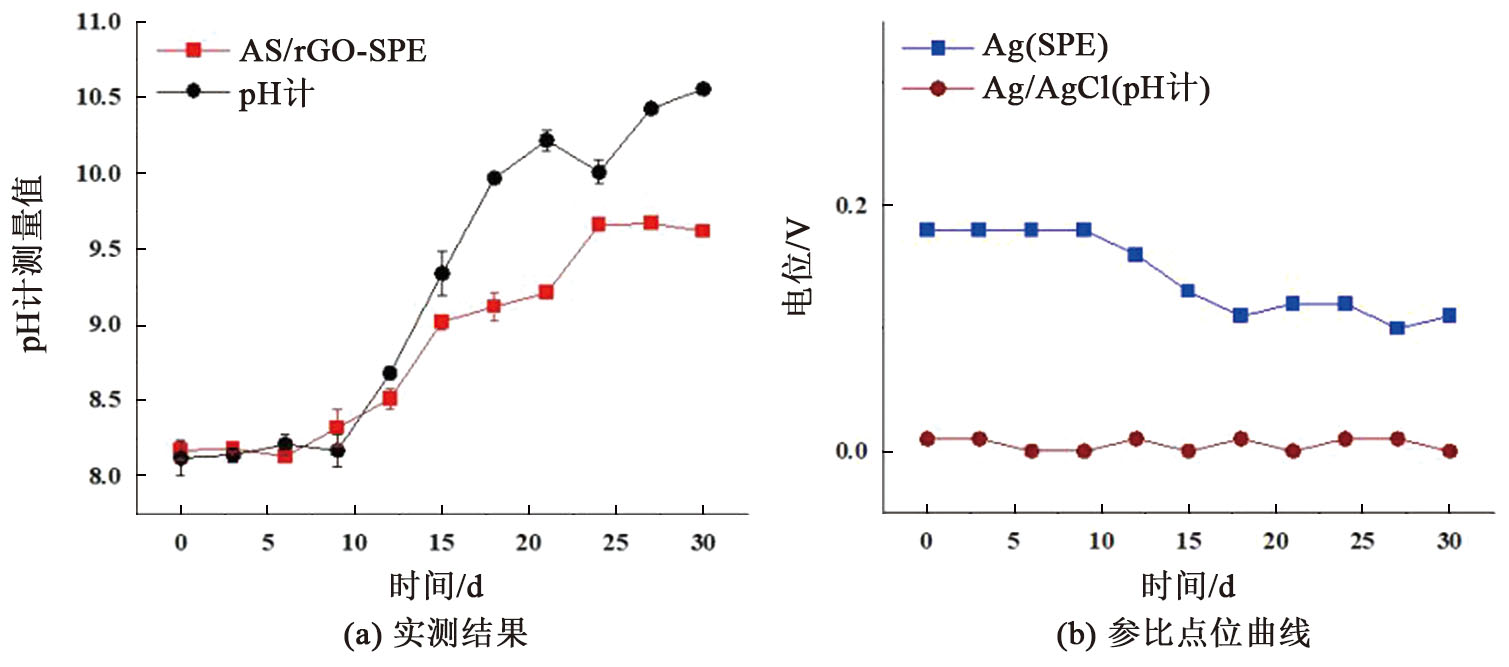

Fig.7

References 33

[1]	XIAO L L, LI J J, LICHTFOUSE E, et al. Augmentation of chloramphenicol degradation by Geobacter-based biocatalysis and electric field[J]. Journal of Hazardous Materials, 2021, 410: 124977. DOI: 10.1016/j.jhazmat.2020.124977.
[2]	BHEMBE Y A, LUKHELE L P, HLEKELELE L, et al. Photocatalytic degradation of nevirapine with a heterostructure of few-layer black phosphorus coupled with niobium (V) oxide nanoflowers (FL-BP@Nb₂O₅)[J]. Chemosphere, 2020, 261: 128159. DOI: 10.1016/j.chemosphere.2020.128159.
[3]	DIANEY G S, KAUR H, DOSANJH H S, et al. Sunlight powered degradation of pentoxifylline Cs_0.5Li_0.5FeO₂ as a green reusable photocatalyst: Mechanism, kinetics and toxicity studies[J]. Journal of Hazardous Materials, 2021, 416: 125762. DOI: 10.1016/j.jhazmat.2021.125762.
[4]	VAN LE Q, NGUYEN V H, NGUYEN T D, et al. Light-driven reduction of carbon dioxide: Altering the reaction pathways and designing photocatalysts toward value-added and renewable fuels[J]. Chemical Engineering Science, 2021, 237: 116547. DOI: 10.1016/j.ces.2021.116547.
[5]	STREETER I, LEVENTIS H C, WILDGOOSE G G, et al. A sensitive reagentless pH probe with a Ca. 120mV/pH unit response[J]. Journal of Solid State Electrochemistry, 2004, 8(10): 718-721. DOI: 10.1007/s10008-004-0536-7.
[6]	KAKIUCHI T. Salt bridge in electroanalytical chemistry: Past, present, and future[J]. Journal of Solid State Electrochemistry, 2011, 15(7): 1661-1671. DOI: 10.1007/s10008-011-1373-0.
[7]	SKOOG D A, WEST D M, HOLLER J, et al. Fundamentals of Analytical Chemistry[M]. New York: Holt Press, 2014.
[8]	STRED'ANSÝK M, PIZZARIELLO A, STRED'ANSKÁ S, et al. Amperometric pH-sensing biosensors for urea, penicillin, and oxalacetate[J]. Analytica Chimica Acta, 2000, 415(1/2): 151-157. DOI: 10.1016/S0003-2670(00)00869-2.
[9]	DONG Q C, HUANG Y K, SONG D H, et al. Dual functional rhodium oxide nanocorals enabled sensor for both non-enzymatic glucose and solid-state pH sensing[J]. Biosensors & Bioelectronics, 2018, 112: 136-142. DOI: 10.1016/j.bios.2018.04.021.
[10]	WEBSTER J G, EREN H. Measurement, instrumentation, and sensors handbook: spatial, mechanical, thermal, and radiation measurement[M]. 2nd ed. Boca Raton: CRC Press, 2014.
[11]	LU M, COMPTON R G. Voltammetric pH sensor based on an edge plane pyrolytic graphite electrode[J]. Analyst, 2014, 139(10): 2397-2403. DOI: 10.1039/C4AN00147H.
[12]	LU M, COMPTON R G. Voltammetric pH sensing using carbon electrodes: Glassy carbon behaves similarly to EPPG[J]. Analyst, 2014, 139(18): 4599-4605. DOI: 10.1039/C4AN00866A.
[13]	MICHALAK M, KUREL M, JEDRASZKO J, et al. Voltammetric pH nanosensor[J]. Analytical Chemistry, 2015, 87(23): 11641-11645. DOI: 10.1021/acs.analchem.5b03482.
[14]	JACQ J. Schema carre etablissement et discussion de l’equation generale de la courbe intensite-potentiel en regime stationnaire et diffusion convective[J]. Journal of Electroanalytical Chemistry and Interfacial Electrochemistry, 1971, 29(1): 149-180. DOI: 10.1016/S0022-0728(71)80080-3.
[15]	BATCHELOR-MCAULEY C, KOZUB B R, MENSHYKAU D, et al. Voltammetric responses of surface-bound and solution-phase anthraquinone moieties in the presence of unbuffered aqueous media[J]. The Journal of Physical Chemistry C, 2011, 115(3): 714-718. DOI: 10.1021/jp1096585.
[16]	GAO X M, DAI C C, XU Z J, et al. An electrochemical method for monitoring the acidity of water for fuel cell and environmental applications[J]. Energy Technology, 2018, 6(1): 94-99. DOI: 10.1002/ente.201700617.
[17]	ZUAZNABAR-GARDONA J C, FRAGOSO A. A wide-range solid state potentiometric pH sensor based on poly-dopamine coated carbon nano-onion electrodes[J]. Sensors and Actuators B: Chemical, 2018, 273: 664-671. DOI: 10.1016/j.snb.2018.06.103.
[18]	CASIMERO C, MCCONVILLE A, FEARON J J, et al. Sensor systems for bacterial reactors: A new flavin-phenol composite film for the in situ voltammetric measurement of pH[J]. Analytica Chimica Acta, 2018, 1027: 1-8. DOI: 10.1016/j.aca.2018.04.053.
[19]	READ T L, COBB S J, MACPHERSON J V. An sp² patterned boron doped diamond electrode for the simultaneous detection of dissolved oxygen and pH[J]. ACS Sensors, 2019, 4(3): 756-763. DOI: 10.1021/acssensors.9b00137.
[20]	THAM G X, FISHER A C, WEBSTER R D. A vitamin-based voltammetric pH sensor that functions in buffered and unbuffered media[J]. Sensors and Actuators B: Chemical, 2019, 283: 495-503. DOI: 10.1016/j.snb.2018.12.036.
[21]	LI Y W, ZHOU J, SONG J, et al. Chemical nature of electrochemical activation of carbon electrodes[J]. Biosensors and Bioelectronics, 2019, 144: 111534. DOI: 10.1016/j.bios.2019.111534.
[22]	LI Y W, MA Y H, LICHTFOUSE E, et al. In situ electrochemical synthesis of graphene-poly(arginine) composite for p-nitrophenol monitoring[J]. Journal of Hazardous Materials, 2022, 421: 126718. DOI: 10.1016/j.jhazmat.2021.126718.
[23]	ZHOU M, WANG Y L, ZHAI Y M, et al. Controlled synthesis of large-area and patterned electrochemically reduced graphene oxide films[J]. Chemistry, 2009, 15(25): 6116-6120. DOI: 10.1002/chem.200900596.
[24]	CINTI S, ARDUINI F. Graphene-based screen-printed electrochemical (bio)sensors and their applications: Efforts and criticisms[J]. Biosensors and Bioelectronics, 2017, 89: 107-122. DOI: 10.1016/j.bios.2016.07.005.
[25]	LEE H, CHOI T K, LEE Y B, et al. A graphene-based electrochemical device with thermoresponsive microneedles for diabetes monitoring and therapy[J]. Nature Nanotechnology, 2016, 11(6): 566-572. DOI: 10.1038/nnano.2016.38.
[26]	SHEN A L, ZOU Y Q, WANG Q, et al. Oxygen reduction reaction in a droplet on graphite: Direct evidence that the edge is more active than the basal plane[J]. Angewandte Chemie (International Ed), 2014, 53(40): 10804-10808. DOI: 10.1002/anie.201406695.
[27]	ENG A Y S, AMBROSI A, CHUA C K, et al. Unusual inherent electrochemistry of graphene oxides prepared using permanganate oxidants[J]. Chemistry, 2013, 19(38): 12673-12683. DOI: 10.1002/chem.201301889.
[28]	DAI C C, SONG P, WADHAWAN J D, et al. Screen printed alizarin-based carbon electrodes: Monitoring pH in unbuffered media[J]. Electroanalysis, 2015, 27(4): 917-923. DOI: 10.1002/elan.201400704.
[29]	SISODIA N, MIRANDA M, MCGUINNESS K L, et al. Intra- and inter-molecular sulf- hydryl hydrogen bonding: Facilitating proton transfer events for determination of pH in sea water[J]. Electroanalysis, 2021, 33(3): 559-562. DOI: 10.1002/elan.202060332.
[30]	CHU W B, TAN S J, ZHENG Q J, et al. Ultrafast charge transfer coupled to quantum proton motion at molecule/metal oxide interface[J]. Science Advances, 2022, 8(24): eabo2675. DOI: 10.1126/sciadv.abo2675.
[31]	LOGAN B E. Microbial fuel cells[M]. New Jersey: Wiley-Blackwell Press, 2008.
[32]	LIU D, HUANG W C, CHANG Q H, et al. The high enrichment of Geobacter by TiN nanoarray anode catalyst for efficient microbial fuel cells[J]. Journal of Materials Chemistry A, 2021, 9(12): 7726-7735. DOI: 10.1039/d0ta11788a.
[33]	FENG M, MENG L, ZHANG Z, et al. Hierarchical modulation of extracellular electron transfer processes in microbial fuel cell anodes for enhanced power output through improved Geobacter adhesion[J]. Electrochimica Acta, 2024, 487: 144165. DOI: 10.1016/j.electacta.2024.144165.

干扰源	质量浓度/(g·L^-1)	pH₀	pH_int	pH漂移
盐度	20	8.18	8.12	-0.06±0.08
	30	8.12	8.11	-0.01±0.03
	40	8.14	8.07	-0.07±0.06
	50	8.09	8.13	0.04±0.02
	60	8.17	8.11	-0.06±0.11
DO	5.0	8.16	8.15	-0.01±0.04
	7.5	8.21	8.13	-0.08±0.04
	10.0	8.17	8.22	0.05±0.05
	12.5	8.11	8.14	0.03±0.09
	15.0	8.19	8.14	-0.05±0.02
NaS	0.02	8.07	8.17	0.1±0.07
	0.05	8.09	8.17	0.08±0.03
	0.10	8.16	8.06	-0.1±0.06
	0.25	8.11	8.09	-0.02±0.06
	0.50	8.18	8.13	-0.05±0.12
pAP	0.010	8.13	8.23	0.1±0.07
	0.025	8.08	8.19	0.11±0.04
	0.050	8.17	8.14	-0.03±0.11
	0.075	8.16	8.20	0.04±0.09
	0.100	8.13	8.11	-0.02±0.05
