油田含聚污水在换热表面的结垢特性研究

doi:10.3976/j.issn.1002-4026.20240061

Abstract

Abstract:

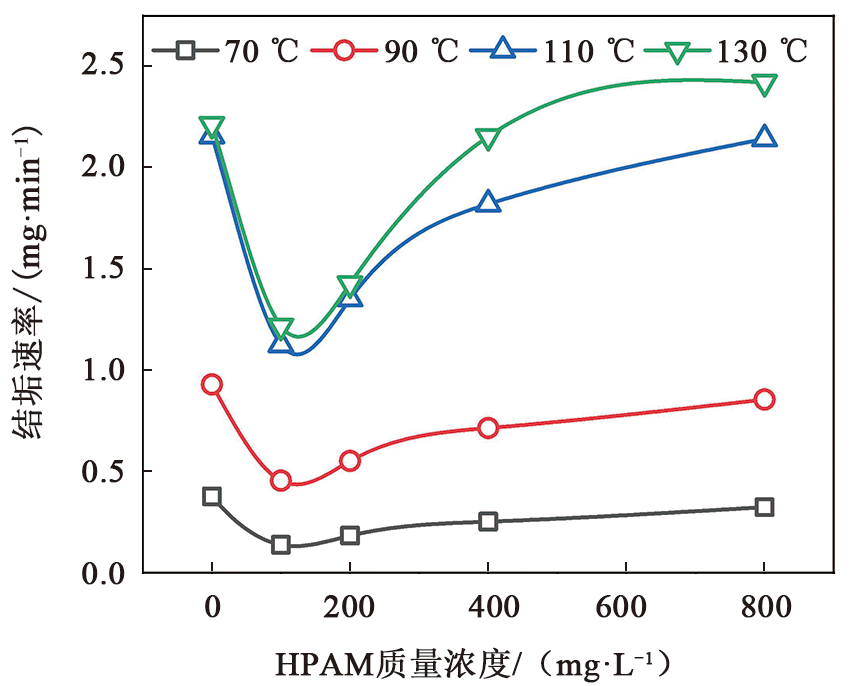

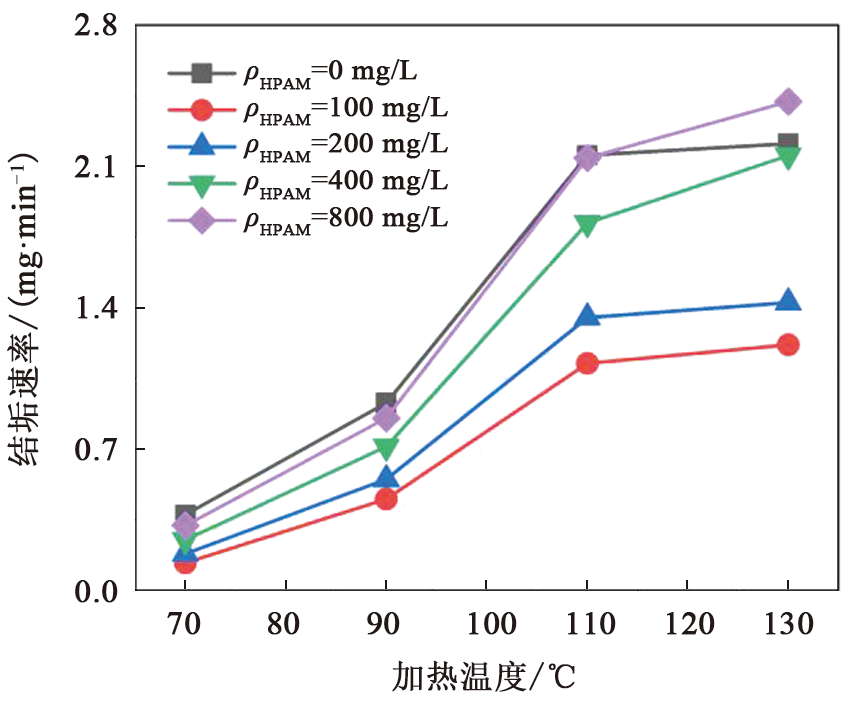

Fouling is a common problem in the efficient conversion and utilization of energy as it significantly reduces heat transfer efficiency and jeopardizes the operational safety of equipment. In recent years, with the application of polymer oil drive technology in recent years, the fouling problem caused by HPAM in the recovered fluid has gradually attracted attention. Scaling processes are more complex and fouling is more stubborn in HPAM-containing environments than in HPAM-free environments. Herein, to address the fouling of polymer-bearing wastewater on the surface of heat-exchanger equipment, we experimentally investigated the impacts of factors such as heat-exchanger surface temperature, HPAM mass concentration, hydrolysis degree, fluid salinity, and surface roughness on the fouling rate and identified the fouling patterns of polymer-bearing wastewater on such surfaces. It was found that polymer concentration is the most important factor affecting the fouling rate of polymer-bearing wastewater. The fouling rate decreases and then increases with increasing HPAM mass concentration, and HPAM exerts an antagonistic effect on the fouling rate. The fouling rate increases with increasing heat-exchanger surface temperature, and boiling accelerates the surface fouling rate. In addition, there is a critical degree of HPAM hydrolysis at which the fouling rate is the highest, while the surface roughness has no significant effect on scaling rate.

Key words: polyacrylamide, polymer-bearing wastewater, heat-exchanger surface, fouling rate

CLC Number:

TE345

LI Fengming, GAO Yajie, WEI Zhengnan, YANG Yong, JIAO Bin, MA Yong. Research on fouling characteristics of oil-field polymer-bearing wastewater on the surface of heat-exchanger equipment[J].Shandong Science, 2025, 38(4): 106-117.

Figures/Tables 22

Table 1

Composition analysis of the working fluid"

检测项目	检测结果	检测项目	检测结果
ρ(Na⁺)/(mg·L^-1)	5 318	温度/℃	45
ρ(K⁺)/(mg·L^-1)	150.9	pH	7
ρ(Ca²⁺)/(mg·L^-1)	681.7	ρ(溶解氧)/(mg·L^-1)	0
ρ(Mg²⁺)/(mg·L^-1)	155.7	ρ(游离二氧化碳)/(mg·L^-1)	45
ρ(Sr²⁺)/(mg·L^-1)	0	ρ(硫化物)/(mg·L^-1)	0.76
ρ(Ba²⁺)/(mg·L^-1)	0	ρ(含油量)/(mg·L^-1)	115.3
ρ(Fe²⁺)/(mg·L^-1)	2.6	ρ(悬浮物)/(mg·L^-1)	18.2
ρ(Cl^-)/(mg·L^-1)	8 808.4	粒径中值/μm	4.1
ρ( $SO 4 2 -$ )/(mg·L^-1)	34	平均腐蚀速率/(mm·a^-1)	0.037
ρ(F^-)/(mg·L^-1)	0	原菌/(个·mL^-1)	25
ρ( $NO 3 -$ )/(mg·L^-1)	0	铁细菌/(个·mL^-1)	0
ρ( $CO 3 2 -$ )/(mg·L^-1)	0	腐生菌/(个·mL^-1)	2.5
ρ( $HCO 3 -$ )/(mg·L^-1)	629.7	矿化度/(个·mL^-1)	15 773

Table 1

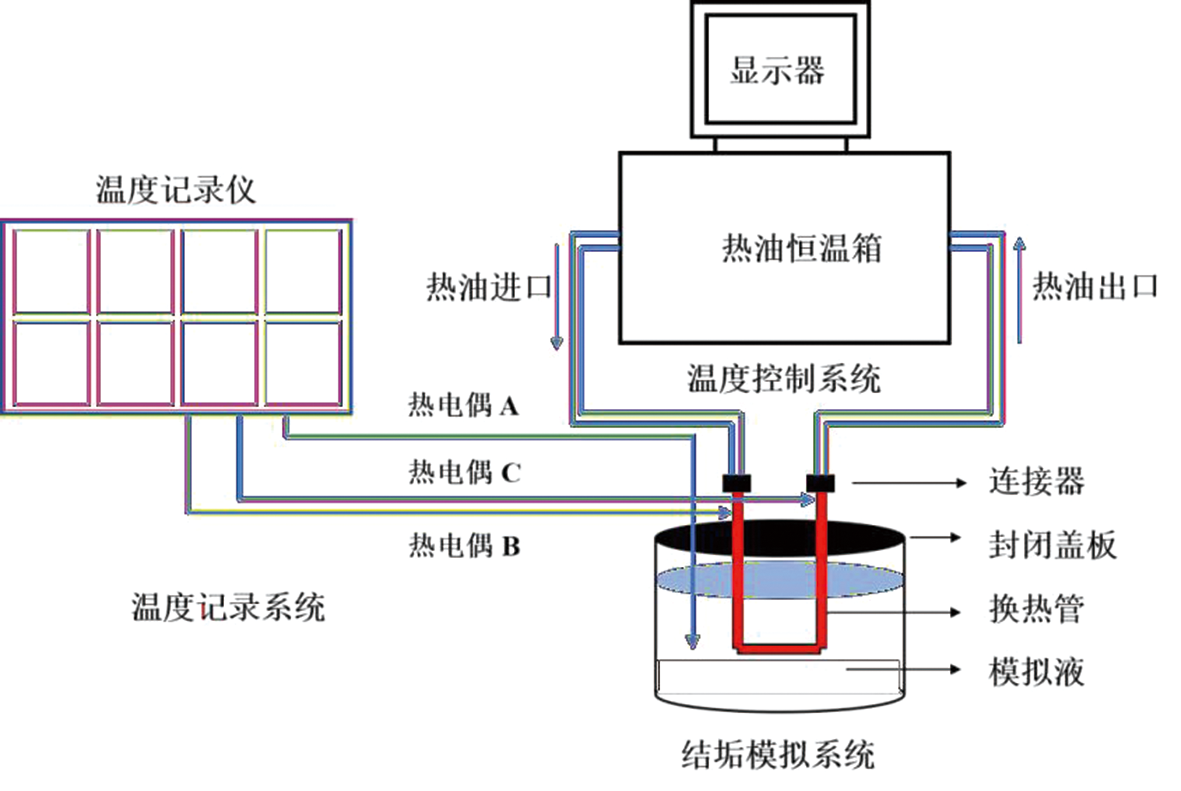

Fig.1

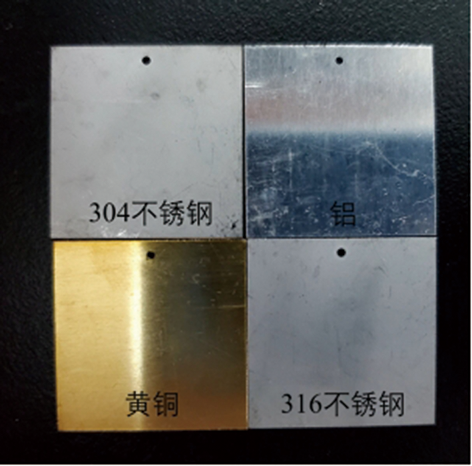

Fig.2

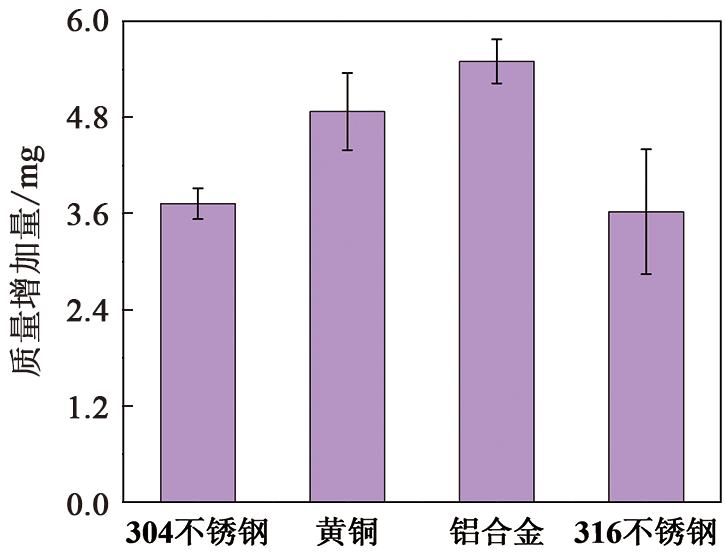

Fig.3

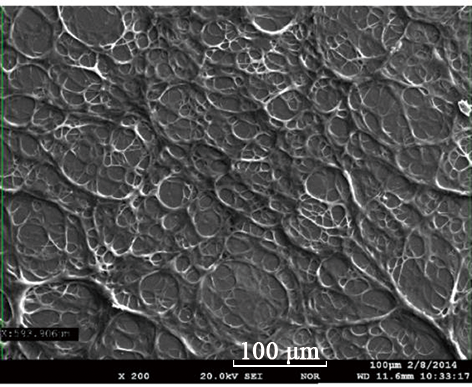

Fig.4

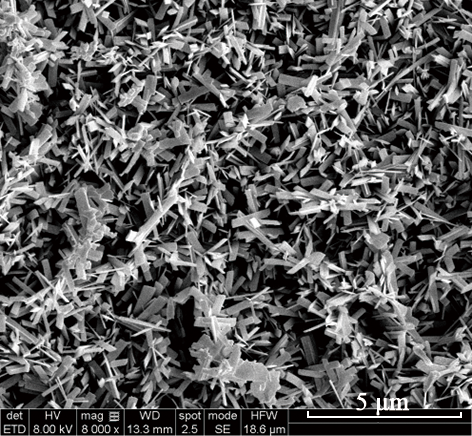

Fig.5

Fig.6

Table 2

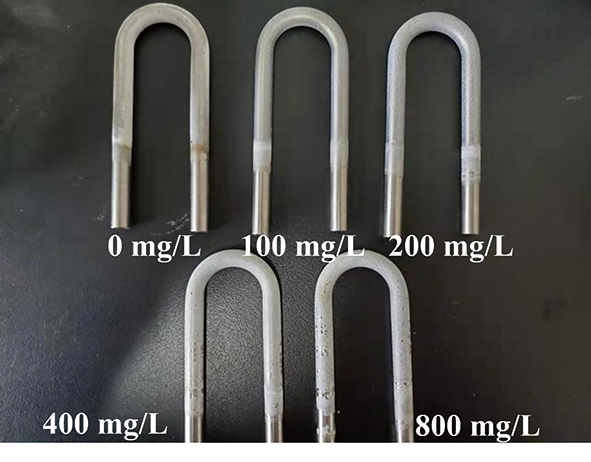

Fig.7

Fig.8

Fig.9

Fig.10

Table 3

Fig.11

Fig.12

Table 4

Fig.13

Table 5

Fig.14

Table 6

Fig.15

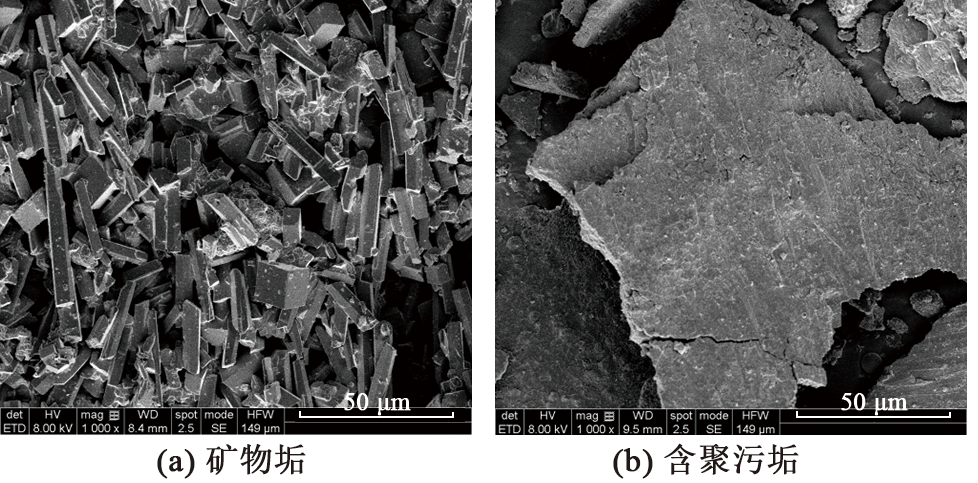

Fig.16

References 18

[1]	王恭, 罗博文, 曹生现, 等. 换热管道污垢热阻直接检测方法与实现[J]. 中国电机工程学报, 2018, 38(14): 4165-4172. DOI: 10.13334/j.0258-8013.pcsee.171717.
[2]	KAZI S N. Fouling and fouling mitigation of calcium compounds on heat exchangers by novel colloids and surface modifications[J]. Reviews in Chemical Engineering, 2020, 36(6): 653-685. DOI: 10.1515/revce-2017-0076.
[3]	ZAGITOV R, MATHUR V, SUBRAMANIAN J, et al. Investigation on fouling during application of EOR polymer in aishwarya field[C]//Abu Dhabi International PetroleumExhibition& Conference. Abu Dhabi, UAE:SPE, 2020: SPE-203446-MS. DOI: 10.2118/203446-ms.
[4]	XU Z M, ZHAO Y, HAN Z M, et al. Numerical simulation of calcium sulfate (CaSO₄) fouling in the plate heat exchanger[J]. Heat and Mass Transfer, 2018, 54:1867-1877. DOI: 10.1007/s00231-018-2282-x.
[5]	张蕊. 换热面CaSO₄结垢过程的数值模拟[D]. 大连: 大连理工大学, 2016.
[6]	XU Z M, ZHAO Y, WANG J T, et al. Inhibition of calcium carbonate fouling on heat transfer surface using sodium carboxymethyl cellulose[J]. Applied Thermal Engineering, 2019, 148: 1074-1080. DOI: 10.1016/j.applthermaleng.2018.11.088.
[7]	李雪娇. 硫酸钡结垢影响因素及化学阻垢实验研究[D]. 成都: 西南石油大学, 2015.
[8]	MORADI-ARAGHI A, DOE P H. Hydrolysis and precipitation of polyacrylamides in hard brines at elevated temperatures[J]. SPE Reservoir Engineering, 1987, 2(2): 189-198. DOI: 10.2118/13033-pa.
[9]	CAO G, LIU H, SHI G C. Technical breakthrough in PCPs' scaling issue of ASP flooding in Daqing Oilfield[C]// SPE Annual Technical Conference and Exhibition. Anaheim, California, USA: SPE, 2007: SPE-109165-MS. DOI: 10.2118/109165-ms.
[10]	WYLDE J J, MCMAHON J, MAYNER S. Scale-inhibitor application in northern Alberta: a case history of an ultrahigh-temperature scale-inhibition solution in fire-tube heater treaters[J]. SPE Projects, Facilities & Construction, 2011, 6(3): 108-114. DOI: 10.2118/130307-pa.
[11]	WYLDE J J, SLAYER J L, BARBU V. Polymeric and alkali-surfactant polymer enhanced oil recovery chemical treatment: chemistry and strategies required after breakthrough into the process[C]// SPE International Symposium on Oilfield Chemistry. The Woodlands, Texas, USA: Society of Petroleum Engineers, 2013: SPE-164078-MS. DOI: 10.2118/164078-ms.
[12]	ZHENG F, QUIROGA P, SAMS G W. Challenges in processing produced emulsion from chemical enhanced oil recovery-polymer flood using polyacrylamide[C]// All Days. Kuala Lumpur, Malaysia: SPE, 2011: SPE-144322-MS. DOI: 10.2118/144322-ms.
[13]	WANG Q W, AL-NASSER W, AL-DAWOOD F, et al. Inhibition of calcium carbonate scale in the presence of EOR chemicals[C]// SPE International Conference on Oilfield Chemistry. Montgomery, Texas, USA: SPE, 2017: 978-982. DOI: 10.2118/184534-ms.
[14]	安美燕, 赵心蕊, 徐震原, 等. 工业余热回收的耦合压缩-吸收式高温热泵循环[J]. 上海交通大学学报, 2021, 55(4): 434-443. DOI: 10.16183/j.cnki.jsjtu.2020.023.
[15]	LIU Y D, ZOU Y, ZHAO L, et al. Investigation of adhesion of CaCO₃ crystalline fouling on stainless steel surfaces with different roughness[J]. International Communications in Heat and Mass Transfer, 2011, 38(6): 730-733. DOI: 10.1016/j.icheatmasstransfer.2011.04.003.
[16]	关淑霞, 范洪富, 朱建喜, 等. 聚丙烯酰胺黏度稳定性的测定[J]. 大庆石油学院学报, 2007, 31(2): 113-114. DOI: 10.3969/j.issn.2095-4107.2007.02.034.
[17]	孙琳, 蒲万芬, 辛军, 等. 碱/聚合物复合驱体系粘度影响因素分析[J]. 精细石油化工进展, 2007, 8(4): 11-13. DOI: 10.3969/j.issn.1009-8348.2007.04.004.
[18]	CHEONG W C, GASKELL P H, NEVILLE A. Substrate effect on surface adhesion/crystallisation of calcium carbonate[J]. Journal of Crystal Growth, 2013, 363: 7-21. DOI: 10.1016/j.jcrysgro.2012.09.025.

试剂名称	质量浓度/(mg·L^-1)
NaHCO₃	868.80
NaCl	12 905.91
CaCl₂	1 888.94

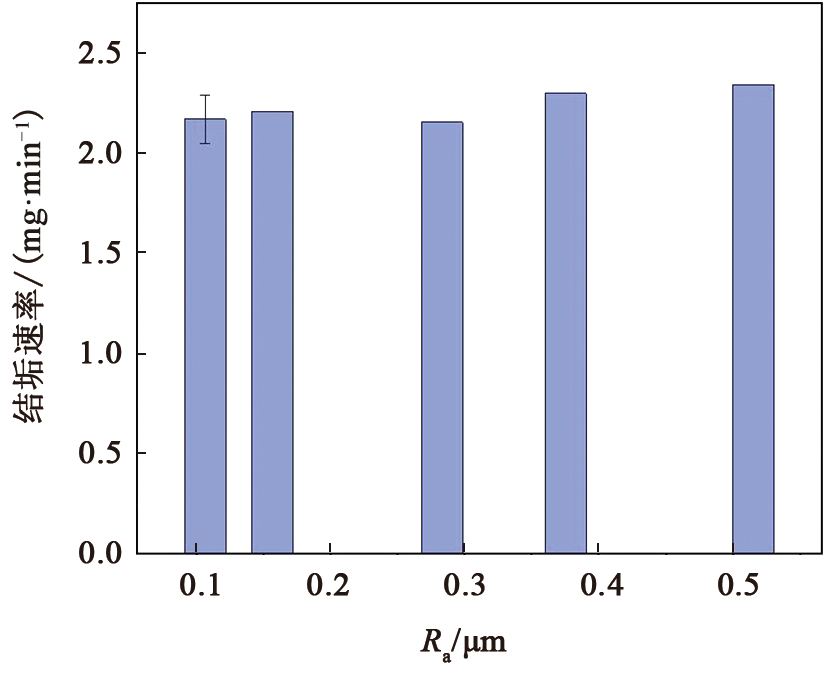

实验方案编号	砂纸粒度/目	表面粗糙度R_a/μm
1	60	0.515
2	120	0.375
3	220	0.283
4	400	0.156
5	600	0.106

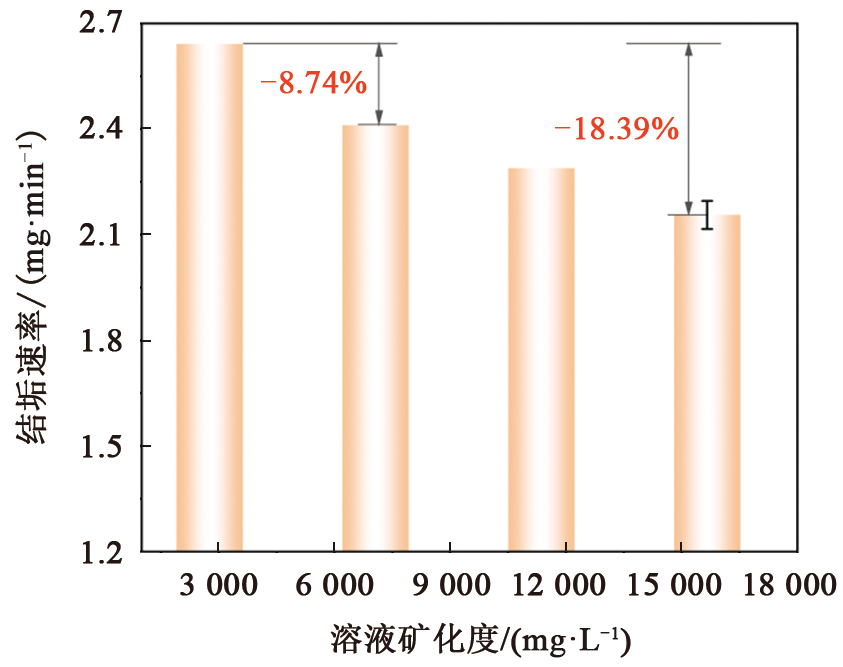

实验方案编号	NaHCO₃质量浓度/ (mg·L^-1)	CaCl₂质量浓度/ (mg·L^-1)	NaCl质量浓度/ (mg·L^-1)	矿化度/ (mg·L^-1)
1	868.8	1 888.9	0	2 757.7
2	868.8	1 888.9	4 302.0	7 059.7
3	868.8	1 888.9	8 604.0	11 361.7
4	868.8	1 888.9	12 905.9	15 663.6

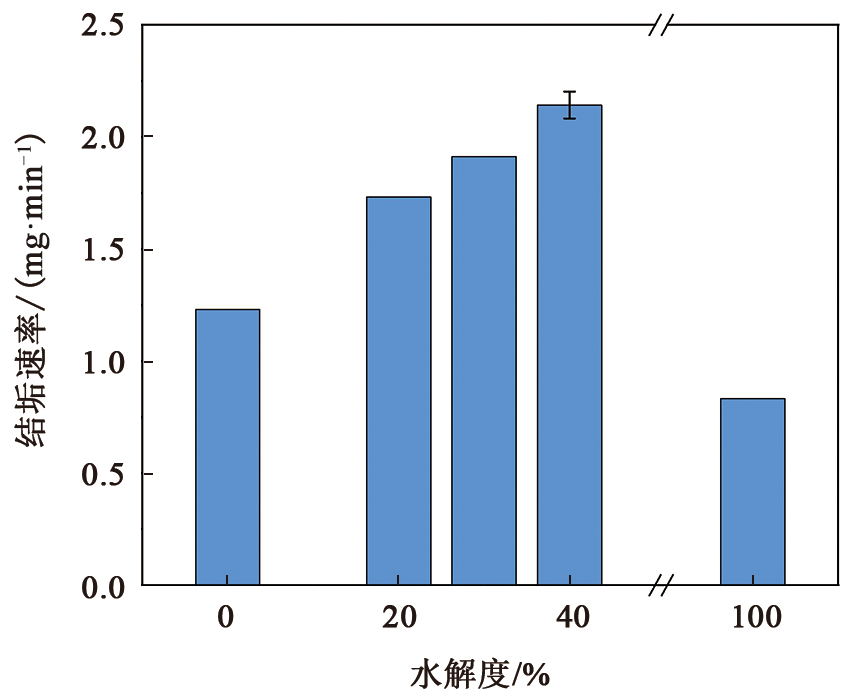

实验方案编号	HPAM水解度/%	HPAM质量浓度/(mg·L^-1)
1	0	800
2	20	800
3	30	800
4	40	800
5	100	800

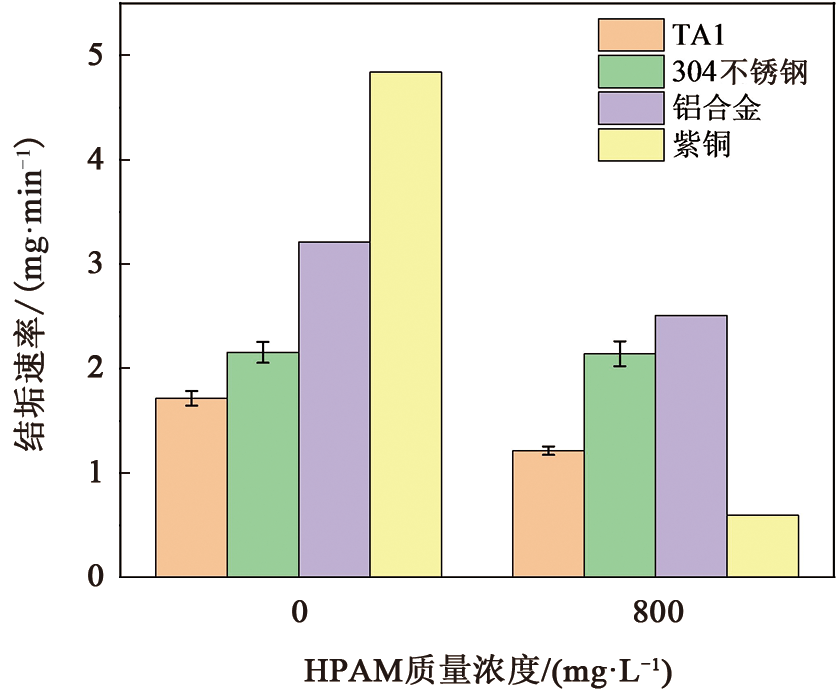

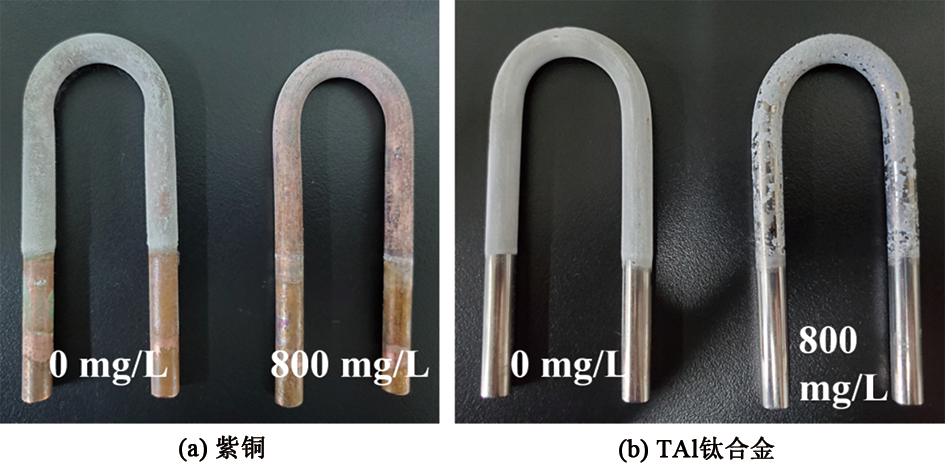

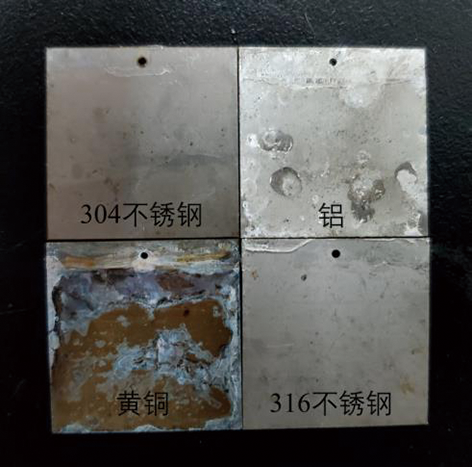

实验方案编号	换热管材料	材料热导率/(W·m^-1·K^-1)	HPAM质量浓度/(mg·L^-1)
1	304不锈钢	16.3	0
2	304不锈钢	16.3	800
3	TA1钛合金	7.95	0
4	TA1钛合金	7.95	800
5	紫铜	398	0
6	紫铜	398	800
7	铝合金	201	0
8	铝合金	201	800
