一种高性能电磁超声传感器线圈背板及其优化设计

doi:10.3976/j.issn.1002-4026.2022.02.009

Abstract

Abstract:

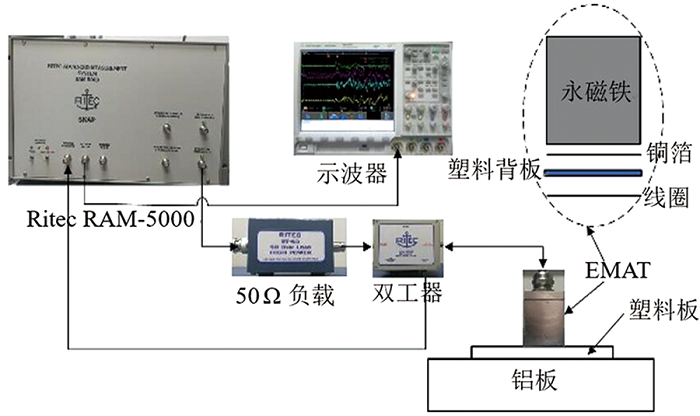

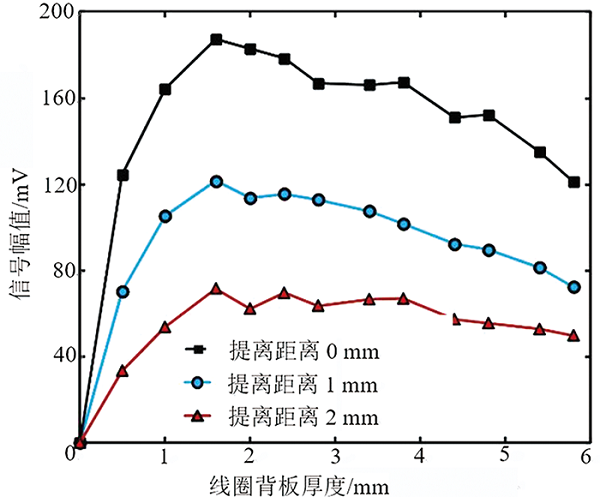

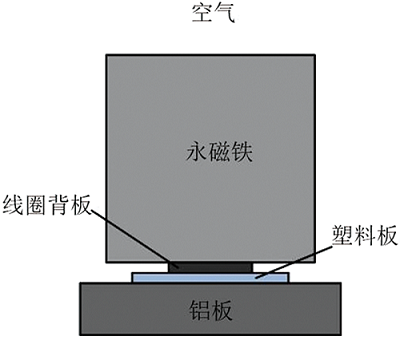

To improve the energy conversion efficiency of electromagnetic acoustic transducers (EMATs), the coil backplane of the EMAT is optimized. First, the influence of the coil backplane thickness on ultrasonic signals is evaluated via experimental research. Then, the carbonyl iron powder plate is selected as the coil backplane and its influence on the magnetic field of the sensor working area is analyzed via finite element simulation. Finally, the performance of EMATs before and after optimization is compared using experiments. Results show that the optimal thickness of the coil backplane is 1.5~2.0 mm. Moreover, the use of the carbonyl iron powder plate with the same size as the coil working area of the coil backplane can improve the transduction efficiency of EMATs. Compared with the sensors that use nonmagnetic materials as coil backplanes, the SNR of the optimized sensors doubled and the working lift-off distance increased 1 mm, respectively.

Key words: EMATs, bias magnetic field, coil backplane, carbonyl iron powder

CLC Number:

TH878

CHEN Jian-wei,LIU Shuai,MA Jian,GUO Rui,SONG Jiang-feng,BAI Xue,ZOU Long-sen,SU Yi-fan. High-performance coil backplane for electromagnetic ultrasonic sensor and its optimization design[J].Shandong Science, 2022, 35(2): 70-78.

Figures/Tables 11

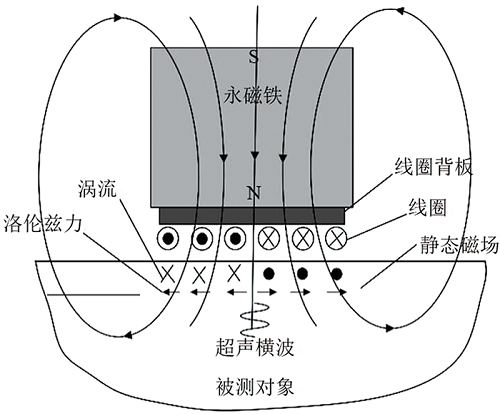

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

References 24

[1]	BURROWS S E, FAN Y, DIXON S. High temperature thickness measurements of stainless steel and low carbon steel using electromagnetic acoustic transducers[J]. NDT & E International, 2014, 68: 73-77. DOI: 10.1016/j.ndteint.2014.07.009. doi: 10.1016/j.ndteint.2014.07.009
[2]	KANG L, ZHANG C, DIXON S, et al. Enhancement of ultrasonic signal using a new design of Rayleigh-wave electromagnetic acoustic transducer[J]. NDT & E International, 2017, 86: 36-43. DOI: 10.1016/j.ndteint.2016.11.008. doi: 10.1016/j.ndteint.2016.11.008
[3]	JIAN X, DIXON S, BAILLIE I, et al. Shear wave generation using a spiral electromagnetic acoustic transducer[J]. Applied Physics Letters, 2006, 89(24): 244106. DOI: 10.1063/ 1.2408644. doi: 10.1063/ 1.2408644
[4]	JIAN X, DIXON S, GRATTAN K T V, et al. A model for pulsed Rayleigh wave and optimal EMAT design[J]. Sensors and Actuators A: Physical, 2006, 128(2): 296-304. DOI: 10.1016/j.sna.2006.01.048. doi: 10.1016/j.sna.2006.01.048
[5]	BAI X, ZHAO Y, MA J, et al. Grain-size distribution effects on the attenuation of laser-generated ultrasound in α-titanium alloy[J]. Materials, 2018, 12(1): 102. DOI: 10.3390/ma12010102. doi: 10.3390/ma12010102
[6]	JIA X J, OUYANG Q. Optimal design of point-focusing shear vertical wave electromagnetic ultrasonic transducers based on orthogonal test method[J]. IEEE Sensors Journal, 2018, 18(19): 8064-8073. DOI: 10.1109/JSEN.2018.2863546. doi: 10.1109/JSEN.2018.2863546
[7]	SEUNG H M, PARK C I, KIM Y Y. An omnidirectional shear-horizontal guided wave EMAT for a metallic plate[J]. Ultrasonics, 2016, 69: 58-66. DOI: 10.1016/j.ultras.2016.03.011. doi: 10.1016/j.ultras.2016.03.011
[8]	WANG S J, SU R L, CHEN X Y, et al. Numerical and experimental analysis of unidirectional meander-line coil electromagnetic acoustic transducers[J]. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2013, 60(12): 2657-2664. DOI: 10.1109/TUFFC.2013.2864. doi: 10.1109/TUFFC.2013.2864
[9]	WILCOX P, LOWE M, CAWLEY P. Omnidirectional guided wave inspection of large metallic plate structures using an EMAT array[J]. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2005, 52(4): 653-665. DOI: 10.1109/TUFFC.2005.1428048. doi: 10.1109/TUFFC.2005.1428048
[10]	TU J, KANG Y H, LIU Y Y. A new magnetic configuration for a fast electromagnetic acoustic transducer applied to online steel pipe wall thickness measurements[J]. Materials Evaluation, 2014, 72(11): 1407-1413.
[11]	HERNANDEZ-VALLE F, DIXON S. Pulsed electromagnet EMAT for ultrasonic measurements at elevated temperatures[J]. Insight - Non-Destructive Testing and Condition Monitoring, 2011, 53(2): 96-99. DOI: 10.1784/insi.2011.53.2.96. doi: 10.1784/insi.2011.53.2.96
[12]	JIA X J, OUYANG Q, ZHANG X L. An improved design of the spiral-coil EMAT for enhancing the signal amplitude[J]. Sensors, 2017, 17(5): 1106. DOI: 10.3390/s17051106. doi: 10.3390/s17051106
[13]	WANG S, HUANG S L, ZHANG Y, et al. Multiphysics modeling of a Lorentz force-based meander coil electromagnetic acoustic transducer via steady-state and transient analyses[J]. IEEE Sensors Journal, 2016, 16(17): 6641-6651. DOI: 10.1109/JSEN.2016.2587620. doi: 10.1109/JSEN.2016.2587620
[14]	YI P X, ZHANG K, LI Y H, et al. Influence of the lift-off effect on the cut-off frequency of the EMAT-generated Rayleigh wave signal[J]. Sensors, 2014, 14(10): 19687-19699. DOI: 10.3390/s141019687. doi: 10.3390/s141019687
[15]	RIBICHINI R, CEGLA F, NAGY P B, et al. Experimental and numerical evaluation of electromagnetic acoustic transducer performance on steel materials[J]. NDT & E International, 2012, 45(1): 32-38. DOI: 10.1016/j.ndteint.2011.08.007. doi: 10.1016/j.ndteint.2011.08.007
[16]	RIBICHINI R, NAGY P B, OGI H. The impact of magnetostriction on the transduction of normal bias field EMATs[J]. NDT & E International, 2012, 51: 8-15. DOI: 10.1016/j.ndteint.2012.06.004. doi: 10.1016/j.ndteint.2012.06.004
[17]	PEI C X, ZHAO S Q, XIAO P, et al. A modified meander-line-coil EMAT design for signal amplitude enhancement[J]. Sensors and Actuators A: Physical, 2016, 247: 539-546. DOI: 10.1016/j.sna.2016.07.006. doi: 10.1016/j.sna.2016.07.006
[18]	ISLA J, CEGLA F. Optimization of the bias magnetic field of shear wave EMATs[J]. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 2016, 63(8): 1148-1160. DOI: 10.1109/TUFFC.2016.2558467. doi: 10.1109/TUFFC.2016.2558467
[19]	DHAYALAN R, MURTHY V S N, KRISHNAMURTHY C V, et al. Improving the signal amplitude of meandering coil EMATs by using ribbon soft magnetic flux concentrators (MFC)[J]. Ultrasonics, 2011, 51(6): 675-682. DOI: 10.1016/j.ultras.2011.01.009. doi: 10.1016/j.ultras.2011.01.009
[20]	DUTTON B, BOONSANG S, DEWHURST R J. A new magnetic configuration for a small in-plane electromagnetic acoustic transducer applied to laser-ultrasound measurements: modelling and validation[J]. Sensors and Actuators A: Physical, 2006, 125(2): 249-259. DOI: 10.1016/j.sna.2005.07.026. doi: 10.1016/j.sna.2005.07.026
[21]	DUTTON B, BOONSANG S, DEWHURST R J. Modelling of magnetic fields to enhance the performance of an in-plane EMAT for laser-generated ultrasound[J]. Ultrasonics, 2006, 44: e657-e665. DOI: 10.1016/j.ultras.2006.05.124. doi: 10.1016/j.ultras.2006.05.124
[22]	MACLAUCHLAN D, CLARK S, COX B, et al. Recent advancements in the application of emats to nde [EB/OL]. [2021-02-10].https://www.researchgate.net/publication/242205856_RECENT_ADVANCEMENTS_IN_THE_APPLICATION_OF_EMATS_TO_NDE.
[23]	JIAN X, DIXON S, EDWARDS R, et al. Effect on ultrasonic generation of a backplate in electromagnetic acoustic transducers[J]. Journal of Applied Physics, 2007, 102(2): 024909. DOI: 10.1063/1.2756090. doi: 10.1063/1.2756090
[24]	HUANG S L, ZHAO W, ZHANG Y S, et al. Study on the lift-off effect of EMAT[J]. Sensors and Actuators A: Physical, 2009, 153(2): 218-221. DOI: 10.1016/j.sna.2009.05.014. doi: 10.1016/j.sna.2009.05.014

材料	相对磁导率	电导率/(kS·m^-1)	磁强度/(kA·m^-1)
钕铁硼	1.1	625	1 250
羰基铁粉板	30	0.01	0
塑料板	1	0	0
铝板	1	37 600	0
空气	1	0	0
