新型双金属除氟混凝剂制备及在混凝吸附一体化技术中的除氟效果

doi:10.3976/j.issn.1002-4026.2025178

山东科学 ›› 2026, Vol. 39 ›› Issue (4): 97-107.doi: 10.3976/j.issn.1002-4026.2025178

新型双金属除氟混凝剂制备及在混凝吸附一体化技术中的除氟效果

杨宇¹(), 付英¹^,^*(), 王杰², CHOW Christopher W.K³, 陈俊¹, 成明⁴

¹ 济南大学土木建筑学院, 山东济南 250022
² 山东泰安宁阳县公用事业服务中心, 山东泰安 271400
³ Sustainable Infrastructure and Resource Management (SIRM), Adelaide University, SA 5095, Australia
⁴ 西藏智慧水务股份有限公司, 西藏拉萨 850000

收稿日期:2025-12-05 修回日期:2026-01-07 出版日期:2026-08-20 上线日期:2026-06-09
通信作者: ^*付英,女,教授,研究方向为水处理理论与技术。E-mail: cea_fuy@ujn.edu.cn,Tel:15628678335
作者简介:杨宇(2001—),男,硕士研究生,研究方向为水的混凝处理。E-mail: yangy_tmjzxy@163.com
基金资助:
济南大学年度公派出国留学项目(2025);济大-西藏智慧水务研究院项目(W2024125)

Preparation of a novel bimetallic fluoride-removing coagulant and its defluorination performance in an integrated coagulation-adsorption process

YANG Yu¹(), FU Ying¹^,^*(), WANG Jie², CHOW Christopher W.K³, CHEN Jun¹, CHENG Ming⁴

¹ School of Civil Engineering and Architecture, University of Jinan, Jinan 250022, China
² Ningyang County Public Utilities Service Center of Tai’an City in Shandong, Tai’an 271400, China
³ Sustainable Infrastructure and Resource Management (SIRM), Adelaide University, SA 5095, Australia
⁴ Xizang Smart Water Co., Ltd., Lhasa 850000, China

Received:2025-12-05 Revised:2026-01-07 Published:2026-08-20 Online:2026-06-09

摘要/Abstract

摘要：

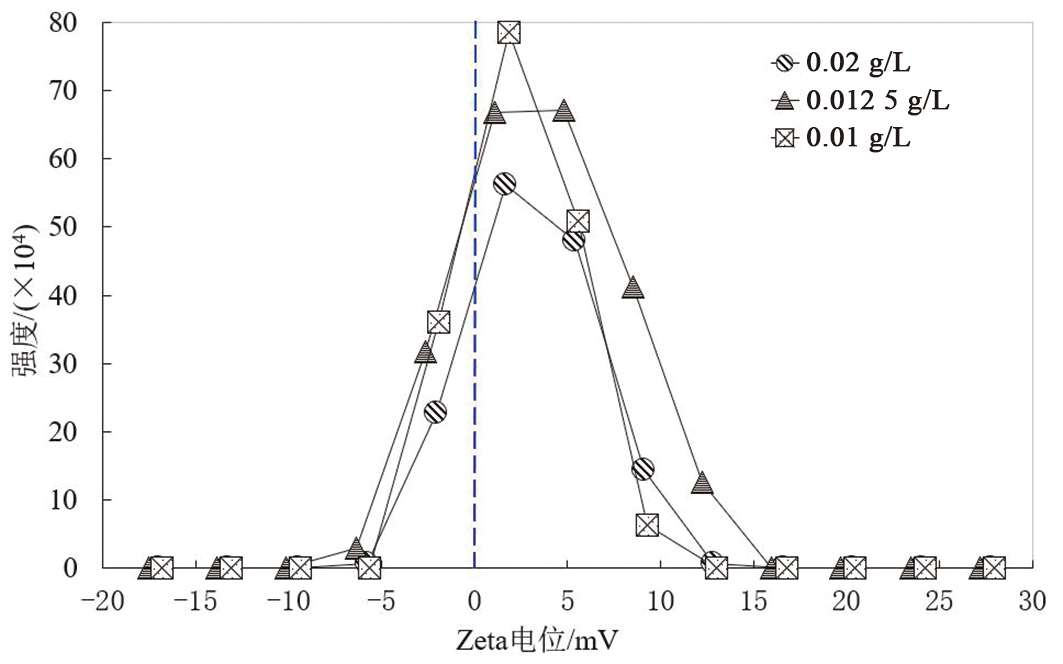

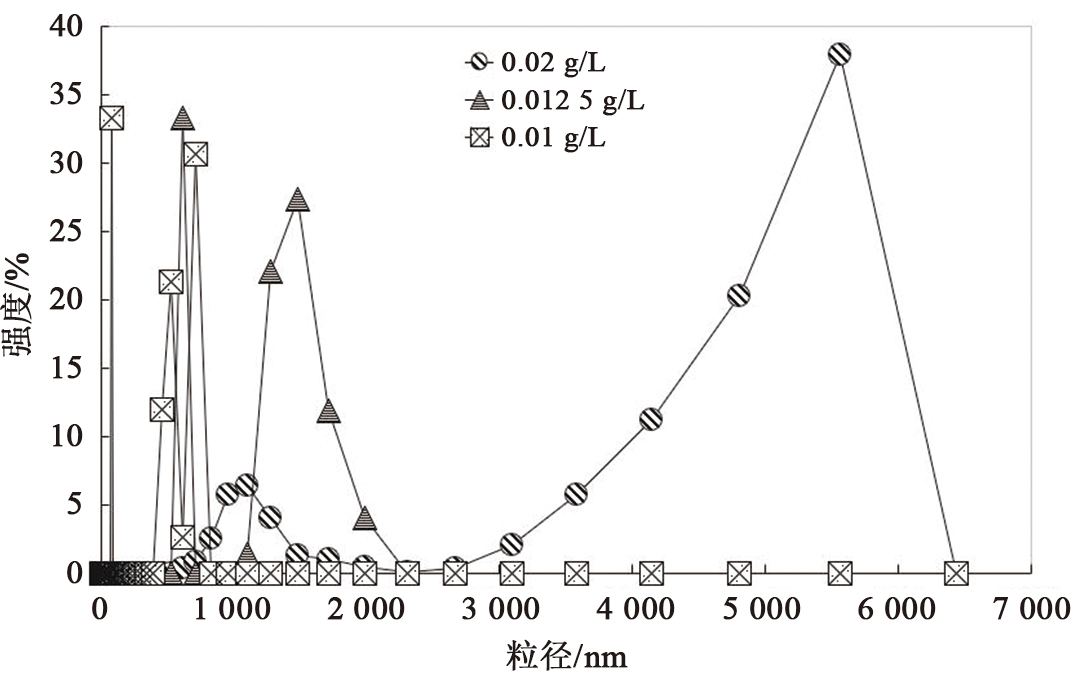

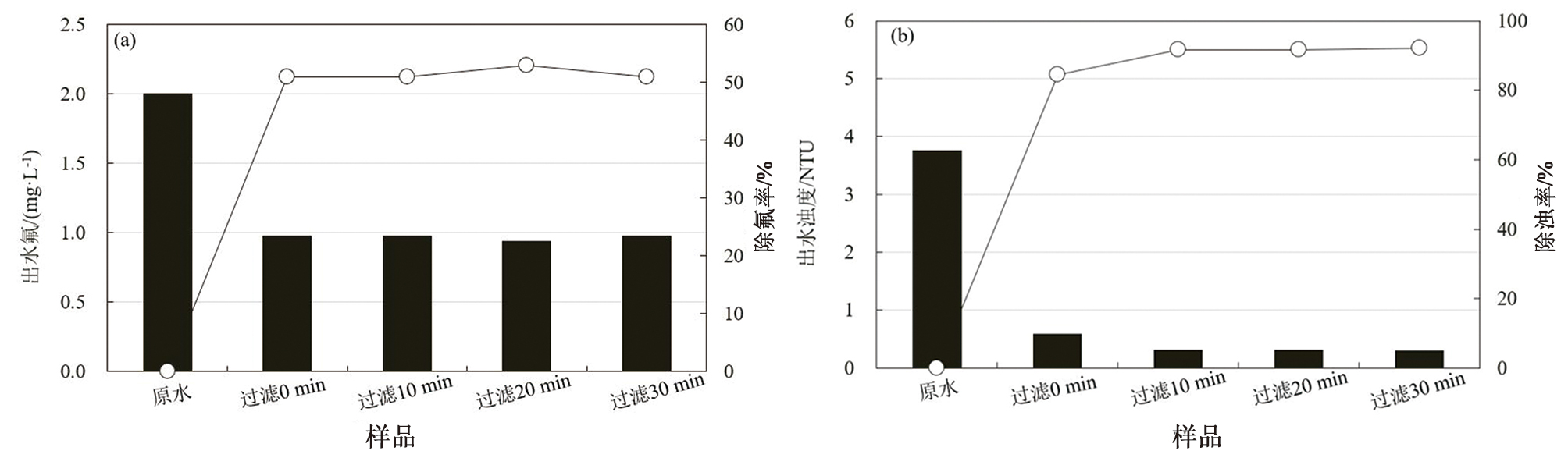

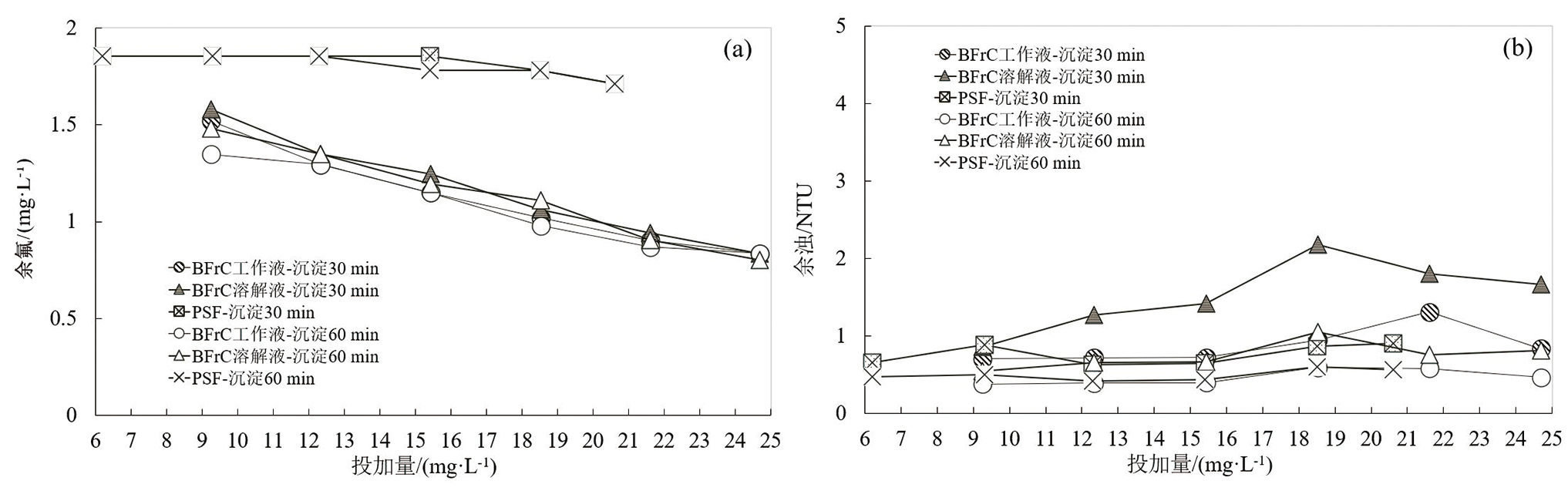

以低温低浊含氟水为实验水样,利用烧杯实验,采用两级渐进正交实验法制备一种由铁和铝组成的新型双金属除氟混凝剂(BFrC),并探究稀释程度对其粒径和带电特性的影响。以聚硅铁作参比,研究了液体BFrC与固体BFrC在混凝吸附一体化技术中的除氟除浊效果及其介观形态的对比。结果表明,BFrC最佳制备参数为:m_铁/m_铝=0.5、m_铁/m_聚合铝=0.8、聚合温度20 ℃。BFrC稀释成0.012 5 mg/L(以“铁+铝”计)时可实现适度的初级水解,形成粒径分布合理、吸附能力强的颗粒絮凝物。BFrC投加量为18.5 mg/L时,可将氟的质量浓度降至<1 mg/L,除氟率可达58.4%,而聚硅铁除氟率最高为11.3%,但聚硅铁除浊效果优于BFrC。液体BFrC与固体BFrC对氟的去除能力相当,但前者因絮体沉降性较佳具有较好的除浊效果。液体BFrC形成的较大絮体表现为较强的聚集性,但小絮体的尺寸明显大于固体BFrC且数量较少。过滤环节基本无除氟效果,但表现出较好的深度除浊效果。

关键词: 低温, 低浊, 双金属除氟混凝剂, 混凝, 吸附, 除氟, 除浊

Abstract:

Using jar tests, a novel bimetallic fluoride-removing coagulant (BFrC) composed of iron and aluminum was prepared by a two-stage progressive orthogonal test in treating a synthesized water with low-temperature and low-turbidity containing fluoride, and the impact of dilution degree on its particle size and charge characteristics were investigated, respectively. Compared with poly-Si-Fe coagulant, the fluoride and turbidity removal by both liquid BFrC and its solid sample were evaluated in an integrated coagulation-adsorption process, along with the comparison of their mesoscopic morphology. The results indicated that the optimal iron/aluminum, iron/polyaluminum and copolymerization temperature for BFrC preparation were 0.5, 0.8, and 20 ℃, respectively. When BFrC was diluted to 0.012 5 mg/L (as “iron+ aluminum”), moderate primary hydrolysis was achieved, forming flocs with a reasonable size distribution and strong adsorption capacity. When BFrC dosage was 18.5 mg/L, fluoride concentration was reduced to<1 mg/L, corresponding to the removal rate of 58.4%, while the greatest fluoride removal by poly-Si-Fe coagulant was only 11.3%, though giving a higher turbidity removal than BFrC. Liquid BFrC gave similar fluoride removal to solid BFrC, but the former posed a higher turbidity removal due to its larger flocs having better settling performance. The larger flocs formed by liquid BFrC exhibited strong aggregative properties, but the size of smaller flocs in liquid BFrC was significantly larger than that in solid BFrC, but having lower number. The filtration almost gave no further removal of fluoride, but showed a higher turbidity removal.

Key words: low-temperature, low-turbidity, bimetallic fluoride-removing coagulant, coagulation, adsorption, fluoride removal, turbidity removal

中图分类号:

X703.1

杨宇, 付英, 王杰, CHOW Christopher W.K, 陈俊, 成明. 新型双金属除氟混凝剂制备及在混凝吸附一体化技术中的除氟效果[J]. 山东科学, 2026, 39(4): 97-107.

YANG Yu, FU Ying, WANG Jie, CHOW Christopher W.K, CHEN Jun, CHENG Ming. Preparation of a novel bimetallic fluoride-removing coagulant and its defluorination performance in an integrated coagulation-adsorption process[J]. Shandong Science, 2026, 39(4): 97-107.

图/表 8

表1

图1

表2

图2

图3

图4

图5

图6

参考文献 27

[1]	Hari Raj M R, Karunanidhi D, Rao N S, et al. Machine learning and GIS based groundwater quality prediction for agricultural practices-A case study form Arjunanadi River basin of South India[J]. Computers and Electronics in Agriculture, 2025, 229: 109932. DOI:10.1016/j.compag.2025.109932.
[2]	Nakayama H, Yamasaki Y, Nakaya S. Effect of hydrogeological structure on geogenic fluoride contamination of groundwater in granitic rock belt in Tanzania[J]. Journal of Hydrology, 2022, 612: 128026. DOI:10.1016/j.jhydrol.2022.128026.
[3]	Mwiathi N F, Gao Xubo, Li Chengcheng, et al. The occurrence of geogenic fluoride in shallow aquifers of Kenya Rift Valley and its implications in groundwater management[J]. Ecotoxicology and Environmental Safety, 2022, 229: 113046. DOI:10.1016/j.ecoenv.2021.113046.
[4]	Su Chunli, Wang Mengzhu, Xie Xianjun, et al. Natural and anthropogenic factors regulating fluoride enrichment in groundwater of the Nansi Lake Basin, Northern China[J]. Science of the Total Environment, 2023, 904: 166699. DOI:10.1016/j.scitotenv.2023.166699.
[5]	Cao Wengeng, Zhang Zhuo, Guo Huaming, et al. Spatial distribution and controlling mechanisms of high fluoride groundwater in the coastal plain of Bohai Rim, North China[J]. Journal of Hydrology, 2023, 617: 128952. DOI:10.1016/j.jhydrol.2022.128952.
[6]	程思雯, 王鹏飞, 周启星. 基于碳中和的微污染复杂水体治理与修复[J]. 科学通报, 2024, 69(19): 2789-2803. DOI: 10.1360/TB-2024-0128.
[7]	Dippong T, Resz M A. Water and sediments pollution from Iza river (Romania): Influence on water quality and metals content[J]. Process Safety and Environmental Protection, 2025, 200: 107335. DOI:10.1016/j.psep.2025.107335.
[8]	戴星, 谢晓琳, 钱锋, 等. 松嫩平原高氟区水库地表水氟污染特征与风险评价[J]. 湖泊科学, 2025, 37(5): 1619-1630. DOI:10.18307/2025.0525.
[9]	赵增锋, 付永亮, 邱小琮, 等. 黄河流域宁夏段地表水氟污染特征与风险评价[J]. 中国环境科学, 2023, 43(11): 5800-5811. DOI:10.19674/j.cnki.issn1000-6923.2023.0205.
[10]	杨春, 刘本洪, 刘蕾, 等. 普通硅酸盐水泥和钙盐对氟污染地表水的除氟效果[J]. 环境工程学报, 2022, 16(9): 2838-2849. DOI:10.12030/j.cjee.202204187.
[11]	中华人民共和国国家卫生健康委员会. 2023年我国卫生健康事业发展统计公报[EB/OL]. [2025-11-20].
[12]	Ghassemi-Golezani K, Farhangi-Abriz S. Biochar related treatments improved physiological performance, growth and productivity of Mentha crispa L. Plants under fluoride and cadmium toxicities[J]. Industrial Crops and Products, 2023, 194: 116287. DOI:10.1016/j.indcrop.2023.116287.
[13]	王杰, 付英, 郭翰林, 等. 混凝除氟技术研究及应用进展[J]. 工业用水与废水, 2024, 55(4): 1-6. DOI:10.3969/j.issn.1009-2455.2024.04.001.
[14]	宋春灵, 田义虎, 刘飞. FCDI耦合PIM技术分离氟离子的研究与应用[J]. 工业用水与废水, 2025, 56(5): 53-58. DOI:10.3969/j.issn.1009-2455.2025.05.009.
[15]	Li Zhanghan, Wang Pin, Ye Cheng, et al. Simultaneous removal of fluoride and disinfection by-product precursors through Zr salt enhanced coagulation[J]. Journal of Environmental Sciences, 2026, 163: 575-583. DOI:10.1016/j.jes.2025.06.024.
[16]	Yuan Tingting, Wang Jiaxin, Ren Qiaolin, et al. Formation of iron-fluoride complexes compromises defluoridation efficiency of polymerized ferric sulfate: Performance enhancement and mechanistic insights[J]. Journal of Environmental Chemical Engineering, 2025, 13(5): 117459. DOI:10.1016/j.jece.2025.117459.
[17]	Zhou Qixing, Liu Yuxia, Li Tian, et al. Cadmium adsorption to clay-microbe aggregates: Implications for marine heavy metals cycling[J]. Geochimica et Cosmochimica Acta, 2020, 290: 124-136. DOI:10.1016/j.gca.2020.09.002.
[18]	Gebrewold B D, Werkneh A A, Kijjanapanich P, et al. Low cost materials for fluoride removal from groundwater[J]. Journal of Environmental Management, 2024, 370: 122937. DOI:10.1016/j.jenvman.2024.122937.
[19]	Ndiaye P I, Moulin P, Dominguez L, et al. Removal of fluoride from electronic industrial effluentby RO membrane separation[J]. Desalination, 2005, 173(1): 25-32. DOI:10.1016/j.desal.2004.07.042.
[20]	Chakrabortty S, Roy M, Pal P. Removal of fluoride from contaminated groundwater by cross flow nanofiltration: Transport modeling and economic evaluation[J]. Desalination, 2013, 313: 115-124. DOI:10.1016/j.desal.2012.12.021.
[21]	Qu Le, Gan Yonghai, Xu Bin, et al. Application of a novel zirconium coagulant in the coagulation-ultrafiltration process: Fluoride removal and membrane fouling alleviation[J]. Chemical Engineering Journal, 2023, 478: 147324. DOI:10.1016/j.cej.2023.147324.
[22]	周启星. 资源循环科学与工程概论[M]. 北京: 化学工业出版社, 2013.
[23]	付英. 聚硅酸铁(PSF)的研制及其混凝机理[D]. 哈尔滨: 哈尔滨工业大学, 2007.
[24]	张根源, 黄鑫, 付英, 等. 聚硅铁短时混凝过滤应急工艺及效果[J]. 山东科学, 2023, 36(3): 135-142. DOI:10.3976/j.issn.1002-4026.2023.03.016.
[25]	韩书宇. 微塑料污染的聚硅铁混凝去除及其影响因素研究[D]. 济南: 济南大学, 2022.
[26]	刘霄, 杨艺琳, 王鹏, 等. 不同功能性除氟吸附材料在饮用水及含氟废水中的研究进展[J]. 环境化学, 2024, 43(10): 3247-3260. DOI:10.7524/j.issn.0254-6108.2023050803.
[27]	Luo Benfu, Liu Yuhang, Yan Yujing, et al. Research on the removal of fluoride from low-concentration fluorine-containing industrial wastewater using adsorption methods[J]. Biochemical Engineering Journal, 2025, 216: 109668. DOI:10.1016/j.bej.2025.109668.

水平				因素
水平				(A)m_铁/m_铝	(B)m_铁/m_聚合铝	(C)聚合温度/℃
第一级 OT		BFrC投量= 25 mL/L(水样)	(1)	0.987	1.500	20
			(2)	0.658	1.010	30
			(3)	0.493	0.756	40
第二级 OT	OT1	BFrC投量= 15 mL/L(水样)	(1)	0.555	0.841	20
			(2)	0.370	0.567	30
			(3)	0.278	0.425	40
	OT2	BFrC投量= 8 mL/L(水样)	(1)	0.555	0.841	20
			(2)	0.370	0.567	30
			(3)	0.278	0.425	40

水平和R值			沉淀时间30 min						沉淀时间60 min
			A	B	C	A	B	C	A	B	C	A	B	C
			余氟*的K值/(mg·L^-1)			余浊*的K值/NTU			余氟*的K值/(mg·L^-1)			余浊*的K值/NTU
第一级OT		(1)	1.330	1.238	1.267	0.96	1.43	1.14	1.349	1.178	1.300	0.60	0.77	0.59
		(2)	1.366	1.285	1.239	1.01	1.07	1.43	1.332	1.282	1.212	0.67	0.56	0.87
		(3)	1.106	1.280	1.297	2.02	1.50	1.37	1.050	1.270	1.218	0.94	0.88	0.74
		R	0.26	0.047	0.058	1.06	0.43	0.29	0.299	0.104	0.088	0.34	0.32	0.28
第二级OT	OT1	(1)	1.009	0.996	0.974	0.98	1.30	1.67	0.858	0.862	0.934	0.67	0.67	0.91
		(2)	1.134	1.026	1.063	1.61	1.62	1.62	1.034	0.957	0.889	1.00	0.91	0.88
		(3)	0.943	1.063	1.048	2.79	2.47	2.09	0.885	0.958	0.954	1.29	1.38	1.17
		R	0.191	0.067	0.089	1.81	1.17	0.49	0.176	0.096	0.065	0.62	0.71	0.29
	OT2	(1)	0.556	0.681	0.715	2.87	2.58	3.62	0.613	0.701	0.702	1.33	1.34	1.89
		(2)	0.641	0.663	0.672	3.61	3.24	3.52	0.712	0.686	0.742	1.95	1.71	1.85
		(3)	0.806	0.659	0.616	4.41	5.08	3.75	0.793	0.731	0.673	2.26	2.49	1.79
		R	0.250	0.022	0.099	1.54	2.50	0.23	0.180	0.045	0.069	0.93	1.15	0.10
