山东科学

• 新材料 •

基于量子化学和分子模拟优选氨基酸缓蚀剂

李俊仪 ,董晓通,周海刚,王亭沂,邬春雷

  1.  中国石化胜利油田技术检测中心,山东 东营 257000
  • 收稿日期:2025-06-18 接受日期:2025-08-27 上线日期:2026-01-27
  • 通信作者: 李俊仪 E-mail:lijunyi0425@163.com
  • 作者简介:李俊仪(1992—),女,博士,研究方向为油田腐蚀与防护。
  • 基金资助:
    中国石油化工股份有限公司科技课题(322029)

Optimization of amino acid corrosion inhibitors based on quantum chemistry and molecular simulation

LI Junyi, DONG Xiaotong, ZHOU Haigang, WANG Tingyi, WU Chunlei

  1. Sinopec Shengli Oilfield Technical Testing Center, Dongying 257000, China
  • Received:2025-06-18 Accepted:2025-08-27 Online:2026-01-27
  • Contact: LI Junyi E-mail:lijunyi0425@163.com

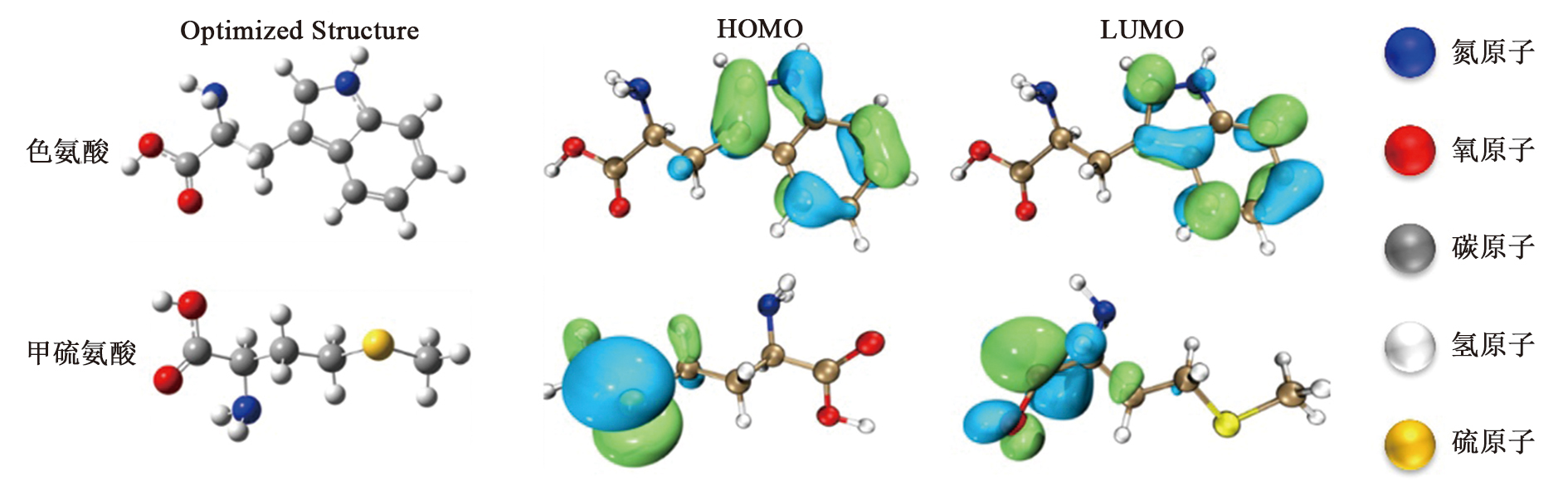

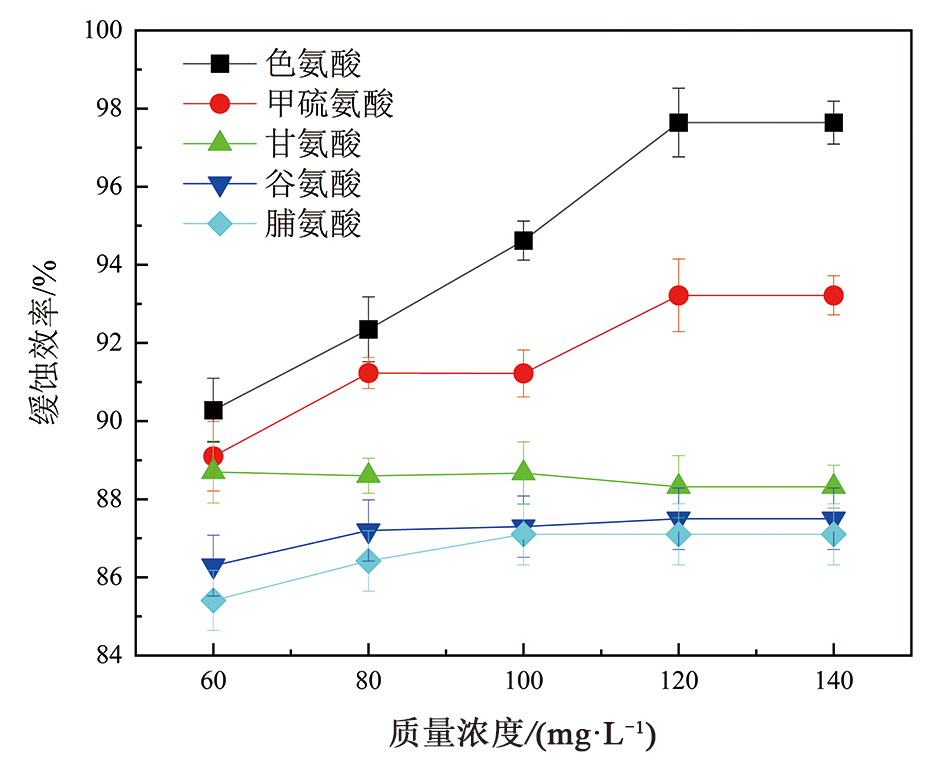

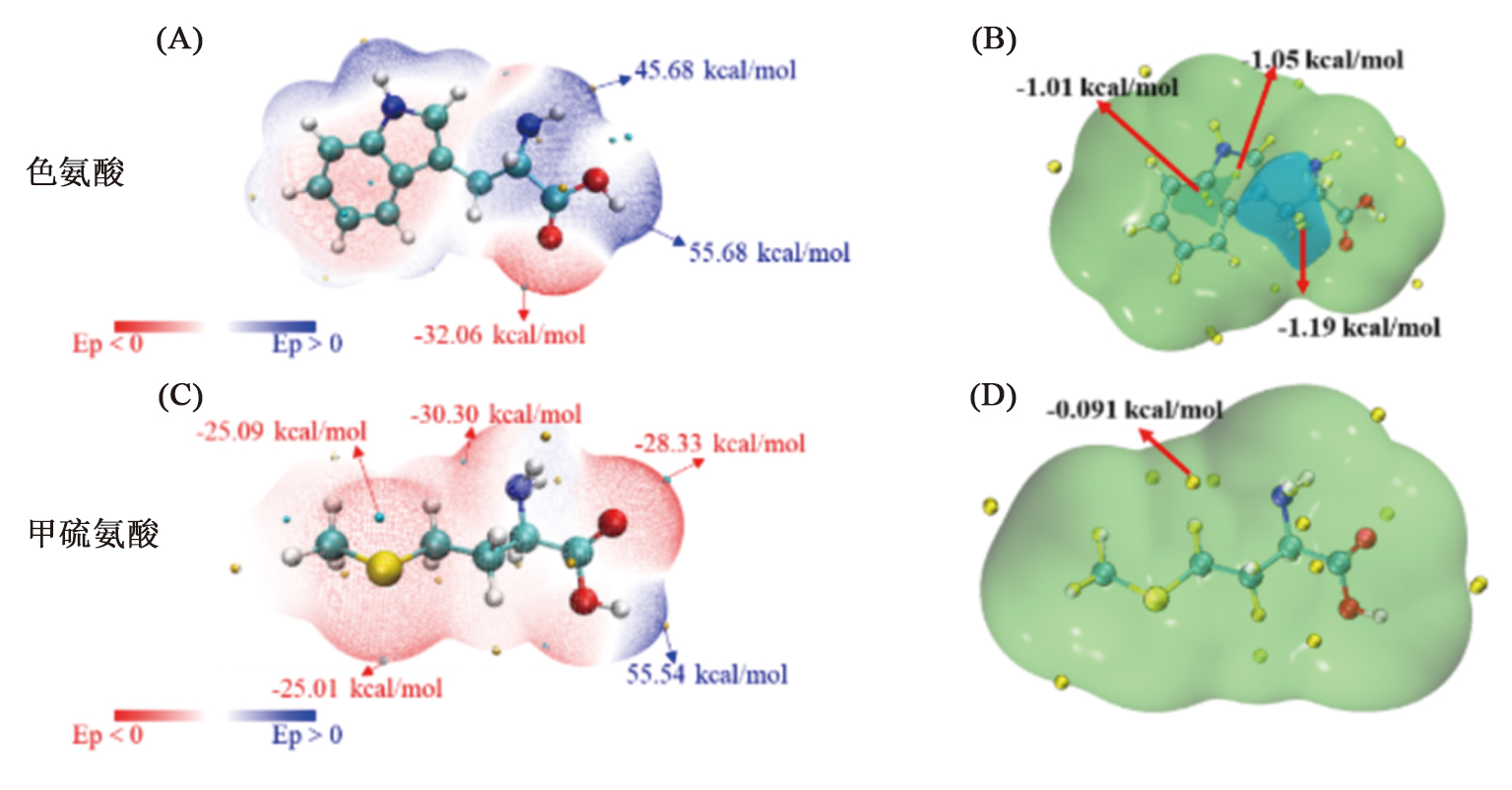

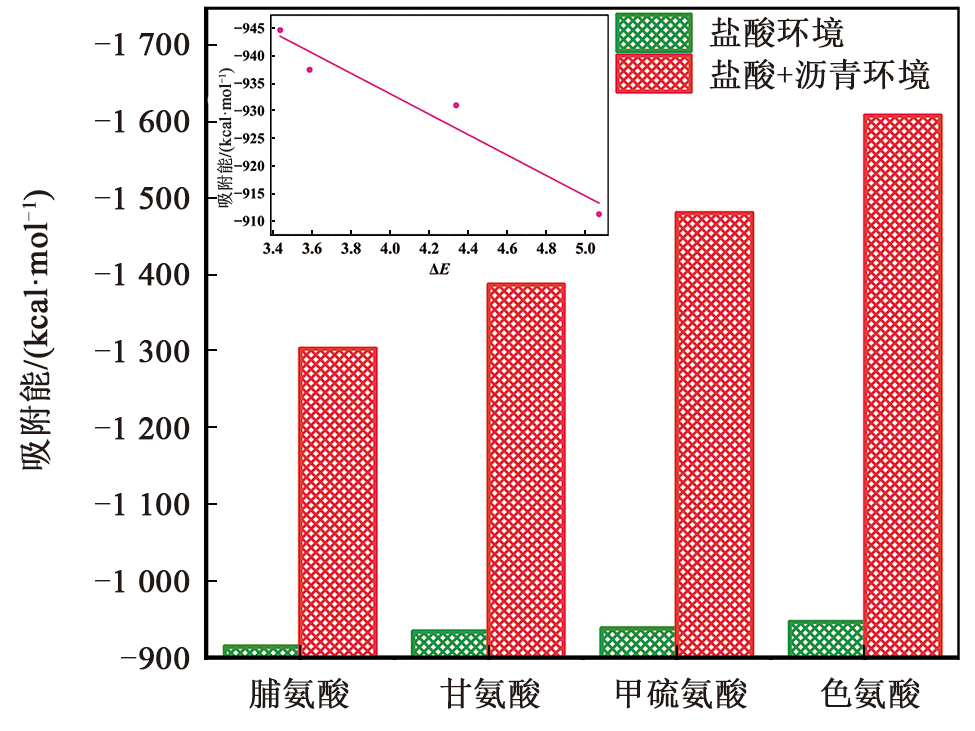

摘要: 采用多尺度(密度泛函理论与全原子分子动力学模拟相结合)计算方法,系统评估了20种氨基酸在油气管道界面的缓蚀性能。构建了“电子结构-吸附行为-实际缓释”三维评价体系,揭示了色氨酸在酸性、含沥青质环境中的高效缓蚀机理。量子化学计算表明,色氨酸具有最低的分子轨道能隙(ΔE=3.42 eV),其前线分子轨道(最高占据分子轨道为-5.83 eV,最低未占据分子轨道为-2.41 eV)电子云高度局域于芳香环与氮杂环体系,赋予分子突出的电子活性。分子动力学模拟揭示吸附能与能隙值呈显著负相关(R2=0.91),色氨酸在酸性(-944.88 kcal/mol)及油酸共吸附(-1 608.25 kcal/mol)条件下均表现出最优界面结合特性,其羧基氧原子与Fe(110)晶面间强静电相互作用(ESP=-32.06 kcal/mol)构成核心吸附位点。实验验证显示,色氨酸在140 mg/L质量浓度时缓蚀效率达92.3%,与理论预测误差小于5%。该研究建立的跨尺度计算方法实现了从电子结构到宏观性能的精准关联,为绿色缓蚀剂的分子设计与工程应用提供了理论范式。

关键词: 氨基酸, 缓蚀剂, 量子化学, 分子动力学, 吸附

Abstract: In this study, a multiscale computational approach combining density functional theory calculations with all-atom molecular dynamics (MD) simulations was employed to systematically evaluate the corrosion inhibition performance of 20 amino acids at oil–gas pipeline interfaces. A three-dimensional evaluation system integrating “electronic structure–adsorption behavior–practical inhibition” was established to reveal the highly efficient inhibition mechanism of tryptophan in acidic and asphaltene-containing environments. Quantum chemical calculations show that tryptophan has the lowest molecular orbital energy gap (3.42 eV), with its frontier molecular orbitals highly localized on the aromatic rings and nitrogen-containing heterocyclic rings, endowing it with notable electronic activity. MD simulations reveal a strong negative correlation (R2 = 0.91) between adsorption energy and energy gap. Tryptophan exhibits the most favorable interfacial binding characteristics under acidic conditions (?944.88 kcal/mol) and during co-adsorption with oleic acid (?1,608.25 kcal/mol). Strong electrostatic interactions between the carboxyl oxygen atoms and the Fe(110) surface (electrostatic potential = ?32.06 kcal/mol) form the core adsorption sites. Experimental validation shows that tryptophan achieves a corrosion inhibition efficiency of 92.3% at a concentration of 140 mg/L, with a deviation of less than 5% from theoretical predictions. Overall, the cross-scale computational method developed in this study establishes an accurate linkage between electronic structure and macroscopic performance, providing a theoretical paradigm for molecular design and engineering application of green corrosion inhibitors.

Key words: amino acid, corrosion inhibitor, quantum chemistry, molecular simulation, adsorption

中图分类号:

  • X741
