三旋流分级燃烧室出口温度分布特性数值研究

doi:10.3976/j.issn.1002-4026.2025080

摘要/Abstract

摘要：

为了分析三级旋流器结构对中心分级燃烧室出口温度分布特性的影响,本文构建了不同旋流数条件下预燃级与主燃级旋流器的组合结构,形成带有单头部火焰筒的燃烧室模型,并采用数值模拟方法开展研究。通过调节各级旋流器的旋流数,系统探讨其对燃烧室出口温度场分布的影响规律。研究结果表明:当预燃级旋流器旋向相反,且第一级与第二级旋流数均设定为0.85时,燃烧室内温度场分布较为理想;主燃级旋流器旋流数为1.39时,高温燃烧区分布均匀,燃烧过程更加充分,整体温度场分布效果良好。在此工况下,出口温度分布系数及出口径向温度分布系数均降至最低点,标志着燃烧室出口温度场的非均匀性得到显著改善,温度分布达到最佳均匀状态。该参数组合具有良好的工程适应性,有助于提升燃烧效率并延长下游涡轮导叶等关键部件的使用寿命。

关键词: 三级旋流器, 中心分级燃烧室, 温度场, 出口温度分布, 数值模拟

Abstract:

To analyze the impact of the three-stage swirler structure on the temperature distributions at the outlet of a centrally staged combustion chamber, in this study, we developed a combined structure of pilot-stage and main-stage swirlers under different swirl numbers to establish a combustion chamber model with a single-head flame tube and performed numerical simulations to systematically investigate how adjusting the swirl number of each stage affects the combustion chamber outlet temperature distribution. The results show that when the pilot-stage swirler rotates in the opposite direction and both the first and second stages have a swirl number of 0.85, the temperature distribution inside the combustion chamber is more favorable. Moreover, when the swirl number of the main combustion stage swirler is 1.39, the high-temperature combustion zone becomes more uniform, the combustion process is more complete and the overall temperature distribution is good. Under this condition, both the outlet temperature distribution coefficient and the outlet radial temperature distribution coefficient are reduced to their lowest points, indicating that the non-uniformity of the combustion chamber outlet temperature field has been significantly improved and the temperature distribution has reached the optimal uniformity. This parameter combination has good engineering adaptability and contributes to improved combustion efficiency and extended service life of key downstream components such as turbine guide vanes.

Key words: three-stage swirler, centrally staged combustion chamber, temperature field, outlet temperature distribution, numerical simulation

中图分类号:

V231.2

于建桥, 姜山, 宋宇佳, 王成军. 三旋流分级燃烧室出口温度分布特性数值研究[J]. 山东科学, 2026, 39(5): 114-125.

YU Jianqiao, JIANG Shan, SONG Yujia, WANG Chengjun. A numerical study on temperature distributions at outlet of a three-swirl staged combustion chamber[J]. Shandong Science, 2026, 39(5): 114-125.

图/表 17

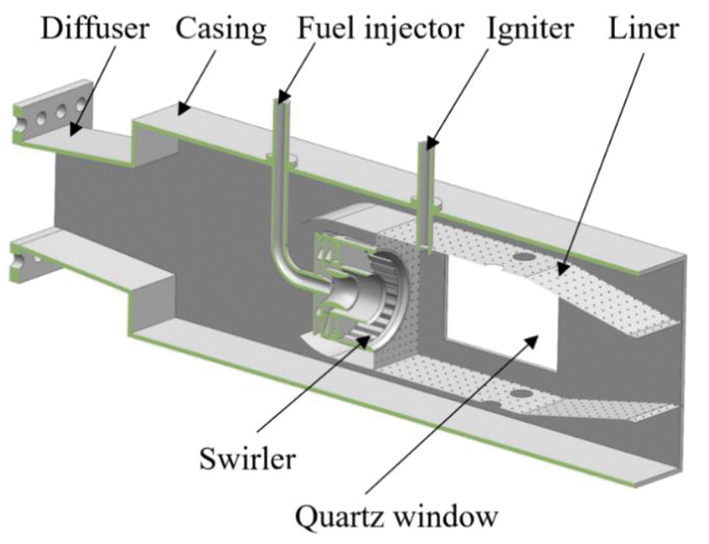

图1

表1

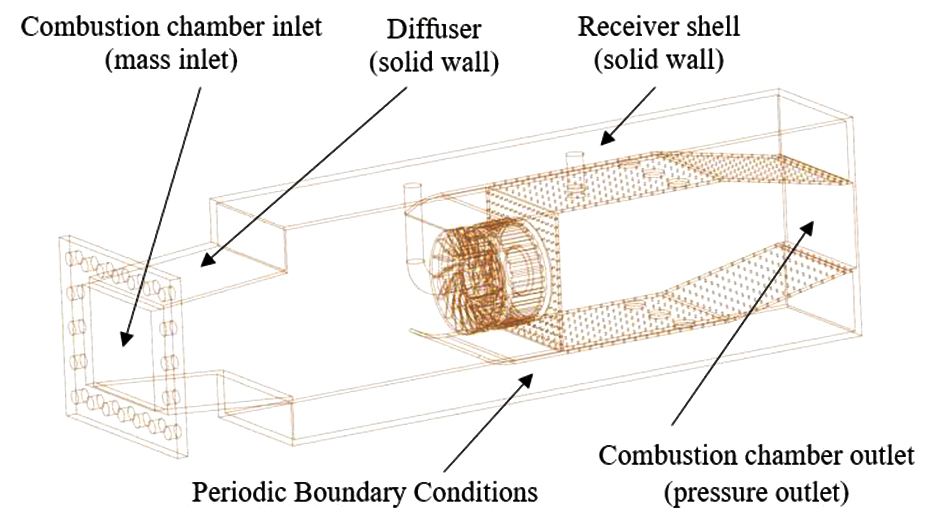

图2

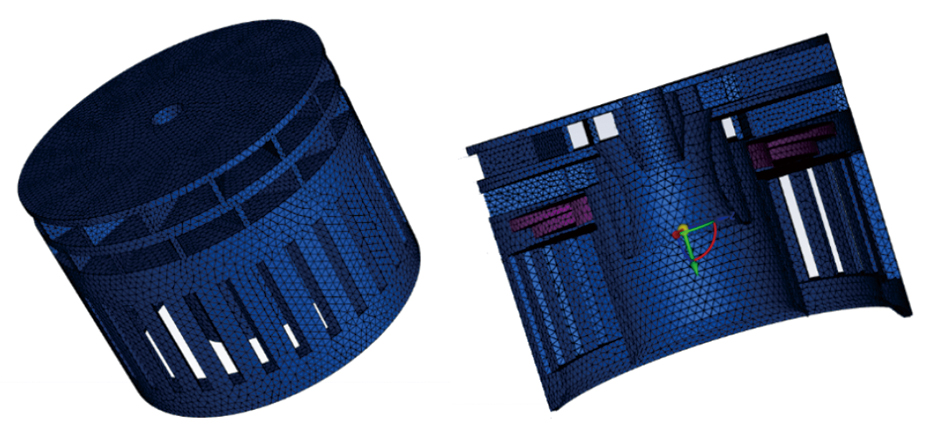

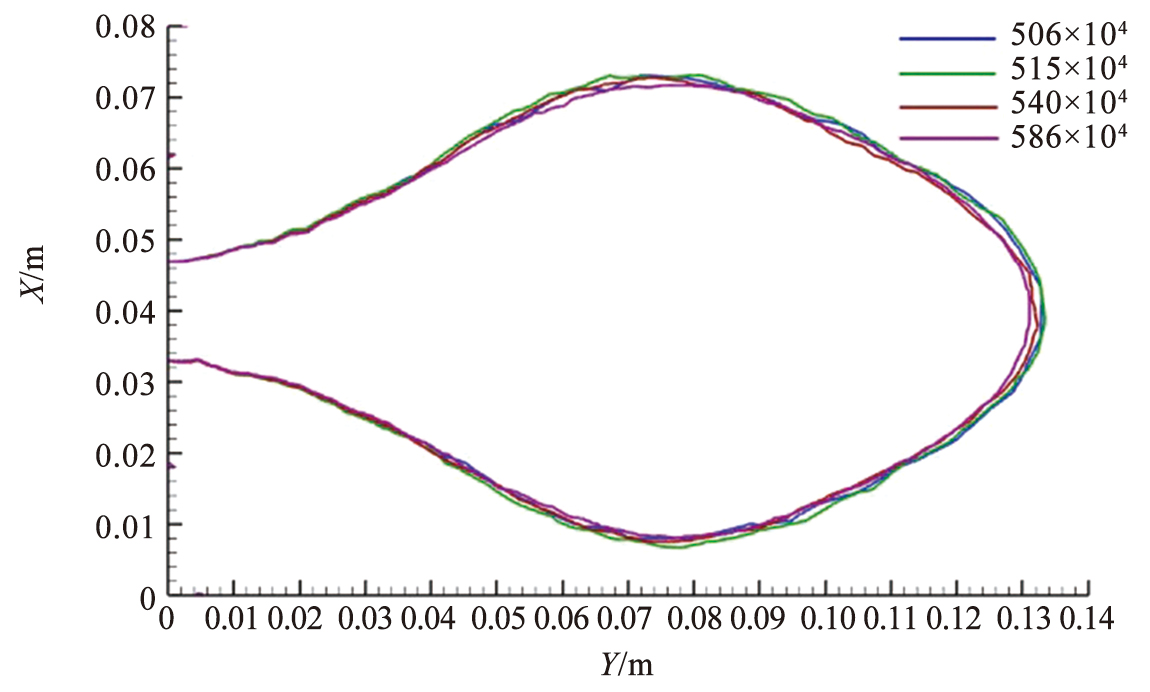

图3

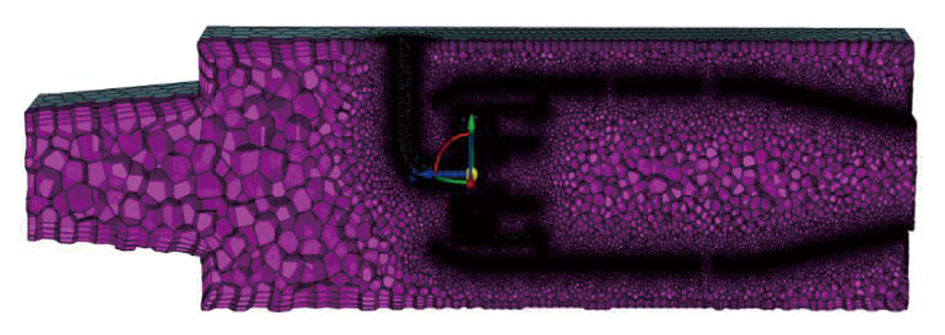

图4

图5

图6

表2

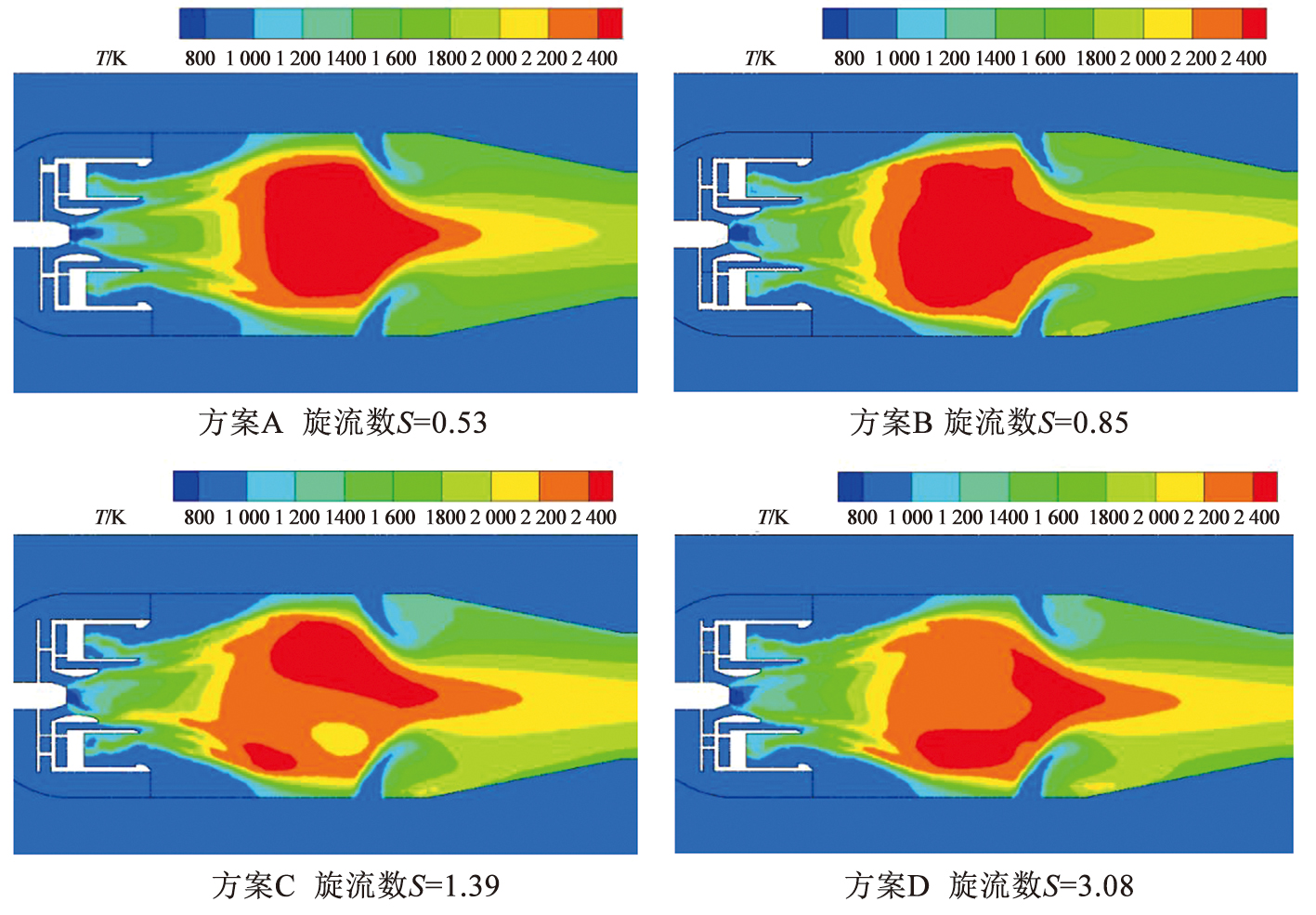

图7

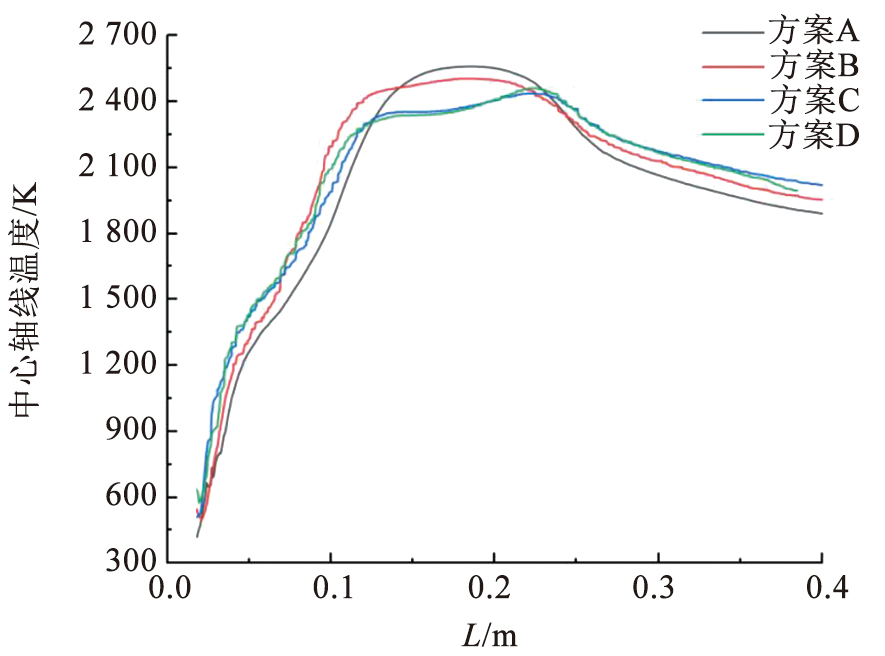

图8

图9

图10

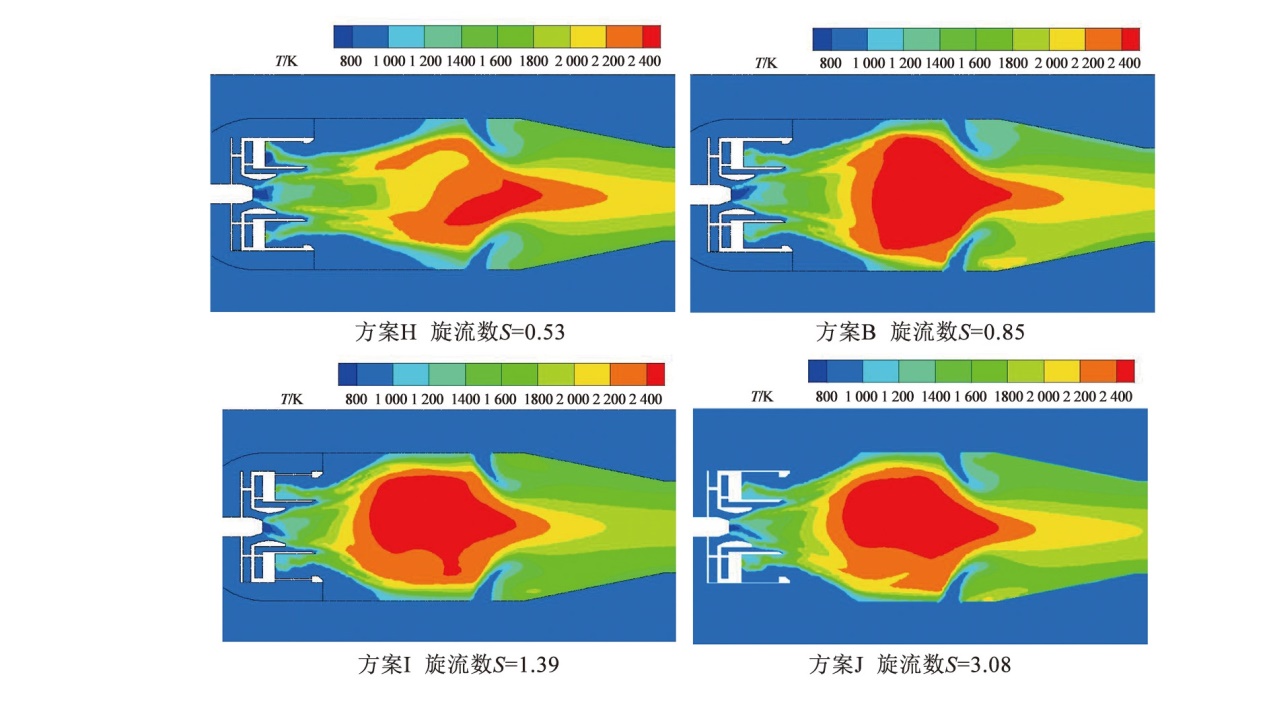

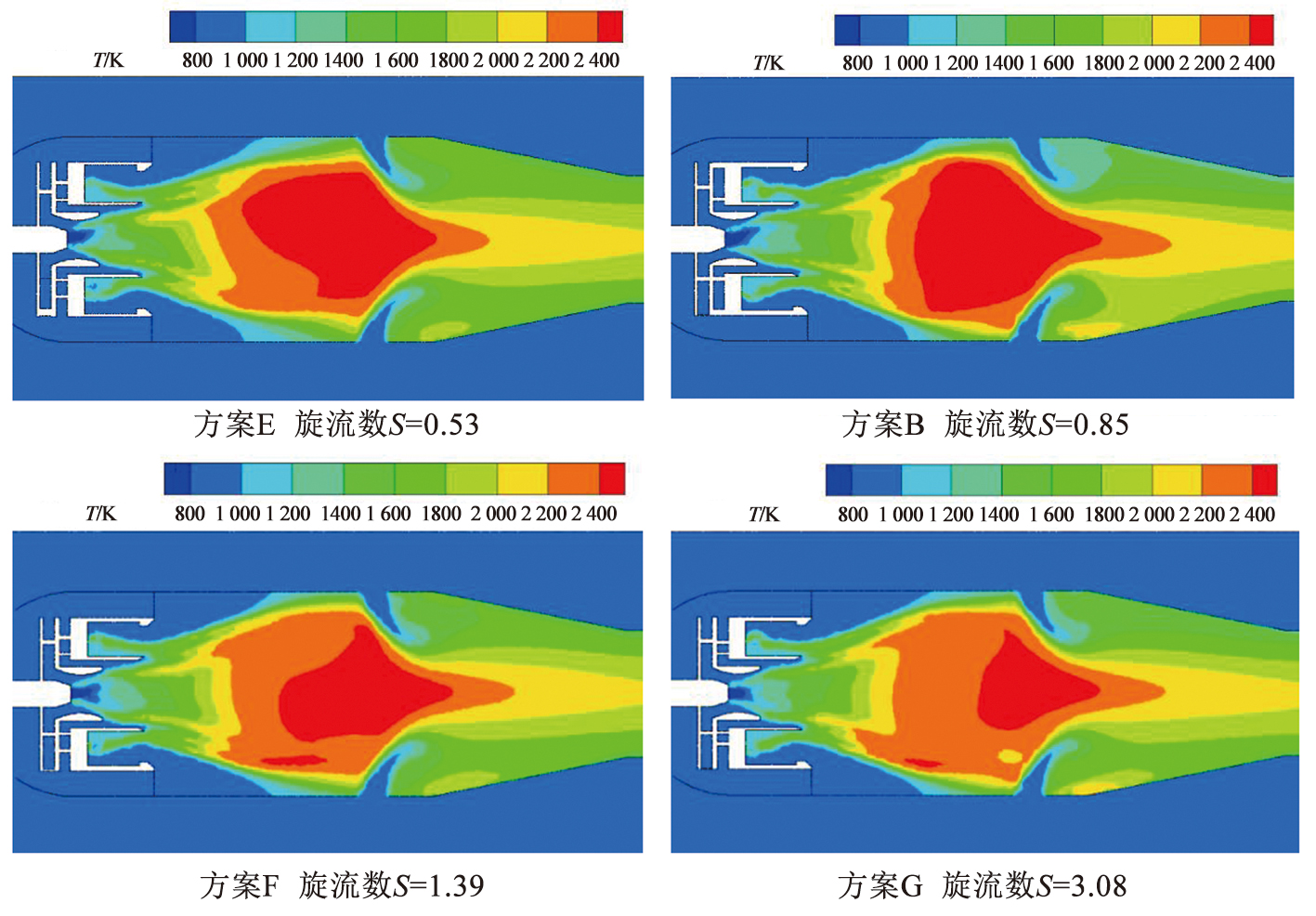

图11

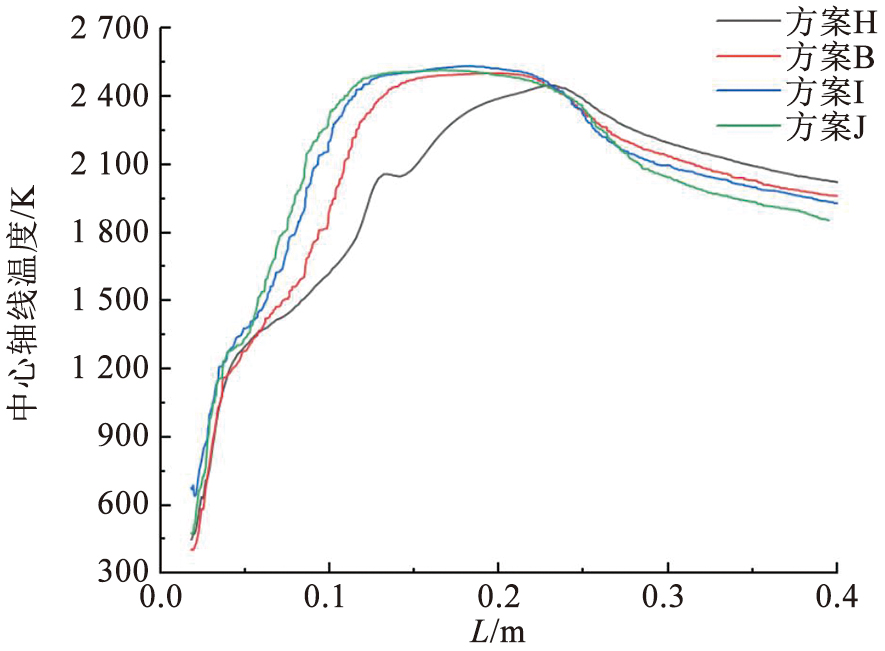

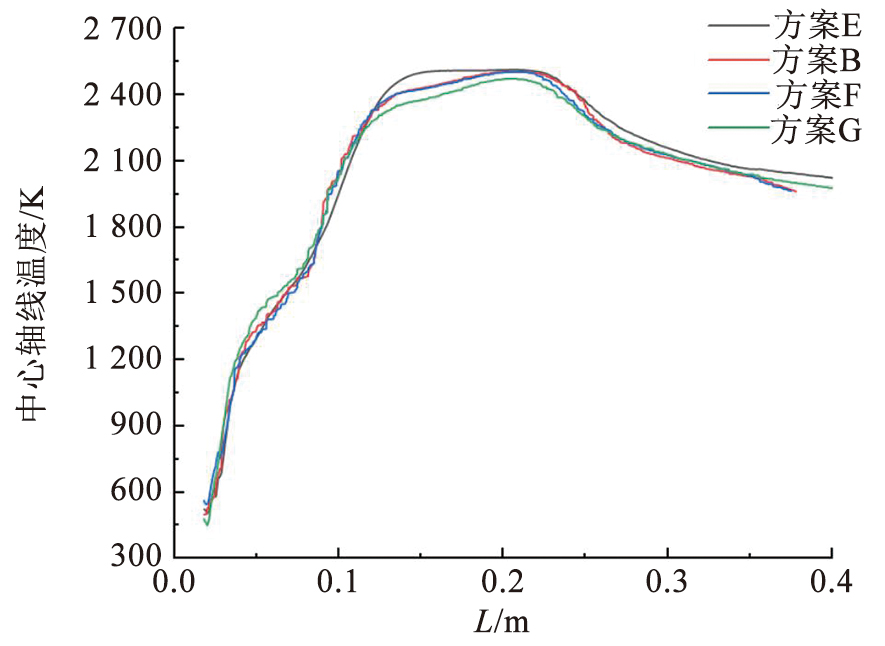

图12

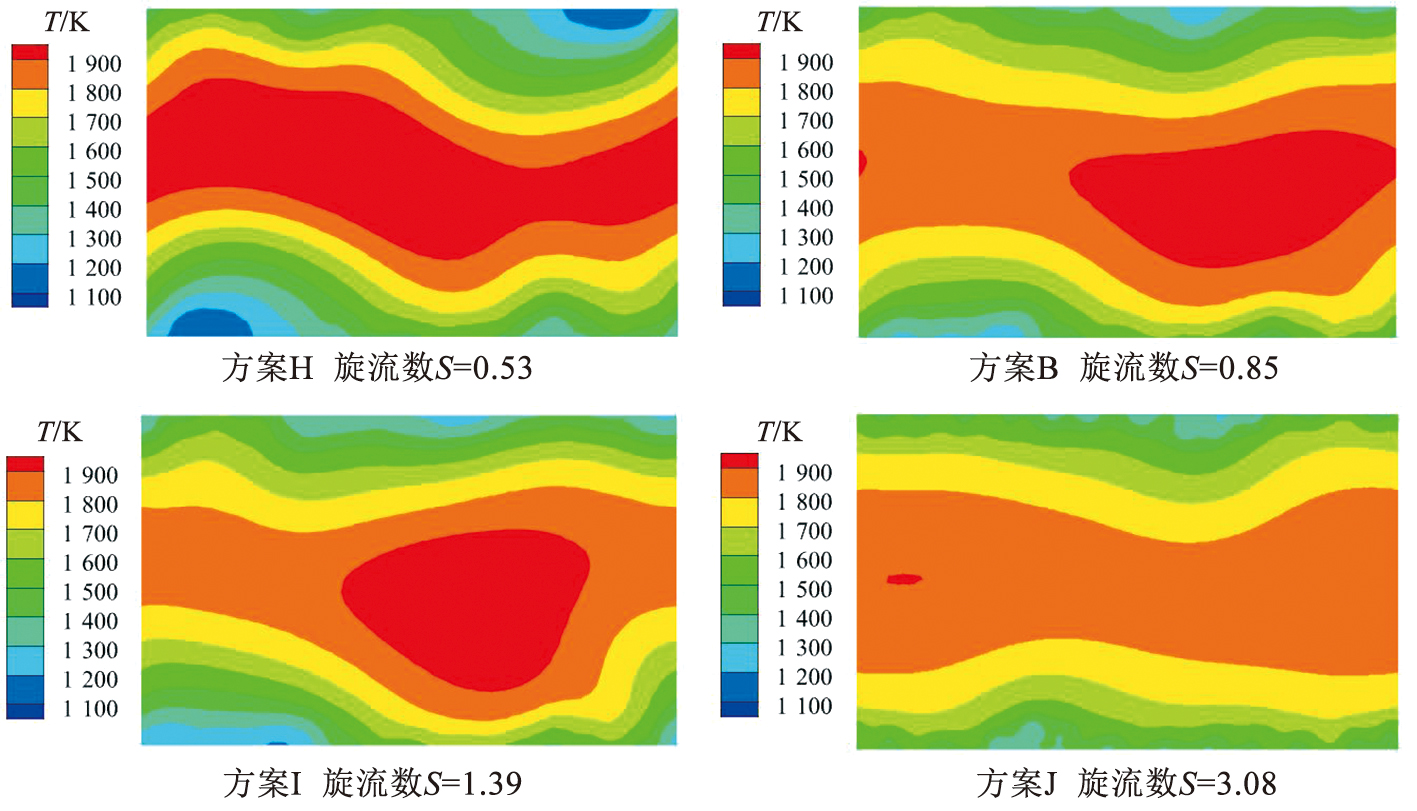

图13

表3

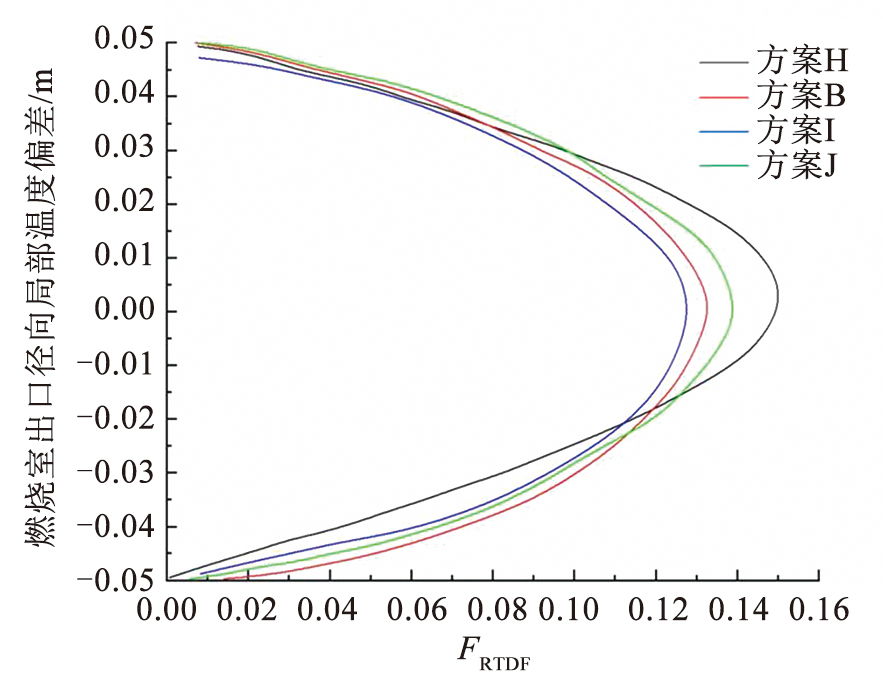

图14

参考文献 19

[1]	高贤智, 李锋, 郭大鹏. 超高温升中心分级燃烧室设计及计算分析[J]. 航空发动机, 2015, 41(1): 9-15. DOI:10.13477/j.cnki.aeroengine.2015.01.002.
[2]	于建桥, 王成军, 里海洋, 等. 主燃级旋流器对中心分级燃烧室出口性能的影响[J]. 沈阳航空航天大学学报, 2023, 40(1): 22-30. DOI:10.3969/j.issn.2095-1248.2023.01.004.
[3]	李乐, 索建秦, 郑龙席. 旋向对中心分级燃烧室流场及温度场影响研究[J]. 西北工业大学学报, 2020, 38(6): 1198-1209. DOI:10.3969/j.issn.1000-2758.2020.06.008.
[4]	于建桥, 王成军, 里海洋, 等. 旋流器结构特征参数对中心分级燃烧室温度场的影响[J]. 燃气涡轮试验与研究, 2023, 36(2): 14-21. DOI:10.3969/j.issn.1672-2620.2023.02.003.
[5]	刘富强, 房爱兵, 崔玉峰, 等. 回流环形燃烧室出口温度场的试验[J]. 航空动力学报, 2012, 27(1): 48-54. DOI:10.13224/j.cnki.jasp.2012.01.014.
[6]	严友谊. 进口气流预旋对燃烧室出口温度场影响研究[D]. 上海: 上海交通大学, 2017.
[7]	伍智. 高温升燃烧室出口温度场掺混孔调控技术研究[D]. 南京: 南京航空航天大学, 2013.
[8]	吴超, 徐让书, 蒲宁, 等. 某型航空发动机燃烧室出口温度场数值模拟[J]. 沈阳航空工业学院学报, 2009, 26(2): 1-4. DOI:10.3969/j.issn.2095-1248.2009.02.001.
[9]	Bain D, Smith C, Holdeman J. CFD mixing analysis of jets injected from straight and slanted slots into confined crossflow in rectangular ducts[C]// 28th Joint Propulsion Conference and Exhibit. Nashville, TN, USA: AIAA, 1992: AIAA19923087. DOI:10.2514/6.1992-3087.
[10]	Holdeman J D, Chang C T. Mixing of multiple jets with a confined subsonic crossflow: Part III: the effects of air preheat and number of orifices on flow and emissions in an RQL mixing section: NASA/TM-2008-215151[R]. National Aeronautics and Space Administration (NASA), 2008.
[11]	Holdeman J D, Clisset J R, Moder J P. Spreadsheet calculations for jets in crossflow: Opposed rows of inline and staggered holes and single and opposed rows with alternating hole sizes: NASA/TM-2010-216100[R]. Cleveland, Ohio, USA: National Aeronautics and Space Administration, Glenn Research Center, 2010.
[12]	Zhang Man, Wu Hao, Wang Hao. Numerical prediction of NO_x emission and exit temperature pattern in a model staged lean premixed prevaporized combustor[C]// Volume 3C: Heat Transfer. San Antonio, Texas, USA. American Society of Mechanical Engineers, 2013: V03CT17A008. DOI:10.1115/gt2013-95235.
[13]	Shang M T, Lu S Q, Mao R H. Numerical investigation of the effects of dilution hole geometry on the exit temperature profile and emissions of an aero-engine LPP combustor[C]// ASME Turbo Expo 2013: Turbine Technical Conference and Exposition, San Antonio, Texas, USA. 2013 DOI:10.1115/GT2013-95395.
[14]	Elkady A. Experimental investigation of aerodynamics, combustion, and emissions characteristics within the primary zone of a gas turbine combustor[C]// ASME Turbo Expo 2006: Power for Land, Sea, and Air. New York: ASME, 2006.
[15]	Elkady A, Jeng S M, Mongia H. The influence of primary air jets on flow and pollutant emissions characteristics within a model gas turbine combustor[C]// 44th AIAA Aerospace Sciences Meeting and Exhibit. Reno, Nevada. Reston, Virginia: AIAA, 2006: 544. DOI:10.2514/6.2006-544.
[16]	于建桥. 中心分级燃烧室燃烧流场性能的研究[D]. 沈阳: 沈阳航空航天大学, 2023.
[17]	江平, 何小民. 仅值班供油时斜流驻涡燃烧室出口温度分布特性研究[J]. 推进技术, 2021, 42(6): 1303-1311. DOI:10.13675/j.cnki.tjjs.190876.
[18]	申力鑫. 掺混孔几何参数对燃烧室出口特性的影响[D]. 沈阳: 沈阳航空航天大学, 2018.
[19]	杨思恒, 王建臣, 张弛, 等. 三头部中心分级燃烧室出口温度分布研究[J]. 工程热物理学报, 2021, 42(10): 2737-2748.

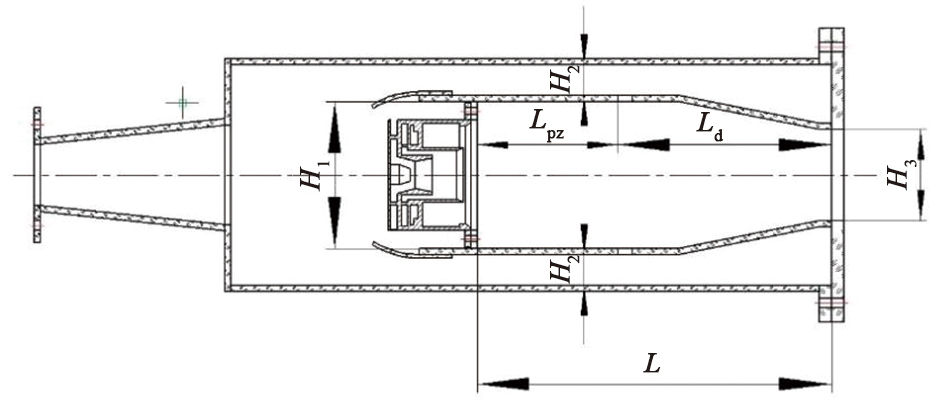

燃烧室几何参数	数值
