模式生物斑马鱼在化妆品功效评价中的应用进展及发展趋势分析

doi:10.3976/j.issn.1002-4026.20240016

摘要/Abstract

摘要：

斑马鱼模型在药物筛选、药理和毒理等研究领域已得到广泛应用。近年来,随着《化妆品功效宣称评价规范》等文件的实施,化妆品功效宣称进入强监管时代,对功效评价模型和方法的科学性提出了更高的要求。斑马鱼皮肤结构与人类高度相似,胚胎透明,易观察,且斑马鱼功效评价实验具有样品用量少、周期短、高通量的优势,目前已成为化妆品功效评价领域的研究热点。本文基于文献计量学方法,统计了近十年斑马鱼用于化妆品功效评价的相关文献,综述了斑马鱼在化妆品功效评价中的应用进展,并分析了其发展动态和趋势,为促进斑马鱼模型在化妆品领域中的应用提供参考。

关键词: 斑马鱼, 化妆品, 功效评价

Abstract:

Zebrafish models have been widely used in various fields such as drug screening, pharmacology, and toxicology research. In recent years, with the implementation of regulations such as the standard for the Evaluation of Cosmetic Efficacy Claims, cosmetic efficacy claims have entered into an era of strict supervision, which has led to higher standards for the scientific nature of the efficacy evaluation models and methods. The skin structure of zebrafish is highly similar to that of humans, with zebrafish also having transparent embryos that are easy to observe. Moreover, efficacy evaluation experiments using zebrafish offer advantages such as minimal sample dosage, shortened experimental cycles, and high-throughput capacity. Consequently, zebrafish have become a popular research topic in the field of cosmetic efficacy evaluation. Based on bibliometric methods, this study analyzes the relevant literature on the use of zebrafish to evaluate cosmetic efficacy over the past decade. The study provides an overview of the progress of the application of zebrafish in cosmetic efficacy evaluation, and examines the development dynamics and trends through comprehensive analysis. This is so as to provide a reference for the application of zebrafish models in the cosmetics industry.

Key words: zebrafish, cosmetics, efficacy evaluation

中图分类号:

夏青, 臧晓涵, 王勇澄, 张云, 李培海, 张轩铭, 刘可春. 模式生物斑马鱼在化妆品功效评价中的应用进展及发展趋势分析[J]. 山东科学, 2024, 37(2): 36-46.

XIA Qing, ZANG Xiaohan, WANG Yongcheng, ZHANG Yun, LI Peihai, ZHANG Xuanming, LIU Kechun. Progress and development trends in the use of zebrafish as a model organism for evaluating cosmetic efficacy[J]. Shandong Science, 2024, 37(2): 36-46.

图/表 9

图1

表1

图2

图3

图4

图5

图6

图7

图8

参考文献 54

[1]	中华人民共和国国务院. 化妆品监督管理条例[EB/OL]. [2023-12-20]. https://flk.npc.gov.cn/detail2.htmlZmY4MDgwODE3NmQ1Y2JjZTAxNzZkNzNjZDJlYTAzY2U.
[2]	国家药品监督管理局. 化妆品功效宣称评价规范[EB/OL].[2023-12-20]. https://baike.baidu.com/item/化妆品功效宣称评价规范/56729522?fr=ge_ala.
[3]	HOU Y Y, LIU X X, QIN Y L, et al. Zebrafish as model organisms for toxicological evaluations in the field of food science[J]. Comprehensive Reviews in Food Science and Food Safety, 2023, 22(5): 3481-3505. DOI: 10.1111/1541-4337.13213.
[4]	RUSSO I, SARTOR E, FAGOTTO L, et al. The zebrafish model in dermatology: an update for clinicians[J]. Discover Oncology, 2022, 13(1): 48. DOI: 10.1007/s12672-022-00511-3. pmid: 35713744
[5]	ABE G, HAYASHI T, YOSHIDA K, et al. Insights regarding skin regeneration in non-amniote vertebrates: skin regeneration without scar formation and potential step-up to a higher level of regeneration[J]. Seminars in Cell & Developmental Biology, 2020, 100: 109-121. DOI: 10.1016/j.semcdb.2019.11.014.
[6]	LI Q L, FRANK M, THISSE C I, et al. Zebrafish: a model system to study heritable skin diseases[J]. The Journal of Investigative Dermatology, 2011, 131(3): 565-571. DOI: 10.1038/jid.2010.388.
[7]	D’ORAZIO J, JARRETT S, AMARO-ORTIZ A, et al. UV radiation and the skin[J]. International Journal of Molecular Sciences, 2013, 14(6): 12222-12248. DOI: 10.3390/ijms140612222. pmid: 23749111
[8]	FERREIRA A M, DE SOUZA A A, DE CARVALHO R KOGA R, et al. Anti-melanogenic potential of natural and synthetic substances: application in zebrafish model[J]. Molecules, 2023, 28(3): 1053. DOI: 10.3390/molecules28031053.
[9]	LAJIS A F B. A zebrafish embryo as an animal model for the treatment of hyperpigmentation in cosmetic dermatology medicine[J]. Medicina, 2018, 54(3): 35. DOI: 10.3390/medicina54030035.
[10]	广州开发区黄埔化妆品产业协会. 化妆品美白功效的测定斑马鱼胚法:T/HPCIA 005—2022[S/OL]. [2023-12-20]. https://www.ttbz.org.cn/Pdfs/Index/?ftype=st&pms=60982.
[11]	HA S K, KOKETSU M, LEE M, et al. Inhibitory effects of 1, 3-thiazine derivatives on melanogenesis[J]. The Journal of Pharmacy and Pharmacology, 2009, 61(12): 1657-1663. DOI: 10.1211/jpp/61.12.0011.
[12]	金蒙, 施蒂儿, 茹琪, 等. 油茶花提取物的美白功效评价[J]. 精细化工, 2023, 40(7): 1513-1519. DOI: 10.13550/j.jxhg.20220909.
[13]	万庆家, 于晓霞, 张浩, 等. 库拉索芦荟花的美白功效研究[J]. 香料香精化妆品, 2020(5): 46-48. DOI: 10.3969/j.issn.1000-4475.2020.05.012.
[14]	万庆家, 黄云祥, 何林燕, 等. 芦笋的美白功效研究[J]. 日用化学品科学, 2020, 43(7): 40-41. DOI: 10.3969/j.issn.1006-7264.2020.07.009.
[15]	陶星宇. 马齿苋多糖分析与抗紫外、美白功效评价[D]. 长春: 长春中医药大学, 2023.
[16]	彭冠杰, 李扬思, 何水莲, 等. 超分子壬二酸的斑马鱼模型美白功效研究[J]. 日用化学品科学, 2022, 45(12): 36-39. DOI: 10.3969/j.issn.1006-7264.2022.12.009.
[17]	MAHENDRA C K, SER H L, ABIDIN S A Z, et al. The anti-melanogenic properties of Swietenia macrophylla king[J]. Biomedicine & Pharmacotherapy, 2023, 162: 114659. DOI: 10.1016/j.biopha.2023.114659.
[18]	HU S H, HUANG J H, PEI S Y, et al. Ganoderma lucidum polysaccharide inhibits UVB-induced melanogenesis by antagonizing cAMP/PKA and ROS/MAPK signaling pathways[J]. Journal of Cellular Physiology, 2019, 234(5): 7330-7340. DOI: 10.1002/jcp.27492.
[19]	JEON H J, KIM K, KIM C, et al. Antimelanogenic effects of curcumin and its dimethoxy derivatives: mechanistic investigation using B16F10 melanoma cells and zebrafish (Danio rerio) embryos[J]. Foods, 2023, 12(5): 926. DOI: 10.3390/foods12050926.
[20]	SALWOWSKA N M, BEBENEK K A, ZADLO D A, et al. Physiochemical properties and application of hyaluronic acid: A systematic review[J]. Journal of Cosmetic Dermatology, 2016, 15(4): 520-526. DOI: 10.1111/jocd.12237. pmid: 27324942
[21]	何林燕, 李兰珠, 钱绍祥, 等. 斑马鱼模型法评估库拉索芦荟叶水的保湿功效研究[J]. 精细与专用化学品, 2023, 31(1): 20-23. DOI: 10.19482/j.cn11-3237.2023.01.05.
[22]	陈丹丹, 李广涛, 高宏旗. 山茶花提取物功效研究[J]. 日用化学品科学, 2023, 46(12): 39-42. DOI: 10.3969/j.issn.1006-7264.2023.12.006.
[23]	山东省科学院生物研究所. 基于斑马鱼模型的化妆品保湿功效评价方法:T/QLMZ 9—2023[S/OL]. [2023-12-20]. https://www.ttbz.org.cn/StandardManage/Detail/89497
[24]	王斌, 冯森, 姚璐璐, 等. 膳食营养成分与皮肤衰老的相关研究进展[J]. 皮肤科学通报, 2023, 40(5): 547-552.
[25]	杨扬, 郁琼花. 抗氧化机理的化妆品功效评价方法概况[J]. 日用化学品科学, 2023, 46(4): 50-54. DOI: 10.3969/j.issn.1006-7264.2023.04.010.
[26]	TEAME T, ZHANG Z, RAN C, et al. The use of zebrafish (Danio rerio) as biomedical models[J]. Animal Frontiers, 2019, 9(3): 68-77. DOI: 10.1093/af/vfz020.
[27]	孙晨, 洪凡真, 李艳胧, 等. 基于斑马鱼模型的紫河车冻干粉水提物抗衰老功效研究[J]. 药物评价研究, 2023, 46(11): 2374-2379. DOI: 10.7501/j.issn.1674-6376.2023.11.012.
[28]	张淼, 杨迪, 魏爽, 等. 岩藻黄素对H₂O₂诱导斑马鱼衰老的抑制作用[J]. 广西科学, 2023, 30(2): 403-412. DOI: 10.13656/j.cnki.gxkx.20230329.001.
[29]	DIMRI G P, LEE X, BASILE G, et al. A biomarker that identifies senescent human cells in culture and in aging skin in vivo[J]. Proceedings of the National Academy of Sciences of the United States of America, 1995, 92(20): 9363-9367. DOI: 10.1073/pnas.92.20.9363.
[30]	TSIKAS D. Assessment of lipid peroxidation by measuring malondialdehyde (MDA) and relatives in biological samples: analytical and biological challenges[J]. Analytical Biochemistry, 2017, 524: 13-30. DOI: 10.1016/j.ab.2016.10.021. pmid: 27789233
[31]	LU X, WANG C, LIU B Z. The role of Cu/Zn-SOD and Mn-SOD in the immune response to oxidative stress and pathogen challenge in the clam Meretrix meretrix[J]. Fish & Shellfish Immunology, 2015, 42(1): 58-65. DOI: 10.1016/j.fsi.2014.10.027.
[32]	WANG N, LUO Z W, JIN M, et al. Exploration of age-related mitochondrial dysfunction and the anti-aging effects of resveratrol in zebrafish retina[J]. Aging, 2019, 11(10): 3117-3137. DOI: 10.18632/aging.101966.
[33]	王欢, 盘瑶. 化妆品功效评价(Ⅴ):舒缓功效宣称的科学支持[J]. 日用化学工业, 2018, 48(5): 247-254. DOI: 10.13218/j.cnki.csdc.2018.05.002.
[34]	SHUTOVA M S, BOEHNCKE W H. Mechanotransduction in skin inflammation[J]. Cells, 2022, 11(13): 2026. DOI: 10.3390/cells11132026.
[35]	段秀英, 马瑞娇, 张云, 等. 斑马鱼炎症模型及其在中药抗炎领域的应用[J]. 药物评价研究, 2021, 44(8): 1573-1580. DOI: 10.7501/j.issn.1674-6376.2021.08.001.
[36]	SUN S Q, YU A X, CHENG R Y, et al. Similarities and differences between Ziqin and Kuqin in anti-inflammatory, analgesic, and antioxidant activities and their core chemical composition based on the zebrafish model and spectrum-effect relationship[J]. Journal of Ethnopharmacology, 2023, 304: 116049. DOI: 10.1016/j.jep.2022.116049.
[37]	ZHENG Y R, TIAN C Y, FAN C L, et al. Sheng-Mai Yin exerts anti-inflammatory effects on RAW 264.7 cells and zebrafish[J]. Journal of Ethnopharmacology, 2021, 267: 113497. DOI: 10.1016/j.jep.2020.113497.
[38]	ZHOU C Y, CHEN J, ZHANG H Z, et al. Investigation of the chemical profile and anti-inflammatory mechanisms of flavonoids from Artemisia vestita Wall. ex Besser via targeted metabolomics, zebrafish model, and network pharmacology[J]. Journal of Ethnopharmacology, 2023, 302(Pt B): 115932. DOI: 10.1016/j.jep.2022.115932.
[39]	LIU N C, ZHANG P, XUE M Y, et al. Anti-inflammatory and antioxidant properties of rice bran oil extract in copper sulfate-induced inflammation in zebrafish (Danio rerio)[J]. Fish & Shellfish Immunology, 2023, 136: 108740. DOI: 10.1016/j.fsi.2023.108740.
[40]	KIM J E, MIN S K, HONG J M, et al. Anti-inflammatory effects of methanol extracts from the Antarctic lichen, Amandinea sp. in LPS-stimulated raw 264.7 macrophages and zebrafish[J]. Fish & Shellfish Immunology, 2020, 107(Pt A): 301-308. DOI: 10.1016/j.fsi.2020.10.017.
[41]	XUEMEI H E, XIAO J J, FAN C L, et al. Zebrafish facilitates drug screening: potential of 3-deoxy-andrographoside from Chuanxinlian) as an anti-inflammatory agent[J]. Journal of Traditional Chinese Medicine = Chung i Tsa Chih Ying Wen Pan, 2022, 42(5): 749-757. DOI: 10.19852/j.cnki.jtcm.2022.05.008.
[42]	YANG Y, ZHENG K D, MEI W J, et al. Anti-inflammatory and proresolution activities of bergapten isolated from the roots of Ficus hirta in an in vivo zebrafish model[J]. Biochemical and Biophysical Research Communications, 2018, 496(2): 763-769. DOI: 10.1016/j.bbrc.2018.01.071.
[43]	RITTIÉ L, FISHER G J. Natural and sun-induced aging of human skin[J]. Cold Spring Harbor Perspectives in Medicine, 2015, 5(1): a015370. DOI: 10.1101/cshperspect.a015370.
[44]	叶琳琳, 李欠南, 舒倩. 三叶鬼针草涂抹眼膜抗皱紧致功效评价[J]. 广东化工, 2023, 50(16): 37-39. DOI: 10.3969/j.issn.1007-1865.2023.16.012.
[45]	NAOMI R, BAHARI H, YAZID M D, et al. Zebrafish as a model system to study the mechanism of cutaneous wound healing and drug discovery: Advantages and challenges[J]. Pharmaceuticals, 2021, 14(10): 1058. DOI: 10.3390/ph14101058.
[46]	辛建雄, 张景桓, 陈军, 等. 纤连蛋白冻干粉修护功效的体外研究[J]. 日用化学品科学, 2022, 45(9): 35-39. DOI: 10.3969/j.issn.1006-7264.2022.09.008.
[47]	何健华, 郭清泉, 王雅馨, 等. 斑马鱼胚胎行为学在化妆品原料舒缓功效评价中的应用[J]. 轻工学报, 2022, 37(3): 117-126.
[48]	山东省科学院生物研究所. 基于斑马鱼模型的化妆品控油功效评价方法:T/QLMZ 7—2023[S/OL]. [2023-12-20]. https://www.ttbz.org.cn/StandardManage/Detail/89413
[49]	郑必胜, 魏瑞敬, 郭朝万, 等. 木棉花黄酮的大孔树脂纯化及其祛痘功效分析[J]. 华南理工大学学报(自然科学版), 2022, 50(4): 119-128. DOI: 10.12141/j.issn.1000-565X.210383.
[50]	牛文霞, 何先喆. 桦褐孔菌发酵液的安全性及舒缓、修护功效探究[J]. 香料香精化妆品, 2023(6): 116-121. DOI: 10.20099/j.issn.1000-4475.2022.0263.
[51]	戴希越, 吕秀华. 探究3种美白类中草药对抑制斑马鱼胚胎黑色素生成的作用[J]. 生物学教学, 2021, 46(12): 66-68. DOI: 10.3969/j.issn.1004-7549.2021.12.030.
[52]	鹿王成志, 舒小康, 吴艳. 余甘子提取物的化妆品功效研究:斑马鱼试验[J]. 中国化妆品, 2023(4): 94-97.
[53]	何水莲, 彭冠杰. 基于斑马鱼模型对补骨脂酚在化妆品领域的功效评价[J]. 广东化工, 2023, 50(7): 70-72. DOI: 10.3969/j.issn.1007-1865.2023.07.022.
[54]	苏爱秋, 彭燕鸿, 黄伟文, 等. 中药化妆品应用现状[J]. 香料香精化妆品, 2023(1): 120-126. DOI: 10.3969/j.issn.1000-4475.2023.01.021.

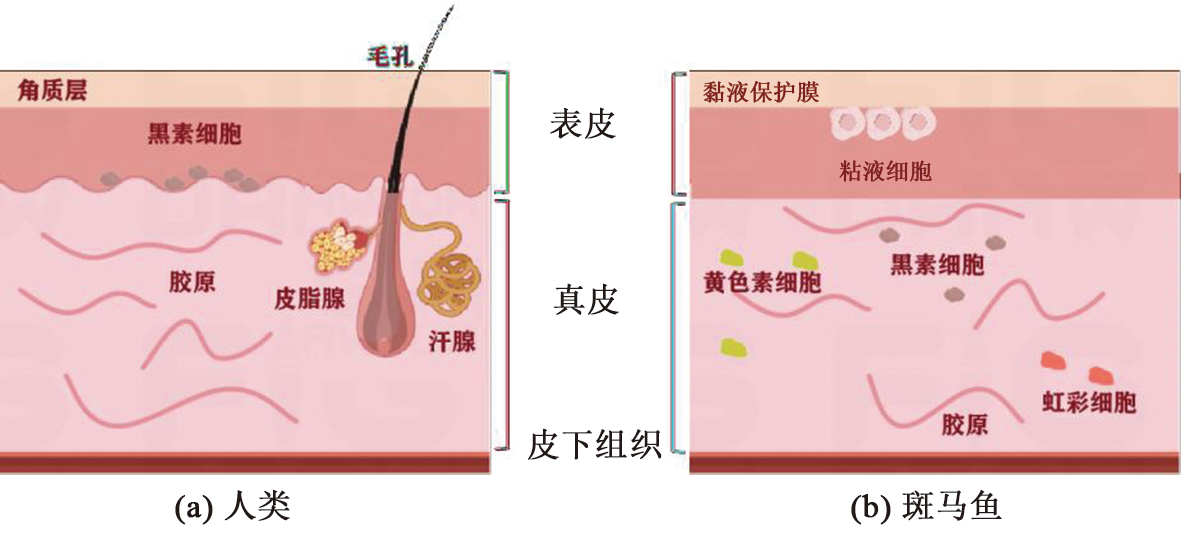

位置	结构	功能	对应人体皮肤结构
表皮层	保护膜	保护,抗菌	角化上皮
	浅表层	稳定,气体交换,防震动	颗粒层
	中间层	棒状细胞,离子细胞,感觉细胞,黏液细胞,未分化上皮细胞	棘层
	基底层	通过半桥粒附着在真皮上	基底层
	透明层	含有层黏连蛋白和整合素	透明层
	致密层	含有胶原蛋白	致密层
	半桥粒	连接基底层细胞与下方基底膜	半桥粒
	桥粒	连接相邻上皮细胞	桥粒
	侧线	运动和震动的感觉器官	内耳毛细胞(位于耳蜗内)
真皮层	黑素细胞	色素沉着,抗紫外线辐射	黑素细胞
真皮层	鳞	保护,钙源	毛发
皮下组织	脂肪细胞	隔热,储存热量,有助皮下创伤愈合	脂肪细胞
