夹点分析优化后的油田联合站分布式能源系统特征与节能潜力

doi:10.3976/j.issn.1002-4026.2022.06.011

摘要/Abstract

摘要：

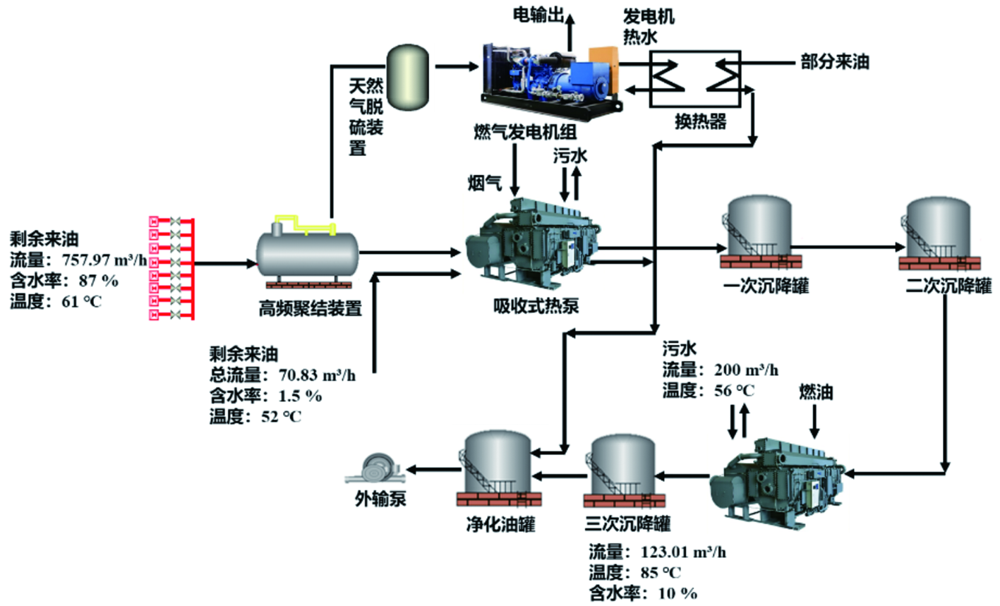

胜利油田进入特高含水期,开采难度加大,采油成本上升,节能已成为采油厂成本控制的主要因素,采用燃气轮机或燃气内燃机发电、烟气驱动热泵回收污水余热和加热原油等工艺相结合,可以构建基于天然气的分布式能源系统。通过对传统联合站以及联合站分布式能源系统进行夹点分析,从而实现能流分析优化。基于燃气内燃机变工况能流模型,通过热力模拟进行燃气内燃机的燃烧计算,对水套加热炉加热原油的传统联合站进行夹点分析。基于烟气余热驱动的溴化锂吸收式热泵能流模型,对联合站分布式能源系统进行夹点分析。对联合站分布式能源系统与传统联合站进行了对比分析,联合站分布式能源系统节能潜力达24%,为实现“双碳”目标做出了贡献。

关键词: 联合站, 分布式能源系统, 夹点分析, 节能减耗

Abstract:

Currently, Shengli Oilfield has entered the period of ultrahigh water cut, thereby increasing the difficulty of exploitation and raising the cost of oil production. Energy conservation has become the main factor for controlling the cost of oil-production plants. The distributed energy system based on natural gas can be constructed by combining gas turbine or gas internal combustion engine for power generation and flue gas-driven heat pump for the recovery from sewage and heating crude oil. Energy-flow analysis and optimization can be achieved through pinch analysis of a traditional joint station and a joint station distributed energy system. Based on the energy-flow model of a gas internal combustion engine under variable working conditions, the combustion calculation of a gas internal combustion engine is performed via thermal simulation and the pinch analysis is conducted for a traditional joint station that heats crude oil via water jacket heating furnace. Based on the lithium bromide-absorption heat pump energy-flow model driven via flue-gas heat, the pinch point analysis is conducted for the distributed energy system of the joint station. A comparative analysis of the joint station distributed energy system and the traditional joint station is performed. The energy-saving potential of the joint station distributed energy system can reach 24%, contributing to the realization of the “carbon peaking and carbon neutrality” goal.

Key words: combined station, distributed energy systems, pinch analysis, energy saving and consumption reduction

中图分类号:

TE08

徐涛, 许飞, 刘伟. 夹点分析优化后的油田联合站分布式能源系统特征与节能潜力[J]. 山东科学, 2022, 35(6): 80-91.

XU Tao, XU Fei, LIU Wei. Characteristics and energy-saving potential of a distributed energy system in the oilfield joint station based on pinch analysis[J]. Shandong Science, 2022, 35(6): 80-91.

图/表 15

图1

表1

图2

表2

图3

图4

图5

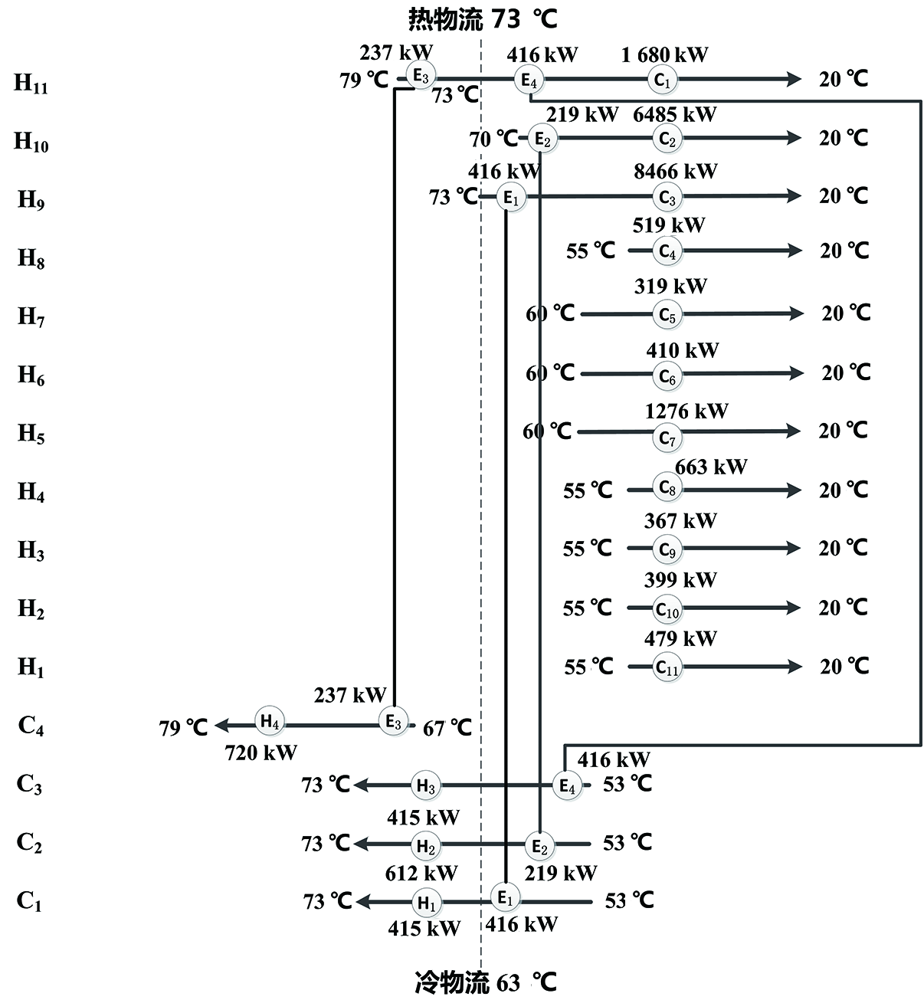

图6

表3

图7

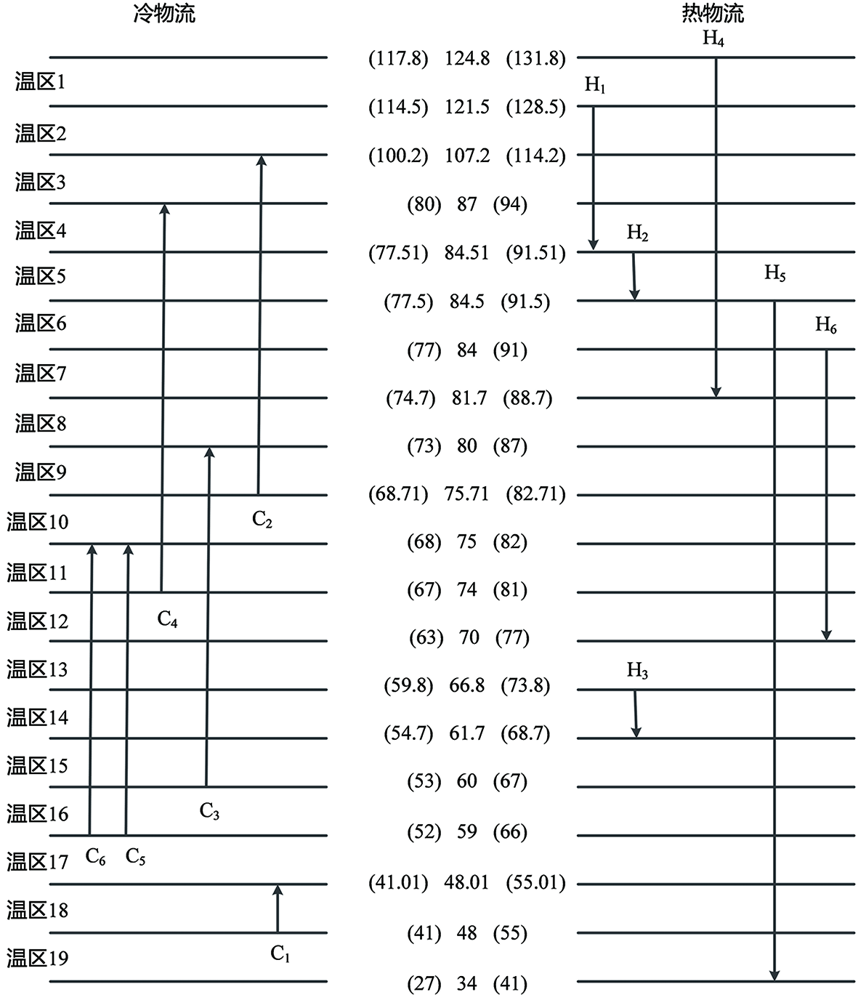

图8

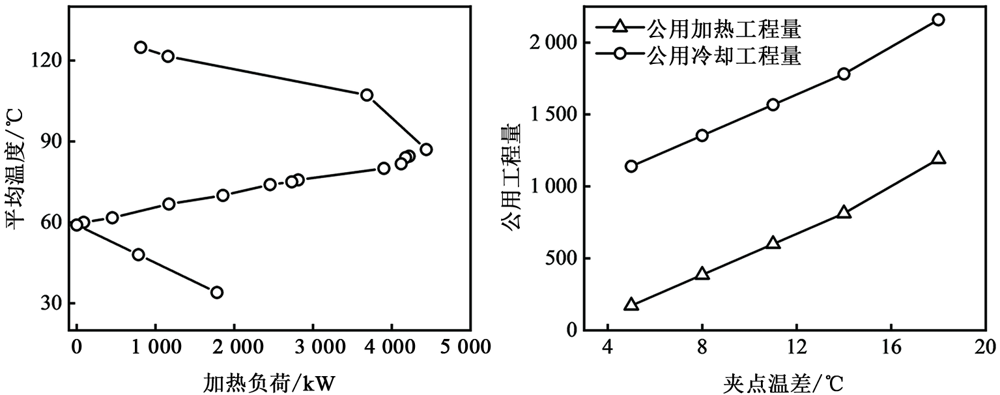

图9

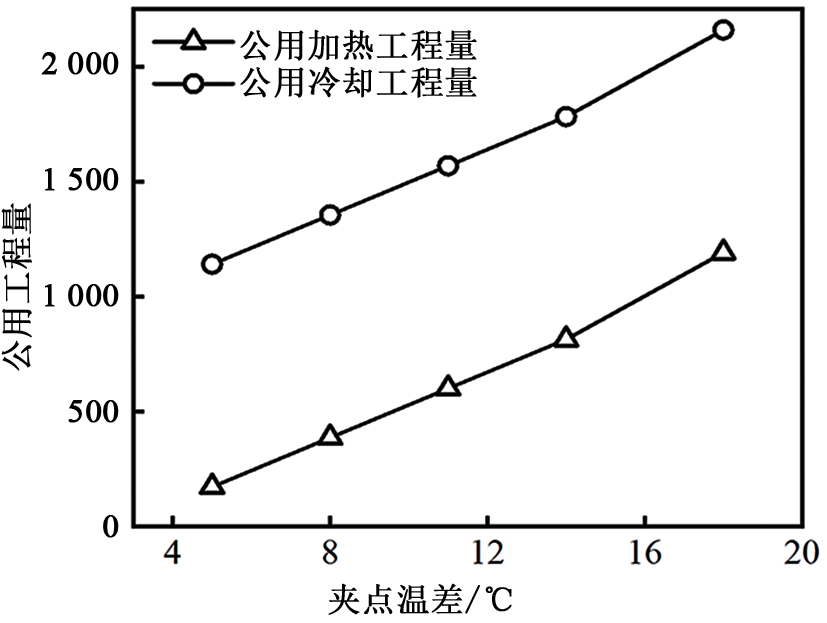

图10

图11

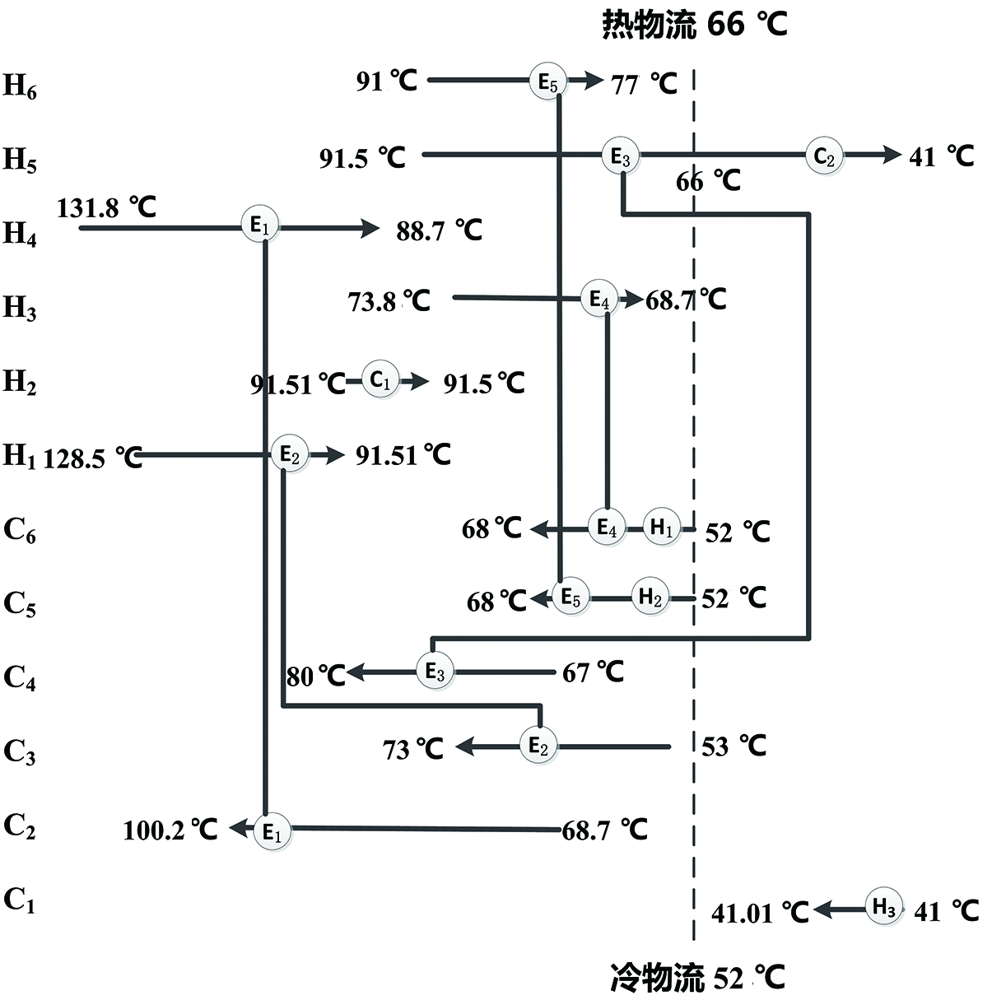

图12

参考文献 24

[1]	TELLEZ G T, NIRMALAKHANDAN N, GARDEA-TORRESDEY J L. Performance evaluation of an activated sludge system for removing petroleum hydrocarbons from oilfield produced water[J]. Advances in Environmental Research, 2002, 6(4): 455-470. DOI:10.1016/S1093-0191(01)00073-9. doi: 10.1016/S1093-0191(01)00073-9
[2]	WOODALL D W, GAMBRELL R P, RABALAIS N N, et al. Developing a method to track oil and gas produced water discharges in estuarine systems using salinity as a conservative tracer[J]. Marine Pollution Bulletin, 2001, 42(11): 1118-1127. DOI:10.1016/S0025-326X(01)00100-X. doi: 10.1016/S0025-326X(01)00100-X pmid: 11763224
[3]	SLADOVSKY A G, SLADOVSKAYA O Y. Improvement of the process ensuring the uniformity of oil and oil product volumetric moisture content measurements[J]. AIP Conference Proceedings, 2017, 1876(1): 020089. DOI:10.1063/1.4998909. doi: 10.1063/1.4998909
[4]	SAHANA C, DE S, MONDAL S. Integration of CO₂ power and refrigeration cycles with a desalination unit to recover geothermal heat in an oilfield[J]. Applied Thermal Engineering, 2021, 189: 116744. DOI:10.1016/j.applthermaleng.2021.116744. doi: 10.1016/j.applthermaleng.2021.116744
[5]	GU Z L, QIU J, LI Y, et al. Heat pump system utilizing produced water in oil fields[J]. Applied Thermal Engineering, 2003, 23(15): 1959-1970. DOI:10.1016/S1359-4311(03)00143-1. doi: 10.1016/S1359-4311(03)00143-1
[6]	隋新华. 机采系统节能优化决策支持系统分析[J]. 电子技术应用, 2008, 34(8): 100-103. DOI:10.3969/j.issn.0258-7998.2008.08.034. doi: 10.3969/j.issn.0258-7998.2008.08.034
[7]	刘倩, 张子俊, 石磊. “双碳”目标同石化等行业发展不矛盾[N]. 南方日报, 2021-11-26( A09).
[8]	马茹. 油气集输系统用能分析评价[D]. 青岛: 中国石油大学(华东), 2009. DOI:10.7666/d.y1551517. doi: 10.7666/d.y1551517
[9]	龙凤乐, 杨肖曦, 李松岩. 油气集输系统能量分析[J]. 油气储运, 2005, 24(12): 58-60. DOI:10.3969/j.issn.1000-8241-D.2005.12.018. doi: 10.3969/j.issn.1000-8241-D.2005.12.018
[10]	许秀梅, 李东明, 王志国. 稠油集输系统能量平衡分析及节能对策[J]. 节能, 2005, 24(10): 39-40. DOI:10.3969/j.issn.1004-7948.2005.10.014. doi: 10.3969/j.issn.1004-7948.2005.10.014
[11]	杨肖曦, 李松岩. 油气集输系统(火用)分析[J]. 石油化工设计, 2006, 23(2): 59-60. DOI:10.3969/j.issn.1005-8168.2006.02.018. doi: 10.3969/j.issn.1005-8168.2006.02.018
[12]	刘军梅. 熵产分析法在联合站和外输管道优化中的应用[D]. 青岛: 中国石油大学(华东), 2012. DOI:10.7666/d.y2071255. doi: 10.7666/d.y2071255
[13]	王杏花, 安永志, 王照亮, 等. 联合站节能夹点分析研究[J]. 节能, 2010, 29(9): 31-33. DOI:10.3969/j.issn.1004-7948.2010.09.008. doi: 10.3969/j.issn.1004-7948.2010.09.008
[14]	周辉, 王照亮, 姚震. 东一联夹点分析与节能潜力[J]. 当代化工, 2015, 44(11): 2659-2661. DOI:10.13840/j.cnki.cn21-1457/tq.2015.11.046. doi: 10.13840/j.cnki.cn21-1457/tq.2015.11.046
[15]	姜曙, 张琮昌, 吴延鹏. 天然气分布式能源站热经济性计算方法[J]. 暖通空调, 2016, 46(2): 57-60.
[16]	LINNHOFF B, VREDEVELD D R. Pinch technology has come of age[J]. Chemical engineering progress, 1984, 80(7): 33-40.
[17]	LINNHOFF B, AHMAD S. Cost optimum heat exchanger networks:1. Minimum energy and capital using simple models for capital cost[J]. Computers & Chemical Engineering, 1990, 14(7): 729-750. DOI:10.1016/0098-1354(90)87083-2. doi: 10.1016/0098-1354(90)87083-2
[18]	AHMAD S, LINNHOFF B, SMITH R. Cost optimum heat exchanger networks:2. targets and design for detailed capital cost models[J]. Computers & Chemical Engineering, 1990, 14(7): 751-767. DOI:10.1016/0098-1354(90)87084-3. doi: 10.1016/0098-1354(90)87084-3
[19]	王成运. 过程集成节能工艺夹点分析[D]. 青岛: 中国石油大学(华东), 2011.
[20]	王照亮, 王成运, 李清方, 等. 电厂CO₂捕集工艺夹点分析与过程集成节能[J]. 化工学报, 2012, 63(2): 593-598. DOI:10.3969/j.issn.0438-1157.2012.02.036. doi: 10.3969/j.issn.0438-1157.2012.02.036
[21]	(英)伊恩 C. 肯普. 能量的有效利用: 夹点分析与过程集成[M]. 项曙光, 贾小平, 夏力, 译. 北京: 化学工业出版社, 2010.
[22]	姚平经. 全过程系统能量优化综合[M]. 大连: 大连理工大学出版社, 1995.
[23]	AUDENAERT A, de BOECK L, de CLEYN S, et al. An economic evaluation of photovoltaic grid connected systems (PVGCS) in Flanders for companies: A generic model[J]. Renewable Energy, 2010, 35(12): 2674-2682. DOI:10.1016/j.renene.2010.04.013. doi: 10.1016/j.renene.2010.04.013
[24]	ROBERTS M B. Domestic microgeneration: Renewable and distributed energy technologies, policies and economics[J]. Housing Studies, 2016, 31(6): 749-750. DOI:10.1080/02673037.2016.1195098. doi: 10.1080/02673037.2016.1195098

物流号	物流名	初温/℃	终温/℃	焓差/kW	热容流率/(kW·℃^-1)
H1	分离器1出口污水	55	20	478.94	13.68
H2	分离器2出口污水	55	20	399.15	11.40
H3	分离器3出口污水	55	20	367.33	10.50
H4	分离器4出口污水	55	20	662.52	18.93
H5	分离器5出口污水	60	20	1 275.75	31.89
H6	分离器6出口污水	60	20	410.28	10.26
H7	分离器7出口污水	60	20	319.08	7.98
H8	分离器8出口污水	55	20	518.92	14.83
H9	一次沉降罐出口污水	73	20	8 882.10	167.59
H10	二次沉降罐出口污水	70	20	6 703.47	134.07
H11	三次沉降罐出口污水	79	20	2 333.16	39.55
C1	加热炉1之前的原油	53	73	831.02	41.55
C2	加热炉2之前的原油	53	73	831.02	41.55
C3	加热炉3之前的原油	53	73	831.02	41.55
C4	加热炉4之前的原油	67	79	957.33	79.78

平均温度区间/℃	温区	D_k/kW	无外界输入时热量		有外界输入时热量
平均温度区间/℃	温区	D_k/kW	I_k/kW	Q_k/kW	I_k/kW	Q_k/kW
>78~84	1	478.67	0.00	-478.67	2 070.03	1 591.37
>74~78	2	817.72	-478.67	-1 296.39	1 591.37	773.64
>72~74	3	329.77	-1 296.39	-1 626.16	773.64	443.87
>68~72	4	443.87	-1 626.16	-2 070.03	443.87	0.00
>65~68	5	-247.44	-2 070.03	-1 822.59	0.00	247.44
>58~65	6	-1 515.84	-1 822.59	-306.75	247.44	1 763.28
>55~58	7	-1 023.60	-306.75	716.85	1 763.28	2 786.88
>50~55	8	-1 956.65	716.85	2 673.50	2 786.88	4 743.53
15~50	9	-16 123.38	2 673.50	18 796.88	4 743.53	20 866.91

物流号	物流名	初温/℃	终温/℃	焓差/kW	热容流率/(kW·℃^-1)
H1	过热蒸汽进冷凝器	128.53	91.51	2 638.56	71.27
H2	冷凝器出口	91.51	91.50	0.71	71.27
H3	吸收器	73.78	68.71	361.36	71.27
H4	浓溶液出换热器	131.84	88.70	4 525.39	104.90
H5	蒸发器入口饱和水	91.50	41.00	3 599.34	71.27
H6	高温冷却水	91.00	77.00	882.00	63.00
C1	蒸发器入口饱和水	41.00	41.01	0.71	71.27
C2	稀溶液进换热器	68.71	100.20	4 371.44	138.82
C3	含水原油进换热器	53.00	73.00	2 493.05	124.65
C4	含水原油出换热器	67.00	80.00	1 620.48	124.65
C5	油田来油	52.00	68.00	1 276.59	79.79
C6	油田来油剩余部分	52.00	68.00	1 276.59	79.79
