余热发电系统双S型旋流片喷嘴内部闪蒸过程数值研究

doi:10.3976/j.issn.1002-4026.2021.06.010

Abstract

Abstract:

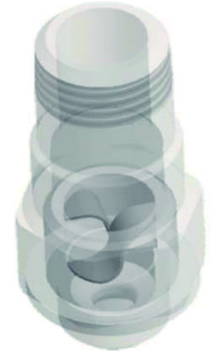

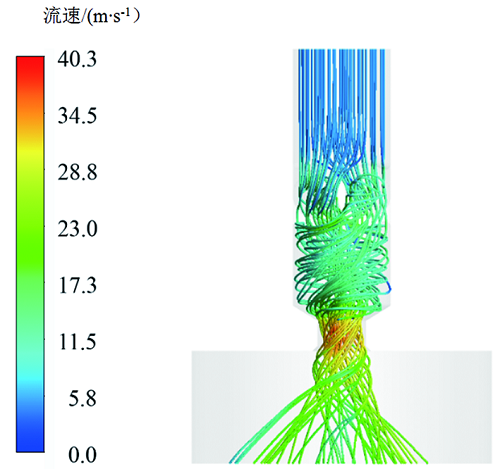

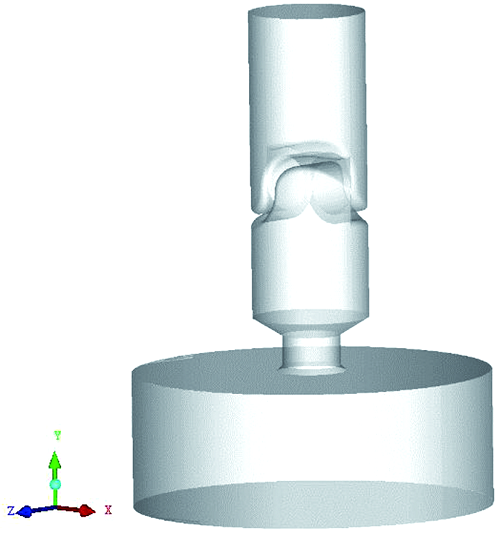

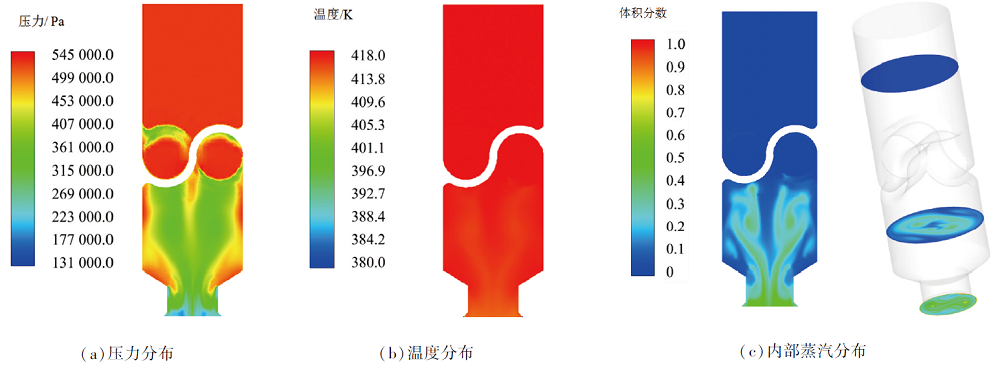

Flash evaporation refers to the abrupt vaporization of liquid when it undergoes a sudden pressure drop. It has broad application prospects in the field of waste heat recovery in energy-intensive industries. Motivated by the lack of research on internal flow and phase-change phenomena inside the nozzle in a waste heat power generation system, in this work, we conduct numerical research on the internal flashing in a typical nozzle with two S-shaped internal vanes. The mathematical description of this problem is given by coupling the Volume of Fluent model and the pressure-driven phase-change model, and a numerical solution is obtained using CFD software. Results show that the fluid starts to rotate and accelerate when it flows through the S-shaped vanes. Downstream the vanes, the rotation speed is low in the middle and high near the wall. After that, the fluid accelerates and ejects through the contraction section of the nozzle. Pressure drop downstream the vanes leads to flash evaporation inside the nozzle, and fluid leaves the nozzle as a liquid-vapor mixture. In addition, a modified nozzle structure is proposed from the perspectives of improving atomization, reducing fouling, and enlarging passage area. The proposed structure can promote the complete and rapid progress of spray flash evaporation and help to further improve the efficiency of the waste heat power generation system.

Key words: flash evaporation, numerical simulation, two-phase flow, phase change

CLC Number:

TK124

JI Can, LIU Zhi-gang, LÜ Ming-ming. Numerical investigation of the flash evaporation process inside a nozzle with two S-shaped internal vanes in a waste heat power generation system[J].Shandong Science, 2021, 34(6): 77-82.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

References 15

[1]	IGLESIAS GARCIA S, FERREIRO GARCIA R, CARBIA CARRIL J, et al. A review of thermodynamic cycles used in low temperature recovery systems over the last twoyears[J]. Renewable and Sustainable Energy Reviews, 2018, 81:760-767. DOI: 10.1016/j.rser.2017.08.049. doi: 10.1016/j.rser.2017.08.049
[2]	VARMA G V P, SRINIVAS T. Parametric analysis of steam flashing in a power plant using waste heat of cementfactory[J]. Energy Procedia, 2016, 90:99-106. DOI: 10.1016/j.egypro.2016.11.174. doi: 10.1016/j.egypro.2016.11.174
[3]	WANG Q, WU W F, LI D T, et al. Thermodynamic analysis and optimization of four organic flash cycle systems for waste heat recovery[J]. Energy Conversion and Management, 2020, 221:113171. DOI: 10.1016/j.enconman.2020.113171. doi: 10.1016/j.enconman.2020.113171
[4]	OZA R D, SINNAMON J F. An experimental and analytical study of flash-boiling fuel injection[C]// SAE Technical Paper Series. 400 Commonwealth Drive,Warrendale, PA, United States: SAE International, 1983: 2948. DOI: 10.4271/830590. doi: 10.4271/830590
[5]	SERRAS-PEREIRA J, Van ROMUNDE Z, ALEIFERIS P G, et al. Cavitation, primary break-up and flash boiling of gasoline, Iso-octane and n-pentane with a real-size optical direct-injection nozzle[J]. Fuel, 2010, 89(9):2592-2607. DOI: 10.1016/j.fuel.2010.03.030. doi: 10.1016/j.fuel.2010.03.030
[6]	GÜNTHER A, WIRTH K E. Evaporation phenomena in superheated atomization and its impact on the generatedspray[J]. International Journal of Heat and Mass Transfer, 2013, 64:952-965. DOI: 10.1016/j.ijheatmasstransfer.2013.05.034. doi: 10.1016/j.ijheatmasstransfer.2013.05.034
[7]	LI S Y, ZHANG Y Y, XU B. Correlation analysis of superheated liquid jet breakup to bubble formation in a transparent slitnozzle[J]. Experimental Thermal and Fluid Science, 2015, 68:452-458. DOI: 10.1016/j.expthermflusci.2015.04.023. doi: 10.1016/j.expthermflusci.2015.04.023
[8]	ZHANG Y Y, LI S Y, ZHENG B, et al. Quantitative observation on breakup of superheated liquid jet using transparent slitnozzle[J]. Experimental Thermal and Fluid Science, 2015, 63:84-90. DOI: 10.1016/j.expthermflusci.2015.01.004. doi: 10.1016/j.expthermflusci.2015.01.004
[9]	WU S Q, PAN H J, XU M, et al. Investigation of rapid atomization and collapse of superheated liquid fuel spray under superheatedconditions[J]. Atomization and Sprays, 2016, 26(12):1361-1384. DOI: 10.1615/atomizspr.2016014231. doi: 10.1615/atomizspr.2016014231
[10]	WU S Q, XU M, HUNG D L S, et al. Effects of nozzle configuration on internal flow and primary jet breakup of flash boiling fuel sprays[J]. International Journal of Heat and Mass Transfer, 2017, 110:730-738. DOI: 10.1016/j.ijheatmasstransfer.2017.03.073. doi: 10.1016/j.ijheatmasstransfer.2017.03.073
[11]	WU S Q, XU M, HUNG D L S, et al. In-nozzle flow investigation of flash boiling fuel sprays[J]. Applied Thermal Engineering, 2017, 117:644-651. DOI: 10.1016/j.applthermaleng.2016.12.105. doi: 10.1016/j.applthermaleng.2016.12.105
[12]	MAKSIC S, MEWES D. CFD-calculation of the flashing flow in pipes and nozzles[C]// Proceedings of ASME 2002 Joint US-European Fluids Engineering Division Conference, Montreal, Quebec, Canada:Fluids Engineerirg Division. 2009: 511-516. DOI: 10.1115/FEDSM2002-31033. doi: 10.1115/FEDSM2002-31033
[13]	JANET J P, LIAO Y X, LUCAS D. Heterogeneous nucleation in CFD simulation of flashing flows in converging-divergingnozzles[J]. International Journal of Multiphase Flow, 2015, 74:106-117. DOI: 10.1016/j.ijmultiphaseflow.2015.04.005. doi: 10.1016/j.ijmultiphaseflow.2015.04.005
[14]	PALAU-SALVADOR G, GONZALEZ ALTOZANO P, ARVIZA-VALVERDE J. Numerical modeling ofcavitating flows for simple geometries using FLUENT V6.1[J]. Spanish Journal of Agricultural Research, 2007, 5(4):460. DOI: 10.5424/sjar/2007054-269. doi: 10.5424/sjar/2007054-269
[15]	INGLE R, RAO V S, MOHAN L S, et al. Modelling of flashing in capillary tubes using homogeneous equilibrium approach[J]. Procedia IUTAM, 2015, 15:286-292. DOI: 10.1016/j.piutam.2015.04.040. doi: 10.1016/j.piutam.2015.04.040

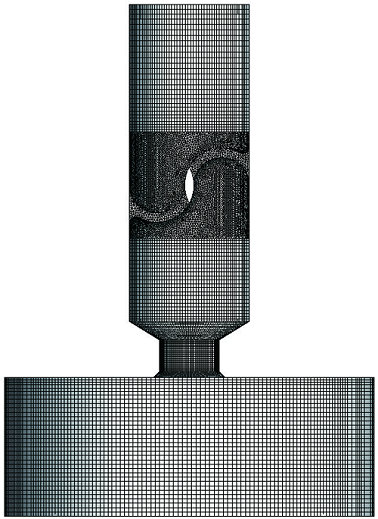

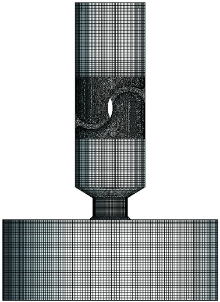

网格编号	网格节点数	网格单元数
M1	671 457	1 057 950
M2	705 993	1 093 020
M3	758 077	1 145 905
M4	783 853	1 172 155
