自诱导漩涡收油器的结构参数优选与除油效果研究

doi:10.3976/j.issn.1002-4026.20240045

摘要/Abstract

摘要：

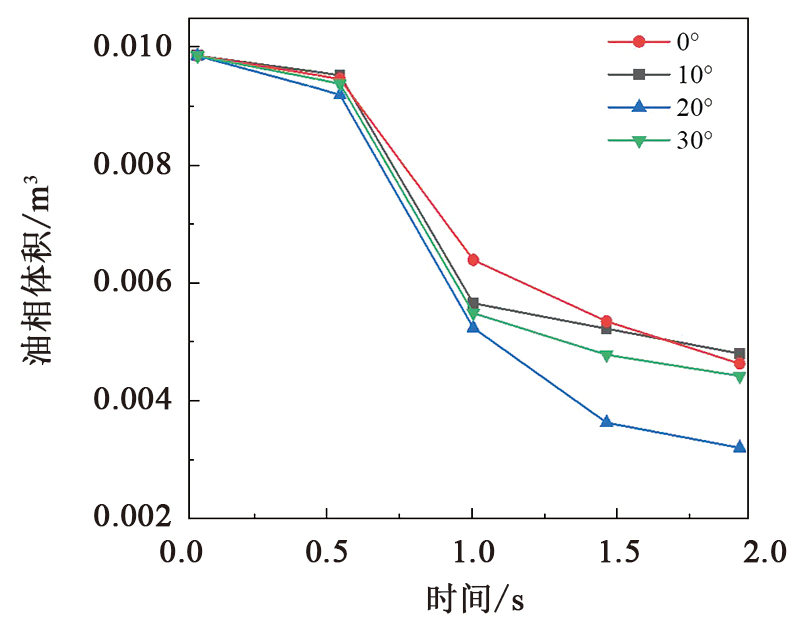

为应对湍急海面溢油回收难度大问题,设计了自诱导漩涡收油器进行溢油收集,通过数值仿真计算对该设备入流角度和插入深度进行适当的调整和优化,找到最佳入流角度和插入深度组合,以达到最佳的分离效果和油相收集效率。通过比较相同时间内设备内部的油相体积剩余情况,得出在20°的入流角度和设备高度三分之一的吸油管插入深度的条件下,该设备能够保持较高的油相分离效率,抑制油水混合,减少油水界面的扩散并减少杂质的混入。在确定最佳结构后,通过改变入流速度来确定设备在不同水面环境下的除油效果。结果表明,入口流速越大,设备汇聚油相的性能更强,除油效果越好。整个收油过程在设备内部进行,不受外部环境影响,说明该设备能够克服复杂的水面环境来进行收油作业。

关键词: 油相分离, 诱导漩涡, 参数优选, 数值模拟, 油相分布

Abstract:

To achieve the best separation effect and oil phase collection efficiency, a self-induced vortex oil collector was designed to collect residual oil from the turbulent sea. The inlet flow angle and suction pipe insertion depth of the device were adjusted and optimized via numerical simulation calculations. By comparing the volume of oil phase remaining inside the device in the same operation time, we concluded that at an inlet flow angle of 20° and a suction pipe insertion depth of h/3, the device could maintain a high oil phase separation efficiency, suppress oil-water mixing, and reduce oil-water interface diffusion and impurities. After determining the optimal structure, we analyzed the oil removal effect of the device in different water surface environments by changing its inlet flow velocity. The higher the inlet flow velocity, the higher the performance of the device for collecting the oil phase and better its oil removal effect. In addition, the entire oil collection process occurs inside the device without being affected by the external environment, suggesting that the device can collect oil from complex water surface environments. Moreover, the main body of the device has no moving parts, hence, it relies solely on the baffle to guide the swirl for collecting the oil phase.

Key words: oil separation, induced vortex, parameter optimization, numerical simulation, oil phase distribution

中图分类号:

TH-9

张芮菡, 姜乐文, 王越, 郝宗睿. 自诱导漩涡收油器的结构参数优选与除油效果研究[J]. 山东科学, 2024, 37(6): 12-21.

ZHANG Ruihan, JIANG Lewen, WANG Yue, HAO Zongrui. Optimization of structural parameters and oil removal effect of a self-induced vortex oil collector[J]. Shandong Science, 2024, 37(6): 12-21.

图/表 14

图1

图2

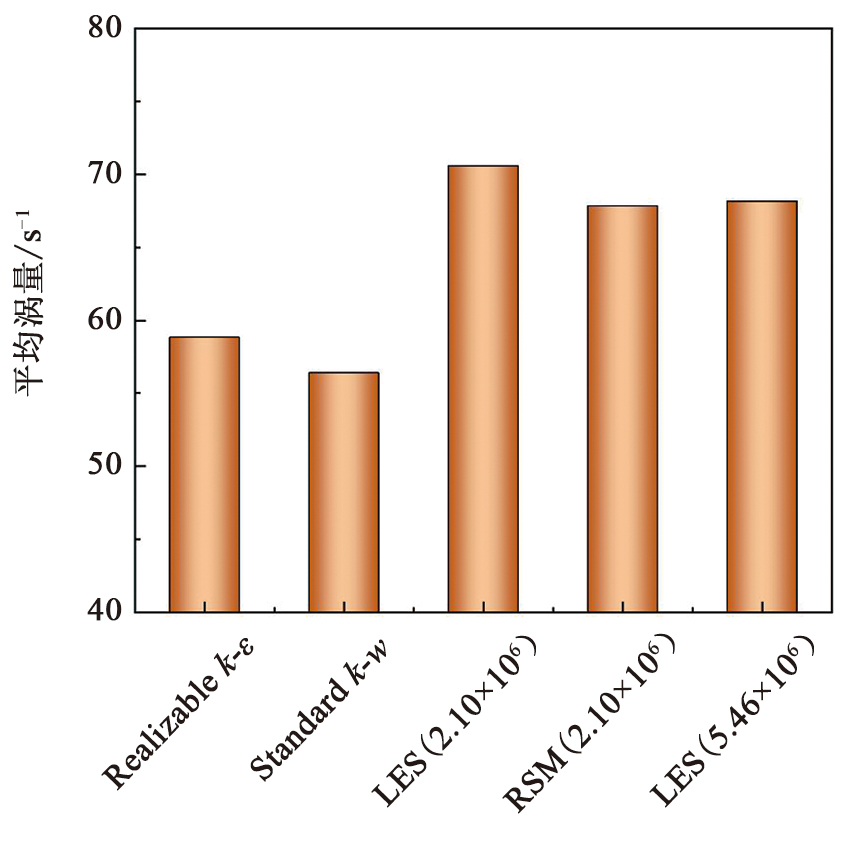

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 25

[1]	FENG Z Q, ZHANG Z M, YANG Y, et al. Prediction and analysis of the efficiency of the shuttle tank collection method to collect wrecked residual oil[J]. Ocean Engineering, 2023, 284: 115188. DOI: 10.1016/j.oceaneng.2023.115188.
[2]	PARK M H, LEE W J. Marine oil spill analyses based on Korea Coast Guard big data from 2017 to 2022 and application of data-driven Bayesian Network[J]. Journal of Cleaner Production, 2024, 436: 140630. DOI: 10.1016/j.jclepro.2024.140630.
[3]	JIANG Q, JI M, WANG J, et al. Remote sensing methods for striped marine oil spill detection in narrow ship channels[J]. Ocean Engineering, 2023, 289: 116162. DOI: 10.1016/j.oceaneng.2023.116162.
[4]	MOHAMMADIUN S, GHARAHBAGH A A, BAKHTAVAR E, et al. Integrated optimization of marine oil spill response and liquid oily waste management using mathematical programming and evolutionary metaheuristic techniques[J]. Journal of Hazardous Materials, 2024, 463: 132838. DOI: 10.1016/j.jhazmat.2023.132838.
[5]	FLORES-MEDINA P W, SEPP-NEVES A A, COPPINI G, et al. Strategic environmental sensitivity mapping for oil spill contingency planning in the Peruvian marine-coastal zone[J]. The Science of the Total Environment, 2022, 852: 158356. DOI: 10.1016/j.scitotenv.2022.158356.
[6]	WU W Q, DU M, SHI H K, et al. Application of graphene aerogels in oil spill recovery: a review[J]. Science of the Total Environment, 2023, 856: 159107. DOI: 10.1016/j.scitotenv.2022.159107.
[7]	QI M Y, WANG P L, HUANG L Z, et al. Cellulose nanofiber/MXene/luffa aerogel for all-weather and high-efficiency cleanup of crude oil spills[J]. International Journal of Biological Macromolecules, 2023, 242: 124895. DOI: 10.1016/j.ijbiomac.2023.124895.
[8]	CHEN K W, ZHU J Y, TAN Y J, et al. Development of gradient-wetting Janus wood membrane with high-efficiency fog collection and oil-water separation[J]. Chemical Engineering Journal, 2023, 470: 144356. DOI: 10.1016/j.cej.2023.144356.
[9]	ABABNEH H, HAMEED B H. Chitosan and chitosan composites for oil spills treatment: review of recent literature[J]. Journal of Water Process Engineering, 2023, 55: 104193. DOI: 10.1016/j.jwpe.2023.104193.
[10]	TU P M, LIN T H, THANG T Q, et al. Waste plastic-derived aerogel modified with graphene oxide for hygroscopic material and oil spill treatment[J]. Journal of Molecular Structure, 2023, 1287: 135737. DOI: 10.1016/j.molstruc.2023.135737.
[11]	YUE R Y, YE Z B, GAO S C, et al. Exploring the use of sodium caseinate-assisted responsive separation for the treatment of washing effluents in shoreline oil spill response[J]. The Science of the Total Environment, 2023, 873: 162363. DOI: 10.1016/j.scitotenv.2023.162363.
[12]	STANLEY M, PALACE V, GROSSHANS R, et al. Floating treatment wetlands for the bioremediation of oil spills: a review[J]. Journal of Environmental Management, 2022, 317: 115416. DOI: 10.1016/j.jenvman.2022.115416.
[13]	FENG Q, AN C J, CHEN Z, et al. Assessing the coastal sensitivity to oil spills from the perspective of ecosystem services: a case study for Canada’s Pacific coast[J]. Journal of Environmental Management, 2021, 296: 113240. DOI: 10.1016/j.jenvman.2021.113240.
[14]	GUAN Y H, QIAO D, DONG L M, et al. Efficient recovery of highly viscous crude oil spill by superhydrophobic ocean biomass-based aerogel assisted with solar energy[J]. Chemical Engineering Journal, 2023, 467: 143532. DOI: 10.1016/j.cej.2023.143532.
[15]	DHAKA A, CHATTOPADHYAY P. A review on physical remediation techniques for treatment of marine oil spills[J]. Journal of Environmental Management, 2021, 288: 112428. DOI: 10.1016/j.jenvman.2021.112428.
[16]	WEN H, LIANG L Z, XU N Y, et al. Multi-functional self-cleaning superhydrophobic cotton fabric as photothermal-reinforced crude oil separator, oil skimmer and underwater oil absorbent[J]. Separation and Purification Technology, 2024, 337: 126258. DOI: 10.1016/j.seppur.2023.126258.
[17]	KO S W, MOON J Y, BAE S M, et al. A sponge-type oil skimmer for highly efficient removal of floating oils: superabsorbent and oleophilic sponge with nano-scale interface roughness[J]. Applied Surface Science, 2022, 606: 154750. DOI: 10.1016/j.apsusc.2022.154750.
[18]	PIAO L F, PARK C J, KIM S, et al. Development of rapid and effective oil-spill response system integrated with oil collection, recovery and storage devices for small oil spills at initial stage: from lab-scale study to field-scale test[J]. Journal of Environmental Management, 2023, 345: 118833. DOI: 10.1016/j.jenvman.2023.118833.
[19]	PUGSLEY A, ZACHAROPOULOS A, SMYTH M, et al. Performance evaluation of the senergy polycarbonate and asphalt carbon nanotube solar water heating collectors for building integration[J]. Renewable Energy, 2019, 137: 2-9. DOI: 10.1016/j.renene.2017.10.082.
[20]	REDDY N S, SUBRAMANYA S G, VISHWANATH K C, et al. Enhancing the thermal efficiency of parabolic trough collector using rotary receiver tube[J]. Sustainable Energy Technologies and Assessments, 2022, 51: 101941. DOI: 10.1016/j.seta.2021.101941.
[21]	MONTES M J, ABBAS R, BARBERO R, et al. A new design of multi-tube receiver for Fresnel technology to increase the thermal performance[J]. Applied Thermal Engineering, 2022, 204: 117970. DOI: 10.1016/j.applthermaleng.2021.117970.
[22]	王晨芳, 韩龙喜, 张奕, 等. 波浪作用下溢油释放影响因素及机理研究[J]. 华中科技大学学报(自然科学版), 2024, 52(10): 130-135. DOI: 10.13245/j.hust.240125.
[23]	BIE H Y, LI Y, ZHANG R H, et al. Effect of swirl flow on the bubble motion and spatial distribution in a venturi tube[J]. Chemical Engineering Journal, 2024, 480: 148341. DOI: 10.1016/j.cej.2023.148341.
[24]	张晓光, 刘佳成, 徐保蕊, 等. 轴流式两级一体化水力旋流器结构参数优选[J]. 流体机械, 2023, 51(11): 71-78. DOI: 10.3969/j.issn.1005-0329.2023.11.011.
[25]	XU Y, WU B, LUO P C. Investigation on the flow characteristics of a novel multi-blade combined agitator by time-resolved particle image velocimetry and large eddy simulation[J]. AIChE Journal, 2020, 66(8): e16277. DOI: 10.1002/aic.16277.
