Bi掺杂调控Ge0.8Mn0.1Pb0.1Te合金热电性能的研究

doi:10.3976/j.issn.1002-4026.2025171

山东科学 ›› 2026, Vol. 39 ›› Issue (2): 20-26.doi: 10.3976/j.issn.1002-4026.2025171

Bi掺杂调控Ge_0.8Mn_0.1Pb_0.1Te合金热电性能的研究

孙兵¹(), 王麒栋¹^,², 张军祥¹, 孟振振¹, 陈婷婷¹

¹ 潍坊学院物理与电子信息学院山东省氮化镓材料与应用重点实验室, 山东潍坊 261061
² 济南市X射线光学重点实验室, 山东济南 250002

收稿日期:2025-12-03 修回日期:2026-01-03 出版日期:2026-04-20 上线日期:2026-04-03
作者简介:孙兵(1988—),男,博士,教授,研究方向为热电材料,E-mail: wywdsunbing@wfu.edu.cn
基金资助:
国家自然科学基金(12204355);国家自然科学基金(52272210);山东省自然科学基金(ZR2023QE282);山东省自然科学基金(ZR2022QA018);山东省自然科学基金(ZR2022QA009);山东省氮化镓材料与应用重点实验室;济南市X射线光学重点实验室开放课题(2024JKLXOOP003)

Thermoelectric properties of Bi-doped Ge_0.8Mn_0.1Pb_0.1Te alloys

SUN Bing¹(), WANG Qidong¹^,², ZHANG Junxiang¹, MENG Zhenzhen¹, CHEN Tingting¹

¹ School of Physics and Electronic Information, Shandong Provincial Key Laboratory of Gallium Nitride Materials and Applications, Weifang University, Weifang 261061, China
² Jinan Key Laboratory of X-ray Optics, Jinan 250002, China

Received:2025-12-03 Revised:2026-01-03 Published:2026-04-20 Online:2026-04-03

摘要/Abstract

摘要：

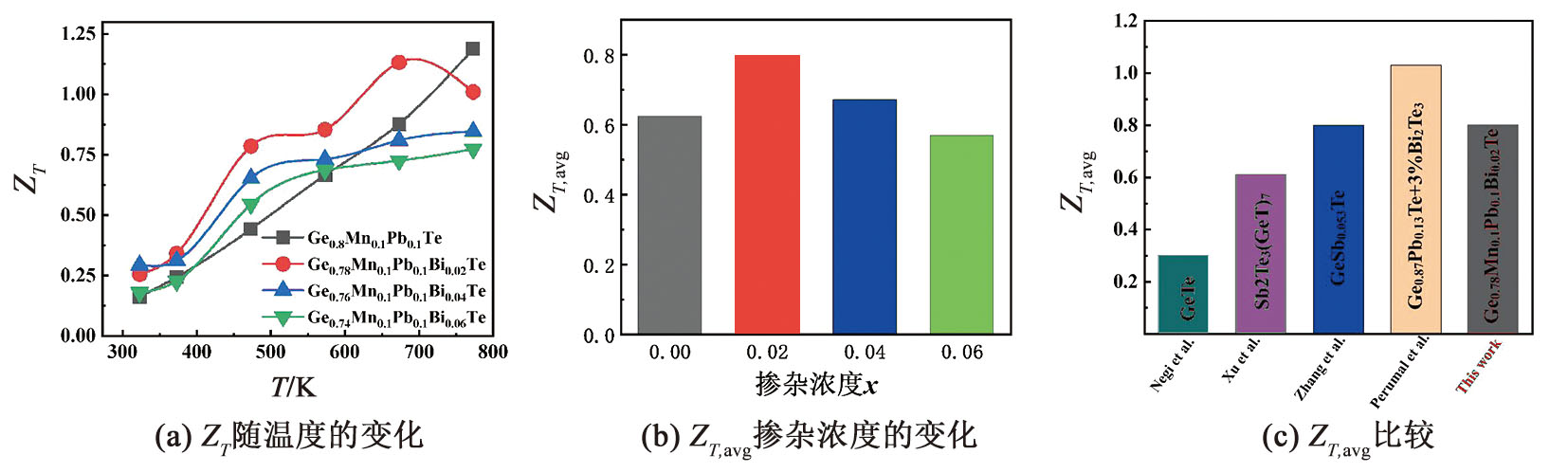

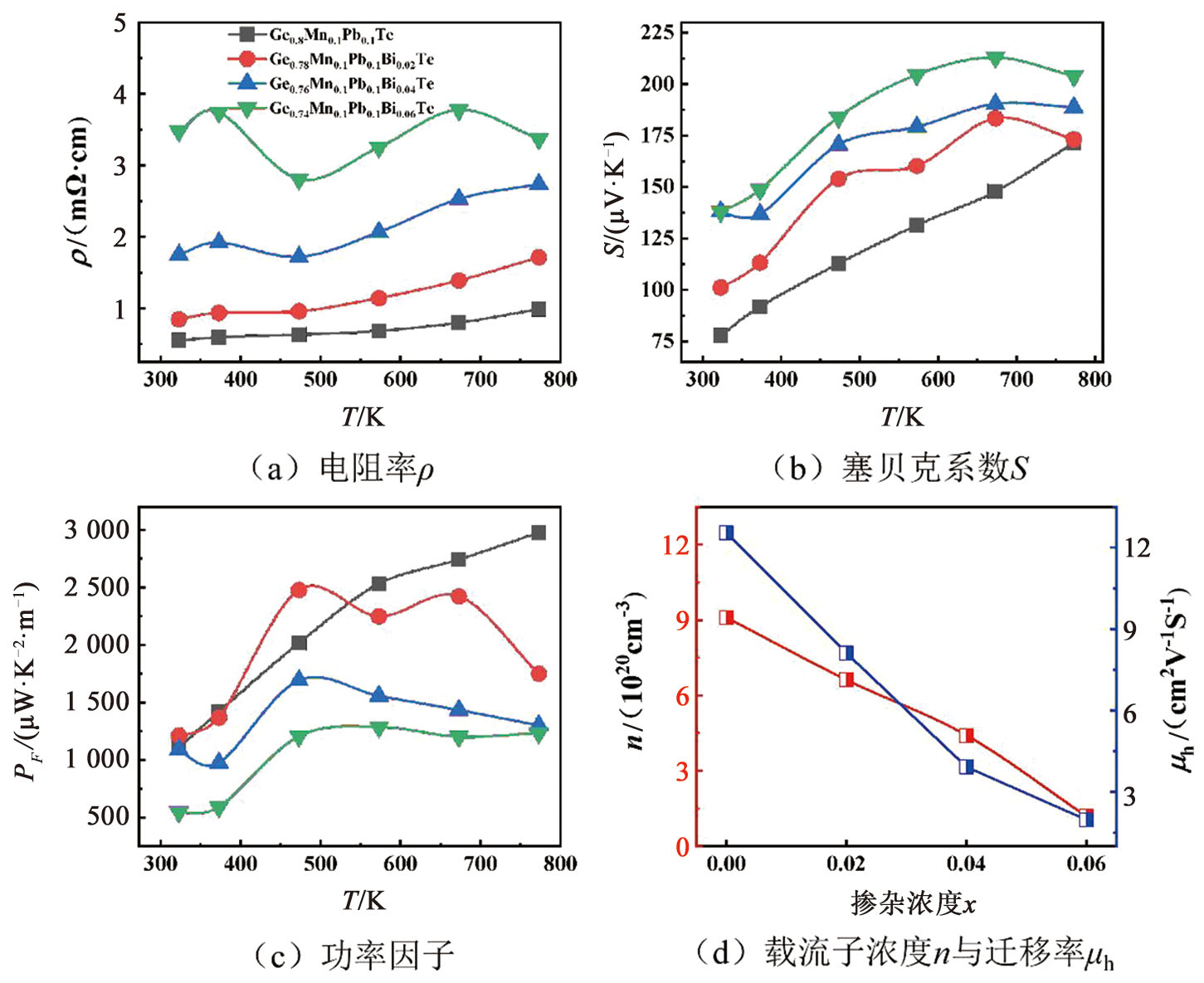

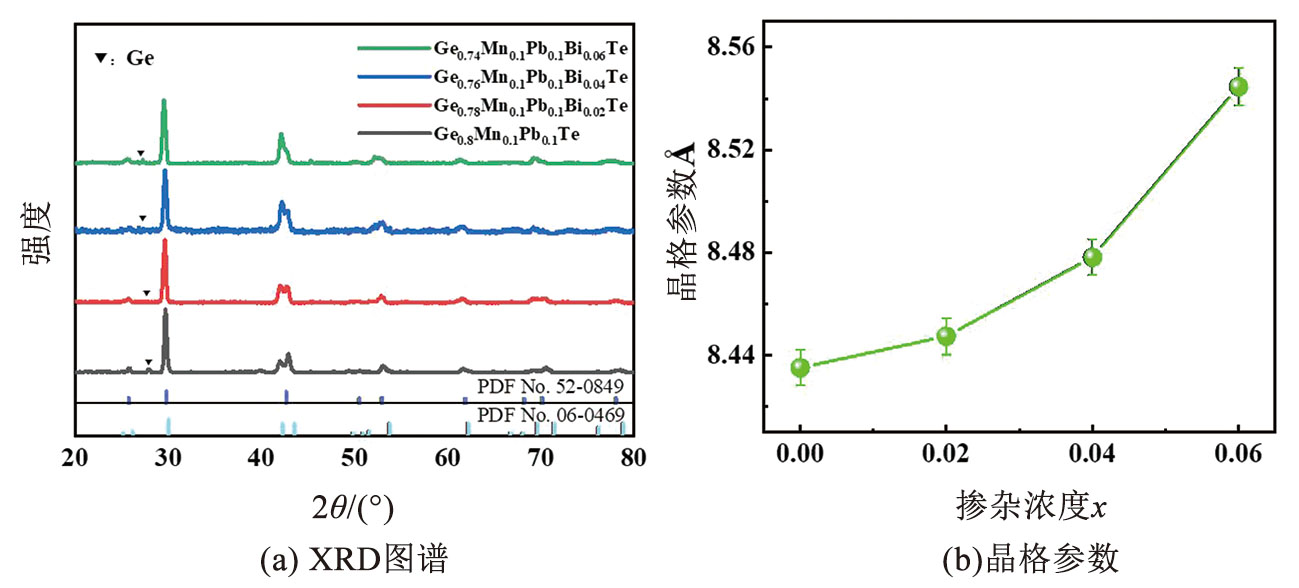

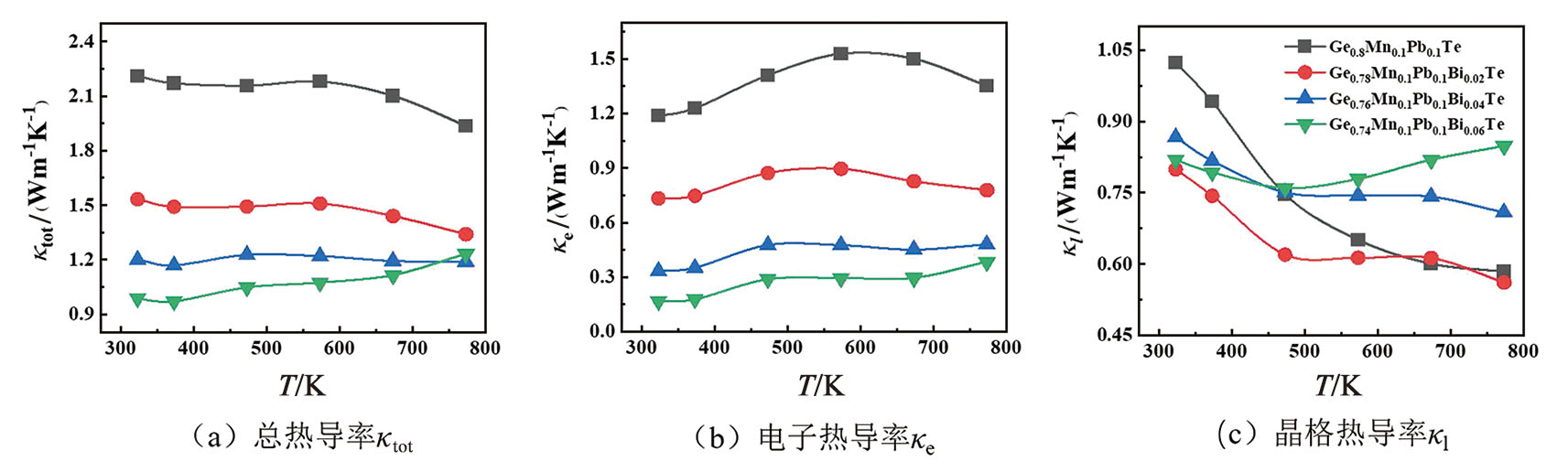

GeTe合金作为中温区极具潜力的热电材料,因其优异的热电性能而备受关注。本研究采用真空熔炼结合热压烧结工艺,成功制备出Ge_0.8-_xMn_0.1Pb_0.1Bi_xTe系列合金。结果表明,Bi元素的引入显著降低了合金的载流子浓度,进而增加了塞贝克系数。随着Bi掺杂浓度的增加,合金的晶体结构由菱面体相逐渐转变为立方相。同时,Bi的引入加剧了GeTe合金内部的晶格畸变,增强了声子散射,降低了晶格热导率,且由于电阻率的升高,电子热导率显著降低。在773 K时,Ge_0.78Mn_0.1Pb_0.1Bi_0.02Te合金的热导率降低至1.34 W/(m·K)。最终,该合金在中低温下的热电优值得到提高,同时在高温区保持了较高的热电优值,从而获得了高达0.80的平均热电优值。

关键词: 热电材料, 元素掺杂, GeTe, 热导率, 热电优值

Abstract:

GeTe-based alloys have attracted considerable attention as promising mid-temperature thermoelectric materials owing to their excellent performance. In this study, a series of Ge_0.8-_xMn_0.1Pb_0.1Bi_xTe alloys were synthesized by vacuum melting followed by hot-press sintering. The results demonstrate that Bi incorporation significantly enhances the Seebeck coefficient. With increasing Bi content, the crystal structure gradually evolves from a rhombohedral to a cubic phase. Simultaneously, Bi-induced lattice distortion intensifies phonon scattering, leading to a marked reduction in lattice thermal conductivity, while the electronic thermal conductivity also decreases as a result of reduced electrical conductivity. At 773 K, the total thermal conductivity of Ge_0.8-_xMn_0.1Pb_0.1Bi_0.02Te reaches a low value of 1.34 W/(m·K). Consequently, the alloys exhibit enhanced thermoelectric figure of merit (Z_T) values in the low-to-mid temperature range while maintaining high Z_Tat elevated temperatures, yielding a high average thermoelectric figure of merit (Z_T_,avg) of 0.80.

Key words: thermoelectric materials, doping, GeTe, thermal conductivity, thermoelectric figure of merit

中图分类号:

TB34

孙兵, 王麒栋, 张军祥, 孟振振, 陈婷婷. Bi掺杂调控Ge_0.8Mn_0.1Pb_0.1Te合金热电性能的研究[J]. 山东科学, 2026, 39(2): 20-26.

SUN Bing, WANG Qidong, ZHANG Junxiang, MENG Zhenzhen, CHEN Tingting. Thermoelectric properties of Bi-doped Ge_0.8Mn_0.1Pb_0.1Te alloys[J]. Shandong Science, 2026, 39(2): 20-26.

图/表 5

参考文献 33

[1]	ZHAO L D, DRAVID V P, KANATZIDIS M G. The panoscopic approach to high performance thermoelectrics[J]. Energy & Environmental Science, 2014, 7(1): 251-268.DOI:10.1039/c3ee43099e.
[2]	ZHAO L D, TAN G J, HAO S Q, et al. Ultrahigh power factor and thermoelectric performance in hole-doped single-crystal SnSe[J]. Science, 2016, 351(6269): 141-144. DOI:10.1126/science.aad3749.
[3]	AO D W, WU B, LIU W D, et al. Realizing high power factor in p-type BiSbTe flexible thin films via carrier engineering[J]. Rare Metals, 2025, 44(2): 1222-1230. DOI:10.1007/s12598-024-02962-9.
[4]	UHER C, YANG J, HU S, et al. Transport properties of pure and doped MNiSn (M=Zr, Hf)[J]. Physical Review B, 1999, 59(13): 8615-8621. DOI:10.1103/physrevb.59.8615.
[5]	HE J, TRITT T M. Advances in thermoelectric materials research: Looking back and moving forward[J]. Science, 2017, 357(6358): eaak9997. DOI:10.1126/science.aak9997.
[6]	YANG L, CHEN Z G, DARGUSCH M S, et al. High performance thermoelectric materials: Progress and their applications[J]. Advanced Energy Materials, 2018, 8(6): 1701797. DOI:10.1002/aenm.201701797.
[7]	MOSHWAN R, YANG L, ZOU J, et al. Eco-friendly SnTe thermoelectric materials: Progress and future challenges[J]. Advanced Functional Materials, 2017, 27(43): 1703278. DOI:10.1002/adfm.201703278.
[8]	AO D W, LIU W D, CHEN Y X, et al. Texture and Se vacancy optimization induces high thermoelectric performance in Bi₂Se₃ flexible thin films[J]. Rare Metals, 2024, 43(6): 2796-2804. DOI:10.1007/s12598-024-02643-7.
[9]	LIU D R, WANG D Y, HONG T, et al. Lattice plainification advances highly effective SnSe crystalline thermoelectrics[J]. Science, 2023, 380(6647): 841-846. DOI:10.1126/science.adg7196. pmid: 37228203
[10]	FENG B, LI G Q, PAN Z, et al. Enhanced thermoelectric properties in BiCuSeO ceramics by Pb/Ni dual doping and 3D modulation doping[J]. Journal of Solid State Chemistry, 2019, 271: 1-7. DOI:10.1016/j.jssc.2018.12.001.
[11]	FU Z, JIANG J L, DONG S T, et al. Effects of Zr substitution on structure and thermoelectric properties of Bi₂O₂Se[J]. Journal of Materials Research and Technology, 2022, 21: 640-647. DOI:10.1016/j.jmrt.2022.09.068.
[12]	PARK K, KIM D H, HONG H Y, et al. Influence of Ba²⁺ doping on the thermoelectric properties of BiCuSeO fabricated by spark plasma sintering[J]. Ceramics International, 2019, 45(7): 9604-9610. DOI:10.1016/j.ceramint.2018.10.190.
[13]	LIU Y, LAN J L, XU W, et al. Enhanced thermoelectric performance of a BiCuSeO systemvia band gap tuning[J]. Chemical Communications, 2013, 49(73): 8075-8077. DOI:10.1039/c3cc44578j.
[14]	TANG W X, MA W Q, YU P L, et al. Synergistically optimized electron and phonon transport of p-type BiCuSeO oxyselenidesvia Pb dopant and Te composite[J]. Materials Today Physics, 2022, 28: 100898. DOI:10.1016/j.mtphys.2022.100898.
[15]	XU H H, WAN H, XU R, et al. Enhancing the thermoelectric performance of SnTe-CuSbSe₂ with an ultra-low lattice thermal conductivity[J]. Journal of Materials Chemistry A, 2023, 11(8): 4310-4318.DOI:10.1039/d2ta09475d.
[16]	XING T, ZHU C X, SONG Q F, et al. Ultralow lattice thermal conductivity and superhigh thermoelectric figure-of-merit in (Mg, Bi) Co-doped GeTe[J]. Advanced Materials, 2021, 33(17): 2008773. DOI:10.1002/adma.202008773.
[17]	WU G J, GUO Z, WANG R Y, et al. Structural modulation and resonant level enable high thermoelectric performance of GeTe in the mid-to-low temperature range[J]. Journal of Materials Chemistry A, 2023, 11(38): 20497-20505.DOI:10.1039/d3ta04230h.
[18]	DONG J F, SUN F H, TANG H C, et al. Medium-temperature thermoelectric GeTe: Vacancy suppression and band structure engineering leading to high performance[J]. Energy & Environmental Science, 2019, 12(4): 1396-1403.DOI:10.1039/c9ee00317g.
[19]	BASU R, SINGH A. A comprehensive review of entropy engineered GeTe: An antidote to phase transformation[J]. Energy Advances, 2024, 3(4): 689-711.DOI:10.1039/d4ya00057a.
[20]	XIA J C, HUANG Y, XU X, et al. Fine electron and phonon transports manipulation by Mn compensation for high thermoelectric performance of Sb₂Te₃(SnTe)n materials[J]. Materials Today Physics, 2023, 33: 101055. DOI:10.1016/j.mtphys.2023.101055.
[21]	AHMAD A, ZHU B, WANG Z B, et al. Largely enhanced thermoelectric performance in p-type Bi₂Te₃-based materials through entropy engineering[J]. Energy & Environmental Science, 2024, 17(2): 695-703. DOI:10.1039/d3ee03720g.
[22]	CHATTOPADHYAY T, BOUCHERLE J X, VONSCHNERING H G. Neutron diffraction study on the structural phase transition in GeTe[J]. Journal of Physics C: Solid State Physics, 1987, 20(10): 1431. DOI:10.1088/0022-3719/20/10/012.
[23]	CHEN S, BAI H, WU H, et al. The role of Ge vacancies and Sb doping in GeTe: A Comparative Study of Thermoelectric Transport Properties in Sb_xGe_1-1.5_xTe and Sb_xGe_1-_xTe Compounds[J]. Materials Today Physics, 2022, 24: 100682. DOI:10.1016/j.mtphys.2022.100682.
[24]	WU D, ZHAO L D, HAO S Q, et al. Origin of the high performance in GeTe-based thermoelectric materials upon Bi₂Te₃ doping[J]. Journal of the American Chemical Society, 2014, 136(32): 11412-11419.DOI:10.1021/ja504896a.
[25]	ZHANG J X, WANG Q D, SUN B, et al. Optimizing thermoelectric performance through Sb doping in Ge_0.8Mn_0.1Pb_0.1Te alloys[J]. Rare Metals, 2025, 44(9): 6585-6593. DOI:10.1007/s12598-025-03371-2.
[26]	PERUMAL S, ROYCHOWDHURY S, BISWAS K. Reduction of thermal conductivity through nanostructuring enhances the thermoelectric figure of merit in Ge_1-_xBi_xTe[J]. Inorganic Chemistry Frontiers, 2016, 3(1): 125-132. DOI:10.1039/c5qi00230c.
[27]	GUO Z, ZHANG Q, WANG H X, et al. Bi-Zn codoping in GeTe synergistically enhances band convergence and phonon scattering for high thermoelectric performance[J]. Journal of Materials Chemistry A, 2020, 8(41): 21642-21648.DOI:10.1039/d0ta08700a.
[28]	ZHANG Q, SUN T, CAO F, et al. Tuning the shape and thermoelectric property of PbTe nanocrystals by bismuth doping[J]. Nanoscale, 2010, 2(7): 1256-1259.DOI:10.1039/c0nr00115e. pmid: 20648359
[29]	SUSKI T, ORTALLI I, SZCZERBAKOW A. Anomalous resistivity in the ferroelectric phase transition of Pb_1-_xGe_xTe[J]. Lettere Al Nuovo Cimento (1971—1985), 1984, 39(6): 81-85. DOI:10.1007/BF02787243.
[30]	PERUMAL S, ROYCHOWDHURY S, NEGI D S, et al. High thermoelectric performance and enhanced mechanical stability ofp-type Ge_1-_xSb_xTe[J]. Chemistry of Materials, 2015, 27(20): 7171-7178. DOI:10.1021/acs.chemmater.5b03434.
[31]	XU X, XIE L, LOU Q, et al. Boosting the thermoelectric performance of pseudo-layered Sb₂Te₃(GeTe)n viavacancy engineering[J]. Advanced Science, 2018, 5(12): 1801514. DOI:10.1002/advs.201801514.
[32]	PERUMAL S, BELLARE P, SHENOY U S, et al. Low thermal conductivity and high thermoelectric performance in Sb and Bi codoped GeTe: Complementary effect of band convergence and nanostructuring[J]. Chemistry of Materials, 2017, 29(24): 10426-10435.10.1021/acs.chemmater.7b04023.
[33]	ZHANG X Y, LI J, WANG X, et al. Vacancy manipulation for thermoelectric enhancements in GeTe alloys[J]. Journal of the American Chemical Society, 2018, 140(46): 15883-15888.DOI:10.1021/jacs.8b09375. pmid: 30265000
