基于主被动混合均衡的锂电池管理系统设计

doi:10.3976/j.issn.1002-4026.2025028

摘要/Abstract

摘要：

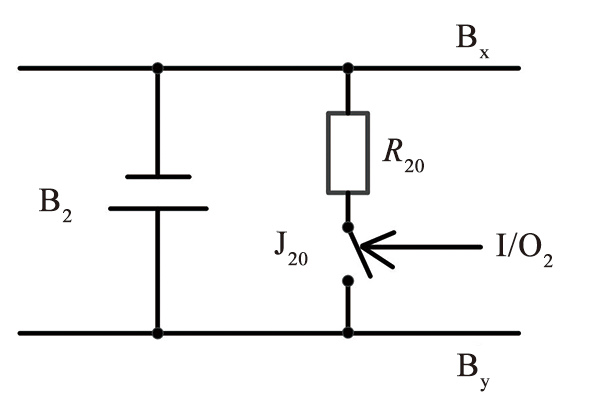

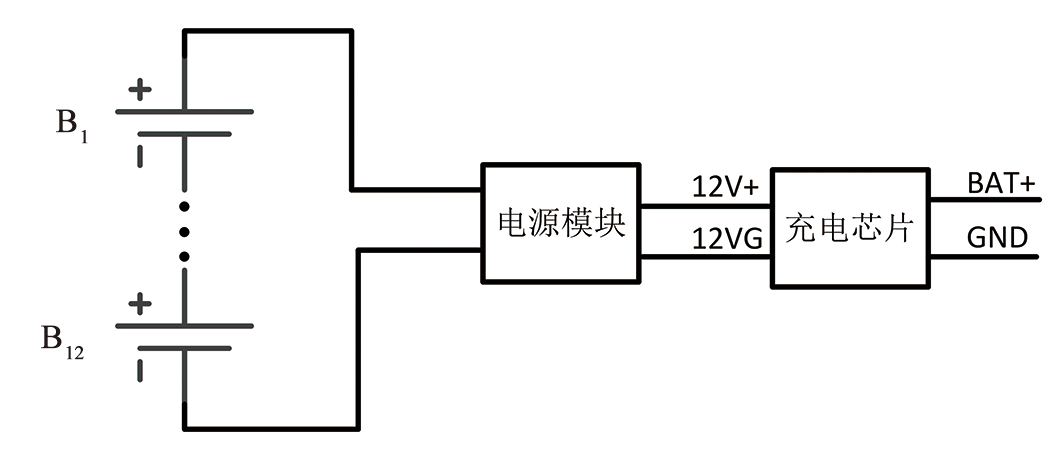

针对锂电池组因单体电池容量不一致导致的可用容量降低和寿命缩短问题,提出了一种基于主被动混合均衡的锂电池管理系统。该系统在充电阶段采用被动均衡“消峰”,通过负载电阻消耗电压最高电池的多余能量,在放电或静止阶段采用主动均衡“填谷”,利用整组能量为电压最低电池充电,从而提升整体性能。相较于传统反激式变压器方案,该设计电路更简单,且能同时满足充放电过程的实时均衡需求。实验结果表明,该系统显著提高了电池电压一致性,促进了容量恢复,为电池组的高效稳定运行提供了可靠保障。

关键词: 锂离子电池组, 电池管理系统, 混合均衡, 电压一致性

Abstract:

To address the issues of reduced available capacity and shortened lifespan in lithium battery packs caused by inconsistent capacities of individual cells, this paper proposes a lithium battery management system based on hybrid passive-active balancing. The system employs passive balancing for “peak clipping” during the charging phase by dissipating excess energy from the highest-voltage battery cell through a load resistor. During the discharging or idle phase, active balancing is used for “valley filling” by charging the battery cell with the lowest voltage using the energy from the entire pack, thereby enhancing the overall performance. Compared with traditional flyback transformer-based solutions, the proposed design features a simpler circuit and can meet the real-time balancing requirements during charging and discharging processes. The experimental results show that the system significantly improves the voltage consistency of the battery cells and facilitates capacity recovery, thus providing reliable support for the efficient and stable operation of the battery pack.

Key words: lithium-ion battery pack, battery management system, hybrid balancing, voltage consistency

中图分类号:

TP273

王培仑, 栾兰, 李建, 刘宗振. 基于主被动混合均衡的锂电池管理系统设计[J]. 山东科学, 2026, 39(3): 121-128.

WANG Peilun, LUAN Lan, LI Jian, LIU Zongzhen. Design of a lithium battery management system based on hybrid active-passive balancing[J]. Shandong Science, 2026, 39(3): 121-128.

图/表 8

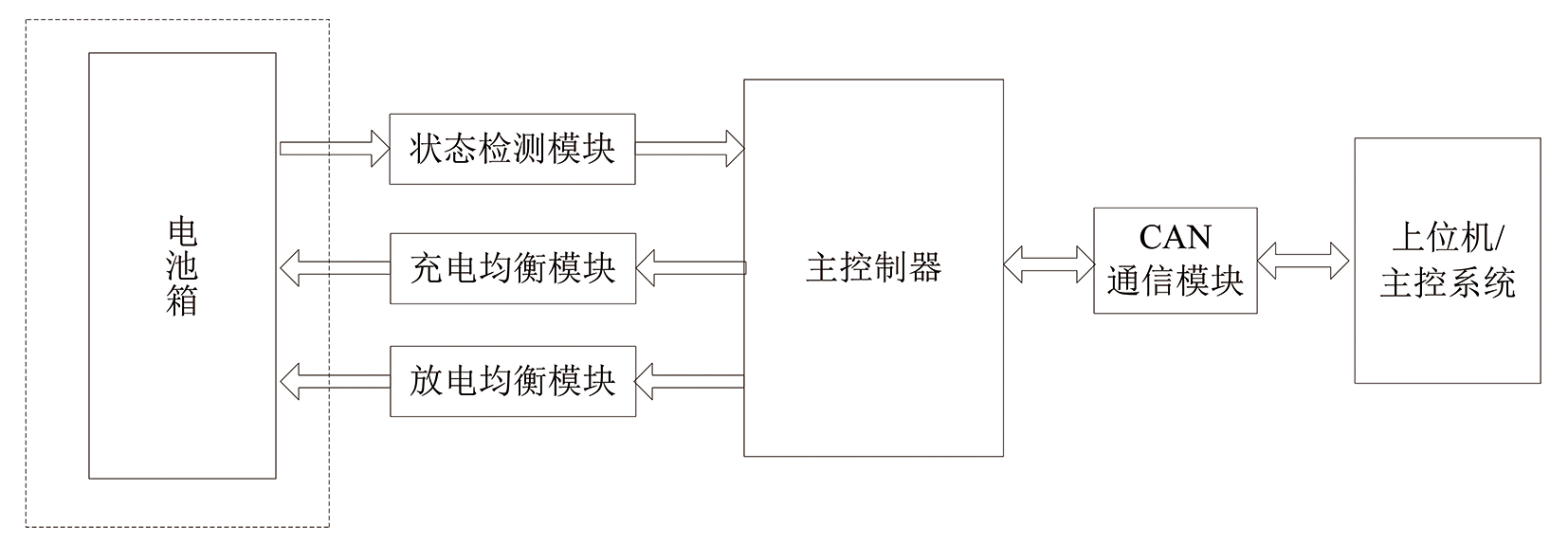

图1

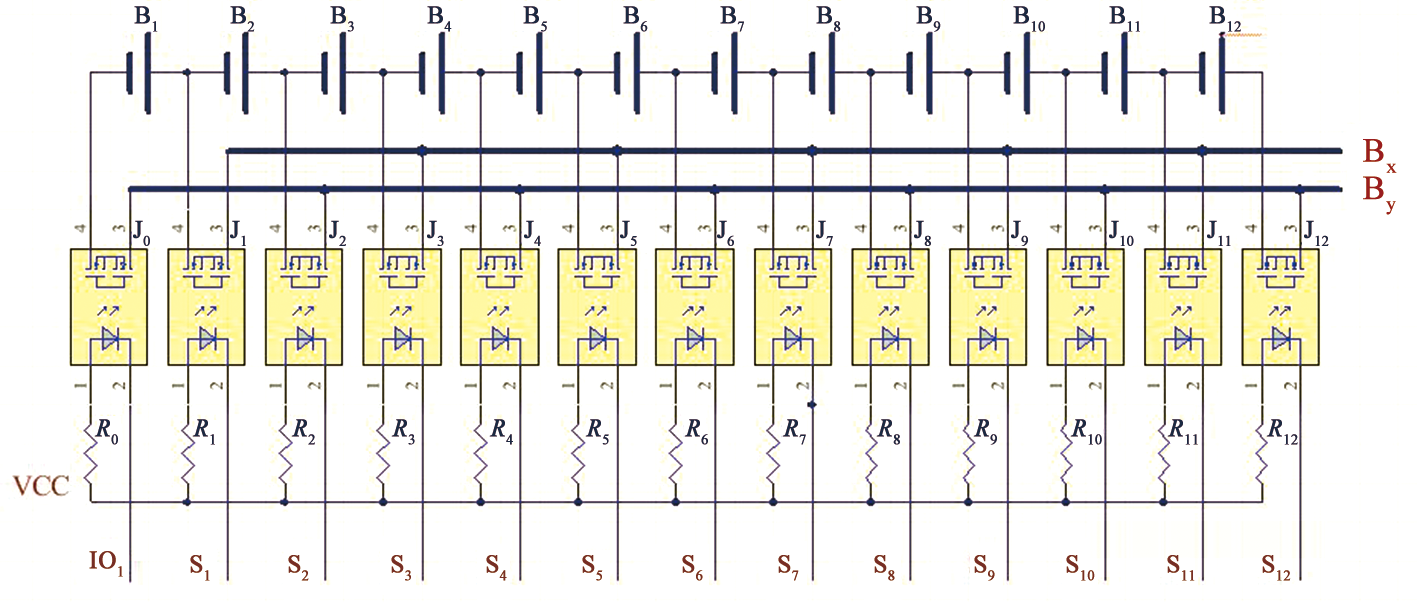

图2

图3

图4

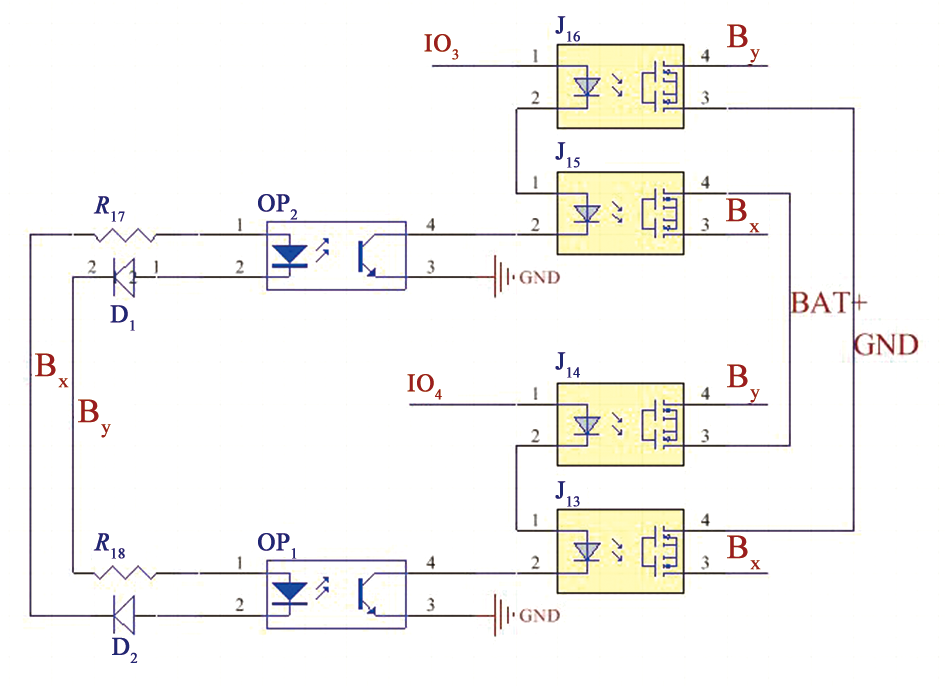

图5

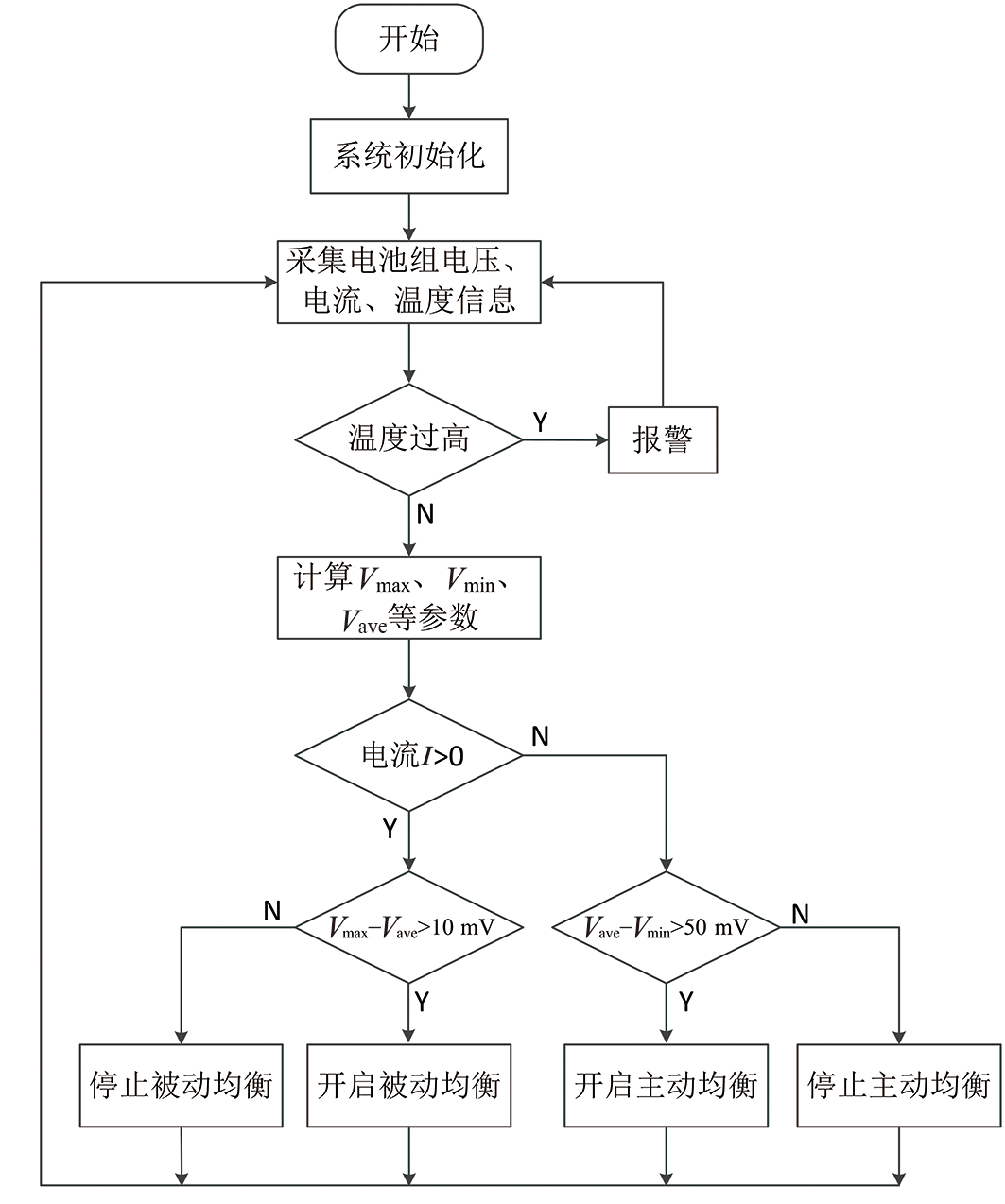

图6

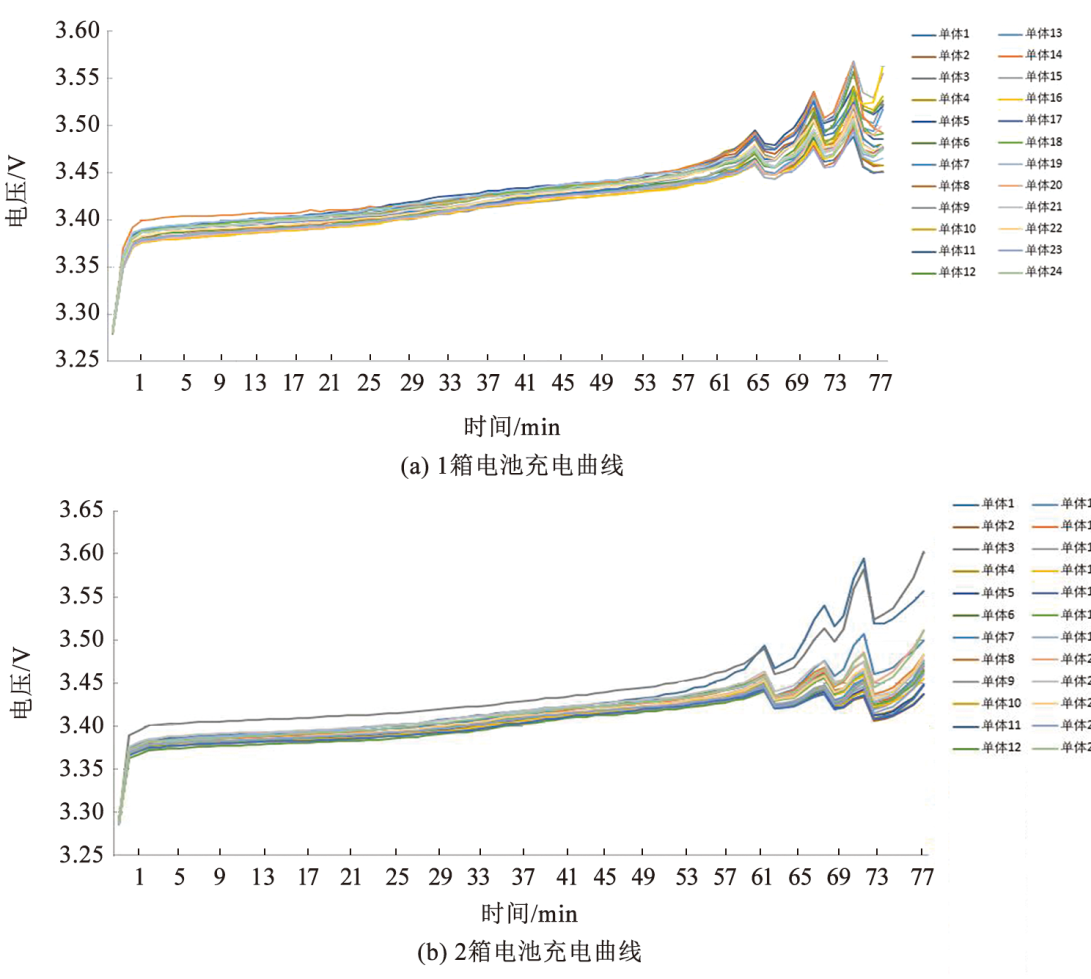

图7

表1

参考文献 24

[1]	徐俊, 郭喆晨, 谢延敏, 等. 储能锂电池系统综合管理研究进展[J]. 西安交通大学学报, 2024, 58(10): 1-23. DOI:10.7652/xjtuxb202410001.
[2]	郭向伟, 王晨, 钱伟, 等. 电池储能系统均衡方法研究综述[J]. 电工技术学报, 2024, 39(13): 4204-4225. DOI:10.19595/j.cnki.1000-6753.tces.230684.
[3]	GUO X W, WU Q, XING C, et al. An active equalization method based on an inductor and a capacitor for series battery pack[J]. IEEE Transactions on Power Electronics, 2023, 38(3): 4040-4052. DOI:10.1109/TPEL.2022.3222333.
[4]	杜吉祥. 电池管理系统被动全均衡技术研究[D]. 重庆: 重庆理工大学, 2022.
[5]	刘红锐, 李海瑞, 韦向阳, 等. 一种模块化的高性能蓄电池均衡器研究[J]. 电工技术学报, 2023, 38(17): 4574-4585. DOI:10.19595/j.cnki.1000-6753.tces.221212.
[6]	阮观强, 曹金良, 符啸宇, 等. 主被动均衡电池管理系统设计[J]. 科学技术与工程, 2023, 23(34): 14609-14617. DOI:10.3969/j.issn.1671-1815.2023.34.016.
[7]	VOUGA T, BAUD R, FASOLA J, et al. INSPIIRE-a modular and passive exoskeleton to investigate human walking and balance[C]// 2023 International Conference on Rehabilitation Robotics (ICORR). Singapore: IEEE, 2023: 1-6. DOI:10.1109/ICORR58425.2023.10304706.
[8]	郭兆东. 储能锂电池状态估计及主动均衡策略研究[D]. 北京: 北方工业大学, 2024. DOI:10.26926/d.cnki.gbfgu.2024.000425.
[9]	陈涛. 电池系统均衡技术研究[J]. 通信电源技术, 2020, 37(9): 32-35. DOI:10.19399/j.cnki.tpt.2020.09.008.
[10]	KIM C H, PARK H S, KIM C E, et al. Individual charge equalization converter with parallel primary winding of transformer for series connected lithium-ion battery strings in an HEV[J]. Journal of Power Electronics, 2009, 9(3):472-480.
[11]	蔡敏怡, 张娥, 林靖, 等. 串联锂离子电池组均衡拓扑综述[J]. 中国电机工程学报, 2021, 41(15): 5294-5311. DOI:10.13334/j.0258-8013.pcsee.201749.
[12]	QU F, LUO Q M, LIANG H, et al. Systematic overview of active battery equalization structures: Mathematical modeling and performance evaluation[J]. IEEE Transactions on Energy Conversion, 2022, 37(3): 1685-1703. DOI:10.1109/TEC.2022.3142818.
[13]	GHAEMINEZHAD N, OUYANG Q, HU X S, et al. Active cell equalization topologies analysis for battery packs: A systematic review[J]. IEEE Transactions on Power Electronics, 2021, 36(8): 9119-9135. DOI:10.1109/TPEL.2021.3052163.
[14]	FENG F, HU X S, LIU J F, et al. A review of equalization strategies for series battery packs: Variables, objectives, and algorithms[J]. Renewable and Sustainable Energy Reviews, 2019, 116: 109464. DOI:10.1016/j.rser.2019.109464.
[15]	邓端庆, 罗文广. 基于SOC的储能锂电池分层主动均衡研究[J]. 自动化仪表, 2025, 46(3): 13-18. DOI:10.16086/j.cnki.issn1000-0380.2024020059.
[16]	GALLARDO-LOZANO J, ROMERO-CADAVAL E, MILANES-MONTERO M I, et al. Battery equalization active methods[J]. Journal of Power Sources, 2014, 246: 934-949. DOI:10.1016/j.jpowsour.2013.08.026.
[17]	KIM M Y, KIM C H, CHO S Y, et al. A cell selective charge equalizer using multi-output converter with auxiliary transformer[C]// 8th International Conference on Power Electronics - ECCE Asia. Jeju: IEEE, 2011: 310-317. DOI:10.1109/ICPE.2011.5944610.
[18]	NAZI H, BABAEI E. A modularized bidirectional charge equalizer for series-connected cell strings[J]. IEEE Transactions on Industrial Electronics, 2021, 68(8): 6739-6749. DOI:10.1109/TIE.2020.3003661.
[19]	LI Y, XU J, MEI X S, et al. A unitized multiwinding transformer-based equalization method for series-connected battery strings[J]. IEEE Transactions on Power Electronics, 2019, 34(12): 11981-11989. DOI:10.1109/TPEL.2019.2910205.
[20]	SHANG Y L, CUI N X, ZHANG C H. An optimized any-cell-to-any-cell equalizer based on coupled half-bridge converters for series-connected battery strings[J]. IEEE Transactions on Power Electronics, 2019, 34(9): 8831-8841. DOI:10.1109/TPEL.2018.2888514.
[21]	QIN D C, QIN S, WANG T T, et al. Balanced control system based on bidirectional flyback DC converter[J]. Energies, 2022, 15(19): 7226. DOI:10.3390/en15197226.
[22]	孙秀娟, 姜宇, 王传江, 等. 基于LTC6804的电池组主动均衡实验设计[J]. 电气电子教学学报, 2024, 46(5): 209-213. DOI:10.3969/j.issn.1008-0686.2024.05.049.
[23]	徐鹏. 锂离子电池组主动均衡电路的研究及设计[D]. 广州: 华南理工大学, 2023. DOI:10.27151/d.cnki.ghnlu.2023.003642.
[24]	沈镇, 张陈斌, 陈宗海, 等. 基于双向反激式变压器的锂离子电池组主动均衡系统设计[C]// 第18届中国系统仿真技术及其应用学术年会论文集. 兰州, 2017: 303-307.

状态	箱组号	有/无均衡	V_max/V	V_min/V	压差/mV	标准差/mV
初始状态	1-1	有	3.640	3.631	9	248
	1-2	无	3.630	3.619	11	226
	2-1	有	3.636	3.631	5	160
	2-2	无	3.639	3.634	5	130
当前状态	1-1	有	3.576	3.514	62	1 653
	1-2	无	3.604	3.381	223	4 701
	2-1	有	3.594	3.547	47	1 178
	2-2	无	3.613	3.478	135	4 471
