离子液体吸收式制冷工质对气液相平衡研究及其分子动力学模拟

doi:10.3976/j.issn.1002-4026.20230138

山东科学 ›› 2024, Vol. 37 ›› Issue (4): 84-92.doi: 10.3976/j.issn.1002-4026.20230138

离子液体吸收式制冷工质对气液相平衡研究及其分子动力学模拟

张浩然(), 陈伟()

青岛科技大学机电工程学院,山东青岛 266061

收稿日期:2023-09-16 出版日期:2024-08-20 发布日期:2024-08-05
通信作者: 陈伟 E-mail:zhanghr9811@163.com;cw_19344616@aliyun.com
作者简介:张浩然(1998—),男,硕士研究生,研究方向为吸收式制冷。E-mail: zhanghr9811@163.com
基金资助:
山东省自然科学基金项目(ZR2020ME172)

Study on gas-liquid phase equilibrium properties of ionic liquid absorption refrigeration working pairs and their molecular dynamics simulations

ZHANG Haoran(), CHEN Wei()

College of Electromechanical Engineering, Qingdao University of Science &Technology, Qingdao 266061, China

Received:2023-09-16 Online:2024-08-20 Published:2024-08-05
Contact: CHEN Wei E-mail:zhanghr9811@163.com;cw_19344616@aliyun.com

摘要/Abstract

摘要：

为了克服传统吸收式制冷工质对的种种缺陷,离子液体型制冷工质对被视作理想替代品,得到了广泛的开发与应用。采用静态实验和分子动力学模拟两种方法,对[EMIM]BF₄/CH₃OH离子液体二元体系的气液相平衡性质展开研究。研究结果显示,[EMIM]BF₄/CH₃OH离子液体二元溶液具有良好的气液相平衡性质,实验测得饱和蒸气压比其他醇类离子液体二元溶液低约21%;模拟结果与实验值有相同的数量级和变化趋势,相对误差普遍小于8%。研究结果为离子液体制冷工质对的筛选和进一步的理论循环系统研究提供了物性数据基础,另一方面也为离子液体基础物性研究提供了一种模拟预测的新方法。

关键词: 离子液体, 吸收式制冷, 分子动力学模拟, 气液相平衡

Abstract:

To overcome the shortcomings of traditional absorption refrigeration working pairs, ionic liquid refrigeration working pairs have been widely developed and used as ideal substitutes. Herein, the gas-liquid phase equilibrium properties of the [EMIM]BF₄/CH₃OH ionic liquid binary system were investigated using static experiments and molecular dynamics simulations. The results reveal that this binary solution shows favorable gas-liquid phase equilibrium properties, and its saturated vapor pressure is experimentally measured to be approximately 21% lower than that of other alcohol-based ionic liquid solutions. In addition, the simulation results exhibit the same order of magnitude and trend as the experimental results, and the relative errors are generally less than 8%. These findings provide physical property database for screening ionic liquid refrigeration working pairs and studying the theoretical cycle system as well as a new method for simulating and predicting the basic properties of ionic liquids.

Key words: ionic liquid, absorption refrigeration, molecular dynamics simulation, gas-liquid phase equilibrium

中图分类号:

TB612

张浩然, 陈伟. 离子液体吸收式制冷工质对气液相平衡研究及其分子动力学模拟[J]. 山东科学, 2024, 37(4): 84-92.

ZHANG Haoran, CHEN Wei. Study on gas-liquid phase equilibrium properties of ionic liquid absorption refrigeration working pairs and their molecular dynamics simulations[J]. Shandong Science, 2024, 37(4): 84-92.

图/表 9

图1

图2

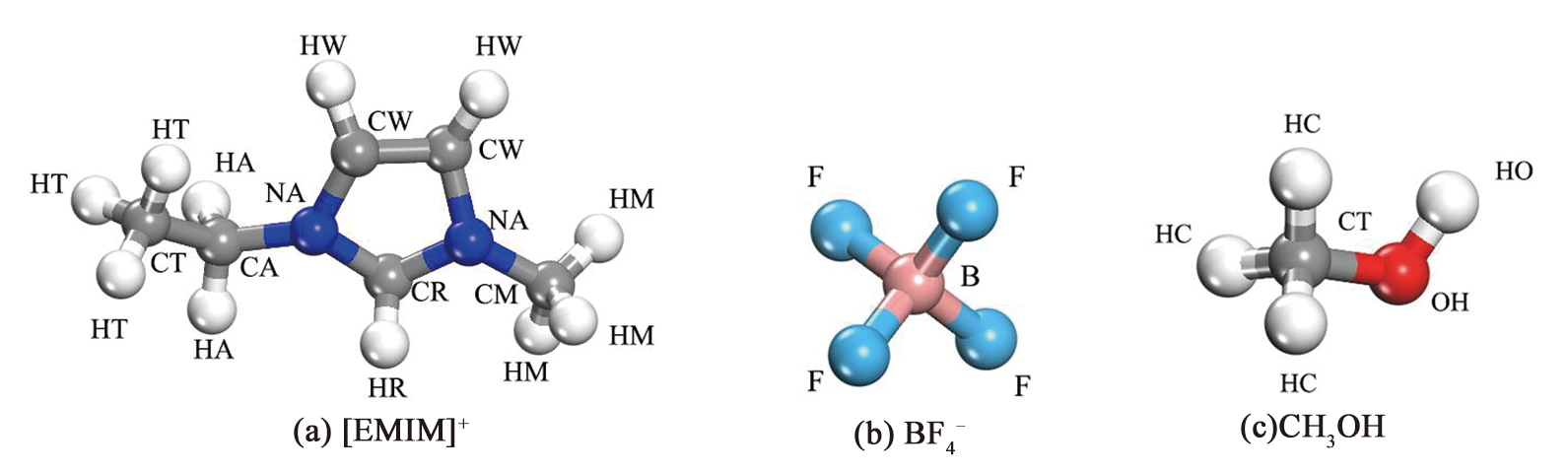

表1

[EMIM]BF4阳离子、阴离子和CH3OH的非键参数"

	类型	q/e	s/Å	ε/(kcal·mol^-1)	类型	q/e	s/Å	ε/(kcal·mol^-1)
	NA	0.176	3.25	0.170	$BF 4 -$	B	0.662 0	3.5814	0.095
	CR	-0.072	3.55	0.070	$BF 4 -$	F	-0.365 5	3.1181	0.060
	CW	-0.192	3.55	0.070	CH₃OH	CT	-0.289 6	3.500	0.066
	CM	-0.280	3.50	0.066		HC	0.091 5	2.500	0.030
	CA	-0.136	3.50	0.066		OH	-0.588 1	3.120	0.170
[EMIM]⁺	CT	-0.192	3.50	0.066		HO	0.405 9	0.000	0.000
	HR	0.168	2.42	0.030
	HW	0.216	2.42	0.030
	HM	0.144	2.50	0.030
	HA	0.144	2.50	0.030
	HT	0.064	2.50	0.030

表1

图3

图4

图5

图6

图7

图8

参考文献 20

[1]	曹莉萍, 周冯琦. 能源革命背景下中国能源系统转型的挑战与对策研究[J]. 中国环境管理, 2017, 9(5): 84-89. DOI: 10.16868/j.cnki.1674-6252.2017.05.084.
[2]	JOUHARA H, KHORDEHGAH N, ALMAHMOUD S, et al. Waste heat recovery technologies and applications[J]. Thermal Science and Engineering Progress, 2018, 6: 268-289. DOI: 10.1016/j.tsep.2018.04.017.
[3]	郭少欣, 张杰, 罗昊敏. 低品位工业余热采集方法优化研究[J]. 节能, 2020, 39(3): 95-99.
[4]	WANG J Z, ZHENG D X, FAN L H, et al. Vapor pressure measurement for the water + 1, 3-dimethylimidazolium chloride system and 2, 2, 2-trifluoroethanol + 1-ethyl-3-methylimidazolium tetrafluoroborate system[J]. Journal of Chemical & Engineering Data, 2010, 55(6): 2128-2132. DOI: 10.1021/je900738e.
[5]	KHAMOOSHI M, PARHAM K, ATIKOL U. Overview of ionic liquids used as working fluids in absorption cycles[J]. Advances in Mechanical Engineering, 2013, 5: 620592. DOI: 10.1155/2013/620592.
[6]	张芳芳, 陈更, 郑飞飞, 等. 离子液体工质对吸收制冷循环研究进展[J]. 现代化工, 2019, 39(2): 36-40.
[7]	MEYER T, SCHULZE U. Experimental data on mutual mass diffusivities of binary mixtures of ethanol and[EMIM][DEP][J]. Chemical Engineering & Technology, 2019, 42(7): 1414-1420. DOI: 10.1002/ceat.201900027.
[8]	FERWATI M S, AHMAD A M, TAKALKAR G D, et al. Energy and exergy analysis of parallel flow double effect H₂O-[MMIM][DMP]absorption refrigeration system for solar powered district cooling[J]. Case Studies in Thermal Engineering, 2021, 28: 101382. DOI: 10.1016/j.csite.2021.101382.
[9]	de ARAÚJO H V, MASSUCHETTO L H P, do NASCIMENTO R B C, et al. Thermodynamic performance analysis of a single-effect absorption refrigeration system operating with water and 1-ethyl-3-methylimidazolium-based ionic liquids mixtures[J]. Applied Thermal Engineering, 2022, 201: 117761. DOI: 10.1016/j.applthermaleng.2021.117761.
[10]	ZHANG X D, HU D P, ZHAO Z C. Measurement and prediction of vapor pressure for H₂O+CH₃OH/C₂H₅OH⁺[BMIM][DBP]ternary working fluids[J]. Chinese Journal of Chemical Engineering, 2013, 21(8): 886-893. DOI: 10.1016/s1004-9541(13)60544-3.
[11]	KRÓLIKOWSKA M, PADUSZYѝSKI K, ZAWADZKI M. (Vapor+ liquid) phase equilibria of an aqueous solution of bromide-based ionic liquids-measurements, correlations andapplication to absorption cycles[J]. Fluid Phase Equilibria, 2019, 494: 201-211. DOI: 10.1016/j.fluid.2019.05.003.
[12]	DODDA L S, CABEZA DE VACA I, TIRADO-RIVES J, et al. LigParGen web server: an automatic OPLS-AA parameter generator for organic ligands[J]. Nucleic Acids Research, 2017, 45(W1): W331-W336. DOI: 10.1093/nar/gkx312.
[13]	SAMBASIVARAO S V, ACEVEDO O. Development of OPLS-AA force field parameters for 68 unique ionic liquids[J]. Journal of Chemical Theory and Computation, 2009, 5(4): 1038-1050. DOI: 10.1021/ct900009a. pmid: 26609613
[14]	DOHERTY B, ZHONG X, GATHIAKA S, et al. Revisiting OPLS force field parameters for ionic liquid simulations[J]. Journal of Chemical Theory and Computation, 2017, 13(12): 6131-6145. DOI: 10.1021/acs.jctc.7b00520. pmid: 29112809
[15]	JORGENSEN W L, MAXWELL D S, TIRADO-RIVES J. Development and testing of the OPLS all-atom force field on conformational energetics and properties of organic liquids[J]. Journal of the American Chemical Society, 1996, 118(45): 11225-11236. DOI: 10.1021/ja9621760.
[16]	VERCHER E, LLOPIS F J, GONZÁLEZ-ALFARO V, et al. Volumetric properties, viscosities and refractive indices of binary liquid mixtures of tetrafluoroborate-based ionic liquids with methanol at several temperatures[J]. The Journal of Chemical Thermodynamics, 2015, 90: 174-184.
[17]	JARADAT A, AL-SALMAN R, OBEIDAT A. Molecular dynamics simulation of vapor-liquid equilibrium in 1-alkanol unary systems: a study of surface tension, density, and vapor pressure of TraPPE-UA force field[J]. Fluid Phase Equilibria, 2024, 577: 113967. DOI: 10.1016/j.fluid.2023.113967.
[18]	LI X M, SHEN C, LI C X. Effect of mono- and di-ethanolammonium formate ionic liquids on the volatility of water, ethanol, and methanol[J]. Chinese Journal of Chemical Engineering, 2013, 21(10): 1162-1171. DOI: 10.1016/s1004-9541(13)60582-0.
[19]	ZHAO J, JIANG X C, LI C X, et al. Vapor pressure measurement for binary and ternary systems containing a phosphoric ionic liquid[J]. Fluid Phase Equilibria, 2006, 247(1/2): 190-198. DOI: 10.1016/j.fluid.2006.07.007.
[20]	赵杰, 梁世强, 陈坚, 等. 离子液体1, 3-二甲基咪唑磷酸二甲酯盐-甲醇浓溶液气液平衡[J]. 化学工程, 2010, 38(3): 52-56.
