应用绿色功能化重质碳酸钙制备高尺寸稳定性的硬质聚氯乙烯发泡板材

doi:10.3976/j.issn.1002-4026.20230035

山东科学 ›› 2024, Vol. 37 ›› Issue (1): 59-68.doi: 10.3976/j.issn.1002-4026.20230035

应用绿色功能化重质碳酸钙制备高尺寸稳定性的硬质聚氯乙烯发泡板材

宋世凯¹, 刘孝阳², 郭玉霞², 赵帅¹, 李琳¹^,^*()

1.青岛科技大学高分子科学与工程学院,山东青岛 266042
2.日科化学有限公司,山东潍坊 262400

收稿日期:2023-02-22 出版日期:2024-02-20 发布日期:2024-01-26
通信作者: 李琳 E-mail:qustlilin@163.com
作者简介:宋世凯(1997—),男,硕士研究生,研究方向为功能化改性重质碳酸钙对硬质PVC发泡板材尺寸稳定性的影响。
基金资助:
国家自然科学基金项目(51603111);国家自然科学基金项目(5170311);山东省自然科学基金面上项目(ZR2021ME107);中国博士后科学基金项目(2022M721903);中国博士后科学基金项目(2021M700553);中国博士后科学基金项目(2020M672014);建新赵氏科技股份有限公司博士后项目

Application of green functionalized heavy calcium carbonate in rigid PVC foam sheet with high dimensional stability

SONG Shikai¹, LIU Xiaoyang², GUO Yuxia², ZHAO Shuai¹, LI Lin¹^,^*()

1. College of Polymer Science and Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
2. Rike Chemical Co., Ltd., Weifang 262400, China

Received:2023-02-22 Online:2024-02-20 Published:2024-01-26
Contact: LI Lin E-mail:qustlilin@163.com

摘要/Abstract

摘要：

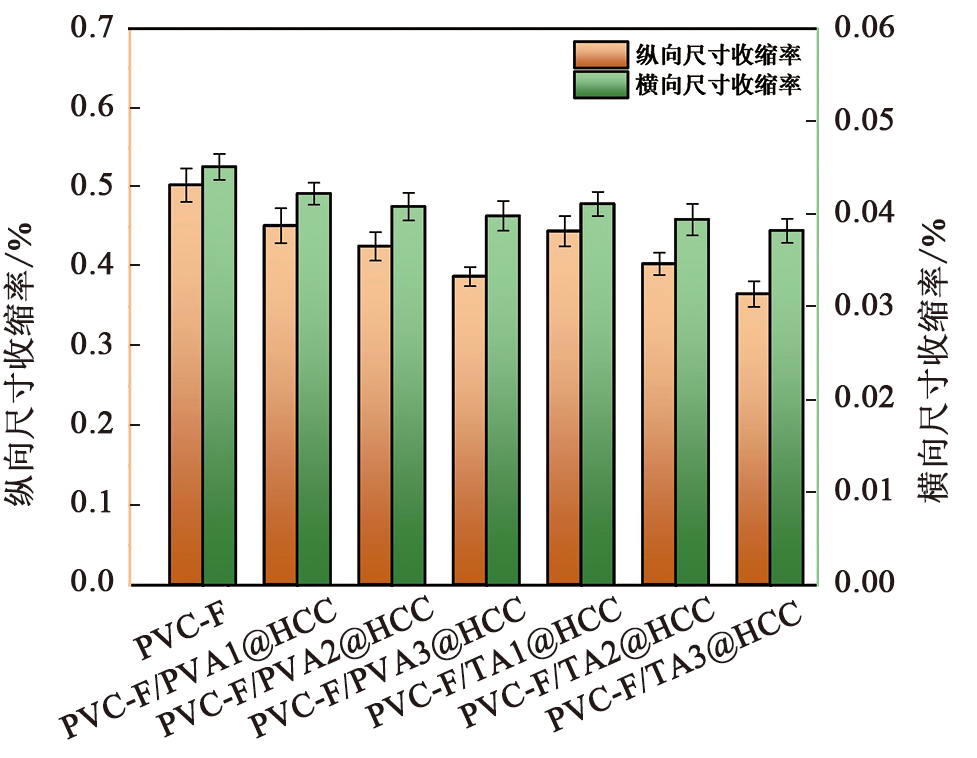

氯乙烯(polyvinyl chloride,PVC)发泡板材使用低聚合度PVC 挤出发泡制得,PVC发泡板材受环境变化易沿着分子链受力方向发生链段的卷曲运动,导致板材发生收缩变形。重质碳酸钙(HCC)作为原料,聚乙烯醇(PVA)、单宁酸(TA)作为改性剂,制备了改性HCC。将其与PVC结合,制备了PVC发泡板材。利用红外光谱仪、差示扫描量热仪、扫描电子显微镜、维卡软化点测定仪、万能电子拉伸机对发泡板材进行表征,探讨了改性剂用量对发泡板材的尺寸稳定性的影响。研究结果表明,当TA含量是HCC的3%时,PVC发泡板材的玻璃化温度是88.1 ℃,维卡软化点温度是75.21 ℃,PVC发泡板材具有优异的尺寸稳定性;同时泡孔结构稳定均一,具有最佳的拉伸强度,为6.17 MPa。改性HCC颗粒分散性好,与PVC结合能力强,高尺寸稳定性的PVC发泡板材可以代替木材在家装板材的使用,对保护环境具有重要的意义。

关键词: 聚氯乙烯, 挤出发泡, 填料改性, 尺寸稳定性, 氢键自组装

Abstract:

Polyvinyl chloride (PVC) foam board is prepared by extrusion foaming of PVC with low polymerization degree, and the PVC foam board is prone to curling movement along the force direction of the molecular chain due to environmental changes, resulting in shrinkage and deformation of the board. Heavy calcium carbonate (HCC) was used as raw material, polyvinyl alcohol (PVA) and tannic acid (TA) were used as modifiers to prepare modified HCC. It was combined with PVC to prepare PVC foam sheets. Infrared spectrometer, differential scanning calorimeter, scanning electron microscope, Vicat softening point tester and universal electronic stretching machine were used to characterize the foamed board, and the effect of modifier dosage on the dimensional stability of the foamed board was discussed. The results show that when the TA content is 3% of HCC, the glass transition temperature of PVC foam board is 88.1 ℃, the temperature of Vicat softening point is 75.21 ℃, and the PVC foam board has excellent dimensional stability, and the cell structure is stable and uniform, and has the best tensile strength of 6.17 MPa. Modified HCC particles have good dispersion, strong binding ability with PVC, and high dimensional stability of PVC foam board can replace the use of wood in home decoration boards, which is of great significance to protect the environment.

Key words: polyvinyl chloride, extrusion foaming, filler modification, dimensional stability, hydrogen bond self-assembly

中图分类号:

TQ328

宋世凯, 刘孝阳, 郭玉霞, 赵帅, 李琳. 应用绿色功能化重质碳酸钙制备高尺寸稳定性的硬质聚氯乙烯发泡板材[J]. 山东科学, 2024, 37(1): 59-68.

SONG Shikai, LIU Xiaoyang, GUO Yuxia, ZHAO Shuai, LI Lin. Application of green functionalized heavy calcium carbonate in rigid PVC foam sheet with high dimensional stability[J]. Shandong Science, 2024, 37(1): 59-68.

图/表 9

表1

图1

图2

表2

图3

图4

图5

表3

表4

参考文献 32

[1]	ZHOU Y G, ZHAO X D, DONG B B, et al. Improvement of the dispersity of micro-nano particles for PP/PVC composites using gas-assisted dispersion in a controlled foaming process[J]. Polymer Engineering & Science, 2020, 60(3): 524-534. DOI: 10.1002/pen.25308.
[2]	王美英. 低密度隔音保温PVC复合材料的制备及性能研究[J]. 塑料科技, 2022, 50(2): 51-54. DOI: 10.15925/j.cnki.issn1005-3360.2022.02.013.
[3]	GORDANA B, EAVES D. Handbook of polymer foams[J]. Polimeri, 2004, 25(1/2):57-57.
[4]	LUONG D D, PINISETTY D, GUPTA N. Compressive properties of closed-cell polyvinyl chloride foams at low and high strain rates: Experimental investigation and critical review of state of the art[J]. Composites Part B: Engineering, 2013, 44(1): 403-416. DOI: 10.1016/j.compositesb.2012.04.060.
[5]	SHI A H, ZHANG G, PAN H, et al. Preparation and properties of rigid cross-linked PVC foam[J]. Advanced Materials Research, 2011, 311/312/313: 1056-1060. DOI: 10.4028/www.scientific.net/AMR.311-313.1056.
[6]	SHI A H, ZHANG G C, ZHAO C H. Study of rigid cross-linked PVC foams with heat resistance[J]. Molecules (Basel, Switzerland), 2012, 17(12): 14858-14869. DOI: 10.3390/molecules171214858.
[7]	HOSSIENYN J, BARZEGARI M R, NOFARM, et al. Crystallization of hard segment domains with the presence of butane for microcellular thermoplastic polyurethane foams[J]. Polymer, 2014, 55(2): 651-662. doi: 10.1016/j.polymer.2013.12.028
[8]	杨辉, 齐暑华, 赵小玲, 等. 改性纳米 CaCO₃ 填充硬质 PVC 泡沫塑料的研究[J]. 塑料加工, 2006(2):28-30.
[9]	XU L, TENG H, JIANG L, et al. The cell growth-induced orientation of mica in lightweight flexible poly (vinyl chloride) foams and its enhancement on sound insulation[J]. Composites Science and Technology, 2017, 145: 78-88. DOI: 10.1016/j.compscitech.2017.03.037.
[10]	LIU C, MA C X, GAO X P. Study on impact behavior of glass fiber/PVC curved sandwich structure composites[J]. Polymer Composites, 2023, 44(1): 365-376. DOI: 10.1002/pc.27102.
[11]	KHOSHNOUD P, ABU-ZAHRA N. Properties of rigid polyvinyl chloride foam composites reinforced with different shape fillers[J]. Journal of Thermoplastic Composite Materials, 2017, 30(11): 1541-1559. doi: 10.1177/0892705716646417
[12]	YE N, ZHANG W, LI D, et al. Dynamic response and failure of sandwich plates with PVC foam core subjected to impulsive loading[J]. International Journal of Impact Engineering, 2017, 109: 121-130. DOI: 10.1016/j.ijimpeng.2017.06.005.
[13]	CHEN Q H, TING L H, GAO Y, et al. Mechanical properties in glass fiber PVC-foam sandwich structures from different chopped fiber interfacial reinforcement through vacuum-assisted resin transfer molding (VARTM) processing[J]. Composites Science and Technology, 2017, 144: 202-207. DOI: 10.1016/j.compscitech.2017.03.033.
[14]	YE W Q, ZHANG L, FENG G W, et al. Preparation of calcium Carbonate@Methylmethacrylate nanoparticles by seeded-dispersion polymerization for high performance polyvinyl chloride nanocomposites[J]. Industrial & Engineering Chemistry Research, 2015, 54(30): 7459-7464. DOI: 10.1021/acs.iecr.5b01921.
[15]	詹锋, 陈南春, 黄斌, 等. 铝酸酯机械化学法接枝GCC增强PVC力学性能的研究[J]. 现代塑料加工应用, 2013, 25(3): 13-16. DOI: 10.3969/j.issn.1004-3055.2013.03.004.
[16]	BONADIES I, AVELLA M, AVOLIO R, et al. Poly(vinyl chloride)/CaCO₃ nanocomposites: influence of surface treatments on the properties[J]. Journal of Applied Polymer Science, 2011(6):122.
[17]	JIANG Z, WANG J W, GE R K, et al. The effects of surface modification of ground calcium carbonate powdery fillers on the properties of PVC[J]. Polymer Bulletin, 2018, 75(3): 1123-1139. DOI: 10.1007/s00289-017-2081-4.
[18]	MALLAKPOUR S, JAVADPOUR M. Effective methodology for the production of novel nanocomposite films based on poly(vinyl chloride) and zinc oxide nanoparticles modified with green poly(vinyl alcohol)[J]. Polymer Composites, 2017, 38(9): 1800-1809. DOI: 10.1002/pc.23750.
[19]	ALYOUSEF Z, ALMOBARKY M, SCHECHTER D. Enhancing the stability of foam by the use of nanoparticles[J]. Energy & Fuels, 2017, 31(10): 10620-10627. DOI: 10.1021/acs.energyfuels.7b01697.
[20]	WANG Z, KANG H J, ZHANG W, et al. Improvement of interfacial interactions using natural polyphenol-inspired tannic acid-coated nanoclay enhancement of soy protein isolate biofilms[J]. Applied Surface Science, 2017, 401: 271-282. DOI: 10.1016/j.apsusc.2017.01.015.
[21]	YANG C C, WU G M. Study of microporous PVA/PVC composite polymer membrane and it application to MnO₂ capacitors[J]. Materials Chemistry and Physics, 2009, 114(2/3): 948-955. DOI: 10.1016/j.matchemphys.2008.11.009.
[22]	全国塑料标准化技术委员会. 塑料拉伸性能的测定第3部分:薄膜和薄片的试验条件: GB/T 1040.3—2006[S]. 北京: 中国标准出版社, 2007.
[23]	全国塑料标准化技术委员会塑料树脂产品分会. 热塑性塑料维卡软化温度(VST)的测定: GB/T 1633—2000[S]. 北京: 中国标准出版社, 2004.
[24]	全国塑料标准化技术委员会. 塑料简支梁冲击性能的测定第1部分:非仪器化冲击试验: GB/T 1043.1—2008[S]. 北京: 中国标准出版社, 2009.
[25]	梁朝, 李春全, 孙志明, 等. 新型有机改性剂对重质碳酸钙的表面改性效果及机理[J]. 无机盐工业, 2022, 54(7): 70-77. DOI: 10.19964/j.issn.1006-4990.2021-0517.
[26]	胡盛, 袁晓慧, 谭志伟, 等. 硬脂酸钠对重质碳酸钙的干法改性研究[J]. 中国非金属矿工业导刊, 2020(2):8-10. DOI: 10.3969/j.issn.1007-9386.2020.02.003.
[27]	COLTON J, SUH N. The nucleation of microcellular thermoplastic foam with additives: Part I: Theoretical considerations[J]. Polymer Engineering and Science, 1987, 27: 485-492. DOI: 10.1002/PEN.760270702.
[28]	LEE S T. Shear effects on thermoplastic foam nucleation[J]. Polymer Engineering & Science, 1993, 33(7): 418-422. DOI: 10.1002/pen.760330707.
[29]	刘洁, 张丽丽, 邹鹏飞, 等. 环境温度对PVC低发泡板性能的影响[J]. 当代化工研究, 2022(24):57-59. DOI: 10.3969/j.issn.1672-8114.2022.24.017.
[30]	张振秀, 张殿奇, 孙晨曦, 等. 不同温度下增塑剂含量对聚氯乙烯板材超临界发泡性能的影响[J]. 青岛科技大学学报(自然科学版), 2022, 43(4): 69-77. DOI: 10.16351/j.1672-6987.2022.04.010.
[31]	周朋朋, 栾英豪, 马新胜. 纳米碳酸钙的改性及应用于聚氯乙烯的研究[J]. 塑料工业, 2014, 42(4):89-93. DOI: 10.3969/j.issn.1005-5770.2014.04.022.
[32]	TANG W Y, LIAO X, ZHANG Y, et al. Mechanical-microstructure relationship and cellular failure mechanism of silicone rubber foam by the cell microstructure designed in supercritical CO₂[J]. The Journal of Physical Chemistry C, 2019, 123(44): 26947-26956. DOI: 10.1021/acs.jpcc.9b06992.

样品	硬度/HD	密度/(g·cm^-3)
PVC-F	28.3	0.544
PVC-F/TA1@HCC	30.5	0.541
PVC-F/TA2@HCC	32.4	0.533
PVC-F/TA3@HCC	32.8	0.528
PVC-F/PVA1@HCC	29.3	0.542
PVC-F/PVA2@HCC	30.8	0.540
PVC-F/PVA3@HCC	31.3	0.537

样品	玻璃化转变温度/℃	熔融焓/(J·g^-1)
PVC-F	86.9	0.081 8
PVC-F/PVA1@HCC	87.2	0.073 4
PVC-F/PVA2@HCC	87.4	0.063 0
PVC-F/PVA3@HCC	87.8	0.054 8
PVC-F/TA1@HCC	87.5	0.069 6
PVC-F/TA2@HCC	87.9	0.059 2
PVC-F/TA3@HCC	88.1	0.050 9

样品	拉伸强度/MPa	冲击强度/ (J·cm^-2)	断裂伸长率/%
PVC-F	5.28	0.332	4.58
PVC-F/TA1@HCC	5.89	0.364	4.28
PVC-F/TA2@HCC	6.11	0.401	4.33
PVC-F/TA3@HCC	6.17	0.418	4.31
PVC-F/PVA1@HCC	5.51	0.352	4.56
PVC-F/PVA2@HCC	5.96	0.376	4.28
PVC-F/PVA3@HCC	6.08	0.391	4.15

应用绿色功能化重质碳酸钙制备高尺寸稳定性的硬质聚氯乙烯发泡板材

Application of green functionalized heavy calcium carbonate in rigid PVC foam sheet with high dimensional stability

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 32

相关文章 2

Metrics

本文评价

推荐阅读 0

[1]	谭双美, 关迎东, 赵帅, 李琳. 高耐磨导静电石墨烯杂化材料/丁苯/顺丁胎面胶的研制[J]. 山东科学, 2024, 37(2): 55-64.
[2]	李帅, 徐一涵, 孙雪梅, 麻晓飞, 孙成通, 卢世伟, 李洋. 气体反压化学发泡注塑产品泡孔结构形成与演变过程的实验研究[J]. 山东科学, 2020, 33(2): 33-39.

成分	PVC-F	PVC-F/TA1 @HCC	PVC-F/TA2 @HCC	PVC-F/TA3 @HCC	PVC-F/PVA1 @HCC	PVC-F/PVA2 @HCC	PVC-/FPVA3 @HCC
TA	0.0	3.6	4.8	6.0	0.0	0.0	0.0
PVA	0.0	0.0	0.0	0.0	0.03.6	4.8	6.0
